100 / 120 / 150 / 200 Watt Adjustable UFO High Bay | 14000 to 28000 Lumens | 5000K | 100-277V | Black

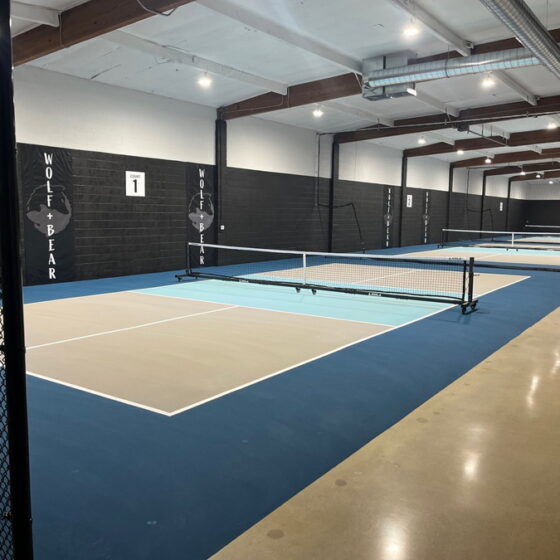

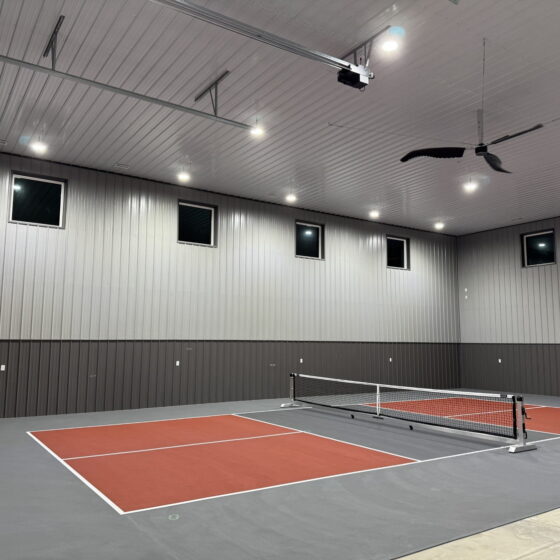

Our adjustable UFO-style high bay is the ideal solution for commercial, smaller industrial, and sports-related projects. It is constructed with a 120-degree optic standard, providing uniform light coverage in warehouses and shops where safety is top-of-mind. It can be equipped with a low-glare optic, ideal for spaces with high mounting height requirements. Commonly used in pickleball courts and other sport-court spaces, this fixture provides optimal visibility for players and spectators. This high bay is IP65-rated and designed to withstand moisture with minimal damage for a long-lasting solution.
Dwayne Kula | President, CTO and Founder
90 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 | 120 | 150 | 200 |
| Lumens | 14000 | 16800 | 21000 | 28000 |
| Lumens Per Watt | 140 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 170,000 (L70) hours |
| Mounting | Eye-Hook |
| Mounting (Opt) | Pendant |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 4kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | DLC Premium |
| Warranty | 5 years |
Measurements

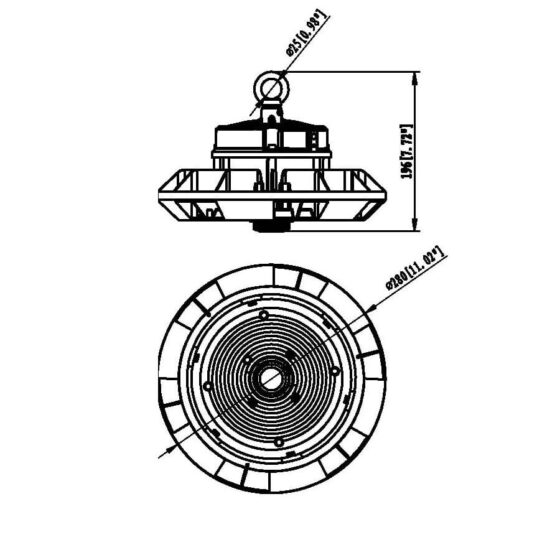

| Dimensions (in) | 11.02 X 7.72 |
| Weight (lbs) | 5.5 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Features/Accessories
- Wattage Adjustable
- Motion Sensor
- Dome
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 3 minutes
- Standby period: 5 minutes
- Standby Dimming Level: 50% brightness
Motion Sensor Operation: If purchasing a motion sensor with these UFO high bay lights please note that a remote control is also required. This will allow you to change the operation of the motion sensor to suit your needs.
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

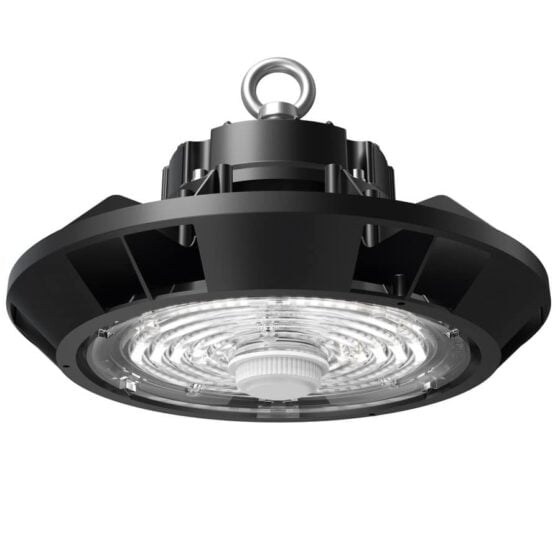

This adjustable UFO high bay provides 14,000 to 28,000 lumens at 5000K from a compact round fixture. It is configured for indoor high-bay lighting where output needs may vary between areas or during layout planning.
The fixture operates from 100-277V and uses selectable 100W, 120W, 150W, or 200W settings. It is listed as a replacement for 250W or 400W metal halide fixtures.
Core Performance and Output
Output ranges from 14,000 lumens at 100W to 28,000 lumens at 200W. Fixture efficacy is 140 lumens per watt with an 80+ CRI and 5000K color temperature.
The standard 120 degree beam angle provides broad distribution from the polycarbonate lens. Higher wattage settings increase output, but can produce excessive light levels or glare when mounted too low.
The fixture operates on 100-277V, 50/60Hz power. Power factor is 0.90 and total harmonic distortion is 20% maximum.
Adjustability and Control Options
Wattage is adjustable between 100W, 120W, 150W, and 200W. This allows output to be set after fixture placement is established.
1-10V dimming is included. A motion sensor is available for occupancy-based operation.
The default motion sensor configuration uses a 100% detection area, three-minute hold time, five-minute standby period, and 50% standby dimming level. A motion sensor remote control is required to change the default sensor settings.
Longevity and Reliability
The rated L70 life is 170,000 hours. The fixture includes 4kV surge protection.
Operating temperature range is -22F to 122F. Long-term performance depends on maintaining the fixture within its stated operating conditions.
Build Quality and Physical Characteristics

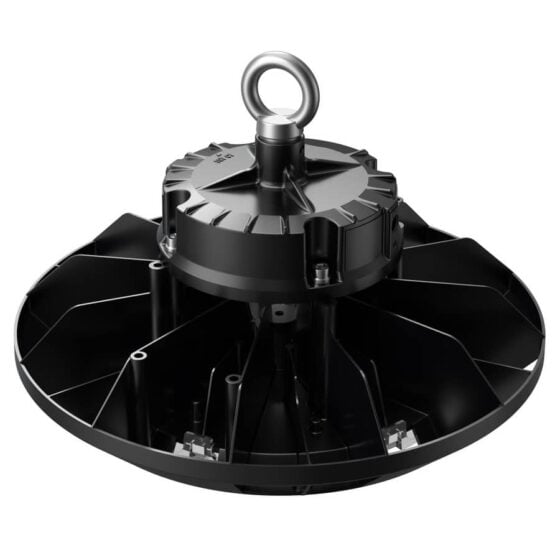

The fixture uses an aluminum alloy housing with a black finish. The polycarbonate lens protects the optical assembly.
It is rated IP65 and IK08. Fixture dimensions are 11.02 by 7.72 inches, and weight is 5.5 pounds.
A five-foot power cord and eight-inch dimming cord are provided. An eye-hook mount is standard, with pendant mounting available as an option.
Where This Product Fits Best
This UFO high bay is intended for enclosed high-ceiling applications that need broad downward distribution, adjustable output, and 100-277V operation.
- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- gymnasium lighting
- aircraft hangar lighting
- indoor sports facility lighting
- basketball court lighting
The IP65 and IK08 ratings support installations where fixture housing protection and impact resistance are required. The stated operating range supports locations within -22F to 122F.
Installation and Long-Term Use
The standard eye-hook mount supports suspended installation. Pendant mounting is available where a pendant configuration is required.
Fixture weight is 5.5 pounds before considering mounting components and wiring. The five-foot power cord and separate dimming cord need to be accounted for during installation.
For sensor-equipped fixtures, default settings remain in place unless changed with the required motion sensor remote control. One remote control is required per project.
How This Fixture Is Commonly Used
In warehouse lighting, manufacturing facility lighting, and distribution center lighting, fixtures are arranged in rows or grid patterns based on mounting height, target light levels, and the selected wattage setting. The 120 degree beam supports broad fixture-to-fixture distribution.
For gymnasium lighting, aircraft hangar lighting, indoor sports facility lighting, and basketball court lighting, fixture placement is coordinated with the activity area and ceiling structure. Higher output can reduce fixture count, but layout still needs to control glare and uniformity.
Wattage selection is commonly finalized after the mounting height and layout requirements are known. The adjustable output provides four available output levels without changing the fixture body.
Safety, Certifications, and Warranty
This fixture is ETL listed and DLC Premium listed.
It is rated IP65 and IK08. The warranty is five years.
Frequently Asked Questions
Q: What output levels are available?
A: The fixture has selectable 100W, 120W, 150W, and 200W settings producing 14,000, 16,800, 21,000, and 28,000 lumens.
Q: Does this UFO high bay support dimming?
A: Yes. The fixture supports 1-10V dimming.
Q: What mounting options are available?
A: Eye-hook mounting is standard. Pendant mounting is available as an option.
Q: Can the motion sensor default settings be changed?
A: Yes. A motion sensor remote control is required to change the default sensor settings.
Q: What are the default motion sensor settings?
A: Default settings are 100% detection area, three-minute hold time, five-minute standby period, and 50% standby dimming level.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse lighting and distribution center lighting?
A: The selectable 100W through 200W settings, 14,000 through 28,000 lumen output, and 120 degree beam angle support warehouse lighting and distribution center lighting layouts.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, selected wattage, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
Q: Can this fixture be used for gymnasium lighting or indoor sports facility lighting?
A: Gymnasium lighting and indoor sports facility lighting are valid applications. Fixture placement should account for the 120 degree beam angle and selected output level.
Q: What environmental ratings apply to this fixture?
A: The fixture is rated IP65 and IK08, with an operating temperature range of -22F to 122F.
