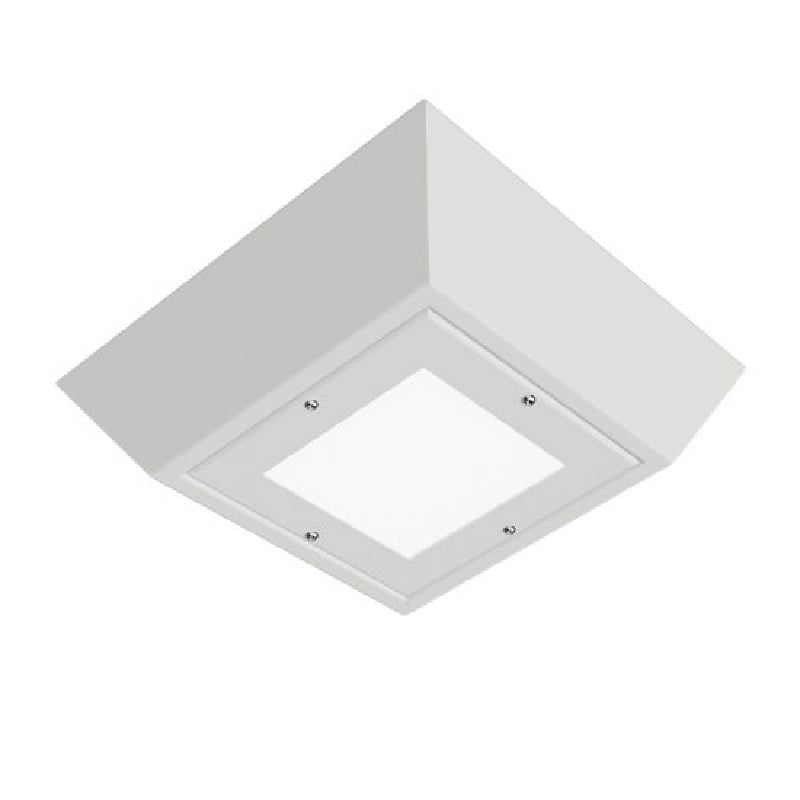

Detention Grade LED Canopy Light Wet Location | Up to 6000 Lumens | 120-277V | Ligature Resistant | USA Made | Built to Spec
This detention-grade canopy light is a practical choice for correctional facilities needing ligature-resistant, surface-mounted lighting. Its stainless steel housing, Torx fasteners, IP65 rating, and -22F to 122F operating range support demanding wet-location installations. Available from 2,000 to 6,000 lumens with selectable color temperatures, 80+ CRI, and 0-10V dimming, it can be tailored to facility needs. ETL listing, 100,000-hour L70 life, and a five-year warranty support long-term planning.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Lumens | 2000 to 6000 |
| Voltage | 120V-277V |
| Color Temperature | 3000K or 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Lifespan | 100,000 (L70) hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | >0.9 |
Durable Construction
| Housing | Stainless Steel |
| Fasteners | Torx Screws |
| IP Rating | IP65 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements

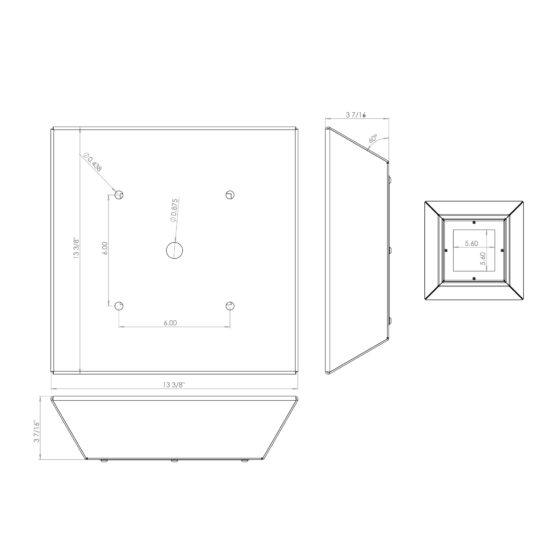

| Dimensions (in) | 13 3/8 x 13 3/8 x 3 7/16 |
Ordering information
Series
CCT
Output
Housing Material
Door Material
Inner Lens
Outer Lens
Voltage
Driver
Options
Product Overview
This detention grade LED canopy light is a surface-mounted fixture for secure indoor and wet-location installations. Its ligature-resistant stainless steel housing and Torx fasteners support use in detention and correctional environments where fixture construction is a primary selection factor.
The fixture is available with 2,000 to 6,000 lumens, 120-277V input, 80+ CRI, and 0-10V dimming. It is finished in white and measures 13 3/8 x 13 3/8 x 3 7/16 inches.
Core Performance and Output
Output options from 2,000 to 6,000 lumens allow the fixture to be selected for the illumination level needed within a secure canopy, corridor, cell, or other controlled area. Available color temperatures include 3000K, 3500K, 4000K, and 5000K.
The fixture operates on 120-277V, 50/60 Hz power and has a power factor greater than 0.9.
Adjustability and Control Options
This canopy light supports 0-10V dimming for installations using a compatible low-voltage dimming control system.
Longevity and Reliability
The LED system is rated for 100,000 hours L70 life. The fixture has an operating temperature range of -22 degrees F to 122 degrees F.
Build Quality and Physical Characteristics
The stainless steel housing, ligature-resistant construction, and Torx screw fasteners provide a secure physical configuration for detention-grade lighting installations. Its IP65 rating supports wet-location use.
Where This Product Fits Best
This surface-mounted canopy fixture is suited to secure facilities requiring a low-profile, ligature-resistant lighting configuration.
- detention facility lighting
- correctional facility lighting
- secure area lighting
- psychiatric facility lighting
- holding cell lighting
- secure corridor lighting
- tamper resistant lighting
Safety, Certifications, and Warranty
This fixture is ETL certified and carries a 5-year warranty.
Frequently Asked Questions
Q: What color temperatures are available for this detention grade canopy light?
A: This detention grade LED canopy light is available in 3000K, 3500K, 4000K, and 5000K color temperatures.
Q: Can this detention grade canopy light be dimmed?
A: Yes. This detention grade LED canopy light supports 0-10V dimming.
Q: What are the dimensions of this canopy light?
A: This detention grade LED canopy light measures 13 3/8 x 13 3/8 x 3 7/16 inches.
