Detention Grade Vandal Resistant Recessed LED Panel | 1×4, 2×2 or 2×4 Sizes | Up to 30000 Lumens | IK10 | USA Made | Built to Spec

SKU: LLS-DG-RVR Web ID: 2799
View Full Spec Sheet See Product Description
Starting at: $588.00
Built to Spec 6 Weeks
Get Contractor or Bulk Pricing

Get your quote within 1 hour!

Call to Order: (888) 423-3191
This recessed LED panel is well suited to correctional and detention facilities where impact resistance and tamper-resistant installation are priorities. Its IK10 rating, 20-gauge cold roll steel housing, and T25 TORX fasteners support demanding environments, while 2,000 to 30,000 lumen options, multiple color temperatures, and 0-10V dimming allow the lighting to be matched to the space. ETL listing, broad voltage options, and a 100,000-hour L70 lifespan support long-term facility planning.

Dwayne Kula | President, CTO and Founder

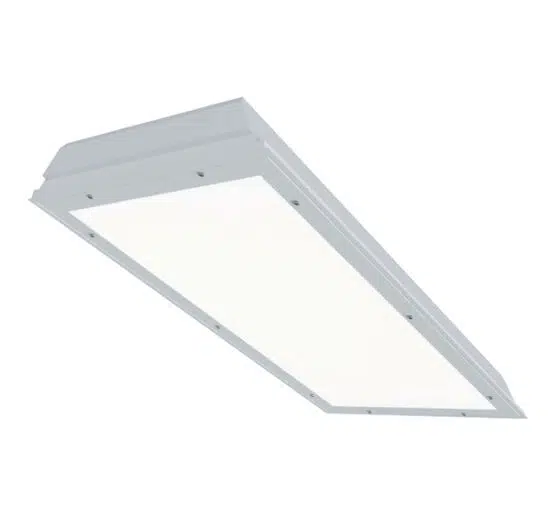

Recessed Vandal Resistant

Product Specifications

Proudly Made or Assembled in the USA - Supporting Domestic ManufacturingETL Listed - Certified for Product Safety Compliance to North American Standards5 Year Unlimited Usage Warranty

Key Features

BrandLED Lighting Supply
Lumens2000 to 30000
Voltage120V-277V or 347V-480V
Color Temperature2700K or 3000K or 3500K or 4000K or 5000K
CRI80+
Dimming0-10V
Lifespan100,000 (L70) hours
MountingRecessed
Fixture ColorWhite
Frequency (Hz)50/60
Power Factor>0.9

Durable Construction

Housing20-Gauge Cold Roll Steel
FastenersTamper-Resistant T25 TORX Screws
IK RatingIK10
Operating Temperature-22°F to 122°F
CertificationsETL
Warranty5 years

Ordering information

Example: LLS-DG-RVR-24-40-18L-G-PA125-125P-M-1-WL

Series

LLS-DG-RVR

Size

141x4
222x2
242x4

CCT

272700K
303000K
353500K
404000K
505000K
ATTWTunable White

Output

2L2000 Lumens
5L5000 Lumens
7L7000 Lumens
9L9000 Lumens
11L11000 Lumens
13L13000 Lumens
15L15000 Lumens
18L18000 Lumens
20L20000 Lumens
24L24000 Lumens
30L30000 Lumens
XXCustom Lumens

Mounting

GGrid
FFlange
FK14VR1' x 4' vandal resistant gasketed drywall framing kit. Ships with gasket to be applied in field. Cut out dimension 12.25" x 48.25"
FK22VR2' x 2' vandal resistant gasketed drywall framing kit. Ships with gasket to be applied in field. Cut out dimension 24.25" x 24.25"
FK24VR2' x 4' vandal resistant gasketed drywall framing kit. Ships with gasket to be applied in field. Cut out dimension 24.25" x 48.25"

Inner Lens

NNo Lens
SYSymmetric Diffused Frosted DR Acrylic
FAFrosted Acrylic
PA125.125 Prismatic Acrylic (inverted)
PP125.125 Prismatic Polycarbonate (inverted)
125P.125 Clear Polycarbonate

Outer Lens

125P.125 Clear Polycarbonate
250P.250 Clear Polycarbonate
CPOLClear .125 Polycarbonate Outer Lens
CPOL250Clear .250 Polycarbonate Outer Lens

Voltage

MMulti-Volt (120-277VAC)
HV347-480VAC

Driver

BLANK0-10V Dimming Driver (included standard)
CD50-10V 5% to Off Dimming Driver
EDNElectronic Driver Non-Dimming
DALI1% Dali Dimming Driver
LDE1Lutron Hi-lume 1% EcoSystem LED driver with Soft-on, Fade-to-Black dimming technology
2TW12 Channel 0-10v Tunable White 1% Dimming Driver*
2TWCS2 Channel 0-10v Tunable White Dimming Driver Compatible with Casambi**

Circuits

11 Circuit
22 Circuits

Options

14EBL14 Watt Emergency Ballast
9090 CRI
VDOLutron Vive Integral Fixture Control (RF with Daylight and Occupancy Sensing)
AHCAllen Head w/ Center Pin Reject
ISInternal Occupancy Sensor (Microwave)
WLWet Location
AMAntimicrobial Finish
Other lens options available, consult factory.*Prewired with Tunable White LED boards and (2) 0-10v drivers installed**Prewired with Tunable White LED boards and Casambi ready fixture controlOther options and configurations are available. Consult factory for details.

Product Overview

This detention grade vandal resistant recessed LED panel is built for secure interior lighting installations in 1×4, 2×2, and 2×4 configurations. USA-made and built to spec, it combines recessed mounting, high-impact IK10 protection, and tamper-resistant fasteners for detention-grade lighting projects.

Output is available from 2,000 to 30,000 lumens, with 120-277V or 347-480V input options and 2700K through 5000K color temperature choices.

Core Performance and Output

The panel is available in output levels up to 30,000 lumens for projects with differing illumination requirements. An 80+ CRI supports general interior visibility, while 0-10V dimming is available for compatible dimming systems.

Available voltage configurations include 120-277V and 347-480V. The fixture operates at 50/60 Hz and has a power factor greater than 0.9.

Longevity and Reliability

The LED system is rated for 100,000 hours L70 life. Its operating temperature range is -22 degrees F to 122 degrees F.

Build Quality and Physical Characteristics

The recessed housing is constructed from 20-gauge cold roll steel and finished in white. Tamper-resistant T25 TORX screws secure the fixture, and the IK10 rating identifies high impact resistance.

Where This Product Fits Best

This recessed panel is suited to secure interior areas where impact resistance and tamper-resistant construction are required.

  • detention facility lighting
  • correctional facility lighting
  • secure area lighting
  • vandal resistant lighting
  • psychiatric facility lighting
  • holding cell lighting
  • secure corridor lighting
  • tamper resistant lighting

Safety, Certifications, and Warranty

This recessed LED panel is ETL certified and carries a 5-year warranty.

Frequently Asked Questions

Q: What recessed panel sizes are available?

A: This detention grade recessed LED panel is available in 1×4, 2×2, and 2×4 sizes.

Q: What color temperatures are available for this detention grade LED panel?

A: This detention grade LED panel is available in 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.

Q: What fasteners are used on this recessed detention light?

A: This recessed detention light uses tamper-resistant T25 TORX screws.
