Detention Grade Surface Mount Up Down LED Light | Up to 24000 Lumens | 120-277V | USA Made | Built to Spec
This detention-grade up/down LED fixture is a practical choice for correctional facilities and detention centers needing vandal-proof construction, TORX fasteners, and flexible surface or wall mounting. Its 1,000 to 24,000 lumen range, 3000K to 5000K options, and 0-10V dimming support tailored lighting levels, while 120-277V operation and a 100,000-hour L70 lifespan suit long-term facility use. ETL listing, 80+ CRI, and operation from -22F to 122F add installation confidence.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Lumens | 1000 to 24000 |
| Voltage | 120V-277V |
| Color Temperature | 3000K or 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Lifespan | 100,000 (L70) hours |
| Mounting | Surface or Wall |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | >0.9 |
Durable Construction
| Fasteners | TORX Screws |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL |
| Warranty | 5 years |
Features/Accessories
- Vandal Proof
- Up/Down Light
- Ligature-Resistant
Ordering information
Series
Size
CCT
Output
Illumination Level Down
Illumination Down Only
Housing Material
Inner Lens
Outer Lens
Voltage
Circuits
Driver
Options
Product Overview

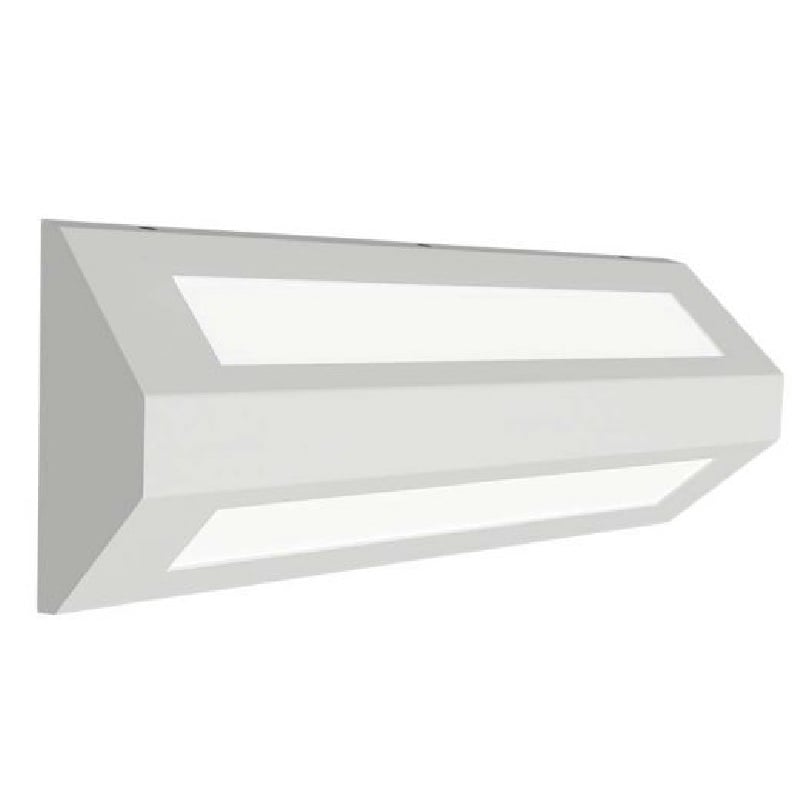

This detention grade LED up/down light is a surface- or wall-mounted fixture for secure-area lighting. Its vandal-proof, ligature-resistant construction and TORX screw fasteners support use in detention and correctional environments.
Output options range from 1,000 to 24,000 lumens, with 3000K, 3500K, 4000K, and 5000K color temperature options. The white fixture provides both upward and downward illumination.
Core Performance and Output
The fixture operates on 120V-277V, 50/60 Hz power and has a power factor greater than 0.9. Available 80+ CRI light supports general visibility in secure interior areas.
0-10V dimming is available for systems using compatible low-voltage dimming controls.
Longevity and Reliability
This fixture is rated for 100,000 hours L70 life and operates from -22 degrees F to 122 degrees F. It carries a 5-year warranty.
Build Quality and Physical Characteristics
The white housing is designed for surface or wall mounting. Vandal-proof construction, ligature-resistant design, and TORX screws address the physical requirements of secure-area lighting installations.
Where This Product Fits Best
This up/down fixture is suited to secure facilities where a detention-grade surface- or wall-mounted light is required.
- detention facility lighting
- correctional facility lighting
- secure area lighting
- vandal resistant lighting
- psychiatric facility lighting
- holding cell lighting
- secure corridor lighting
- tamper resistant lighting
Safety, Certifications, and Warranty
This fixture is ETL listed and includes a 5-year warranty.
Frequently Asked Questions
Q: What mounting options are available for this detention grade light?
A: This detention grade LED up/down light can be surface mounted or wall mounted.
Q: Does this fixture provide both upward and downward light?
A: Yes. This detention grade fixture provides up/down illumination.
Q: What fasteners does this fixture use?
A: This detention grade LED light uses TORX screws.
Web ID: 2805
