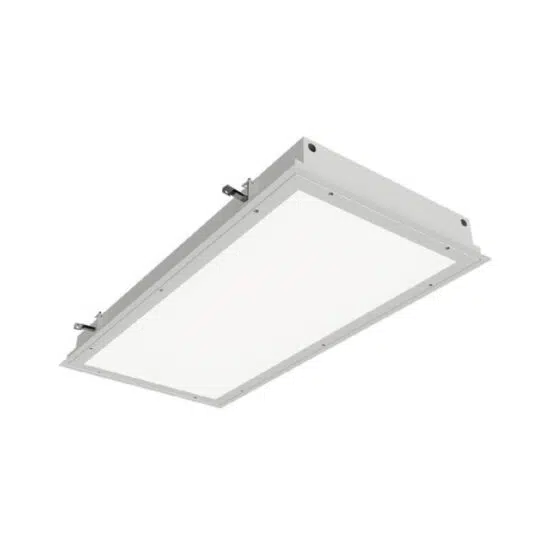

Detention Grade Recessed Mount LED Panel | Up to 25000 Lumens | 100-277V or 347-480V | IK10 | USA Made | Built to Spec
This recessed detention-grade LED panel suits corridors, stairwells, and detention environments needing impact resistance and tamper-resistant hardware. Its IK10 rating and T25 TORX fasteners support demanding installations, while recessed mounting provides a clean built-in appearance. Available from 1,000 to 25,000 lumens, with multiple color temperatures and voltage ranges, it can be specified for varied project requirements. 0-10V dimming, 100,000-hour L70 life, ETL listing, and a 5-year warranty add practical value.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Lumens | 1000 to 25000 |
| Voltage | 100V-277V or 347V-480V |
| Color Temperature | 2700K or 3000K or 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Lifespan | 100,000 (L70) hours |
| Mounting | Recessed |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | >0.9 |
Durable Construction
| Fasteners | Tamper-Resistant T25 TORX Screws |
| IK Rating | IK10 |
| Operating Temperature | -4°F to 140°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Ordering information
Series
Size
CCT
Output
Mounting
Housing Material
Door Material
Door Type
Inner Lens
Outer Lens
Voltage
Driver
Options
Product Overview
This detention grade recessed mount LED panel is designed for secure interior lighting where fixture durability and tamper resistance are required. It is available in configurations from 1,000 to 25,000 lumens with 100-277V or 347-480V input.
The recessed form factor keeps the fixture integrated with the ceiling plane. IK10 impact resistance and tamper-resistant T25 TORX screws support use in detention facility lighting, correctional facility lighting, and other secure areas.
Core Performance and Output
Available output ranges from 1,000 to 25,000 lumens. Color temperature options include 2700K, 3000K, 3500K, 4000K, and 5000K, with 80+ CRI.
The fixture operates on 100-277V or 347-480V, 50/60 Hz power and has a power factor greater than 0.9. Output selection should match ceiling height, target light level, and the layout of the secure area.
Higher-output configurations can reduce fixture count in larger layouts, but may produce excessive light at lower mounting heights. Layout uniformity should be reviewed where fixture spacing increases.
Adjustability and Control Options
This fixture supports 0-10V dimming. Dimming can be incorporated where the lighting system includes compatible 0-10V control equipment.
Specified color temperature and output should be established before installation. The recessed mounting configuration does not provide post-installation aiming adjustment.
Longevity and Reliability
The rated life is 100,000 hours L70. This rating supports long-term operation where fixture access may be controlled or limited.
The fixture is rated for operation from -4 degrees F to 140 degrees F. Electrical performance is supported by a power factor greater than 0.9.
Build Quality and Physical Characteristics
The fixture has a white finish and recessed mounting configuration. Its construction is intended to maintain a flush ceiling installation profile.
IK10 impact resistance supports use where fixture impact is a concern. Tamper-resistant T25 TORX screws secure the fixture assembly.
Where This Product Fits Best
This recessed panel fits controlled interior environments requiring durable, tamper-resistant lighting construction. Its output range supports both smaller secure spaces and larger secure lighting layouts.
- detention facility lighting
- correctional facility lighting
- secure area lighting
- holding cell lighting
- secure corridor lighting
- psychiatric facility lighting
- vandal resistant lighting
IK10 impact resistance, tamper-resistant fasteners, recessed mounting, and operation from -4 degrees F to 140 degrees F are relevant environmental characteristics. Fixture output and voltage configuration must match the project electrical system and lighting layout.
Installation and Long-Term Use
This fixture is recessed mounted and requires a ceiling opening compatible with the fixture configuration. Tamper-resistant T25 TORX screws require the proper driver bit during installation and service.
Confirm the selected 100-277V or 347-480V configuration before energizing the fixture. Access for future maintenance should account for the recessed installation and secure-area access requirements.
How This Fixture Is Commonly Used
In detention facility lighting and correctional facility lighting, recessed fixtures are arranged across ceilings to maintain consistent lighting through secure areas, holding cell lighting layouts, and secure corridor lighting layouts. Mounting height is determined by the ceiling construction and the required light distribution within the planned area.
Fixture spacing follows the selected lumen package, ceiling height, target light level, and room geometry. Higher-output configurations can reduce fixture count, while closer spacing can improve uniformity across the layout.
Safety, Certifications, and Warranty
This fixture is ETL listed. It is rebate eligible.
The fixture has an IK10 rating. The warranty period is 5 years.
Frequently Asked Questions
Q: What lumen outputs are available for this detention grade recessed panel?
A: Available configurations range from 1,000 to 25,000 lumens.
Q: What voltage options are available?
A: The fixture is available in 100-277V and 347-480V configurations.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: What is the impact rating?
A: The fixture has an IK10 impact rating.
Q: What should be considered when planning fixture spacing?
A: Selected lumen output, mounting height, target light level, and layout geometry affect fixture spacing. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture suited for secure corridor lighting?
A: Secure corridor lighting is a listed application. Recessed mounting, IK10 impact resistance, and tamper-resistant T25 TORX screws are provided features.
Q: Can this fixture be used for holding cell lighting?
A: Holding cell lighting is a listed application. Final output selection should account for the selected lumen package and the planned lighting layout.
Q: What should be verified for a correctional facility lighting project?
A: Verify the required voltage configuration, selected lumen output, color temperature, recessed ceiling compatibility, and control requirements.
