25 Watt Detention Grade LED Wraparound Light | 4000 Lumens | 4000K | 100-277V | 4 Foot

Product Overview

This 25 watt detention grade LED wraparound delivers 4000 lumens at 4000K from a 4-foot form factor built for secure and institutional environments. The fixture uses tamper-resistant TORX fasteners and 20-gauge cold roll steel housing to prevent unauthorized access or removal.

At 160 lumens per watt, this fixture replaces 150 watt metal halide systems while drawing a fraction of the power. The smooth polycarbonate lens provides even light distribution without exposed hardware or accessible components that could be compromised.

The fixture operates on 100-277V input and supports 0-10V dimming. It is ETL listed and rebate eligible. LED Lighting Supply backs this fixture with a 5-year warranty.

Where This Product Fits Best

This fixture is purpose-built for detention facilities, correctional institutions, holding areas, and other secure environments where tamper resistance is a baseline requirement. The TORX fastener system and steel housing construction address the physical security concerns present in these applications.

The wet location rating allows installation in shower areas, outdoor covered walkways, or any space where moisture exposure is expected. Surface and wall mounting options accommodate the structural constraints common in institutional construction.

Facilities currently operating 150 watt metal halide wraparounds in secure areas can use this fixture as a direct functional replacement with substantially lower energy consumption and significantly longer service intervals.

Performance and Functional Considerations

The 4000 lumen output at 4000K provides neutral white illumination suitable for general visibility and security monitoring. CRI above 80 supports accurate color recognition, which matters for identification and surveillance purposes.

The 100,000-hour L70 lifespan reduces the frequency of lamp access in environments where maintenance requires security protocols and staff coordination. Fewer service events means fewer disruptions to facility operations.

Power factor above 0.9 indicates efficient power draw relative to actual consumption. The fixture accepts both 50Hz and 60Hz input, accommodating standard North American electrical infrastructure.

Installation and Long-Term Use

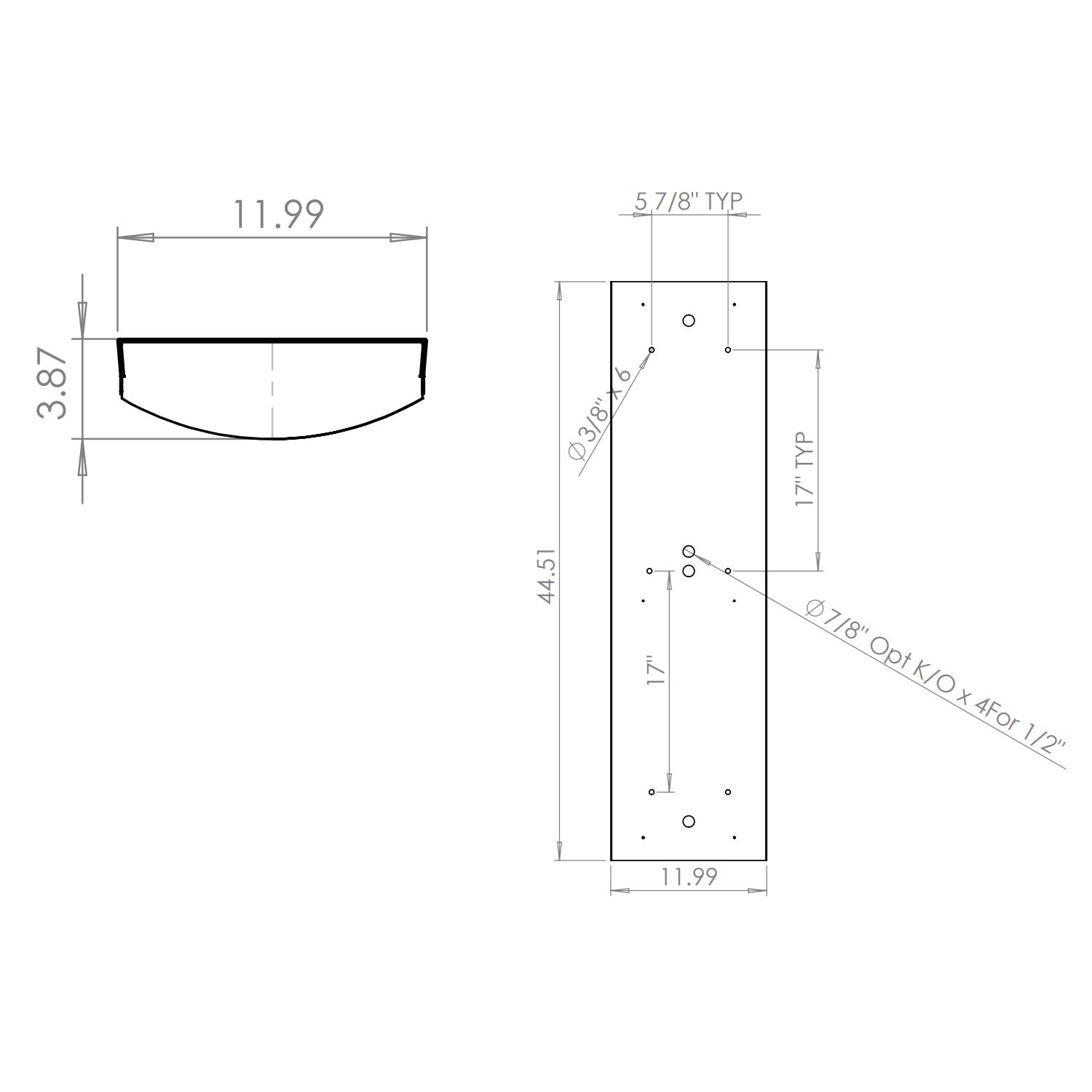

The fixture mounts to surfaces or walls and measures 11.99 inches wide by 44.51 inches long by 3.87 inches deep. The 4-foot length fits standard ceiling grid spacing and linear layout patterns used in institutional corridor and cell block lighting designs.

Tamper-resistant TORX screws require specialized tooling for installation and any future service access. This hardware configuration is intentional and expected in detention applications. Ensure appropriate tools are available during installation and scheduled maintenance.

The 100-277V input range covers typical commercial and institutional voltage configurations without requiring transformers or voltage matching. The 0-10V dimming circuit integrates with building automation or manual dimming controls where installed.

How This Fixture Is Commonly Used

Facilities use this fixture in areas where occupants should not have physical access to lighting components. The tamper-resistant fasteners mean maintenance staff handle all service events, which aligns with standard detention facility protocols.

The 0-10V dimming allows light levels to be reduced during overnight hours or adjusted by zone through connected building systems. Where dimming controls are installed, staff can manage output without accessing the fixture itself.

The wet location rating means the same fixture can be specified across dry corridors, damp utility areas, and wet shower rooms. This allows consistent fixture appearance and maintenance procedures throughout a facility.

Safety, Certifications, and Warranty

This fixture is ETL listed and rebate eligible. The wet location rating permits installation in areas with direct or indirect water exposure.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture require?
The fixture operates on 100-277V input, covering standard commercial and institutional voltage ranges.

Does this fixture support dimming?
Yes. The fixture accepts 0-10V dimming signals.

What does this fixture replace?
This 25 watt LED wraparound replaces 150 watt metal halide fixtures.

Is this fixture eligible for utility rebates?
Yes. The fixture is rebate eligible.

Can this be installed in wet locations?
Yes. The fixture carries a wet location rating.

What is the warranty coverage?
LED Lighting Supply provides a 5-year warranty.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
