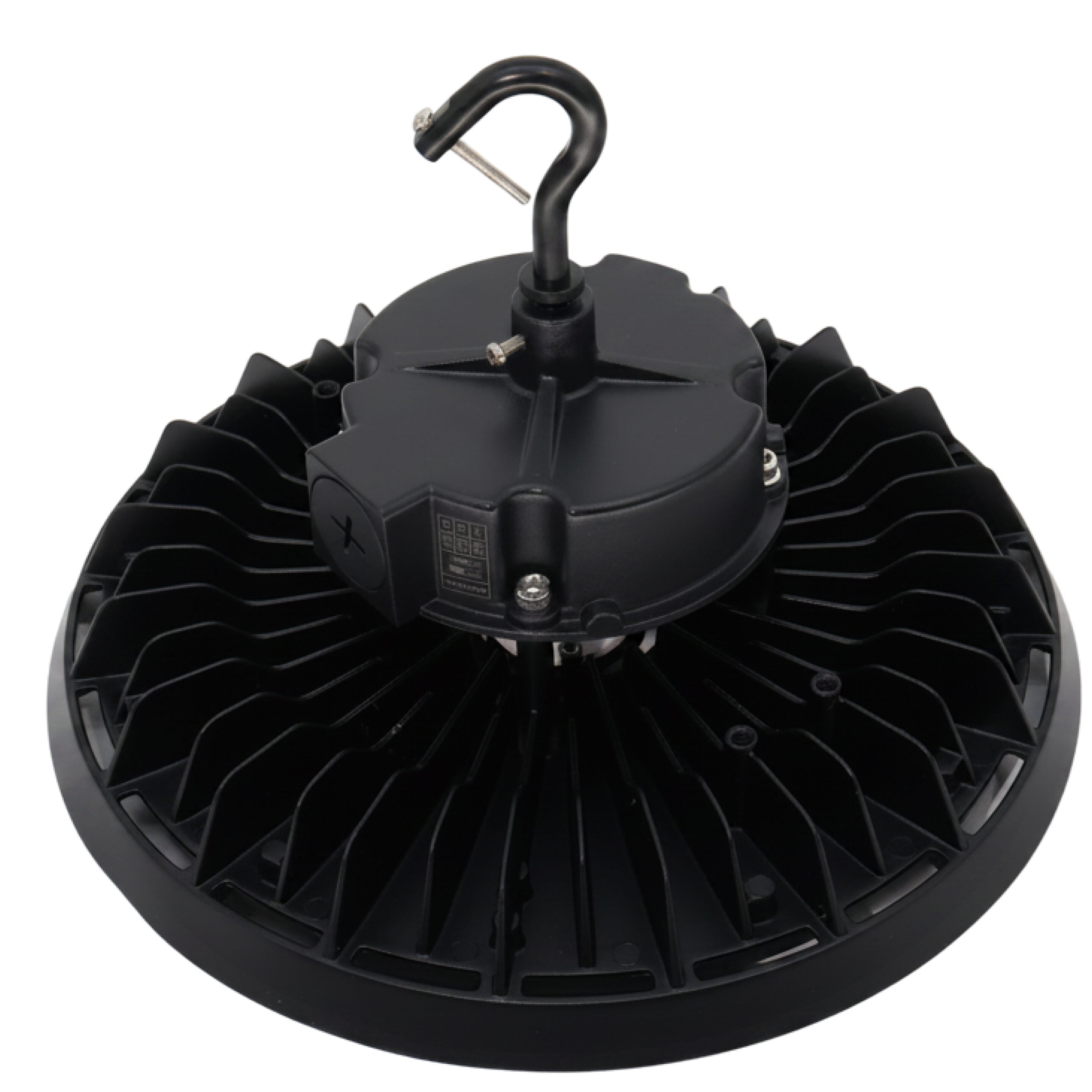

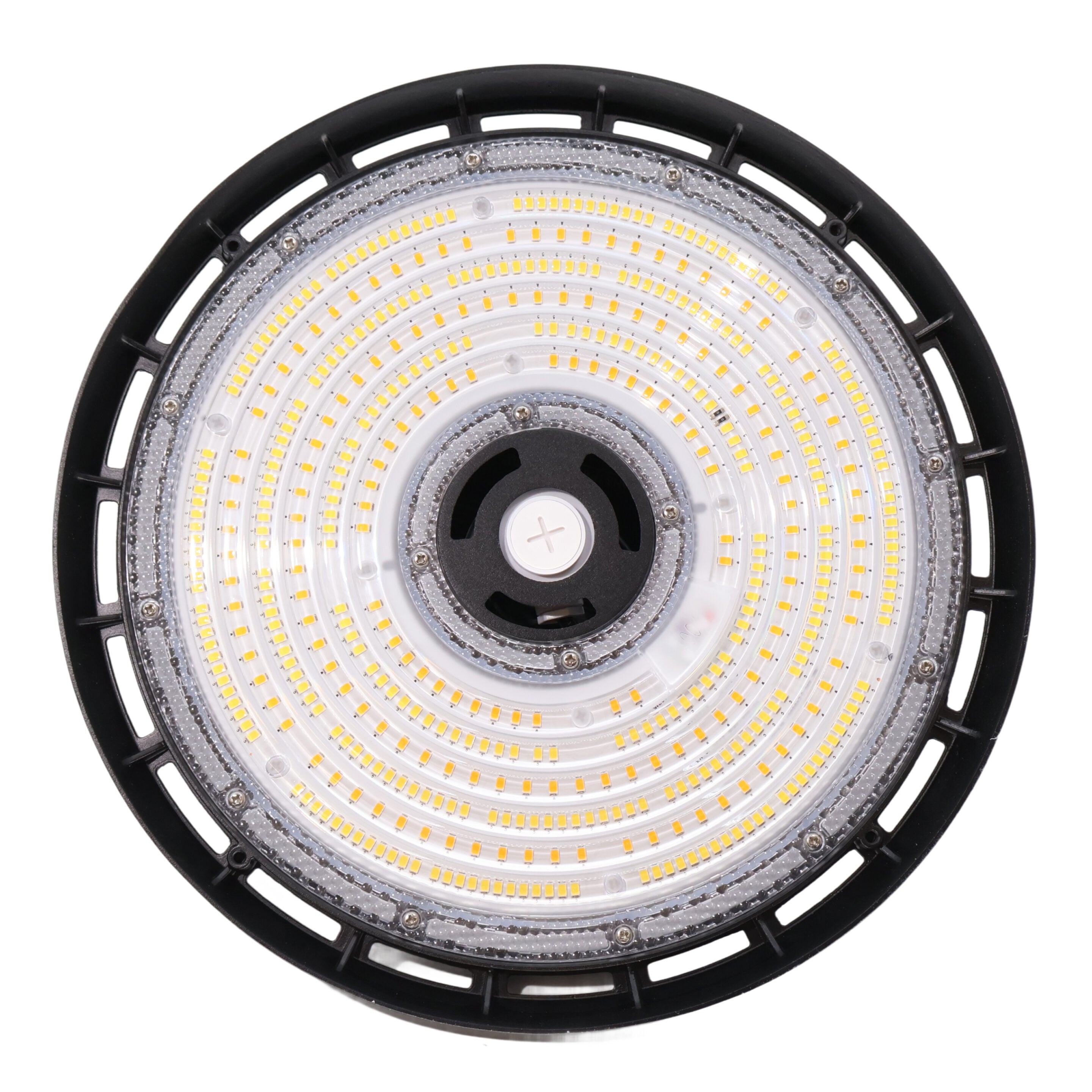

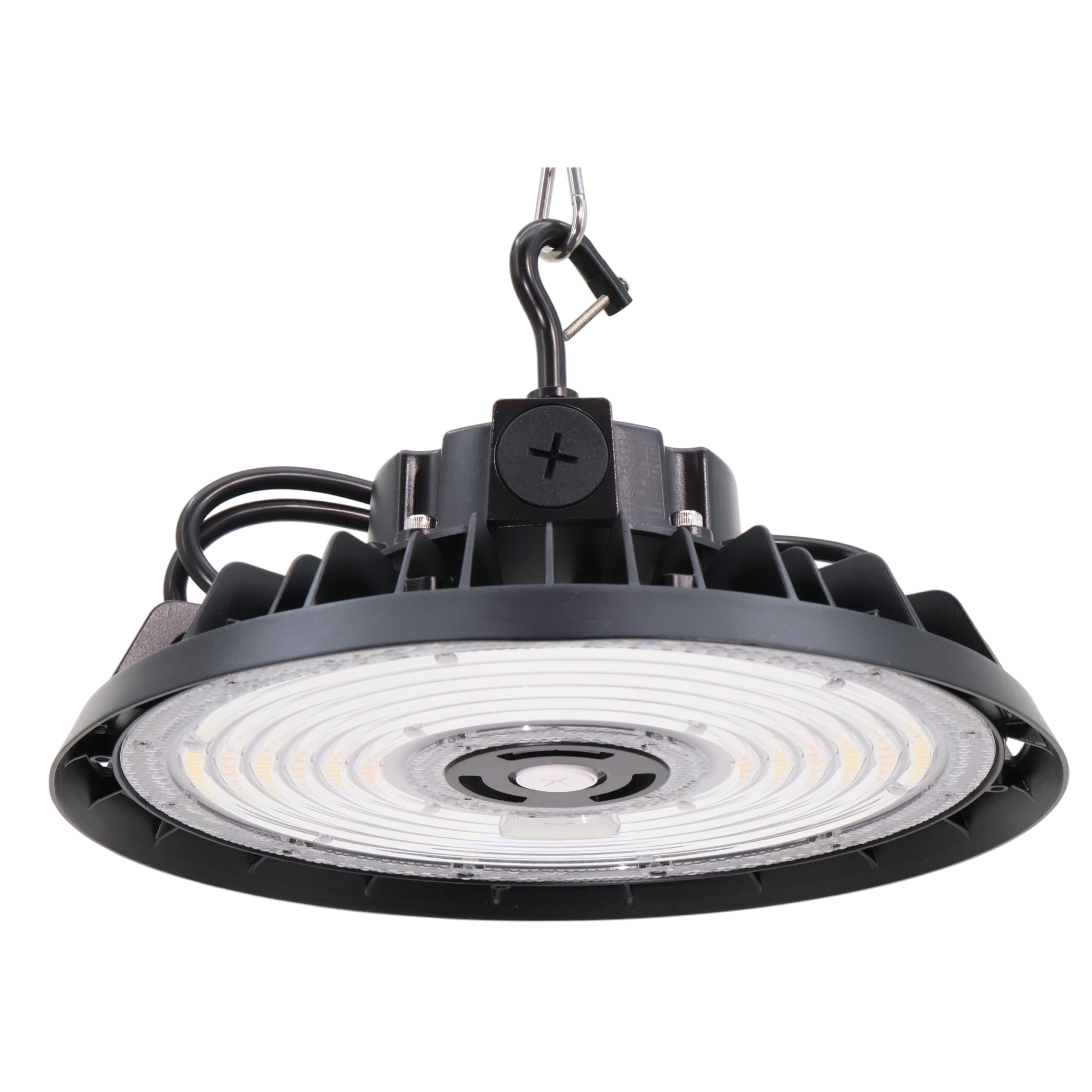

150 / 200 / 240 Watt Adjustable LED UFO High Bay | 22500 to 36000 Lumens | 4000K / 5000K Adjustable | 100-277V | Black or White Housing
This adjustable LED UFO high bay fixture is a strong choice for demanding commercial and industrial spaces needing reliable, energy-efficient lighting with minimal maintenance. Its selectable wattage (150, 200, or 240 watts) and color temperature (4000K or 5000K) allow precise adaptation to varying ceiling heights and visual tasks, while the 120° beam angle ensures broad, even coverage. The IP65 and IK10 ratings, robust die-cast aluminum housing, and 6kV surge protection support use in dusty, wet, or high-impact environments such as warehouses, manufacturing plants, and distribution centers.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 | 200 | 240 |
| Lumens | 22500 | 30000 | 36000 |
| Lumens Per Watt | 150 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Hook or Pendant |
| Mounting (Opt) | Surface |
| Fixture Color | Black or White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK10 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12 W X 7.8 H |
| Weight (lbs) | 7.5 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 150 | 200 | 240
- Lumens: 22500 | 30000 | 36000
- Lumens Per Watt: 150
- Replaces: 400 or 1000 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 4000K or 5000K
- CRI: 80+
- Dimming: 0-10V
- Beam Angles (Std): 90°
- Optics: Polycarbonate Lens
- Lifespan: 50,000 (L70) hours
- Mounting: Hook or Pendant
- Mounting (Opt): Surface
- Fixture Color: Black or White
- Frequency (Hz): 50/60
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP65
- IK Rating: IK10
- Surge Protection: 6kV
- Operating Temperature: -40°F to 122°F
- Certifications: UL | DLC Premium
- Warranty: 5 years
Measurements
- Dimensions (in): 12 W X 7.8 H
- Weight (lbs): 7.5
- Cord Length: 5 Feet
- Dimming Cord Length: 8 Inches
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Product SKU Variations
- SKU: LLS-X-HB9-240A-CC-W
- Fixture Color: White
- SKU: LLS-X-HB9-240A-CC
- Fixture Color: Black
Download IES Files
Web ID: 2564
You may also like...
-
100 / 120 / 150 / 200 Watt Adjustable UFO High Bay | 14000 to 28000 Lumens | 5000K | 100-277V | Black
Availability: 208 In Stock Ships 2-3 DaysRetail Price: $99.72 -
100 / 120 / 150 / 200 / 240 Watt Adjustable LED UFO High Bay | 20000 to 45600 Lumens | 5000K | 100-277V | High Performance
Availability: 157 In Stock Ships 2-3 DaysRetail Price: $179.52 -
40 Watt Emergency Backup Driver | Emergency Battery Backup Power Supply
Availability: 156 In Stock Ships 3-5 DaysRetail Price: $222.55
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
The 150 / 200 / 240 Watt Adjustable LED UFO High Bay is designed for high-performance lighting in large indoor spaces. This fixture offers adjustable wattage and color temperature, making it versatile for various lighting needs. It is suitable for replacing traditional 400 to 1000 Watt metal halide fixtures, providing a modern solution with improved energy efficiency and longevity. The fixture is ideal for environments such as warehouses and manufacturing facilities, where consistent and powerful illumination is required.
With a robust design, this LED UFO high bay can be mounted via hook, pendant, or surface methods, offering flexibility in installation. Its IP65 and IK10 ratings ensure durability in challenging environments, making it a reliable choice for industrial and commercial applications. The fixture operates on a voltage range of 100-277V, accommodating different electrical setups.
Core Performance and Output
This LED UFO high bay delivers between 22,500 and 36,000 lumens, depending on the selected wattage, with an efficiency of 150 lumens per watt. The fixture supports both 4000K and 5000K color temperatures, providing options for different lighting preferences. Its 90° beam angle ensures broad and uniform light distribution, suitable for high-ceiling installations.
While the fixture is designed for high mounting heights, excessive output may occur at lower heights, potentially leading to increased glare. It is important to consider the mounting height and space requirements to optimize performance and minimize any potential drawbacks.
Adjustability and Control Options
The fixture features adjustable wattage and color temperature, allowing customization to meet specific lighting needs. This adjustability ensures that the fixture can adapt to various applications and environments, providing flexibility in lighting design.
Equipped with 0-10V dimming capabilities, the fixture supports integration with lighting control systems for enhanced energy management. Optional motion sensors can be added to further optimize energy use by adjusting light levels based on occupancy.
Longevity and Reliability
With a lifespan of 50,000 hours (L70), this LED UFO high bay offers long-term reliability, reducing the need for frequent replacements and maintenance. Its robust construction and high-quality components contribute to its durability and consistent performance over time.
The fixture's die-cast aluminum housing and polycarbonate lens provide protection against environmental factors, ensuring reliable operation in various industrial and commercial settings.
Build Quality and Physical Characteristics
The fixture is constructed with a die-cast aluminum housing, offering excellent heat dissipation and structural integrity. Its IP65 rating ensures protection against dust and water ingress, while the IK10 rating provides resistance to impact, making it suitable for demanding environments.
Available in black or white housing, the fixture measures 12 inches in width and 7.8 inches in height, weighing 7.5 pounds. It includes a 5-foot power cord and an 8-inch dimming cord for easy installation and integration with existing systems.
Where This Product Fits Best
This LED UFO high bay is best suited for large indoor spaces requiring high-output lighting. Its design and performance make it ideal for:
- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- gymnasium lighting
- aircraft hangar lighting
- indoor sports facility lighting
- basketball court lighting
- pickleball court lighting
The fixture's environmental characteristics, including its IP65 and IK10 ratings, ensure it can withstand challenging conditions, making it a reliable choice for industrial and commercial applications.
Installation and Long-Term Use
Installation options include hook, pendant, or surface mounting, providing flexibility to suit different ceiling types and heights. The fixture's lightweight design facilitates easy handling and installation.
For long-term use, regular maintenance checks are recommended to ensure optimal performance. The fixture's robust construction minimizes the need for frequent maintenance, contributing to lower operational costs over time.
How This Fixture Is Commonly Used
This LED UFO high bay is commonly installed at mounting heights ranging from 15 to 30 feet, depending on the specific application and desired light levels. Spacing between fixtures can vary based on wattage and light output requirements, with higher output models reducing the number of fixtures needed but potentially increasing glare.
In warehouse and manufacturing settings, the fixture is often used in grid patterns to ensure even light distribution across large areas. In sports facilities, it is typically arranged to minimize shadows and provide uniform illumination.
Safety, Certifications, and Warranty
The fixture is UL and DLC Premium listed, ensuring compliance with safety and performance standards. Its IP65 and IK10 ratings provide protection against environmental factors, making it suitable for various industrial and commercial environments.
With a 5-year warranty, the fixture offers peace of mind and assurance of quality, backed by reliable performance and support from LED Lighting Supply.
Frequently Asked Questions
Q: What is the recommended mounting height for this fixture?
A: The recommended mounting height ranges from 15 to 30 feet, depending on the specific application and desired light levels.
Q: Can this fixture be used in outdoor environments?
A: While the fixture is IP65 rated for dust and water resistance, it is primarily designed for indoor use in industrial and commercial settings.
Q: What are the available color temperature options?
A: The fixture offers adjustable color temperatures of 4000K and 5000K.
Q: Is the fixture compatible with lighting control systems?
A: Yes, the fixture supports 0-10V dimming, allowing integration with lighting control systems for enhanced energy management.
Q: How does the wattage adjustability work?
A: The fixture allows for wattage adjustment between 150, 200, and 240 watts, providing flexibility to meet specific lighting needs.
Application Questions and Clarification
Q: Can this fixture be used for gymnasium lighting?
A: Yes, the fixture is suitable for gymnasium lighting, providing high-output illumination for large indoor spaces.
Q: Is this fixture appropriate for aircraft hangar lighting?
A: Yes, the fixture's high lumen output and robust construction make it suitable for aircraft hangar lighting.
Q: What is the typical spacing between fixtures in a warehouse setting?
A: Spacing varies based on wattage and light levels, but fixtures are typically arranged in grid patterns to ensure even light distribution.
Q: Can this fixture be used in natatorium and swimming pool lighting?
A: While the fixture is IP65 rated, it is primarily designed for indoor industrial and commercial applications and may not be suitable for environments with high humidity and chlorine exposure.
