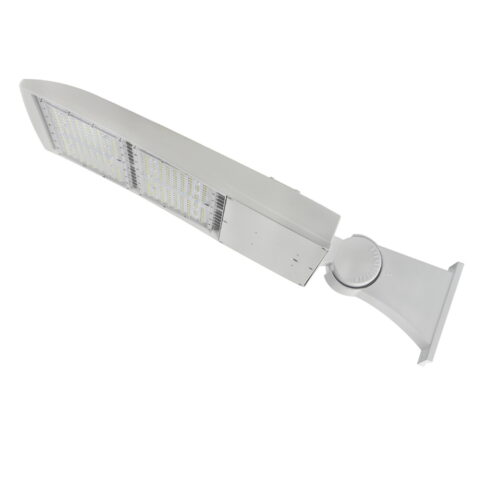

300 Watt LED Shoebox Area Light | 39000 Lumens | 5000K | 100-277V | White
This 300 Watt LED Shoebox Area Light is a strong choice for outdoor applications requiring high-output, energy-efficient illumination, delivering 39,000 lumens at 130 lumens per watt to effectively replace 1000 Watt metal halide fixtures. Its Type 3 beam angle and polycarbonate lens provide broad lateral coverage and impact resistance, while the die-cast aluminum housing ensures durability in demanding environments. The IP65 rating and -40°F to 113°F operating range support reliable use in wet, dusty, and extreme temperatures. Ideal for parking lots, roadways, and perimeter lighting.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 300 |
| Lumens | 39000 |
| Lumens Per Watt | 130 |
| Replaces | 1000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Alt) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Arm or Slip Fitter |
| EPA Rating | 2.1 |
| Fixture Color | White |
| Frequency (Hz) | 50-60Hz |
| Power Factor | .9 |
| THD | 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 27 in L X 13.11 in W X 6.61 in H |
| Weight (lbs) | 17 lbs |
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This 300 Watt LED Shoebox Area Light delivers 39,000 lumens at 5000K. It is designed to replace 1000 Watt metal halide fixtures in outdoor and large-area applications.
The fixture operates on 100-277V and supports 1-10V dimming. It uses a Type 3 beam angle and a polycarbonate lens for controlled light distribution.
The housing is die-cast aluminum with a white finish. The fixture measures 27 inches long, 13.11 inches wide, and 6.61 inches high, with a total weight of 17 lbs.
Rated for 50,000 hours (L70), this light is built for long-term use in demanding environments.
Where This Product Fits Best
This area light is suited for parking lots, roadways, perimeter lighting, and other outdoor spaces requiring high-output illumination. It is also used in commercial and industrial sites where legacy 1000 Watt metal halide fixtures are being replaced.
The Type 3 beam angle provides lateral light distribution, making it appropriate for wide-area coverage along roadways or lot perimeters.
With an IP65 rating, the fixture is suitable for outdoor use where exposure to rain, dust, and debris is expected. The operating temperature range of -40°F to 113°F supports installation in both hot and cold climates.
Mounting options include arm or slip fitter, allowing compatibility with most standard poles and tenons found in commercial and industrial settings.
Performance and Functional Considerations
The fixture outputs 39,000 lumens at 130 lumens per watt, providing high efficacy for energy-conscious facilities. The 5000K color temperature delivers a daylight-white appearance suitable for visibility and security.
1-10V dimming capability allows for integration with compatible dimming controls. The CRI is 70+, supporting general outdoor visibility requirements.
The polycarbonate lens is impact-resistant and designed for outdoor durability. The die-cast aluminum housing provides structural strength and thermal management.
Power factor is 0.9 and THD is 15%, supporting stable operation on commercial electrical systems. The fixture operates at 50-60Hz.
Installation and Long-Term Use
The fixture supports both arm and slip fitter mounting, accommodating a range of pole and tenon configurations. This flexibility simplifies retrofit and new installations in most outdoor area lighting applications.
At 17 lbs, the fixture can be handled by one or two installers, depending on mounting height and site conditions. The EPA rating of 2.1 should be considered when evaluating pole loading and wind exposure.
The IP65 rating means the fixture can be installed in locations exposed to rain, dust, and other environmental factors without additional enclosure. The operating temperature range supports year-round use in most climates.
With a rated lifespan of 50,000 hours (L70), the fixture is designed for long service intervals and reduced maintenance compared to legacy HID systems.
How This Fixture Is Commonly Used
Once installed, this fixture provides consistent, high-output illumination for parking lots, drive lanes, and outdoor work areas. The Type 3 distribution pattern delivers lateral coverage, reducing dark spots along lot edges and roadways.
The 1-10V dimming feature allows you to adjust light levels as needed for site-specific requirements or energy management. The fixture maintains stable output and color temperature throughout its rated life.
The polycarbonate lens and die-cast aluminum housing hold up to routine cleaning and exposure to outdoor elements. No special maintenance procedures are required beyond standard inspection and cleaning schedules.
Operators can rely on the fixture for uniform light output and minimal downtime, supporting safety and visibility in outdoor environments.
Safety, Certifications, and Warranty
This fixture is UL listed.
The product is rebate eligible.
IP65 rating allows use in wet and dusty environments without additional protection.
LED Lighting Supply provides a 5-year warranty on this fixture.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on 100-277V.
What is the lumen output?
The fixture delivers 39,000 lumens.
What mounting options are available?
Arm and slip fitter mounting options are supported.
Is this fixture UL listed?
Yes, this fixture is UL listed.
What is the warranty period?
LED Lighting Supply provides a 5-year warranty.
Is this fixture suitable for outdoor use?
Yes, the IP65 rating allows use in outdoor environments exposed to rain and dust.
Is this fixture rebate eligible?
Yes, this fixture is rebate eligible.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
