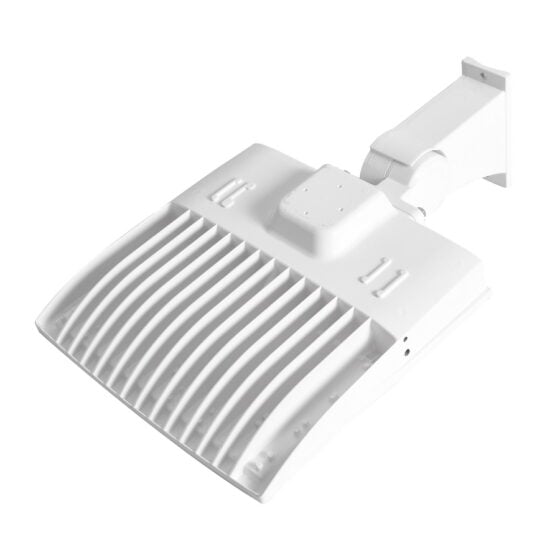

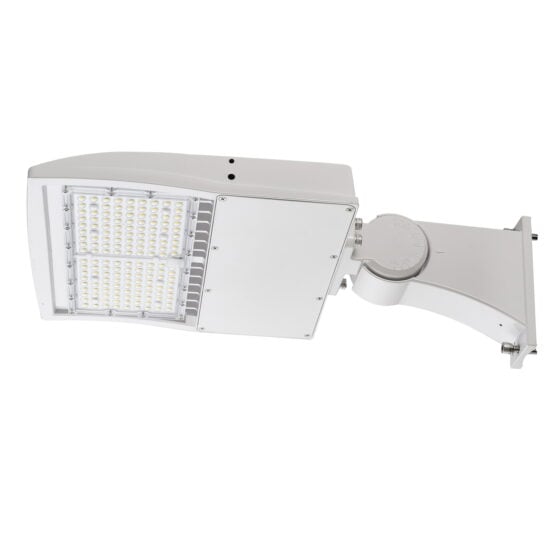

150 Watt LED Shoebox Area Light | 19500 Lumens | 5000K | 100-277V or 277-480V | White
This 150 Watt LED Shoebox Area Light is a practical choice for outdoor area lighting, parking lots, roadways, and perimeter applications where a 400 Watt metal halide replacement is needed. Its 19,500 lumen output, Type 3 distribution, and 5000K color temperature support visibility and security across large spaces. The IP65 rating, die-cast aluminum housing, and polycarbonate lens ensure durability in wet, dusty, and harsh weather environments. Arm and slip fitter mounting options simplify installation on various poles.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 19500 |
| Lumens Per Watt | 130 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Alt) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Arm or Slip Fitter |
| EPA Rating | 1.3 |
| Fixture Color | White |
| Frequency (Hz) | 50-60Hz |
| Power Factor | .9 |
| THD | 15% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 20.19 in L X 13.11 in W X 6.61 in H |
| Weight (lbs) | 12 lbs |
Product SKU Variations
- SKU: MLLG-LS-LED-SB3-150-50 (W)
- SKU: MLLG-LS-LED-SB3-150-50-HV-W
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This 150 Watt LED Shoebox Area Light delivers 19,500 lumens at a 5000K color temperature. It is designed to replace 400 Watt metal halide fixtures in outdoor and large-area applications.
The fixture operates on either 100-277V or 277-480V input, supporting a wide range of commercial and industrial electrical systems. It features a white die-cast aluminum housing and a polycarbonate lens for durability.
The light offers a Type 3 beam distribution and supports 1-10V dimming. The rated lifespan is 50,000 hours (L70).
Dimensions are 20.19 inches long, 13.11 inches wide, and 6.61 inches high. The fixture weighs 12 pounds.
Where This Product Fits Best
This fixture is suited for outdoor area lighting, parking lots, roadways, and perimeter applications where a 400 Watt metal halide replacement is needed. The Type 3 beam angle is designed for roadway and area coverage.
It is compatible with both standard (100-277V) and high-voltage (277-480V) systems, making it suitable for a range of commercial and industrial sites.
The IP65 rating allows use in environments exposed to rain, dust, and outdoor weather conditions. The operating temperature range of -40°F to 113°F supports installation in both cold and hot climates.
The fixture’s white finish may be preferred for sites with specific aesthetic or compliance requirements.
Performance and Functional Considerations
The fixture delivers 130 lumens per watt, providing high output for its wattage class. The 5000K color temperature produces a daylight-white appearance suitable for visibility and security.
With a CRI of 70+, the fixture provides basic color rendering for general area lighting. The 1-10V dimming capability allows integration with compatible dimming controls.
The EPA rating of 1.3 should be considered when selecting poles and mounting hardware for wind load calculations. The power factor of 0.9 and THD of 15% support efficient operation on commercial electrical systems.
The polycarbonate lens and die-cast aluminum housing are designed for impact resistance and long-term durability in outdoor environments.
Installation and Long-Term Use
The fixture supports both arm and slip fitter mounting options, allowing installation on a variety of pole types and tenons. The 12-pound weight and compact dimensions simplify handling during installation.
The IP65 rating protects the fixture from water jets and dust ingress, supporting reliable operation in exposed outdoor locations. The die-cast aluminum housing resists corrosion and physical damage.
The fixture is rated for operation from -40°F to 113°F, covering most outdoor temperature extremes encountered in commercial and industrial settings.
The 50,000-hour L70 lifespan reduces the frequency of maintenance and replacement cycles compared to legacy metal halide systems.
How This Fixture Is Commonly Used
Once installed, this fixture provides consistent area illumination with a Type 3 distribution pattern. The 1-10V dimming feature allows you to adjust light levels as needed using compatible controls.
The fixture’s white finish can be used to match site aesthetics or meet specific project requirements. The polycarbonate lens is designed to withstand impacts from debris or incidental contact during maintenance.
Routine cleaning of the lens and inspection of mounting hardware are the primary maintenance tasks. The fixture’s sealed design helps prevent water and dust intrusion during normal operation.
Operators typically rely on this fixture for reliable, uniform lighting in parking lots, drive lanes, and perimeter areas where visibility and safety are priorities.
Safety, Certifications, and Warranty
This fixture is UL listed.
The product is rebate eligible.
The IP65 rating allows use in wet and dusty outdoor environments.
LED Lighting Supply provides a 5-year warranty on this fixture.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on either 100-277V or 277-480V input.
What is the rated output and replacement class?
The fixture delivers 19,500 lumens and is designed to replace 400 Watt metal halide systems.
What mounting options are available?
The fixture supports both arm and slip fitter mounting methods.
Is this fixture UL listed and rebate eligible?
Yes, this fixture is UL listed and rebate eligible.
What is the environmental protection rating?
The fixture is rated IP65 for protection against water jets and dust.
What warranty is provided?
LED Lighting Supply provides a 5-year warranty.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
