60 Watt Metal Halide LED Retrofit | 9900 Lumens | 250 Watt Replacement | 5000K | 100V-277V
Out of stock
Product Description

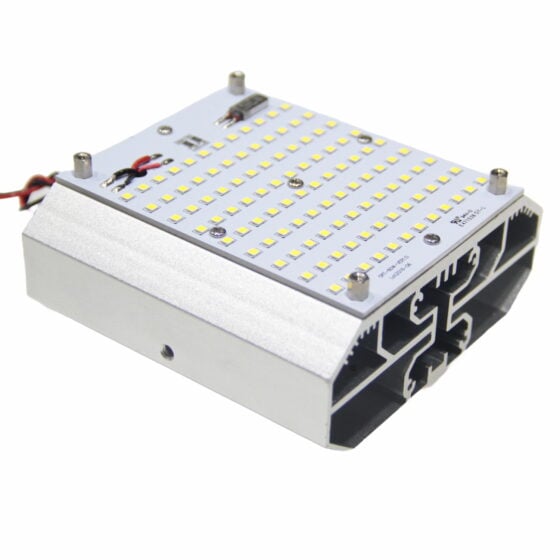

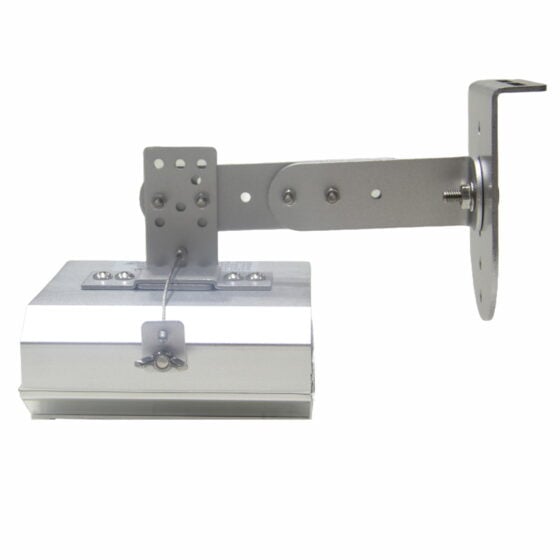

60 Watt LED retrofit kit replaces metal halide bulbs inside your existing indoor or outdoor fixture. The retrofit kit is designed to replace Metal Halide bulbs and ballasts inside a sealed fixture. Active Cooling keeps this retrofit kit working for a very long time. This retrofit works well with existing motion sensors and photocells. It is easy to install - like doing a Metal Halide bulb and ballast replacement. You should also remove the fixture reflector and socket, as they will not be needed.
Key Features
- Watts: 60
- Lumens: 9900
- Lumens Per Watt: 165
- Replaces: 250 Watt Metal Halide
- Voltage: 100V-277V or 277V-480V
- Color Temperature: 5000K
- CRI: 75+
- Dimming: Optional
- Beam Angles (Alt): 120°
- Optics: 120° Standard
- Lifespan: 50,000 hours - driver | 100,000 (L70) hours
- Frequency: 50/60 hz
- Power Factor: > .90
- THD: < 15%
Durable Construction
- Certifications: ETL | Rebate Eligible
Measurements
- Dimensions: 4.75 in L X 4.75 in W X 1.9 in H
- Weight: 4 lbs
Product Overview
This 60 Watt LED retrofit kit is designed to replace 250 Watt metal halide bulbs and ballasts inside existing indoor or outdoor fixtures. It delivers 9900 lumens at 5000K color temperature and operates on 100V-277V input voltage.
The retrofit kit uses active cooling to maintain long-term performance. It is compatible with sealed fixtures and supports use with existing motion sensors and photocells.
Standard beam angle is 120°, with a CRI of 75+. The retrofit kit is dimming-capable when paired with compatible controls.
Dimensions are 4.75 inches by 4.75 inches by 1.9 inches, and the unit weighs 4 lbs.
Where This Product Fits Best
This retrofit kit is intended for facilities looking to upgrade from 250 Watt metal halide lamps to LED while retaining the existing fixture housing. It is suitable for both indoor and outdoor sealed fixtures.
Common applications include warehouses, manufacturing areas, distribution centers, and other commercial or industrial spaces where metal halide fixtures are currently installed.
The 5000K color temperature supports environments requiring bright, neutral white light. The 120° beam angle is appropriate for general area lighting.
Voltage compatibility from 100V to 277V allows use in a wide range of electrical systems found in commercial and industrial properties.
Performance and Functional Considerations
This retrofit kit produces 9900 lumens at 60 watts, providing a direct replacement for 250 Watt metal halide lamps. The high efficacy of 165 lumens per watt supports energy reduction goals.
Active cooling extends the operational life of the retrofit kit, with a rated driver lifespan of 50,000 hours and an L70 rating of 100,000 hours. Power factor is greater than 0.90 and total harmonic distortion is less than 15%.
The retrofit kit is compatible with existing motion sensors and photocells in the fixture. Dimming is available when used with appropriate controls.
Standard 120° optics provide wide, even light distribution suitable for most area lighting applications.
Installation and Long-Term Use
Installation involves removing the existing metal halide bulb, ballast, reflector, and socket from the fixture. The retrofit kit mounts inside the existing housing, using the same wiring connections as the original components.
Active cooling is integrated into the unit and requires no additional maintenance. The retrofit kit is designed for use in sealed fixtures, protecting internal components from dust and moisture.
Once installed, the retrofit kit operates with minimal maintenance requirements. The long rated lifespan reduces the frequency of relamping and driver replacement.
The compact size and 4 lb weight allow for straightforward handling during installation and servicing.
How This Fixture Is Commonly Used
After installation, you interact with this retrofit kit much like you would with any standard LED fixture. The light output is consistent and immediate, with no warm-up period.
If your fixture is equipped with motion sensors or photocells, the retrofit kit works with those controls as expected. Dimming is available if your system supports it.
Routine maintenance is limited to periodic inspection of the fixture housing and cleaning of lenses or covers as needed. The active cooling system operates automatically and does not require user adjustment.
Once installed, you do not need to access the retrofit kit for regular operation. The long service life means fewer disruptions for lamp or driver changes.
Safety, Certifications, and Warranty
This fixture is ETL listed.
The product is rebate eligible.
LED Lighting Supply provides warranty coverage as specified for this retrofit kit.
Frequently Asked Questions
What voltage does this retrofit kit support?
This retrofit kit operates on 100V-277V input voltage.
What is the light output and wattage?
The retrofit kit delivers 9900 lumens at 60 watts.
Is this fixture ETL listed?
Yes, this fixture is ETL listed.
What type of fixtures can this retrofit be used in?
This retrofit kit is designed for use in sealed indoor or outdoor fixtures that previously used 250 Watt metal halide lamps.
Is this product eligible for rebates?
This product is rebate eligible.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
