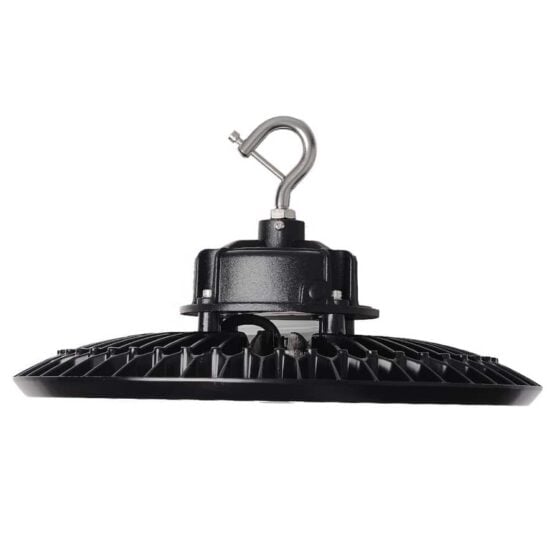

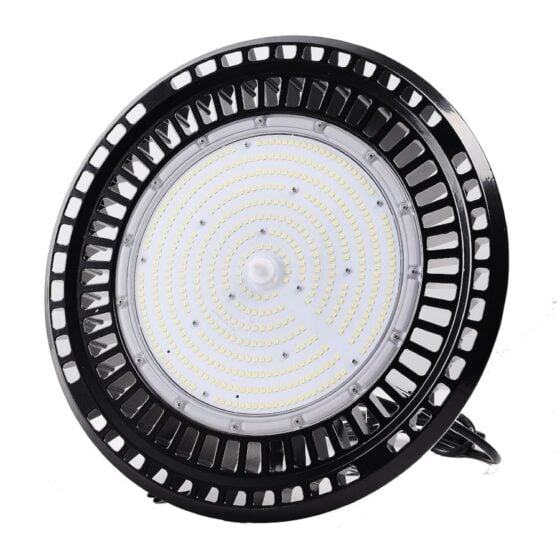

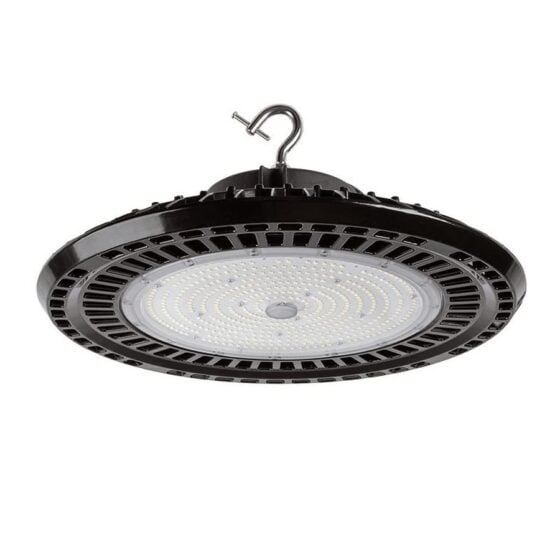

200 Watt LED UFO High Bay | 32000 Lumens | 5000K | 100-277V or 277-480V
The HB2-200 is a compact UFO-style light for shops and warehouses that require a commercial yet cost-effective option. This light is also ideal for above-average ambient temperatures up to 122 degrees Fahrenheit. The 200 watt UFO high bays provides reliable indoor lighting, delivering 32,000 lumens with an efficiency of 160 lumens per watt. This fixture is designed for durability and versatility for various commercial and industrial applications. Its also a great choice for indoor court and gymnasium lighting!
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 32000 |
| Lumens Per Watt | 160 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Eye-Hook |
| Fixture Color | Black |
| Frequency (Hz) | 50 / 60 hz |
| Power Factor | .93 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Operating Temperature | -22°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 15.75 in X 7.9 Inches |
| Weight (lbs) | 14.4 lbs |
| Cord Length | 4 Feet |
IES Files
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 200
- Lumens: 32000
- Lumens Per Watt: 160
- Replaces: 400 Watt Metal Halide
- Voltage: 100V-277V or 277V-480V
- Color Temperature: 5000K
- CRI: 80+
- Dimming: 1-10V
- Beam Angles (Std): 120°
- Lifespan: 50,000 (L70) hours
- Mounting: Eye-Hook
- Fixture Color: Black
- Frequency (Hz): 50 / 60 hz
- Power Factor: .93
- THD: 20% Max
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP65
- IK Rating: IK08
- Operating Temperature: -22°F to 122°F
- Certifications: ETL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 15.75 in X 7.9 Inches
- Weight (lbs): 14.4 lbs
- Cord Length: 4 Feet
Product SKU Variations
- SKU: MLLG-LE-LED-HB2-200-50-120
- Voltage: 100V-277V
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room light use factor to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room Light Use Factor: Suggested starting points: open warehouse 0.85–0.90, clean light-colored space 0.75–0.85, typical warehouse 0.65–0.75, racked or obstructed space 0.50–0.65, dark or complex space 0.40–0.55.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room light use factor, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 150 Watt LED UFO High Bay delivers 24,000 lumens at 5000K. It is designed to replace 400 Watt metal halide fixtures in commercial and industrial spaces.
The fixture operates on either 100-277V or 277-480V input, supporting a wide range of electrical systems. It uses a die-cast aluminum housing and a polycarbonate lens for durability.
The standard beam angle is 120°, providing broad coverage. The fixture is finished in black and includes a 4-foot cord for connection.
It supports 1-10V dimming and has a rated lifespan of 50,000 hours (L70). The fixture weighs 14.4 lbs and measures 15.75 by 7.9 inches.
Where This Product Fits Best
This fixture is suited for high bay applications in warehouses, manufacturing plants, and distribution centers. It is also used in sports venues and other large indoor spaces requiring high-output lighting.
It is compatible with both standard (100-277V) and high voltage (277-480V) electrical systems. The fixture is appropriate for environments where a 400 Watt metal halide replacement is needed.
With an IP65 rating, it can be used in locations exposed to dust and water jets. The IK08 rating allows installation in areas where moderate impact resistance is required.
Performance and Functional Considerations
The fixture delivers 160 lumens per watt, providing efficient illumination for large spaces. The 5000K color temperature produces a daylight-white output suitable for task visibility.
The 1-10V dimming capability allows for integration with compatible dimming controls. The fixture maintains a power factor of 0.93 and a maximum THD of 20%.
It operates reliably in ambient temperatures from -22°F to 122°F. The polycarbonate lens and die-cast aluminum housing support long-term use in demanding environments.
Installation and Long-Term Use

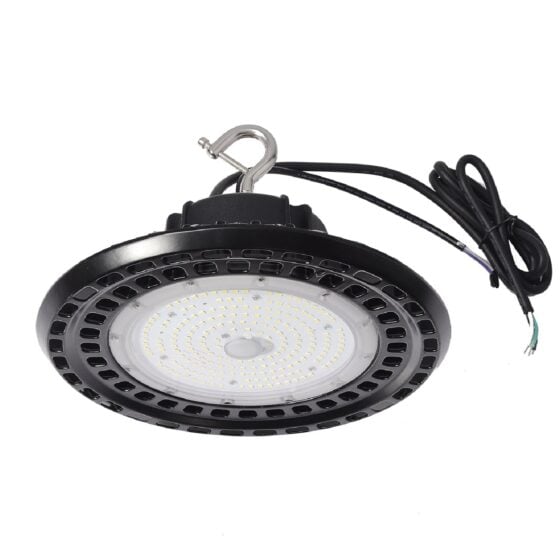

The fixture is designed for eye-hook mounting, which is standard for high bay installations. The 4-foot cord provides flexibility for connection during installation.
At 14.4 lbs, the fixture can be handled by one person, but secure mounting is required due to its weight and application height. The die-cast aluminum housing resists corrosion and physical wear.
With a 50,000 hour (L70) rated lifespan, the fixture minimizes maintenance intervals. The IP65 and IK08 ratings support use in areas with dust, moisture, and moderate physical contact.
How This Fixture Is Commonly Used
Once installed, this fixture provides consistent, high-output lighting for large indoor areas. The 120° beam angle distributes light broadly, reducing shadowing and supporting general visibility.
The 1-10V dimming feature allows you to adjust light levels as needed for different tasks or occupancy patterns. The fixture’s daylight-white 5000K output is relied on for clear, accurate visibility in work areas.
Operators typically do not need to interact with the fixture after installation, aside from periodic cleaning or inspection. The fixture’s construction and ratings allow it to remain in place without frequent attention.
Safety, Certifications, and Warranty
This fixture is ETL listed and rebate eligible. The IP65 rating allows use in areas exposed to dust and water jets.
The IK08 rating provides moderate impact resistance for environments with occasional physical contact. The fixture operates safely in temperatures from -22°F to 122°F.
LED Lighting Supply provides a 5-year warranty on this fixture.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on either 100-277V or 277-480V input.
What is the lumen output?
The fixture delivers 24,000 lumens.
What is the environmental rating?
The fixture is rated IP65 for dust and water jet exposure and IK08 for moderate impact resistance.
What mounting method is supported?
The fixture is designed for eye-hook mounting.
Is this fixture DLC or ETL listed?
This fixture is ETL listed and rebate eligible.
What is the warranty period?
LED Lighting Supply provides a 5-year warranty.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
