100 Watt LED UFO High Bay | 20000 Lumens | 5000K | 100-277V | High Performance

SKU: MLLG-LED-HBHO-100-5-120 Web ID: 1526
Starting at: $176.96 $126.40
Built to Order 6 Weeks

Lighting a large indoor space?

Get a free lighting plan and volume pricing to ensure uniform illumination without overbuying fixtures.

Get Contractor or Bulk Pricing

Get your quote within 1 hour!

Call to Order: (888) 423-3191
The HBHO-100 is a powerful high-end Round-style light ideal for warehouses and manufacturing facilities that need a rugged and powerful option. The 200 lumens per watt will not disappoint and is great for energy efficiency.

Neil Peterson | CEO and Chief Lighting Specialist

Prefer to Order Online? Select Options

Out of stock

Product Specifications

ETL Listed - Certified for Product Safety Compliance to North American StandardsDLC Premium - Top Tier Energy Performance and Rebate Eligibility

Key Features

BrandLED Lighting Supply
Watts100
Lumens20000
Lumens Per Watt200
Replaces400 Watt Metal Halide
Voltage100V-277V
Color Temperature4000K or 5000K
CRI80+
DimmingNo
Beam Angles (Std)120°
Beam Angles (Opt)60° or 90°
OpticsPolycarbonate Lens
Lifespan134,000 (L70) hours
MountingPendant or Surface
Fixture ColorBlack
Frequency (Hz)50 / 60 hz
Power Factor.90
THD20% Max

Durable Construction

HousingDie-Cast Aluminum
IP RatingIP65
IK RatingIK08
Surge Protection6kV
Operating Temperature-22°F to 122°F
CertificationsETL | DLC Premium

Measurements

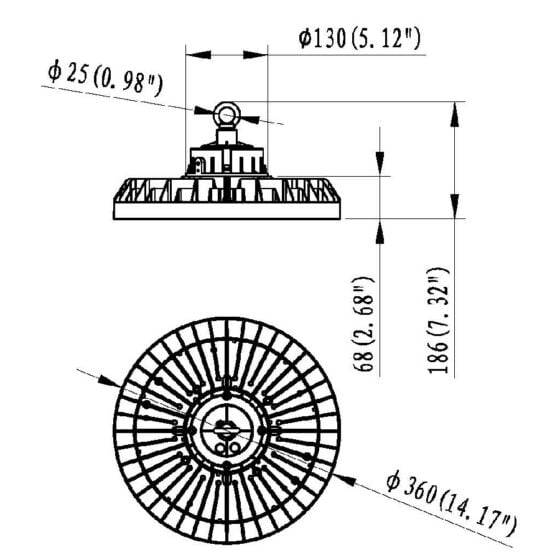

Dimensions (in)14.7 x 7.3 Inches
Weight (lbs)12 lbs
Cord Length5 Feet

Features/Accessories

  • Motion Sensor

Additional Resources

Product Lighting Layout Estimator

Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.

Project Inputs

Loading fixture information...

Estimated Results

Fixtures --
Layout --
Estimated Avg FC --
Approx. Spacing --
Fixture Offset --
Calculation Method: --
Top-Down Fixture Layout Fixture positions and estimated floor light levels
Lower estimated FC Near target Higher estimated FC

Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.

Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.

Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.

Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.

Need Verified Light Levels?

This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.

Estimator Version 2.9.21

Product Overview

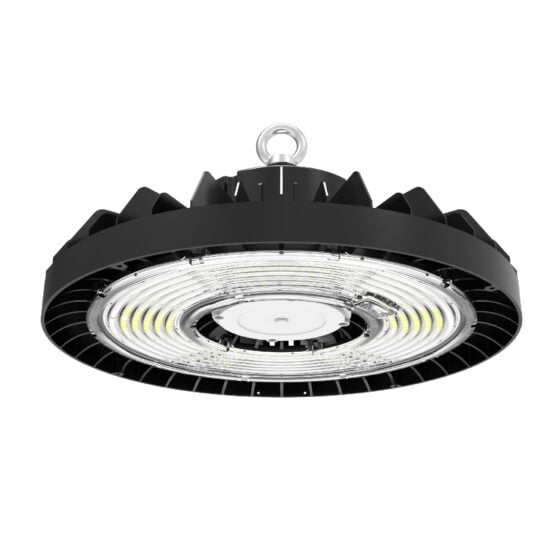

This 100 Watt LED UFO High Bay delivers 20,000 lumens at 5000K. It is designed for use on 100V to 277V circuits and operates at 50 or 60 Hz. The fixture is built with a die-cast aluminum housing and finished in black.

The standard beam angle is 120°, with optional 60° and 90° optics available. The fixture uses a polycarbonate lens and has a CRI of 80+. Dimming is not supported. The power factor is 0.90 and THD is 20% maximum.

The fixture measures 14.7 by 7.3 inches and weighs 12 lbs. It includes a 5-foot cord for installation. Mounting options include eye-hook (standard), pendant, or surface mount.

This high bay is rated for a lifespan of 134,000 hours (L70) and includes 6kV surge protection. A motion sensor is available as an accessory.

Where This Product Fits Best

This fixture is suitable for replacing 400 Watt metal halide high bays in commercial and industrial spaces. It is designed for use in environments where high output and long service life are required.

The IP65 rating allows use in areas exposed to dust and low-pressure water jets, such as warehouses, manufacturing floors, and covered loading docks. The IK08 rating supports use in locations where fixtures may be subject to moderate impact.

Operating temperature range is -22°F to 122°F, supporting installation in both conditioned and unconditioned spaces. The fixture is compatible with 100V to 277V electrical systems commonly found in commercial and industrial facilities.

Beam angle options allow adaptation to different mounting heights and coverage requirements. The fixture is suitable for both new installations and retrofit projects where legacy metal halide systems are being replaced.

Performance and Functional Considerations

This fixture provides 200 lumens per watt, supporting high efficiency requirements. The 20,000 lumen output is appropriate for applications needing strong, uniform illumination from a single point source.

The polycarbonate lens is impact resistant and suitable for environments where durability is a concern. The fixture is not dimmable and is intended for use in applications where full output is required during operation.

Optional beam angles of 60° and 90° allow adjustment of light distribution to suit specific area lighting needs. The standard 120° beam angle provides broad coverage for open spaces.

6kV surge protection is included to help protect against voltage spikes in industrial power environments. The fixture maintains a power factor of 0.90 and THD of 20% maximum for electrical compatibility.

Installation and Long-Term Use

The fixture supports multiple mounting methods: eye-hook (standard), pendant, or surface mount. This allows adaptation to existing mounting points or new installations. The 5-foot cord provides flexibility for connection to overhead power sources.

The die-cast aluminum housing and polycarbonate lens are designed for long-term durability in demanding environments. The fixture is rated for 134,000 hours (L70), supporting extended maintenance intervals.

IP65 protection allows installation in areas exposed to dust and water spray, reducing concerns about fixture failure due to environmental exposure. IK08 impact resistance supports use in locations where fixtures may be subject to accidental contact or moderate impact.

Operating temperature range of -22°F to 122°F allows use in both refrigerated and high-heat environments. The fixture weight of 12 lbs should be considered when selecting mounting hardware and verifying structural support.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent, high-output lighting for large indoor spaces. The broad beam angle covers open areas, while optional narrower optics can be used to focus light where needed.

The fixture operates at full output whenever powered. There is no dimming function, so lighting levels remain constant during use. The motion sensor accessory can be used to automate on/off control based on occupancy if desired.

Routine maintenance is limited to periodic cleaning of the lens and housing. The long rated lifespan reduces the frequency of fixture replacement or servicing. The fixture’s construction supports reliable operation in environments with dust, moisture, and moderate physical contact.

Mounting method selection depends on ceiling structure and application needs. The fixture’s weight and dimensions should be considered when planning installation, especially for pendant or surface mounting.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

IP65 rating allows use in dusty and wet environments. IK08 rating supports use in areas with moderate impact risk.

6kV surge protection is included. The fixture is designed for safe operation within the stated voltage and temperature ranges.

Warranty coverage is provided by LED Lighting Supply. Details are available upon request.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V to 277V.

What is the lumen output?
The fixture delivers 20,000 lumens.

What are the available beam angles?
Standard beam angle is 120°. Optional 60° and 90° optics are available.

Is this fixture DLC Premium qualified?
Yes, this fixture is DLC Premium qualified.

What is the IP rating?
This fixture is rated IP65 for dust and water resistance.

What mounting methods are supported?
Eye-hook (standard), pendant, and surface mounting options are supported.

What is the warranty coverage?
Warranty coverage is provided by LED Lighting Supply.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
