30 Foot Square Fiberglass Light Pole | 5 Inches Wide | Anchor Base
Our 30-foot square composite fiberglass light poles are 5 inches square. These 30-foot anchor composite poles conform to AASHTO and ANSI specifications. They are non-conductive and environmentally safe as well as inert and non-toxic / non-leaching. All poles are coated in fluoropolymer long-life coating and come with a 7-year warranty.
Neil Peterson | CEO and Chief Lighting Specialist
Product Description
Key Features
- Total Height: 30 Feet
- Material: Fiberglass
- Pole Weight: 123 lbs
- Pole Width: 5 Inches
- Pole Bolt Circle: 9 1/8 to 10 3/8 Inches
- Pole Finish: Fluoropolymer Coating
- Pole Color: Bronze | Black | White | Gray | Custom
- Pole Installation: Anchor Base
- Includes: Top Cap
- Gauge: .25 in
- Base Plate: 10 11/16 x 10 11/16
- EPA Rating 70 mph: 13.0
- EPA Rating 80 mph: 8.0
- EPA Rating 90 mph: 4.7
- EPA Rating 100 mph: 2.2
- Warranty: 7 years
Anchor bolts, base covers, and tenons are sold separately.
Benefits:
- Lightweight, easier to unload and install, saving on labor costs
- Does not rot, rust, or corrode.
- Non-conductive
- Does not break down with age, coated in 25-year UV protective paint
- Stronger than equivalent steel in compression and tension, providing excellent durability and longevity in high wind conditions
- Designed to bend, not break, meaning that poles can naturally bend due to weather conditions and will return to their original form
- Fire resistance: poles do not sustain a flame as there is no fuel source for fire
- Color selection: Bronze, Black, White, or Grey
Disclaimer: LED Lighting Supply is not responsible for improper loading of light fixtures or other attachments, use, or foundation design of light poles. We are solely a supplier of lighting solutions, metal halide replacement lights, and poles for parking lots. Final pole assembly is the responsibility of the purchaser. Dimensions and specifications of a round or square composite light pole are subject to change without notice. See the data sheet for current pole data charts. Custom sizing is only available for large order quantities. Pole caps are used in place of other mounting options when necessary.
Please be advised that our composite poles are covered solely by a 7-year workmanship warranty, which ensures that the poles are free from defects from the manufacturing process. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Web ID: 2510
Product Overview
This 30-foot square fiberglass light pole measures 5 inches wide with a .25-inch wall gauge and weighs 123 pounds. The pole uses an anchor base installation method with a 10 11/16 x 10 11/16 inch base plate and a bolt circle ranging from 9 1/8 to 10 3/8 inches. A top cap is included with the pole.
The fiberglass construction is finished with a fluoropolymer coating and protected by 25-year UV protective paint. Available colors include bronze, black, white, gray, and custom options. Anchor bolts, base covers, and tenons are sold separately.
Where This Product Fits Best
This pole suits applications where corrosion resistance matters. Fiberglass does not rot, rust, or corrode, making it appropriate for coastal areas, chemical processing environments, or locations with high moisture exposure. The non-conductive material works well near electrical infrastructure or in areas where grounding concerns exist.
At 123 pounds, this pole is significantly lighter than steel equivalents at this height, which affects handling during delivery and installation. Sites with limited equipment access or where crane time is a cost factor may benefit from the reduced weight.
Performance and Functional Considerations
EPA ratings determine how much fixture area the pole can support at various wind speeds. This pole is rated for 13.0 square feet of EPA at 70 mph, 8.0 square feet at 80 mph, 4.7 square feet at 90 mph, and 2.2 square feet at 100 mph. Fixture selection must account for the combined EPA of all mounted luminaires relative to your site''s wind zone requirements.
Fiberglass poles flex under wind load rather than fracturing. The material returns to its original shape after deflection, which contributes to long-term structural integrity in high wind conditions. The pole provides compression and tension strength comparable to or exceeding steel equivalents.
The material does not sustain flame because it contains no fuel source for fire. This characteristic may be relevant for facilities with fire code considerations or sites near combustible materials.
Installation and Long-Term Use
The anchor base design requires a concrete foundation with embedded anchor bolts. The bolt circle specification of 9 1/8 to 10 3/8 inches determines anchor bolt placement in the foundation. Anchor bolts are not included and must be selected based on foundation design and local engineering requirements.
The reduced weight compared to steel simplifies unloading and positioning. Fewer personnel or lighter equipment may be sufficient for installation depending on site conditions. The 10 11/16 x 10 11/16 inch base plate mounts to the anchor bolts above the finished foundation surface.
The fluoropolymer coating and UV protective paint eliminate the repainting cycles typically required for steel poles. The material will not develop rust or corrosion over the service life of the installation.
How This Fixture Is Commonly Used

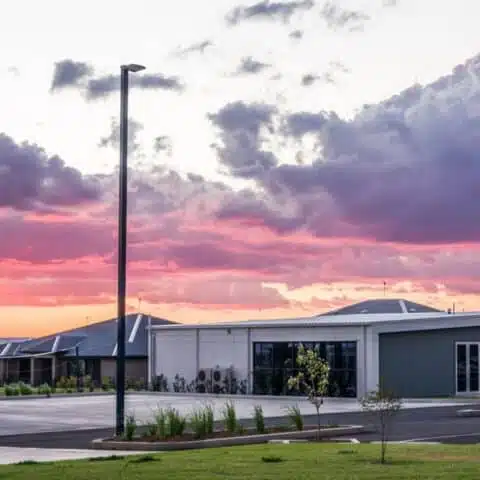

Facility teams typically select this pole when planning parking lot lighting, perimeter security lighting, or roadway installations where a 30-foot mounting height is appropriate. The EPA ratings are referenced against fixture specifications during the design phase to confirm the pole can handle the intended luminaire load at the site''s design wind speed.
Color selection is made at time of order. Bronze, black, white, and gray are standard options, with custom colors available for projects requiring specific color matching. The fluoropolymer finish maintains appearance without the fading common to painted steel over time.
Because tenons are sold separately, the pole accommodates different fixture mounting configurations. Tenon selection depends on how many fixtures are being mounted and their orientation requirements.
Safety, Certifications, and Warranty
This pole carries a 7-year warranty from LED Lighting Supply.
The non-conductive fiberglass material provides electrical isolation between the luminaire and ground. This property is relevant for installations where electrical fault protection is a design consideration.
Frequently Asked Questions
What colors are available?
Bronze, black, white, gray, and custom colors are available. Color is selected at time of order.
What is the EPA rating for this pole?
EPA capacity varies by wind speed: 13.0 square feet at 70 mph, 8.0 square feet at 80 mph, 4.7 square feet at 90 mph, and 2.2 square feet at 100 mph.
Are anchor bolts included?
No. Anchor bolts, base covers, and tenons are sold separately.
What is the bolt circle dimension?
The bolt circle ranges from 9 1/8 to 10 3/8 inches.
What is the warranty coverage?
This pole is covered by a 7-year warranty.
How much does the pole weigh?
The pole weighs 123 pounds.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
