80 Watt Detention Grade Surface Mount 2×4 LED Panel | 12000 Lumens | 4000K | 100-277V
This 80 Watt Detention Grade Surface Mount 2×4 LED Panel is a strong choice for secure facilities due to its 16-gauge steel housing, tamper-resistant T25 TORX fasteners, and dual-lens system, all designed to withstand physical abuse and prevent unauthorized access. Delivering 12,000 lumens at 4000K with 0-10V dimming and a 100,000-hour L70 lifespan, it minimizes maintenance in areas where security protocols complicate access. Its IK07 impact rating and ETL listing make it ideal for detention centers, holding areas, and secure intake rooms. This fixture is not specified for wet locations.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 |
| Lumens | 12000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Optics | .125 Prismatic Acrylic (inner) | .156 Clear Polycarbonate (outer) |
| Lifespan | 100,000 (L70) hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | >0.9 |
Durable Construction
| Housing | 16-Gauge Cold Roll Steel |
| Fasteners | Tamper-Resistant T25 TORX Screws |
| IK Rating | IK07 |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 23.75 x 47.75 x 4 |
Product Overview
This 80-watt detention grade 2×4 LED panel is a surface-mounted fixture built for secure area lighting where tamper resistance and impact protection are required. It produces 12,000 lumens at 4000K with a white steel housing and layered acrylic and polycarbonate optics.
The fixture uses tamper-resistant T25 TORX screws and carries an IK07 impact rating. It is configured as a 400-watt metal halide replacement for detention facility lighting, correctional facility lighting, and related secure spaces.
Core Performance and Output
This panel delivers 12,000 lumens from 80 watts for an efficacy of 150 lumens per watt. The 4000K color temperature and 80+ CRI provide neutral white illumination for interior secure areas.
The prismatic acrylic inner optic and clear polycarbonate outer optic control and protect the light-emitting surface. Its 100-277V input range, 50/60Hz operation, and power factor above 0.9 support common commercial electrical systems.
The 12,000-lumen output can be excessive in low ceiling lighting installations without a layout that accounts for light levels. Uniformity depends on mounting height, fixture placement, and the room layout.
Adjustability and Control Options
This fixture supports 0-10V dimming. Dimming capability allows output adjustment where the connected control system is designed for 0-10V operation.
The fixture operates on 100-277V input voltage. No alternate mounting configuration is specified; this model is surface mounted.
Longevity and Reliability
The LED system is rated for 100,000 hours at L70. This rating supports long operating intervals before lumen output reaches 70 percent of initial output.
The enclosed construction uses a 16-gauge cold roll steel housing, tamper-resistant fasteners, and protected optics. These components address the physical demands of vandal resistant lighting and tamper resistant lighting installations.
Build Quality and Physical Characteristics

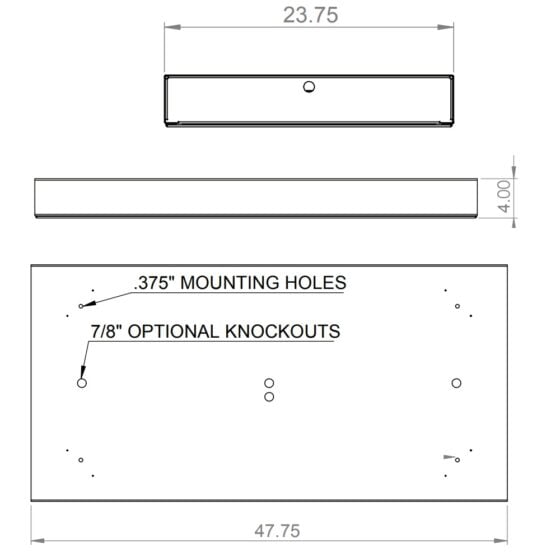

The fixture measures 23.75 inches by 47.75 inches by 4 inches. Its 2×4 panel format is intended for surface installation.
The housing is white 16-gauge cold roll steel. A .125-inch prismatic acrylic inner lens and .156-inch clear polycarbonate outer lens form the optical assembly.
Tamper-resistant T25 TORX screws secure the fixture assembly. The fixture is IK07 rated.
Where This Product Fits Best
This fixture fits secure interior areas requiring surface-mounted lighting with tamper-resistant construction. Its output and 2×4 format suit detention and correctional environments where a robust panel fixture is required.
- detention facility lighting
- correctional facility lighting
- secure area lighting
- holding cell lighting
- secure corridor lighting
- vandal resistant lighting
The steel housing, tamper-resistant screws, polycarbonate outer optic, and IK07 rating support installations where fixture access and impact exposure must be addressed.
Installation and Long-Term Use
Install this fixture as a surface-mounted 2×4 panel. Confirm the mounting surface, fixture dimensions, supply voltage, and control wiring requirements before installation.
The 100-277V input range and 0-10V dimming connections should be coordinated with the installed electrical and control system. Tamper-resistant T25 TORX screws require the appropriate driver during service access.
Long-term maintenance should include inspection of the outer polycarbonate optic, fasteners, housing condition, and dimming connections where used.
How This Fixture Is Commonly Used
In detention facility lighting, correctional facility lighting, and secure area lighting layouts, the panel is surface mounted where its 2×4 dimensions align with the ceiling plan. Mounting height must be evaluated with room geometry and required light levels.
Holding cell lighting and secure corridor lighting layouts typically require fixture placement that accounts for doors, partitions, and sightline requirements. Spacing varies with mounting height, target light levels, and the layout of the secure area.
Safety, Certifications, and Warranty
This fixture is ETL certified. It is rebate eligible.
The fixture has an IK07 impact rating and includes tamper-resistant T25 TORX screws. It carries a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this detention grade panel?
A: The fixture produces 12,000 lumens while consuming 80 watts.
Q: What voltage does this fixture operate on?
A: The fixture operates on 100-277V at 50/60Hz.
Q: Does this fixture support dimming?
A: Yes. It supports 0-10V dimming.
Q: What protects the fixture from impact and unauthorized access?
A: The fixture has an IK07 rating, a .156-inch clear polycarbonate outer optic, and tamper-resistant T25 TORX screws.
Application Questions and Clarification
Q: Which listed applications fit this fixture?
A: The fixture fits detention facility lighting, correctional facility lighting, secure area lighting, vandal resistant lighting, psychiatric facility lighting, holding cell lighting, secure corridor lighting, and tamper resistant lighting.
Q: What should be reviewed before establishing fixture placement?
A: Mounting height, target light levels, room layout, fixture dimensions, and surface mounting conditions should be reviewed. A specific spacing value is not established by the supplied product data.
Q: What mounting method is specified for this fixture?
A: This model is specified for surface mounting.
