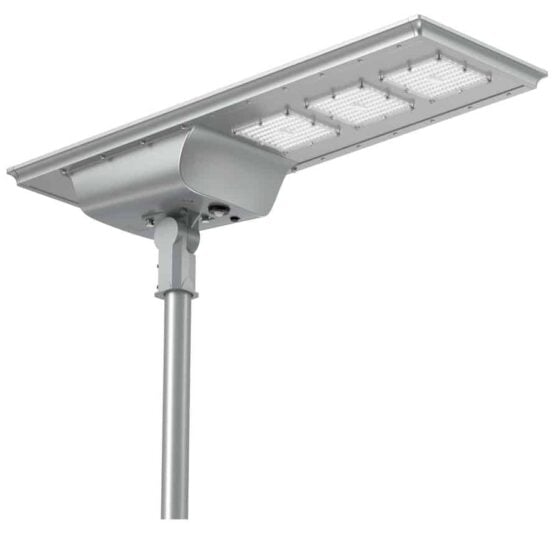

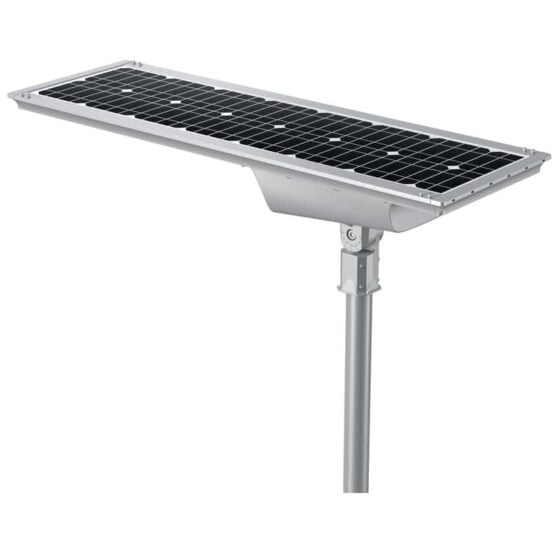

60 Watt Hybrid Solar Area Light | 12000 Lumens | 4000K | 100-277V | High Performance | 5 Year Warranty

Product Overview

This 60-watt hybrid solar area light produces 12,000 lumens at 4000K with a Type 3 distribution. It is built for solar street lighting, pathway lighting, remote site lighting, and parking lot lighting where a pole-mounted directional distribution is required.

The fixture uses an aluminum alloy housing, monocrystalline solar panel, polycarbonate optics, and a slip fitter mount. Its 100-277V operating range also supports hybrid electrical configurations.

Core Performance and Output

The fixture delivers 12,000 lumens at 200 lumens per watt. The 4000K color temperature and 70+ CRI provide neutral white illumination for outdoor routes, parking areas, and site circulation paths.

A Type 3 distribution directs light forward from the pole location, supporting roadway and perimeter-oriented layouts. Output is equivalent to a 250-watt metal halide fixture.

The 60-watt output can be excessive where poles are installed close to small pathway areas. Wider pole spacing can reduce uniformity if the Type 3 distribution does not overlap adequately.

Adjustability and Control Options

This fixture is not dimmable. It includes a motion sensor for occupancy-responsive operation.

The standard optical distribution is Type 3. No alternate beam distributions or control interfaces are specified.

Longevity and Reliability

The LED system is rated for 100,000 L70 hours. L70 identifies the point at which light output is expected to remain at 70 percent of initial output.

The fixture carries a 5-year warranty. The IP65-rated enclosure protects the assembly against outdoor dust and water exposure.

Build Quality and Physical Characteristics

The housing is aluminum alloy with a monocrystalline solar panel and polycarbonate optics. The fixture measures 55 x 16.6 x 10 inches and weighs 44 pounds.

The slip fitter mount is intended for pole-mounted installation. The fixture has an EPA rating of 1.8, which must be accounted for with the pole and mounting structure.

Where This Product Fits Best

This fixture fits outdoor locations that need directional pole-mounted lighting and may benefit from solar-supported operation. Its Type 3 distribution aligns with streets, parking areas, pathways, and roadway edges.

• parking lot lighting
• street lighting
• remote site lighting
• pathway lighting
• off-grid roadway lighting
• campus lighting
• park lighting
• municipal lighting

The IP65 construction supports exposed outdoor conditions. Final pole selection must account for the 44-pound fixture weight and 1.8 EPA rating.

Installation and Long-Term Use

The fixture installs with a slip fitter mount. Confirm the pole tenon dimensions, structural capacity, fixture weight, and EPA loading before installation.

The monocrystalline solar panel requires placement without persistent obstruction above the fixture. Electrical work must also accommodate the specified 100-277V operating range where hybrid power is used.

How This Fixture Is Commonly Used

For street lighting, parking lot lighting, and off-grid roadway lighting, the Type 3 optic is oriented to project light forward from the pole toward the travel path or parking surface. For pathway lighting, park lighting, campus lighting, municipal lighting, and remote site lighting, the fixture orientation follows the direction of the route being illuminated.

Mounting height and pole spacing are established from the site layout, target light level, and required overlap between fixtures. Greater spacing reduces fixture count but can reduce uniformity between pole locations.

Safety, Certifications, and Warranty

This fixture is IP65 rated. No additional certifications are specified.

The warranty period is 5 years. The fixture has an EPA rating of 1.8.

Frequently Asked Questions

Q: What is the light output of this hybrid solar area light?

A: The fixture produces 12,000 lumens while consuming 60 watts.

Q: What distribution does this fixture use?

A: It uses a Type 3 distribution.

Q: How is this fixture mounted?

A: The fixture uses a slip fitter mount.

Q: Can this fixture be dimmed?

A: No. This fixture is not dimmable.

Q: What factors affect fixture layout planning?

A: Layout planning should account for the 12,000-lumen output, Type 3 distribution, mounting height, pole spacing, and required light levels. The supplied product data does not establish a specific spacing value.

Application Questions and Clarification

Q: Is this fixture appropriate for parking lot lighting and street lighting?

A: Yes. Parking lot lighting and street lighting are primary applications for this solar street light product family. The Type 3 distribution supports forward-directed pole-mounted layouts.

Q: What should be confirmed before mounting this fixture on a pole?

A: Confirm compatibility with the slip fitter mount, the 44-pound fixture weight, and the 1.8 EPA rating. Pole height and structural requirements must be determined for the project.

Q: Can this fixture be used for remote site lighting?

A: Remote site lighting is a primary application for this solar street light product family. Site layout and solar panel exposure should be evaluated before final placement.

Q: What environmental protection is provided?

A: The fixture is IP65 rated.

Web ID: 2319
