50 Watt Solar Area Light | 5000 Lumens | 5000K | 2 Year Warranty
This 50 watt solar area light is a practical choice for outdoor sites lacking grid power, offering 5,000 lumens at 5000K from a fully self-contained, off-grid assembly. Its IP66 rating and die-cast aluminum construction withstand harsh weather and dusty environments, while the slip fitter mount simplifies installation on standard round poles. The Type 3 distribution is well-suited for parking areas, pathways, equipment yards, and perimeter fencing, especially where trenching power is impractical. Intelligent output control extends battery life through variable brightness.
Dwayne Kula | President, CTO and Founder
56 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 50 |
| Lumens | 5000 |
| Lumens Per Watt | 100 |
| Replaces | 150 Watt Metal Halide |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Lifespan | 50,000 hours |
| Mounting | Slip Fitter |
| EPA Rating | 1.13 |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 |
| Power Factor | > .98 |
| THD | < 20% |
Durable Construction
| Housing | Die-Casting Aluminum Alloy, Anti-Corrosion, Solar Panel mounted on top of fixture |
| IP Rating | IP66 |
| Warranty | 2 years |
Measurements
| Dimensions (in) | 29.5 X 10 X 4 |
| Weight (lbs) | 15 |
Features/Accessories
- Motion Sensor
- Photocell
Notes
50 Watt solar-powered LED street light is a complete package with a built-in panel, PIR sensor, and battery. 8 to 12 hours a night operation, intelligent mode allows for up to 4 nights of operation without recharging.
| Operating Hours | Standard Light Level | Light Level When Motion is Detected |
| 0-4 | 15% | 100% |
| 4-8 | 15% | 60% |
| 8-12 | 15% | 30% |
Download IES Files
Product Overview

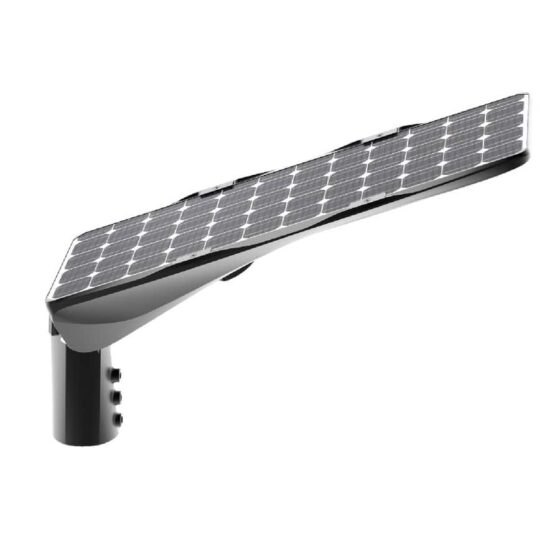

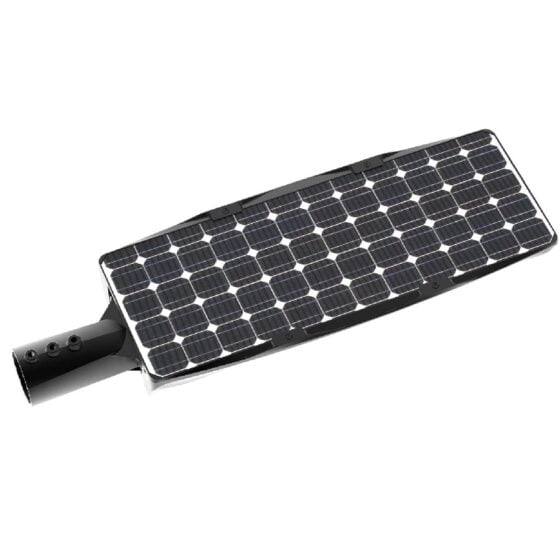

This 50-watt solar area light is an integrated LED street light with a top-mounted solar panel, built-in battery, PIR motion sensor, and photocell. It produces 5000 lumens at 5000K through a Type 3 distribution.
The fixture is configured for pole-mounted street lighting and parking lot lighting where solar operation is required. Its integrated design avoids separate solar-panel placement and external battery mounting.
Core Performance and Output
The fixture delivers 5000 lumens from 50 watts for an efficacy of 100 lumens per watt. The 5000K color temperature and 70+ CRI provide a cool white outdoor lighting appearance.
A Type 3 distribution directs light outward along a roadway or perimeter pattern. The 5000-lumen output can be excessive where low-level pathway lighting is required, while wider spacing can reduce uniformity between poles.
The listed electrical characteristics include 100-277V operation, 50/60Hz frequency, power factor greater than 0.98, and THD below 20%. The fixture is also rated as a replacement for 150-watt metal halide lighting.
Adjustability and Control Options
This fixture is not dimmable through a separate dimming control system. Output operation is managed by the integrated photocell and PIR motion sensor.
During the first four operating hours, the standard light level is 15% and increases to 100% when motion is detected. From four to eight hours, motion output is 60%, and from eight to twelve hours, motion output is 30%.
The standard light level remains at 15% throughout the listed operating schedule. Intelligent mode supports up to four nights of operation without recharging.
Longevity and Reliability
The rated lifespan is 50,000 hours. The fixture includes a 2-year warranty.
Listed nightly operation is 8 to 12 hours. Runtime depends on the integrated solar panel, battery condition, and the configured motion-response operating schedule.
Build Quality and Physical Characteristics
The housing is die-cast aluminum alloy with an anti-corrosion finish. The solar panel is mounted on top of the fixture body.
The fixture is IP66 rated. It is gray, measures 29.5 x 10 x 4 inches, and weighs 15 pounds.
A slip fitter mount supports pole installation. The listed EPA rating is 1.13.
Where This Product Fits Best
This solar area light fits outdoor pole-mounted locations requiring street, pathway, remote-site, or parking lot lighting without separate solar-panel equipment.
- street lighting and off-grid roadway lighting
- parking lot lighting and municipal lighting
- pathway lighting and trail lighting
- remote site lighting and park lighting
The IP66-rated enclosure and anti-corrosion aluminum housing support exposed outdoor installation conditions. Pole selection and mounting configuration must account for the fixture weight and 1.13 EPA rating.
Installation and Long-Term Use
The slip fitter mount is intended for pole-mounted installation. The fixture body, integrated solar panel, battery, motion sensor, and photocell are contained in one assembly.
Mounting height and pole placement should be established around the Type 3 distribution, required light levels, and the intended lighting pattern. The supplied data does not establish a fixed mounting height or pole spacing.
Keep the top-mounted solar panel positioned for available solar charging. Long-term operation also depends on maintaining the integrated solar and battery components.
How This Fixture Is Commonly Used
For street lighting and off-grid roadway lighting, fixtures are placed along the travel path so the Type 3 distribution follows the roadway pattern. Mounting height is selected based on pole configuration and required lighting coverage.
For parking lot lighting, municipal lighting, and remote site lighting, pole locations are arranged around the required site layout rather than using a fixed spacing rule. Wider pole spacing reduces fixture count but can reduce light uniformity between fixtures.
For pathway lighting, trail lighting, and park lighting, the motion sensor maintains 15% standard output and raises output when motion is detected according to the listed operating schedule.
Safety, Certifications, and Warranty
This fixture is IP66 rated. The housing is die-cast aluminum alloy with an anti-corrosion finish.
The fixture has a 2-year warranty. Its listed EPA rating is 1.13.
Frequently Asked Questions
Q: What is the light output of this solar area light?
A: The fixture uses 50 watts and produces 5000 lumens at 5000K with a 70+ CRI.
Q: What light distribution does this fixture use?
A: The standard distribution is Type 3.
Q: How does the motion sensor change output?
A: Standard output is 15%. Motion output is 100% during hours 0 through 4, 60% during hours 4 through 8, and 30% during hours 8 through 12.
Q: What should be considered when planning pole placement?
A: Mounting height, Type 3 distribution, target light levels, and layout requirements affect pole placement. The supplied product data does not establish a fixed spacing value.
Q: What mounting method is provided?
A: The fixture uses a slip fitter mount.
Application Questions and Clarification
Q: Is this fixture suitable for off-grid roadway lighting?
A: Off-grid roadway lighting is a listed secondary application. The fixture includes an integrated solar panel, battery, photocell, and motion sensor.
Q: Can this fixture be used for parking lot lighting?
A: Parking lot lighting is a listed primary application. Final pole placement depends on the required layout and light levels.
Q: What should be verified for a pole-mounted installation?
A: Verify the slip fitter mounting arrangement, fixture weight of 15 pounds, and EPA rating of 1.13 against the pole and mounting configuration.
Web ID: 1559
