100 Watt Solar Area Light | 20000 Lumens | 4000K | High Performance | 5 Year Warranty

Product Overview

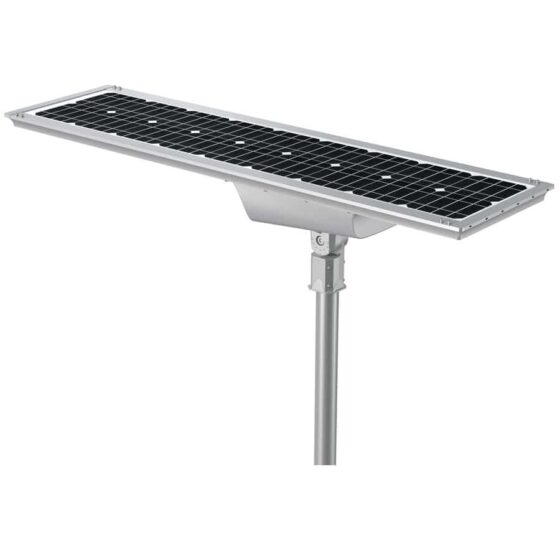

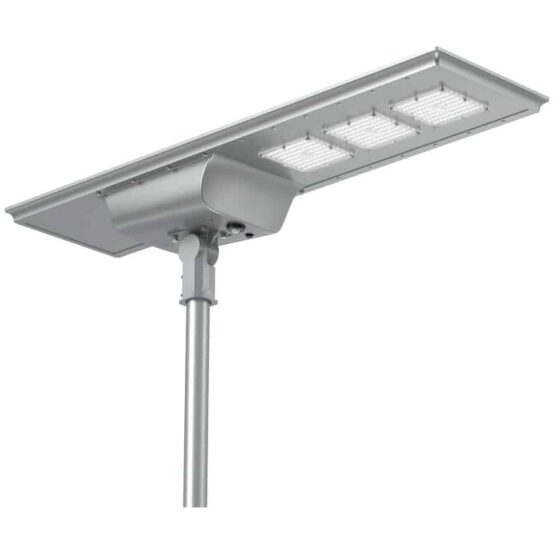

This 100 watt solar area light produces 20,000 lumens at 4000K with a Type 3 distribution. It combines a monocrystalline solar panel, 768Wh LiFePO4 battery, MPPT controller, timer/dimming control, and motion sensor in one pole-mounted assembly.

The fixture is configured for slip fitter mounting and is commonly used where utility power is unavailable or where an independent solar lighting system is required. Its 20,000-lumen output is listed as a replacement for 400 watt metal halide fixtures.

Core Performance and Output

The fixture operates at 100 watts and delivers 200 lumens per watt. The 4000K color temperature and 70+ CRI provide a neutral outdoor light appearance.

The Type 3 distribution directs light forward and outward from the pole, which supports linear and perimeter lighting layouts. Output can be excessive when installed at low mounting heights, while uniformity at greater mounting heights depends on pole placement and layout requirements.

Adjustability and Control Options

The integrated MPPT solar charge controller manages charging from the 90 watt monocrystalline solar panel. The 768Wh LiFePO4 battery supports normal mode operation for 8 hours and smart mode operation for 3 to 4 days.

Timer and dimming control are integrated into the solar system. The fixture is not externally dimmable. A motion sensor is included for control operation.

Longevity and Reliability

The LED light source is rated for 100,000 L70 hours. L70 indicates the point at which light output reaches 70 percent of its initial level.

The LiFePO4 battery, MPPT controller, and solar panel operate as an integrated off-grid lighting system. Charging time is listed at 9 hours.

Build Quality and Physical Characteristics

The housing is aluminum alloy with a monocrystalline solar panel. Polycarbonate optics protect the Type 3 distribution system.

The fixture is IP65 rated. It measures 60 inches long, 16.61 inches wide, and 10 inches high, with a listed weight of 53 pounds.

Where This Product Fits Best

This solar street light fits outdoor locations that need pole-mounted lighting without a utility-powered fixture connection. The Type 3 distribution supports forward-throw lighting along travel paths, site perimeters, and open paved areas.

• street lighting
• parking lot lighting
• remote site lighting
• pathway lighting
• off-grid roadway lighting
• park lighting
• trail lighting
• campus lighting

IP65 construction supports outdoor exposure. Final placement must account for solar charging access, pole geometry, mounting height, and the lighting layout.

Installation and Long-Term Use

The fixture uses a slip fitter mount. The pole, mounting arm, and mounting hardware must support the 53 pound fixture weight and the listed EPA rating of 1.8.

Installer access is needed for secure mounting, solar panel orientation, and control setup. Long-term operation depends on maintaining an unobstructed solar panel surface and confirming that the installation location receives suitable charging exposure.

How This Fixture Is Commonly Used

For street lighting, off-grid roadway lighting, and pathway lighting, the Type 3 optic is typically oriented along the direction of travel. For parking lot lighting and remote site lighting, pole placement is arranged to direct the forward throw into the required coverage area.

Mounting height and pole spacing must be set from the required light levels and layout conditions. Wider spacing can reduce fixture count, but it can also reduce uniformity between poles.

Safety, Certifications, and Warranty

The fixture is IP65 rated. The listed EPA rating is 1.8.

This solar area light includes a 5 year warranty. Installation must account for fixture weight, slip fitter mounting, and pole structural capacity.

Frequently Asked Questions

Q: What is the light output of this solar area light?

A: The fixture produces 20,000 lumens at 100 watts, with an efficacy of 200 lumens per watt.

Q: What distribution does this fixture use?

A: The fixture uses a Type 3 distribution.

Q: What battery and solar panel are included?

A: The system includes a 768Wh LiFePO4 battery and a 90 watt monocrystalline solar panel.

Q: How long does the fixture operate?

A: Normal mode is listed for 8 hours. Smart mode is listed for 3 to 4 days.

Q: What information is needed to plan fixture layout?

A: Mounting height, target light levels, pole placement, solar charging exposure, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.

Application Questions and Clarification

Q: Is this fixture suited for off-grid roadway lighting?

A: Off-grid roadway lighting is a listed application. The fixture includes an integrated solar panel, LiFePO4 battery, and MPPT controller.

Q: What should be confirmed for parking lot lighting layouts?

A: Confirm pole mounting height, pole spacing, required light levels, solar charging exposure, and the direction of the Type 3 distribution.

Q: What mounting information should be reviewed before installation?

A: Review the slip fitter mount, 53 pound fixture weight, and EPA rating of 1.8 with the pole and mounting structure.
