80 / 100 / 150 Watt Adjustable LED Shoebox Area Light | 10400 to 19500 Lumens | 3000K / 4000K / 5000K Color Adjustable | 120V-277V
This LED shoebox area light is a strong choice for outdoor site lighting due to its selectable wattage (80, 100, or 150 watts) and color temperature (3000K, 4000K, 5000K), allowing precise adaptation to changing site needs or local requirements. Its Type 3 distribution is well-suited for parking lots, sports courts, drive lanes, and perimeter areas, while the IP65 rating and die-cast aluminum housing ensure reliable operation in wet or dusty environments. Arm and slip fitter mounting options simplify installation on standard poles.
Dwayne Kula | President, CTO and Founder
295 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 | 100 | 150 |
| Lumens | 10400 | 13000 | 19500 |
| Lumens Per Watt | 130 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 120V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |

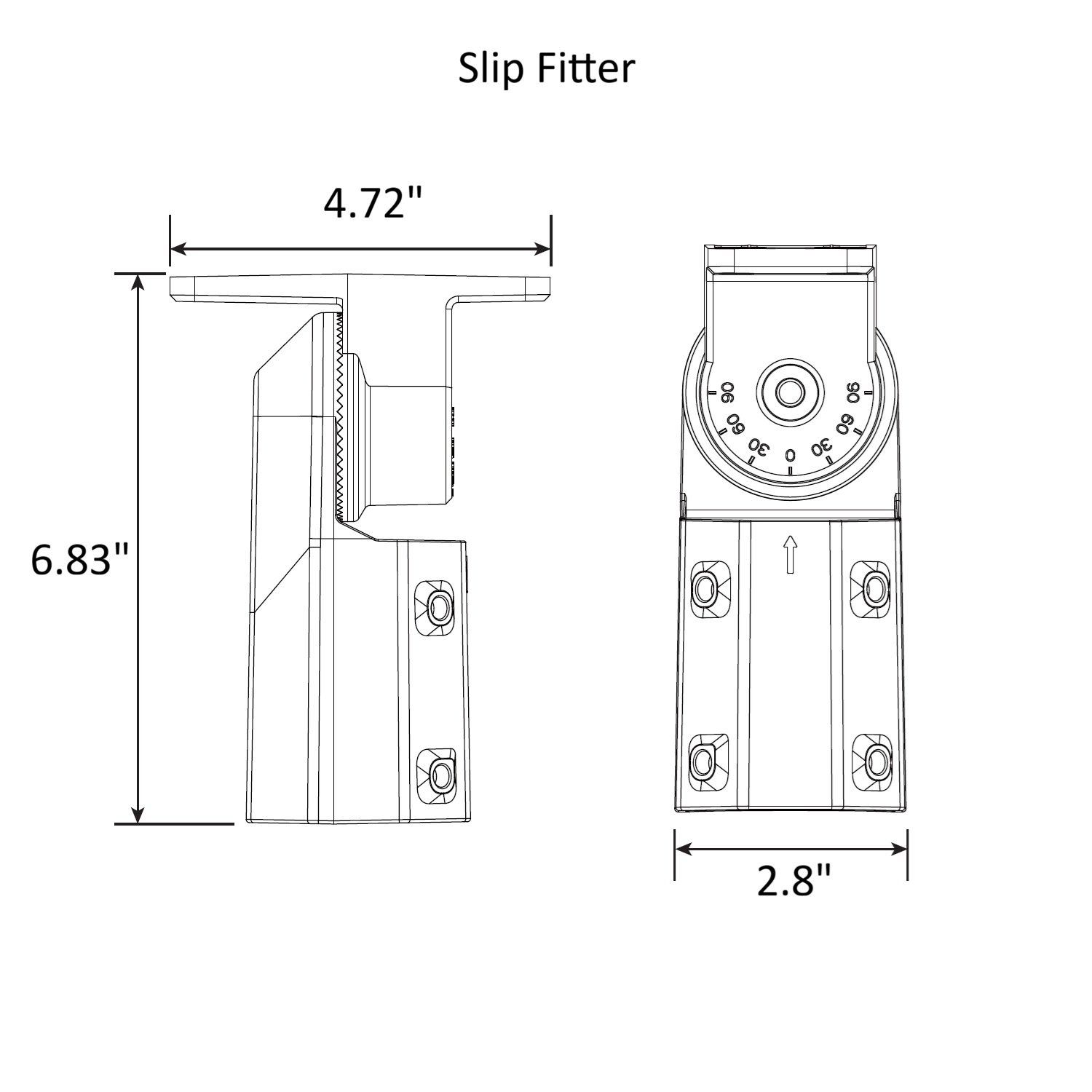

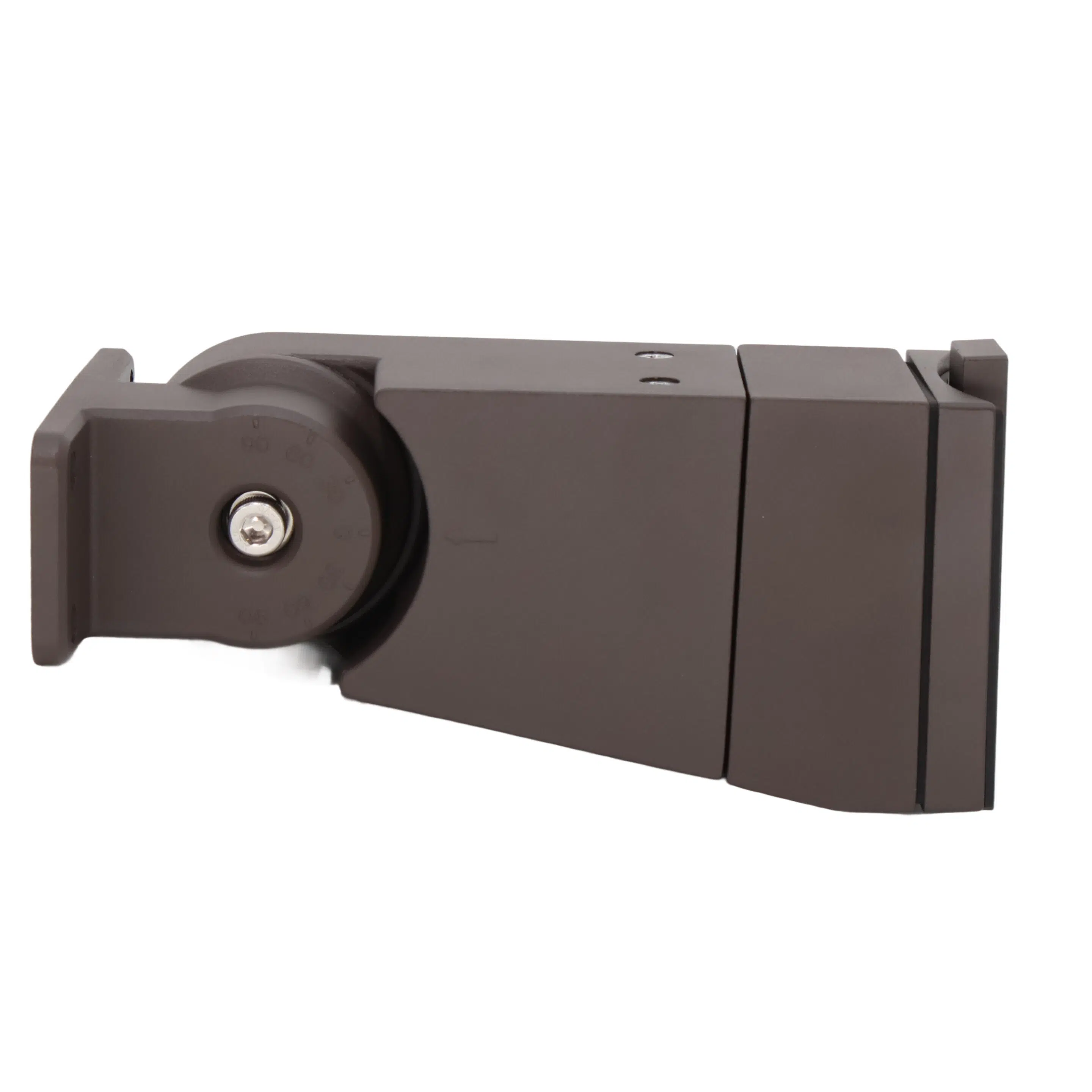

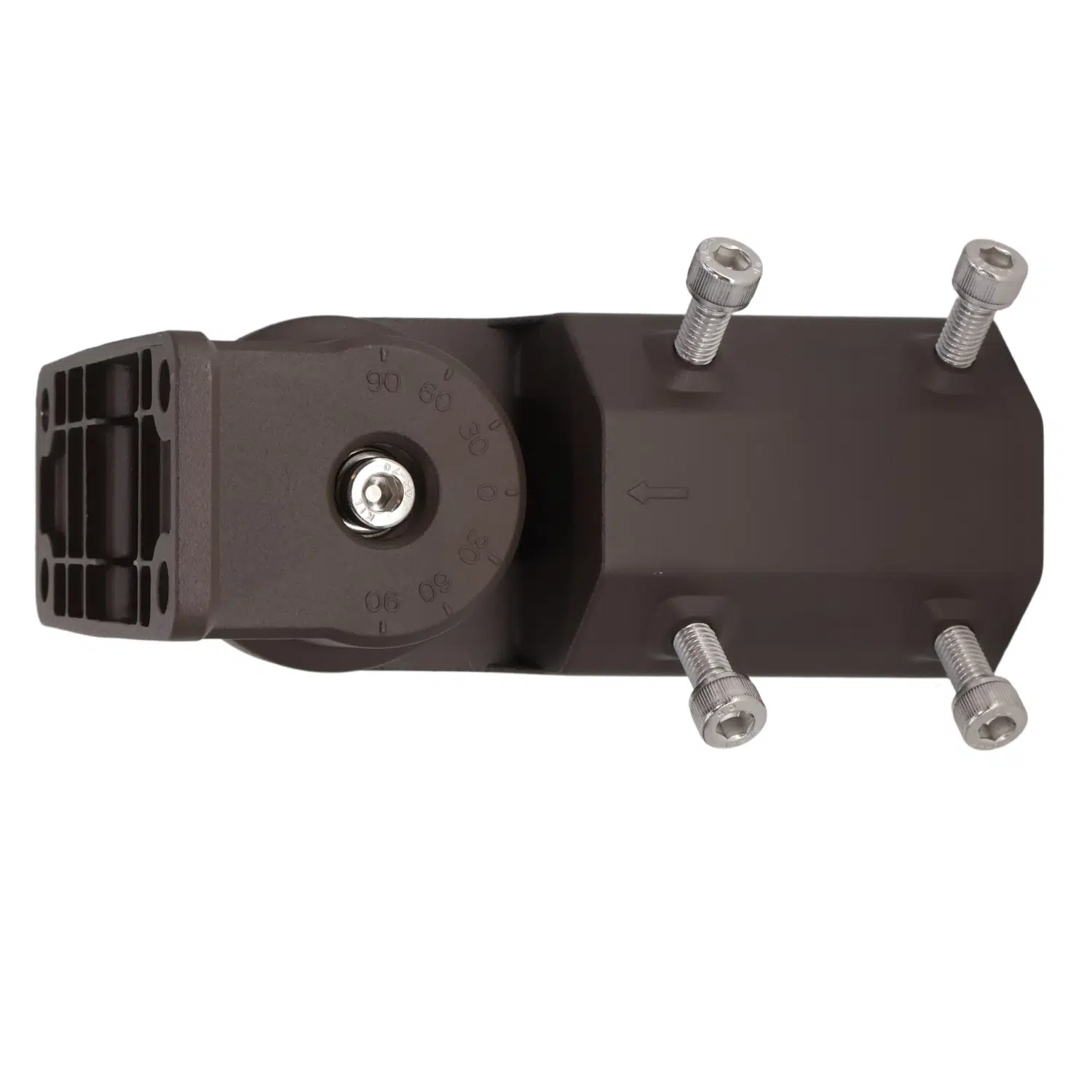

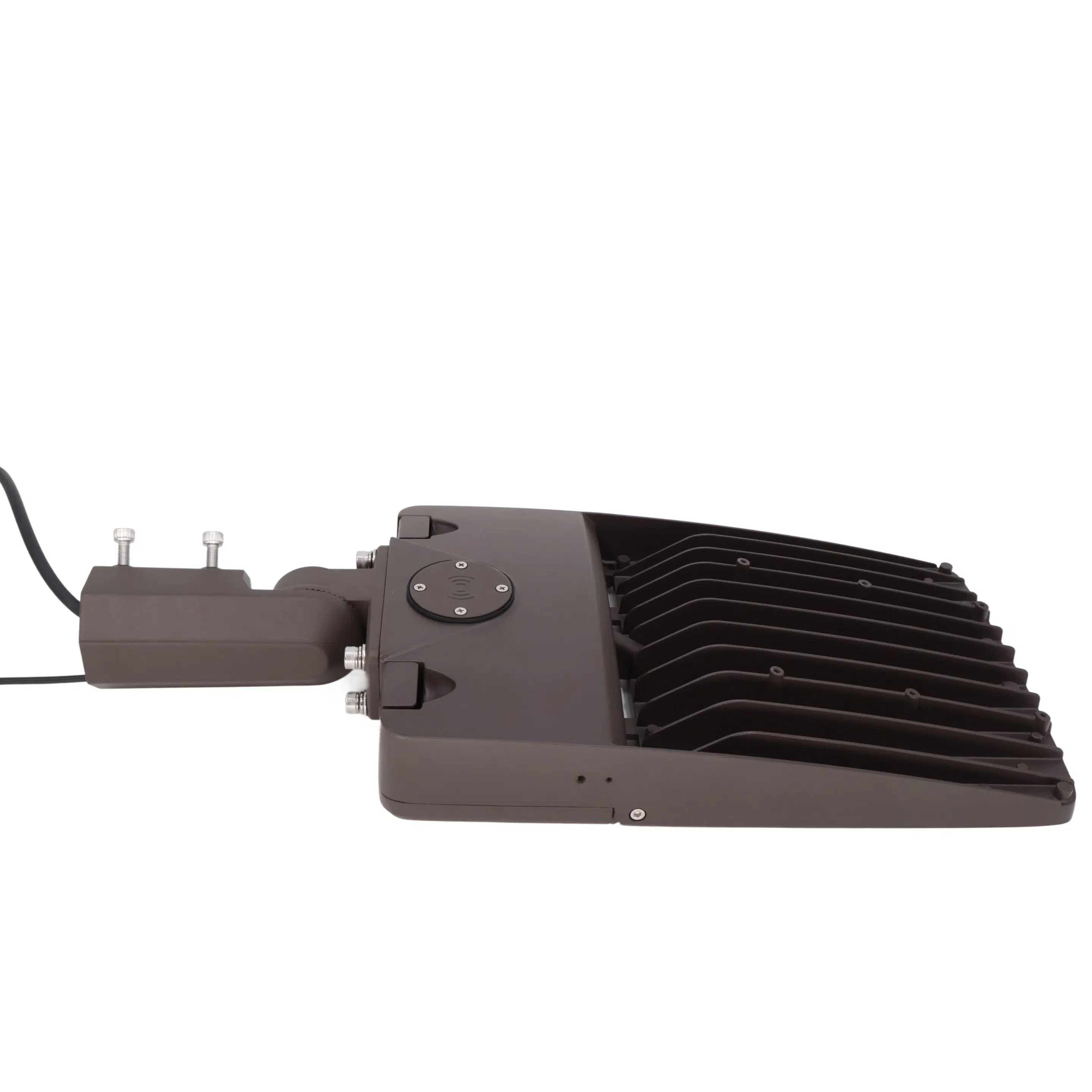

| Mounting | Arm or Slip Fitter |
| EPA Rating | 1.1 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .9 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 15.55 L X 9.88 W X 2.6 H |
| Weight (lbs) | 7 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable

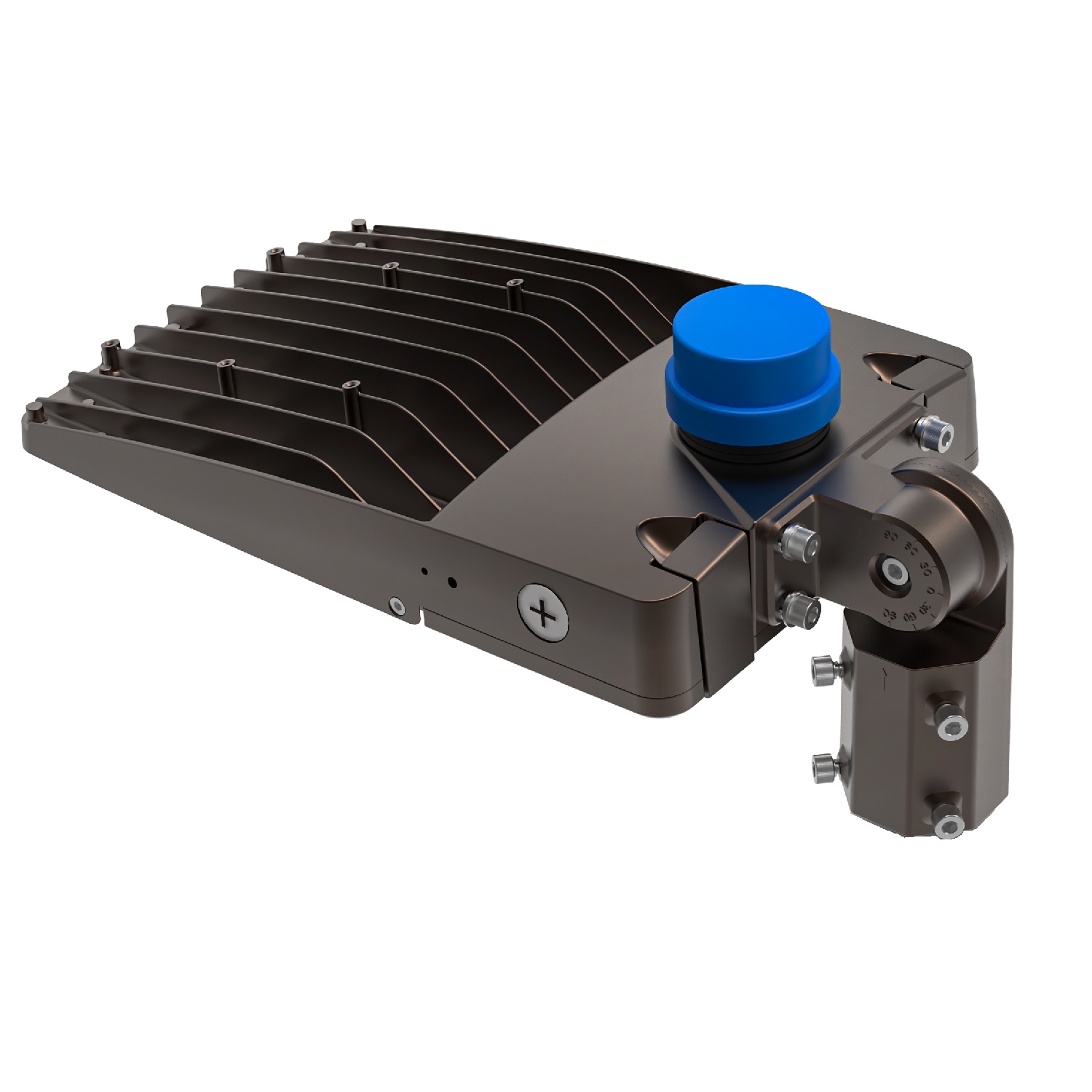

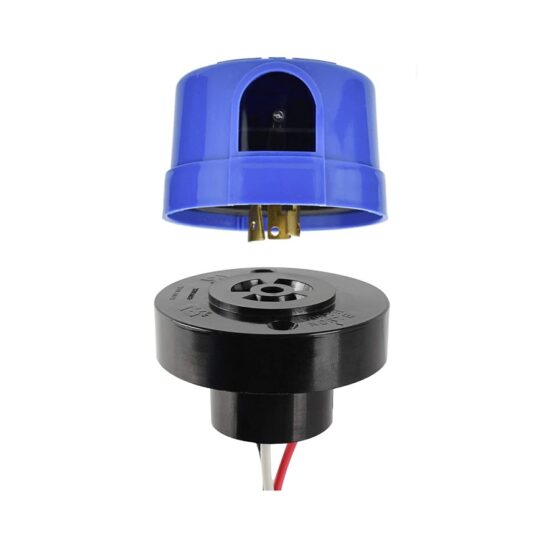

- Optional NEMA Socket + Twist Lock Photocell
Download IES Files
Additional Resources
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview

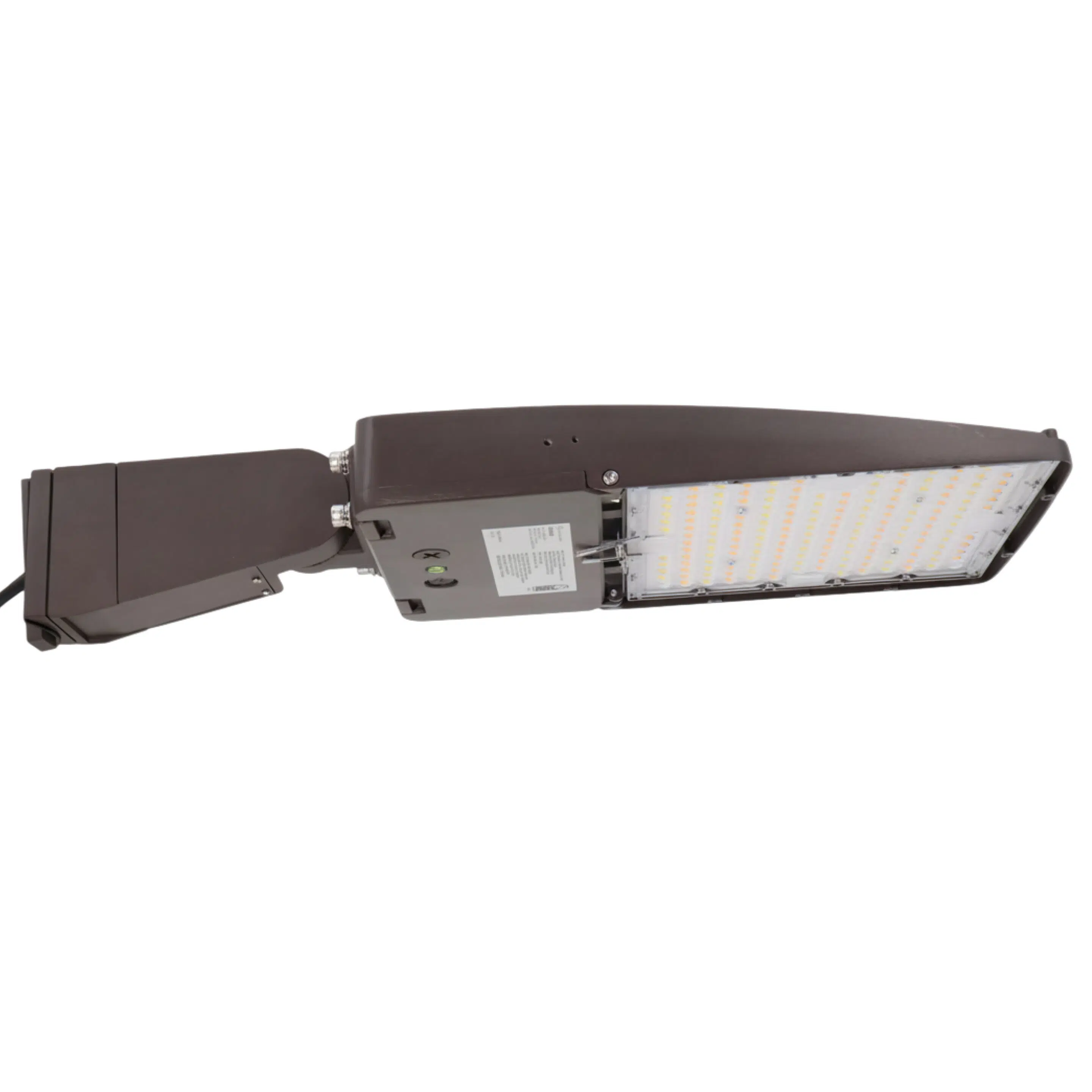

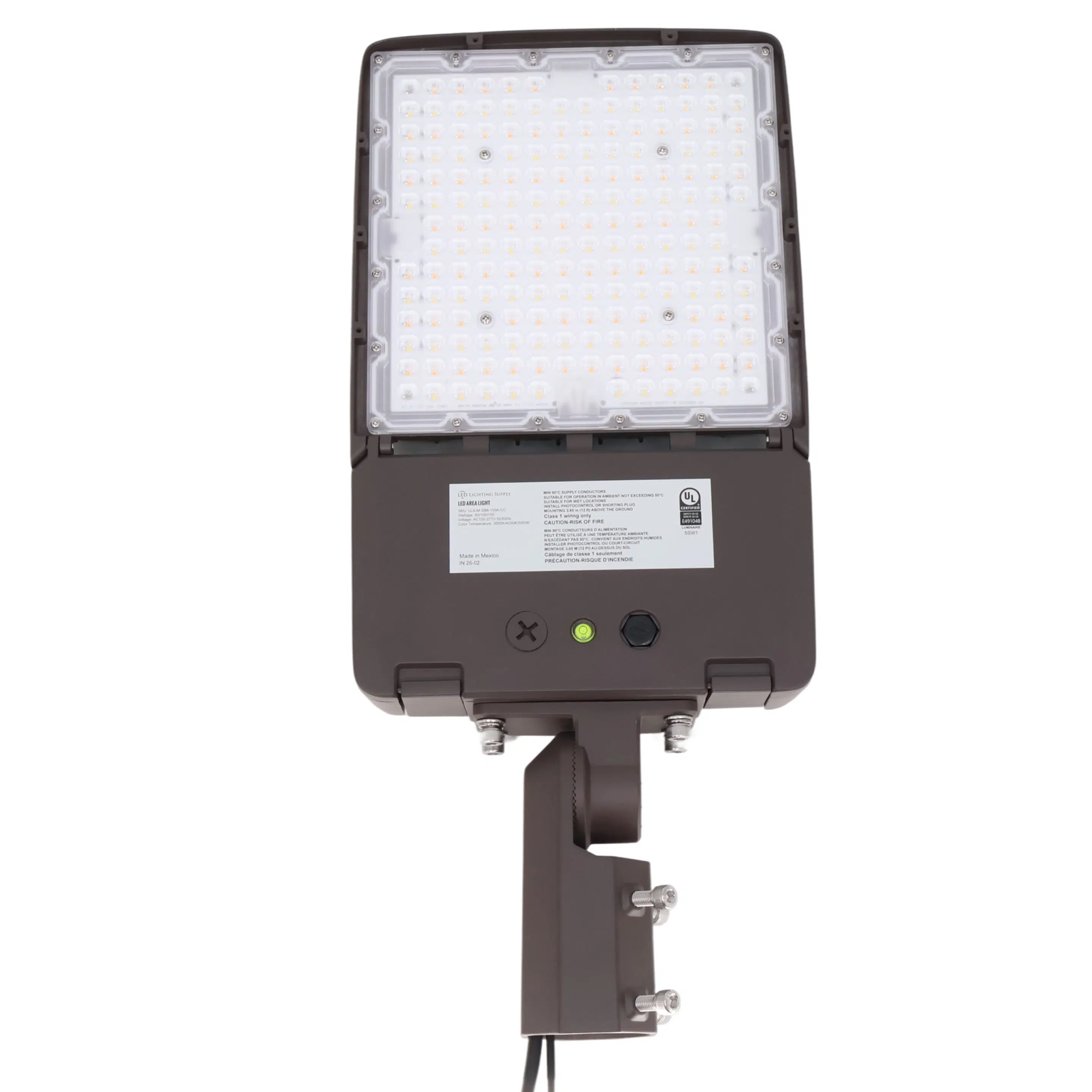

This adjustable LED shoebox area light provides 80W, 100W, and 150W operating settings with selectable 3000K, 4000K, or 5000K color temperature. It is built for pole-mounted exterior lighting where output and color temperature may need to be set during installation.

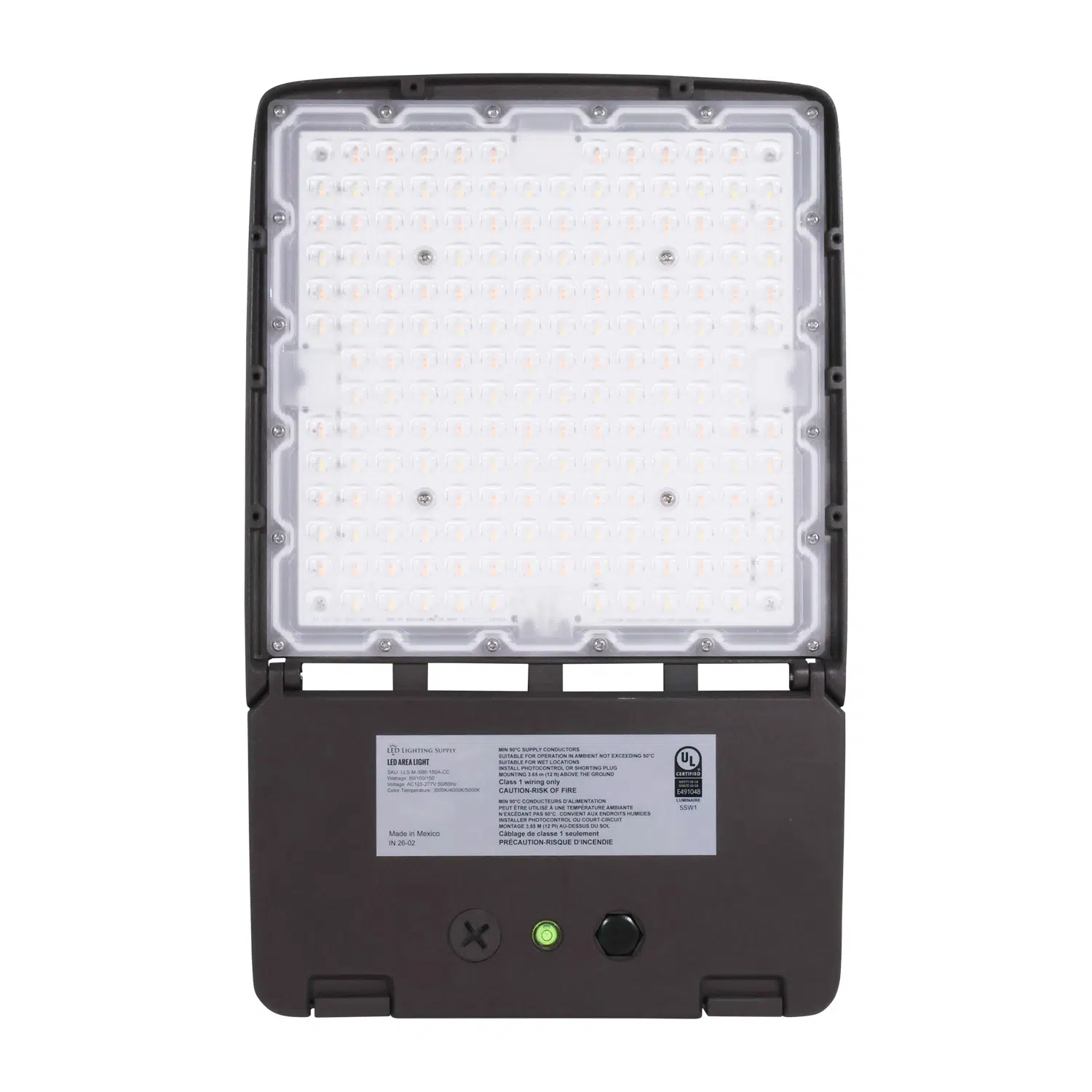

The fixture delivers a Type 3 distribution through a polycarbonate lens. Arm and slip fitter mounting support common pole and tenon installations.
Core Performance and Output
The selectable output settings produce 10,400, 13,000, or 19,500 lumens at 130 lumens per watt. The 150W setting is listed as a replacement for 400W metal halide, while the lower settings are listed as replacements for 250W metal halide.
Type 3 optics direct light outward for roadway perimeter, parking lot, and site layouts. Higher output can reduce fixture count, but it can create excessive light levels where mounting heights and spacing are limited.
The fixture operates on 120V-277V, 50/60Hz power with a power factor above 0.9. It supports 0-10V dimming and includes 6kV surge protection.
Adjustability and Control Options
Wattage selection allows the fixture to operate at 80W, 100W, or 150W. Color temperature selection provides 3000K, 4000K, and 5000K settings.
0-10V dimming is available where compatible control wiring is installed. An optional NEMA socket with twist lock photocell is available for photocell-based operation.
Longevity and Reliability
The rated lifespan is 50,000 hours. The fixture is rated for operation from -22F to 113F.
Die-cast aluminum construction, an IP65 rating, and 6kV surge protection support exterior operation. The warranty period is 5 years.
Build Quality and Physical Characteristics

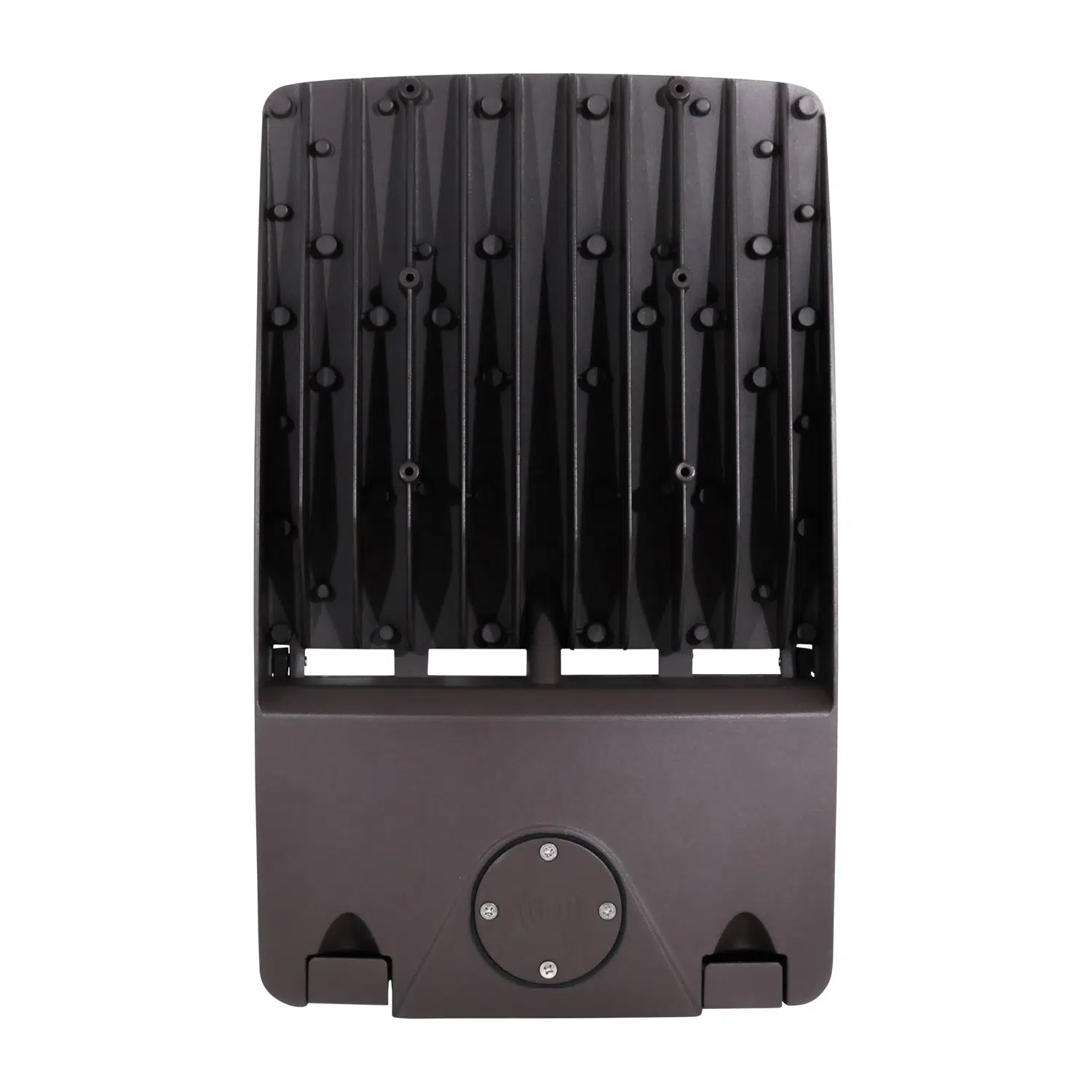

The housing is die-cast aluminum with a bronze finish. The lens is polycarbonate.

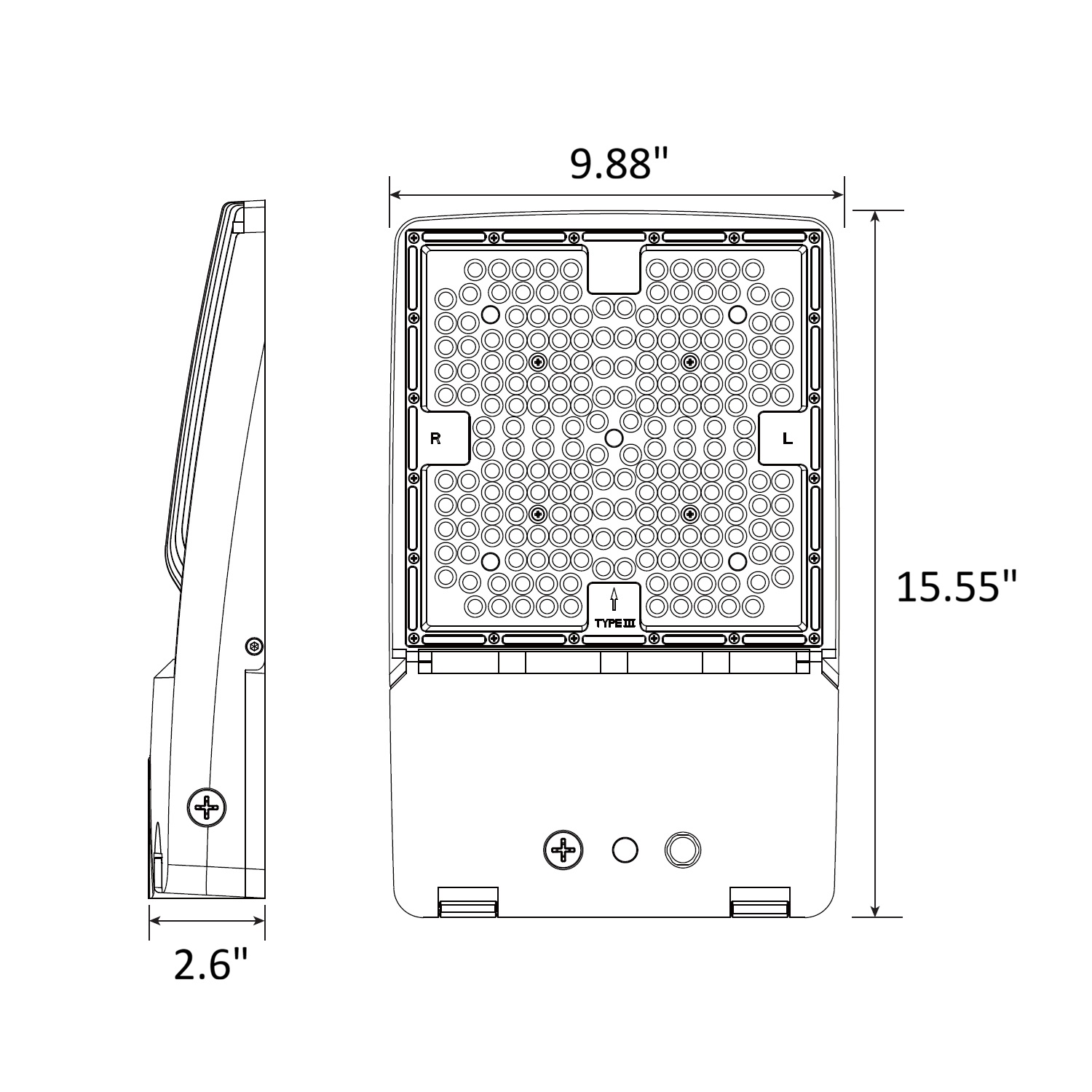

This fixture measures 15.55 inches long by 9.88 inches wide by 2.6 inches high and weighs 7 pounds. Its EPA rating is 1.1.
Where This Product Fits Best
This shoebox light fits exterior pole-mounted lighting layouts that need selectable output, selectable color temperature, and Type 3 distribution. The available settings support adjustment for different site conditions without changing the fixture body.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- dealership lighting
- campus lighting
The IP65-rated housing is intended for exterior exposure. Arm or slip fitter mounting should match the existing pole or tenon configuration.
Installation and Long-Term Use

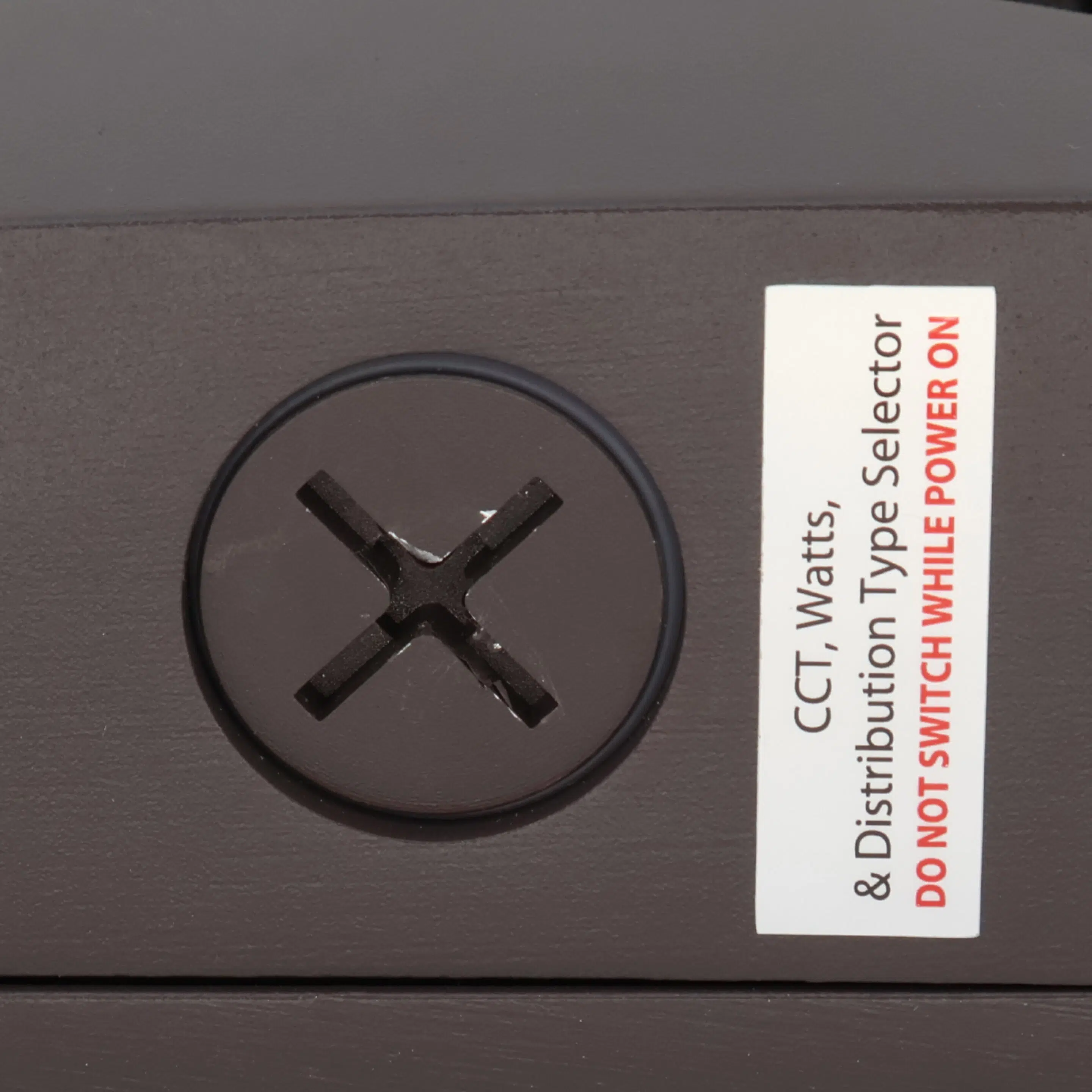

Set wattage and color temperature before final installation and energizing the fixture. Confirm the branch voltage is within the 120V-277V range and use the selected arm or slip fitter mounting method.
Verify that the supporting structure and mounting hardware are appropriate for the fixture’s 7-pound weight and 1.1 EPA rating. Where a NEMA socket and photocell are used, orient and secure the photocell according to the installed control arrangement.
How This Fixture Is Commonly Used
In parking lot lighting, commercial site lighting, and area lighting layouts, fixtures are mounted on poles and aimed through their fixed Type 3 distribution. Mounting height is evaluated with pole location, selected wattage, and required light distribution.
Roadway perimeter lighting, dealership lighting, and campus lighting layouts typically use repeated pole locations along the area being illuminated. Spacing varies with the selected 80W, 100W, or 150W setting, mounting height, and required layout conditions.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed.
The fixture is IP65 rated and includes 6kV surge protection. Warranty coverage is 5 years.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 80W, 100W, and 150W settings producing 10,400, 13,000, and 19,500 lumens.
Q: What color temperatures can be selected?
A: Selectable color temperatures are 3000K, 4000K, and 5000K.
Q: What mounting options are available?
A: The fixture is available with arm or slip fitter mounting.
Q: Does this fixture support dimming?
A: Yes. It supports 0-10V dimming.
Q: What should be considered when planning fixture layout?
A: Mounting height, selected wattage, Type 3 distribution, and required layout conditions affect fixture placement. The supplied data does not establish a specific spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for parking lot lighting?
A: Parking lot lighting is a listed primary application. The fixture provides selectable 80W, 100W, and 150W output settings with Type 3 distribution.
Q: Can this fixture be used for dealership lighting?
A: Dealership lighting is a listed secondary application. Final placement depends on mounting height, pole locations, selected output, and layout requirements.
Q: What should be confirmed before using a photocell?
A: The optional NEMA socket and twist lock photocell must be included in the fixture configuration. The installed control arrangement should also be confirmed.
Web ID: 2675
