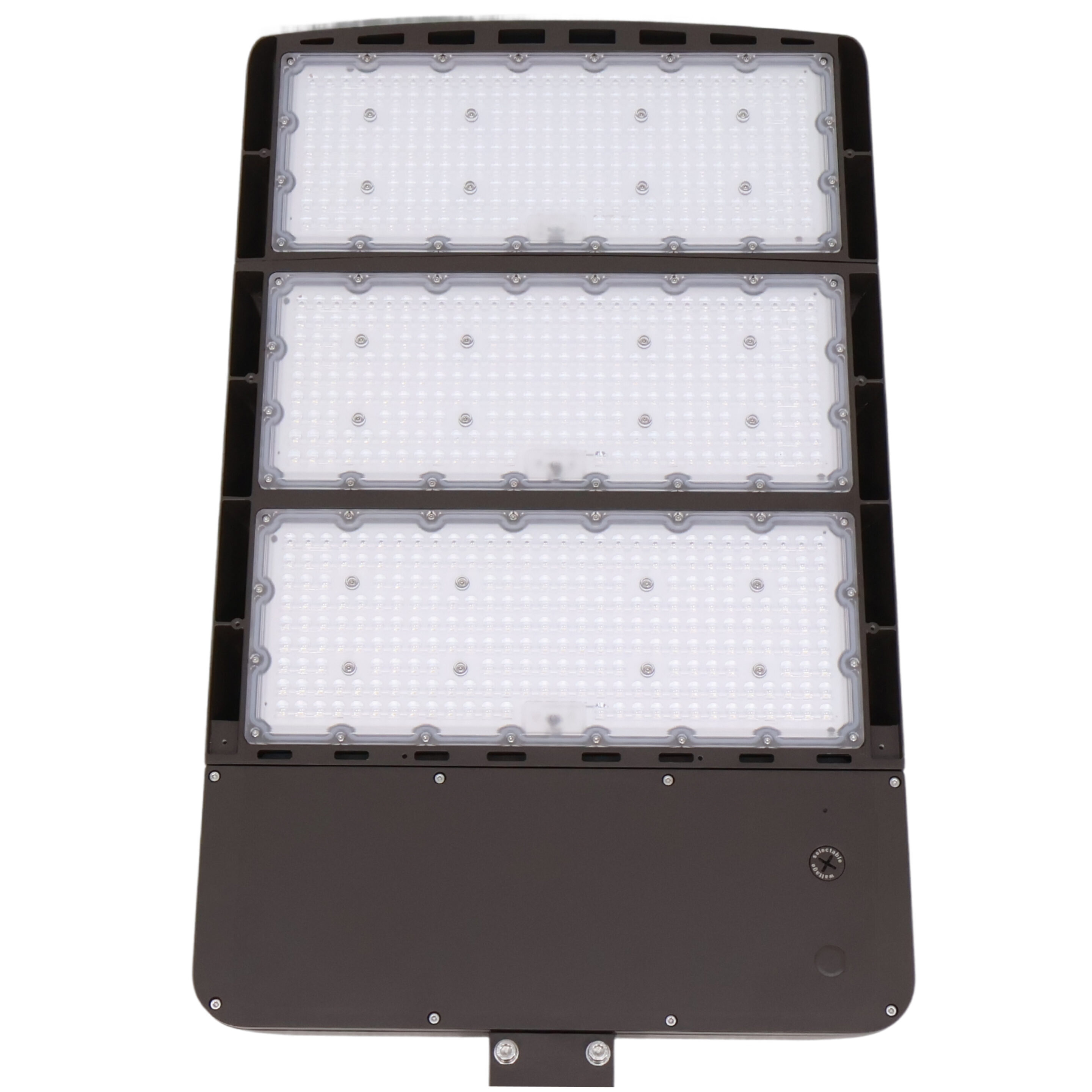

360 / 480 / 600 Watt Adjustable LED Area Light | 54,000 to 90,000 Lumens | 5000K | 100-277V | Bronze | Optimized Sport Court Optics
The 360/480/600 Watt Adjustable LED Area Light is an excellent choice for parking lots and roadways, offering 54,000 to 90,000 lumens with a 5000K color temperature. Its die-cast aluminum housing ensures durability, while the IP65 rating and 20kV surge protection enhance reliability in harsh environments. With Type 3 and 4 beam angles, it provides optimal lighting distribution. The fixture's versatility in mounting options and wattage adjustability makes it ideal for various outdoor applications, ensuring efficient and long-lasting performance.
Dwayne Kula | President, CTO and Founder
169 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 360 | 480 | 600 |
| Lumens | 54000 | 72000 | 90000 |
| Lumens Per Watt | 150 |
| Replaces | 1000 or 2000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Beam Angles (Opt) | Type 4 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |

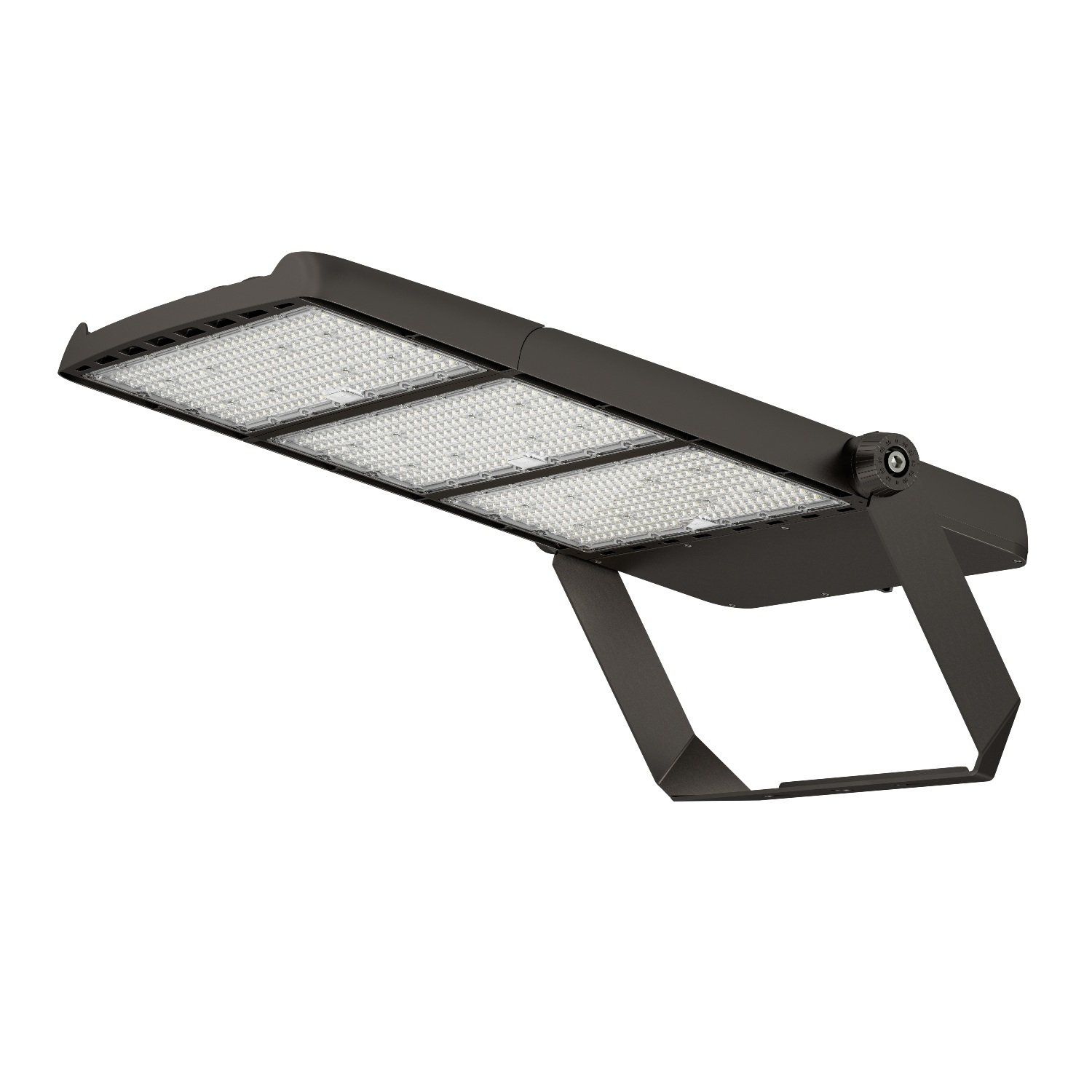

| Mounting | Yoke or Arm or Slip Fitter |
| EPA Rating | 2.0 |
| Fixture Color | Black or Bronze |
| Power Factor | > .90 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 20kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 31 X 18 X 3 |
| Weight (lbs) | 23.1 |
| Cord Length | 2 Feet |
| Cord Length | 2 Feet |
Features/Accessories
- Wattage Adjustable
- Optional Photocell
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 360 | 480 | 600
- Lumens: 54000 | 72000 | 90000
- Lumens Per Watt: 150
- Replaces: 1000 or 2000 Watt Metal Halide
- Voltage: 100V-277V or 277V-480V Optional
- Color Temperature: 5000K
- CRI: 70+
- Dimming: No
- Beam Angles (Std): Type 3
- Beam Angles (Opt): Type 4
- Optics: Polycarbonate Lens
- Lifespan: 100,000 (L70) hours
- Mounting: Yoke or Arm or Slip Fitter
- EPA Rating: 2.0
- Fixture Color: Black or Bronze
- Power Factor: > .90
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP65
- Surge Protection: 20kV
- Operating Temperature: -40°F to 122°F
- Certifications: UL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 31 X 18 X 3
- Weight (lbs): 23.1
- Cord Length: 2 Feet
- Cord Length: 2 Feet
Features/Accessories
- Wattage Adjustable
- Optional Photocell
Download IES Files
- 2677-LLS-X-SAL-600A-50-T3 with backshield.IES
- 2677-LLS-X-SAL-600A-50-T3.ies
- 2677-LLS-X-SAL-600A-50-T4.ies
Web ID: 2677
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
The 360 / 480 / 600 Watt Adjustable LED Area Light is designed for high-performance outdoor lighting applications. With lumen outputs ranging from 54,000 to 90,000, this fixture is suitable for large-scale environments requiring substantial illumination. It is optimized for sport court optics, making it ideal for applications such as tennis and pickleball courts. The fixture operates within a voltage range of 100-277V, ensuring compatibility with various electrical systems.
This LED area light serves as a robust replacement for traditional 1000 to 2000 Watt metal halide fixtures, offering significant energy savings and reduced maintenance costs. Its die-cast aluminum housing and IP65 rating provide durability and protection against harsh weather conditions, making it suitable for outdoor installations.
Core Performance and Output
Offering wattage options of 360, 480, and 600, this LED area light delivers high lumen outputs of 54,000, 72,000, and 90,000 respectively, achieving an efficiency of 150 lumens per watt. The fixture features Type 3 and Type 4 beam angles, providing versatile lighting distribution for various applications. The polycarbonate lens ensures optimal light transmission and durability.
While the fixture is designed for high-output applications, it may produce excessive illumination at lower mounting heights, potentially leading to glare. It is recommended to consider the mounting height and beam angle to achieve the desired lighting effect and uniformity.
Adjustability and Control Options

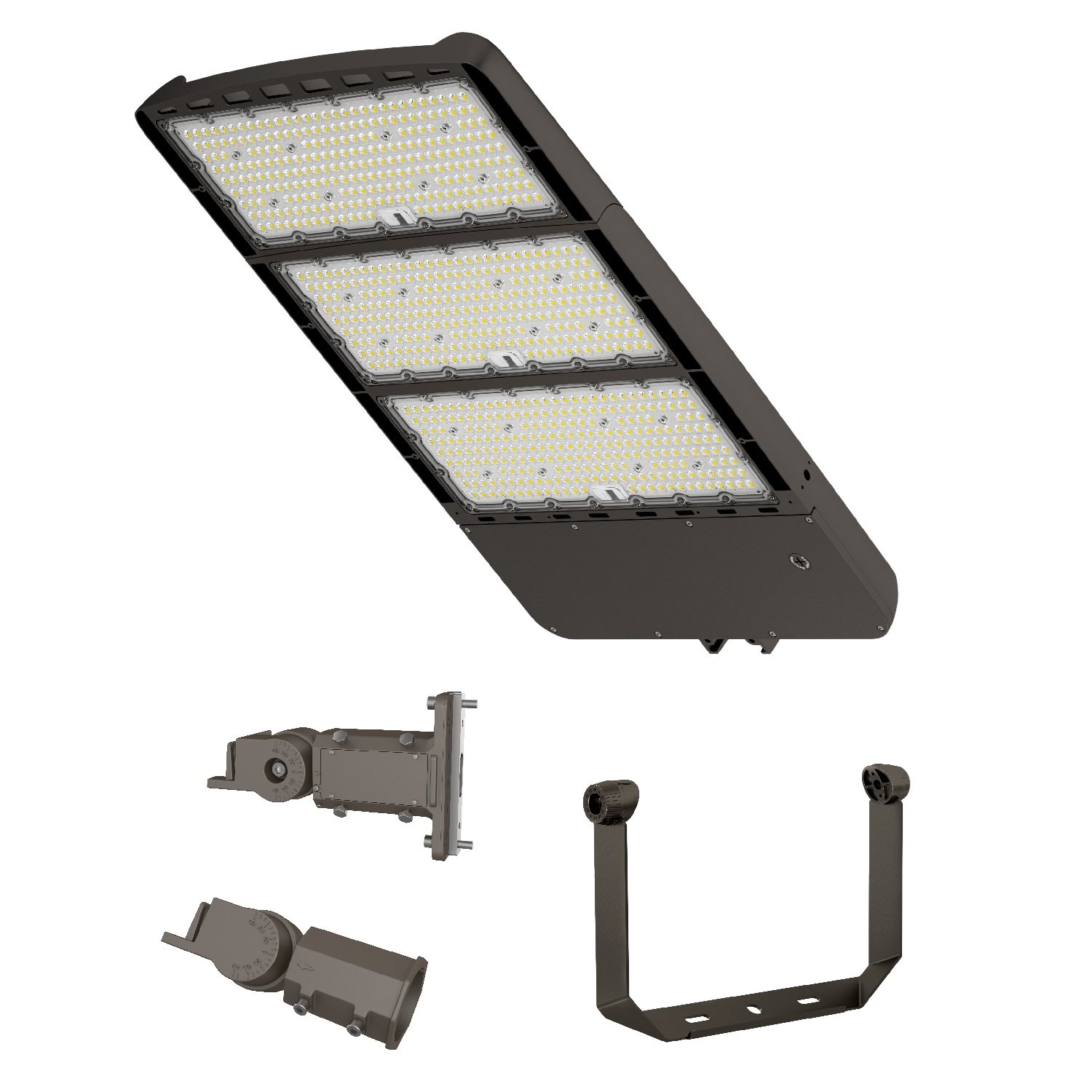

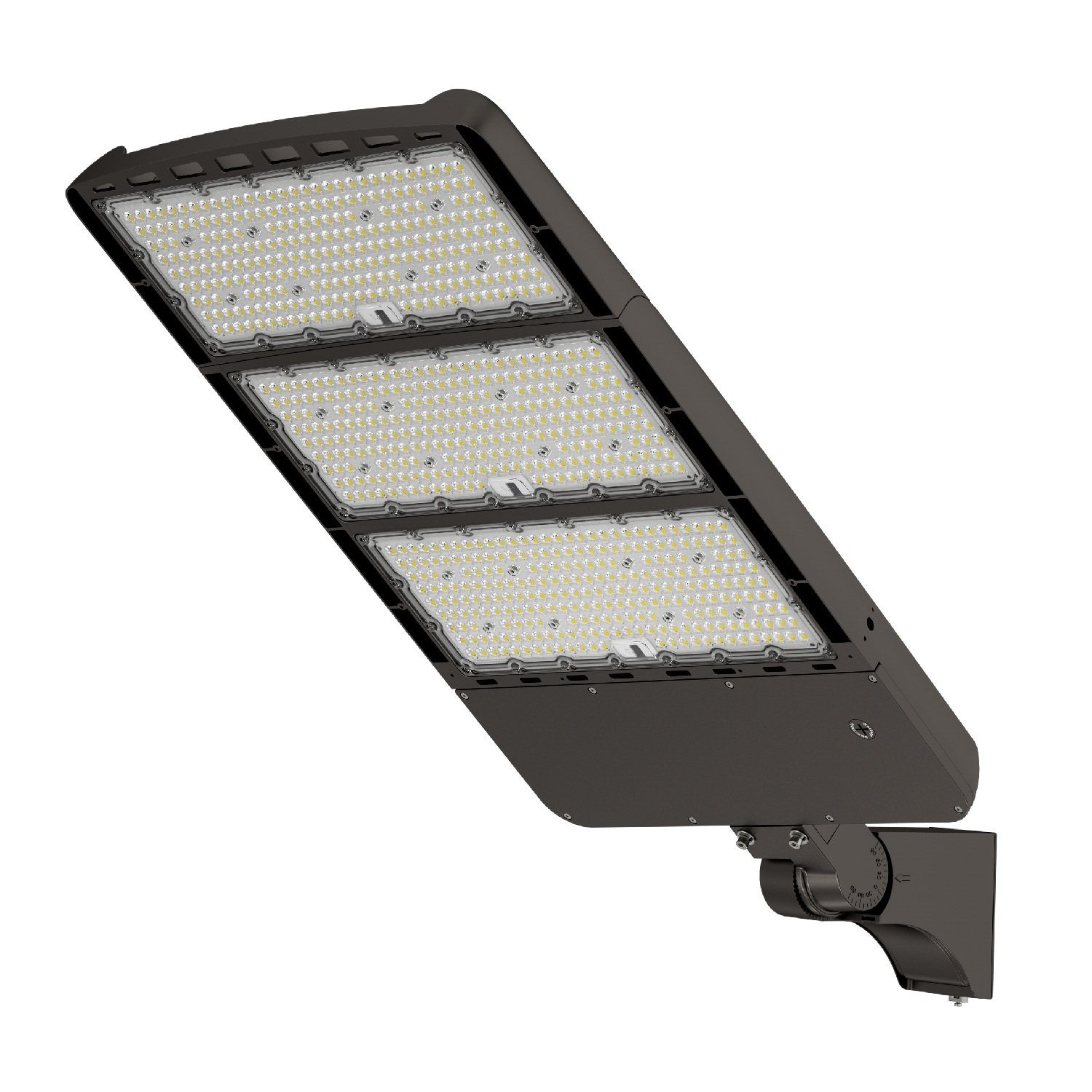

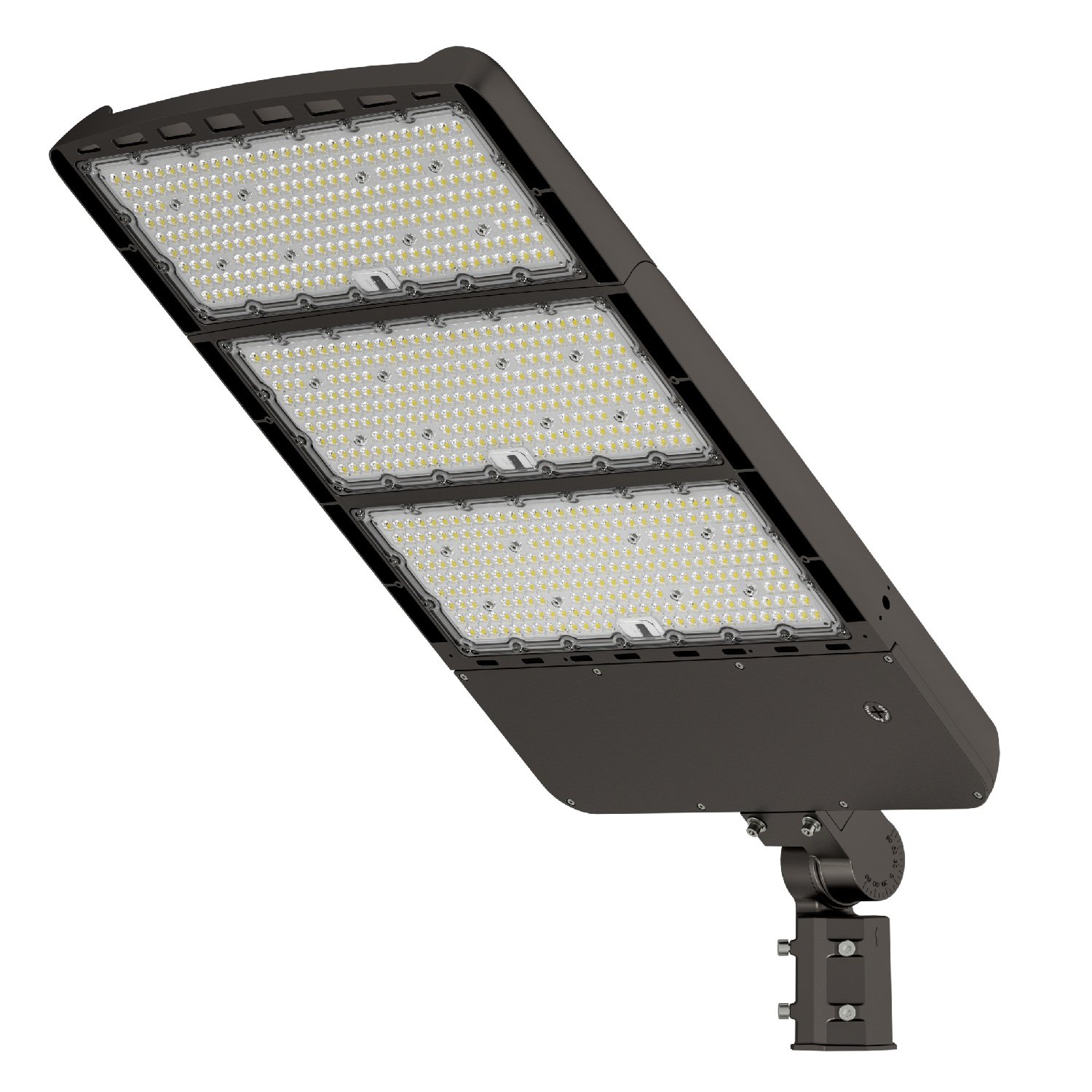

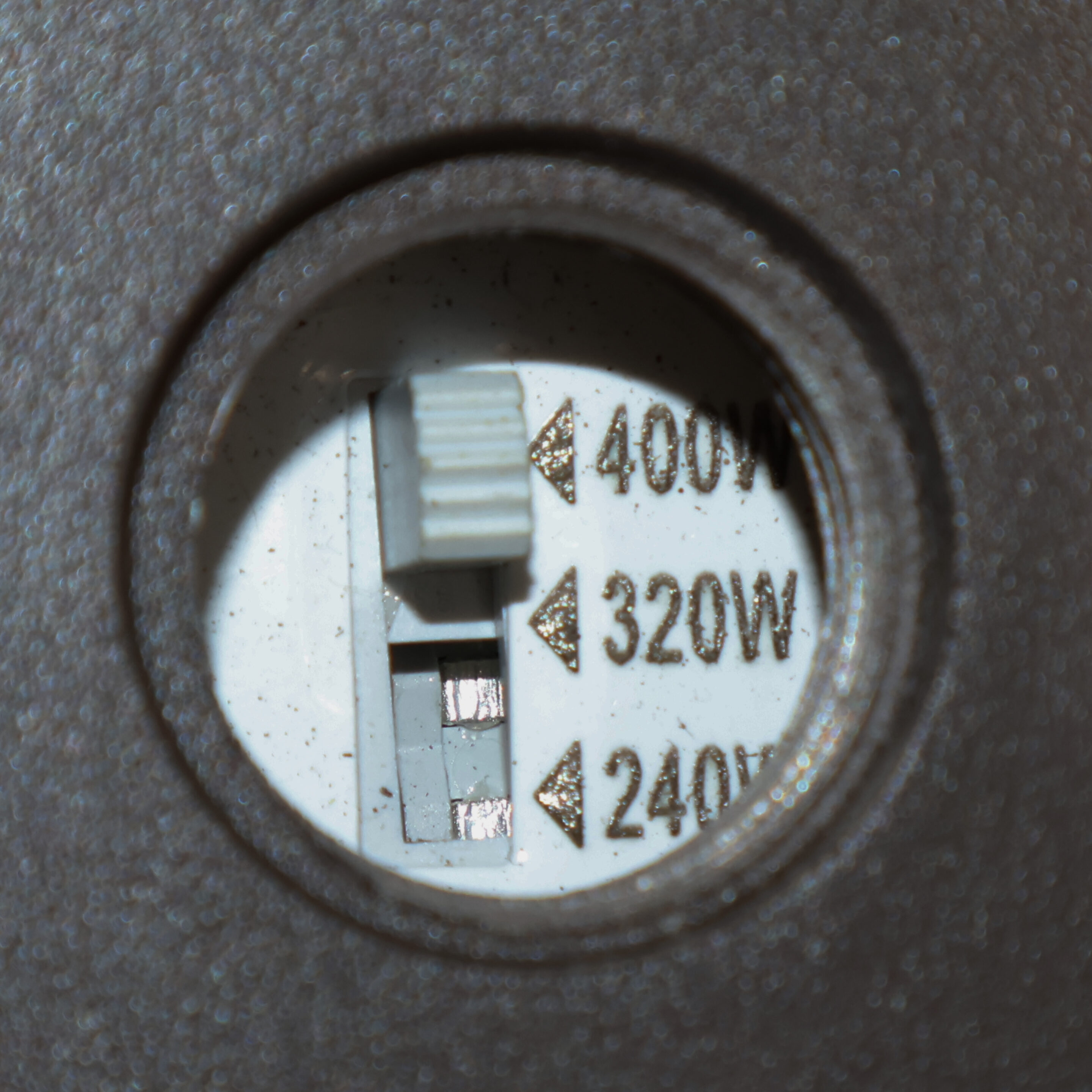

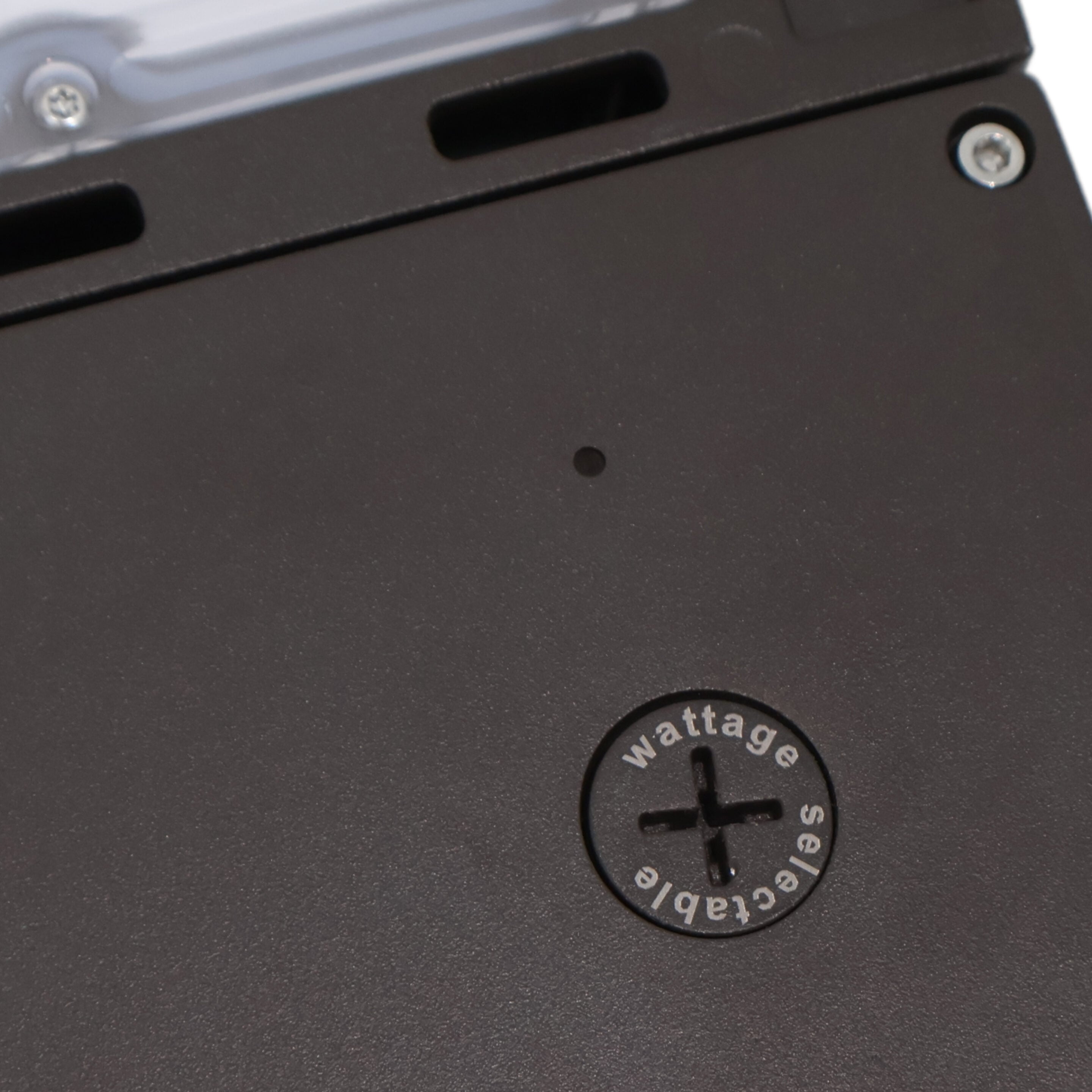

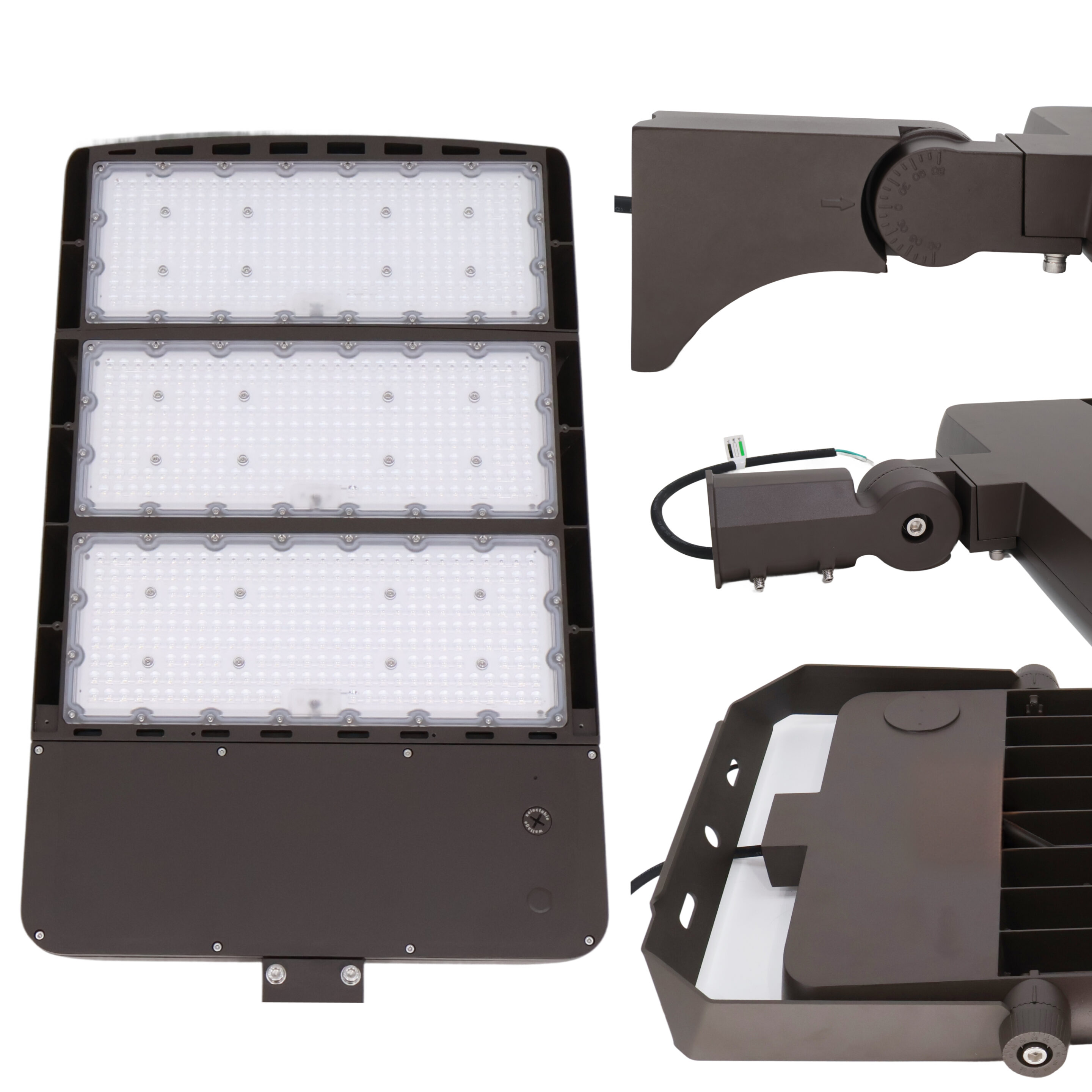

This LED area light offers wattage adjustability, allowing for tailored lighting levels to suit specific application needs. The fixture can be mounted using a yoke, arm, or slip fitter, providing flexibility in installation. An optional photocell is available for automated lighting control, enhancing energy efficiency by adjusting light levels based on ambient conditions.
Longevity and Reliability
With a lifespan of 100,000 hours (L70), this LED area light ensures long-term reliability and reduced maintenance requirements. The fixture includes 20kV surge protection, safeguarding against voltage spikes and extending the operational life of the light.
The robust construction and high-quality components contribute to the fixture's reliability, making it a dependable choice for demanding outdoor environments.
Build Quality and Physical Characteristics
The fixture is constructed with die-cast aluminum housing, providing excellent heat dissipation and structural integrity. Its IP65 rating ensures protection against dust and water ingress, suitable for outdoor installations. The fixture is available in black or bronze finishes, allowing for aesthetic integration with various site designs.
Weighing 23.1 lbs and measuring 31 x 18 x 3 inches, the fixture is designed for ease of installation and handling. The 2-foot cord length facilitates straightforward electrical connections.
Where This Product Fits Best
This LED area light is ideal for environments requiring high-output, durable lighting solutions. It is particularly suited for large outdoor areas where uniform illumination is critical.
- parking lot lighting
- area lighting
- commercial site lighting
- roadway perimeter lighting
- tennis court lighting
- pickleball court lighting
- horse arena lighting
The fixture's environmental characteristics include resistance to harsh weather conditions and adaptability to various mounting configurations, making it suitable for diverse outdoor applications.
Installation and Long-Term Use
Installation of this LED area light is straightforward, with multiple mounting options available to accommodate different site requirements. The fixture's adjustable wattage feature allows for customization of light output, ensuring optimal performance for specific applications.
Long-term use is supported by the fixture's robust construction and high-quality components, minimizing maintenance needs and ensuring consistent performance over time.
How This Fixture Is Commonly Used
This fixture is commonly mounted at heights ranging from 20 to 40 feet, depending on the application and desired light distribution. Typical spacing patterns vary based on the wattage and light levels required, with higher outputs reducing the number of fixtures needed but potentially increasing glare.
In parking lot applications, fixtures are often spaced to provide uniform coverage while minimizing dark spots. For sport courts, precise placement ensures even lighting across the playing surface.
Safety, Certifications, and Warranty
This LED area light is UL certified, ensuring compliance with safety standards. It is also rebate eligible, providing potential cost savings through energy efficiency programs. The fixture includes a 5-year warranty, offering peace of mind and protection against manufacturing defects.
With an IP65 rating, the fixture is protected against dust and water ingress, suitable for outdoor environments. The 20kV surge protection further enhances safety by mitigating the risk of electrical damage.
Frequently Asked Questions
Q: What is the recommended mounting height for this LED area light?
A: The recommended mounting height ranges from 20 to 40 feet, depending on the application and desired light distribution.
Q: Can this fixture be used in wet environments?
A: Yes, the fixture is IP65 rated, making it suitable for wet environments and outdoor installations.
Q: Is the wattage adjustable on this fixture?
A: Yes, the fixture offers wattage adjustability, allowing for tailored lighting levels to suit specific application needs.
Q: Does this fixture include surge protection?
A: Yes, the fixture includes 20kV surge protection to safeguard against voltage spikes.
Q: What are the available beam angles for this fixture?
A: The fixture offers Type 3 and Type 4 beam angles for versatile lighting distribution.
Application Questions and Clarification
Q: Is this fixture suitable for tennis court lighting?
A: Yes, the fixture is optimized for sport court optics, making it suitable for tennis court lighting.
Q: Can this fixture be used for roadway perimeter lighting?
A: Yes, the fixture is suitable for roadway perimeter lighting, providing high-output illumination for large outdoor areas.
Q: What mounting options are available for this fixture?
A: The fixture can be mounted using a yoke, arm, or slip fitter, providing flexibility in installation.
Q: Is this fixture compatible with 277-480V electrical systems?
A: Yes, the fixture is available with an optional voltage range of 277-480V, ensuring compatibility with various electrical systems.
