240 / 320 / 400 Watt Adjustable LED Sport Court Area Light | 36,000 to 60,000 Lumens | 5000K | 100-277V | Bronze
The 240/320/400 Watt Adjustable LED Sport Court Area Light is an excellent choice for sports fields and parking lots, offering 36,000 to 60,000 lumens with a 5000K color temperature for bright, clear illumination. Its die-cast aluminum housing and IP65 rating ensure durability in harsh weather, while 20kV surge protection enhances reliability. With versatile mounting options and a lifespan of 100,000 hours, this UL-certified fixture efficiently replaces 1000-2000 Watt metal halides, providing significant energy savings.
Dwayne Kula | President, CTO and Founder
321 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 240 | 320 | 400 |
| Lumens | 36000 | 48000 | 60000 |
| Lumens Per Watt | 150 |
| Replaces | 1000 or 2000 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V Optional |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | Type 3 |
| Beam Angles (Opt) | Type 4 |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |

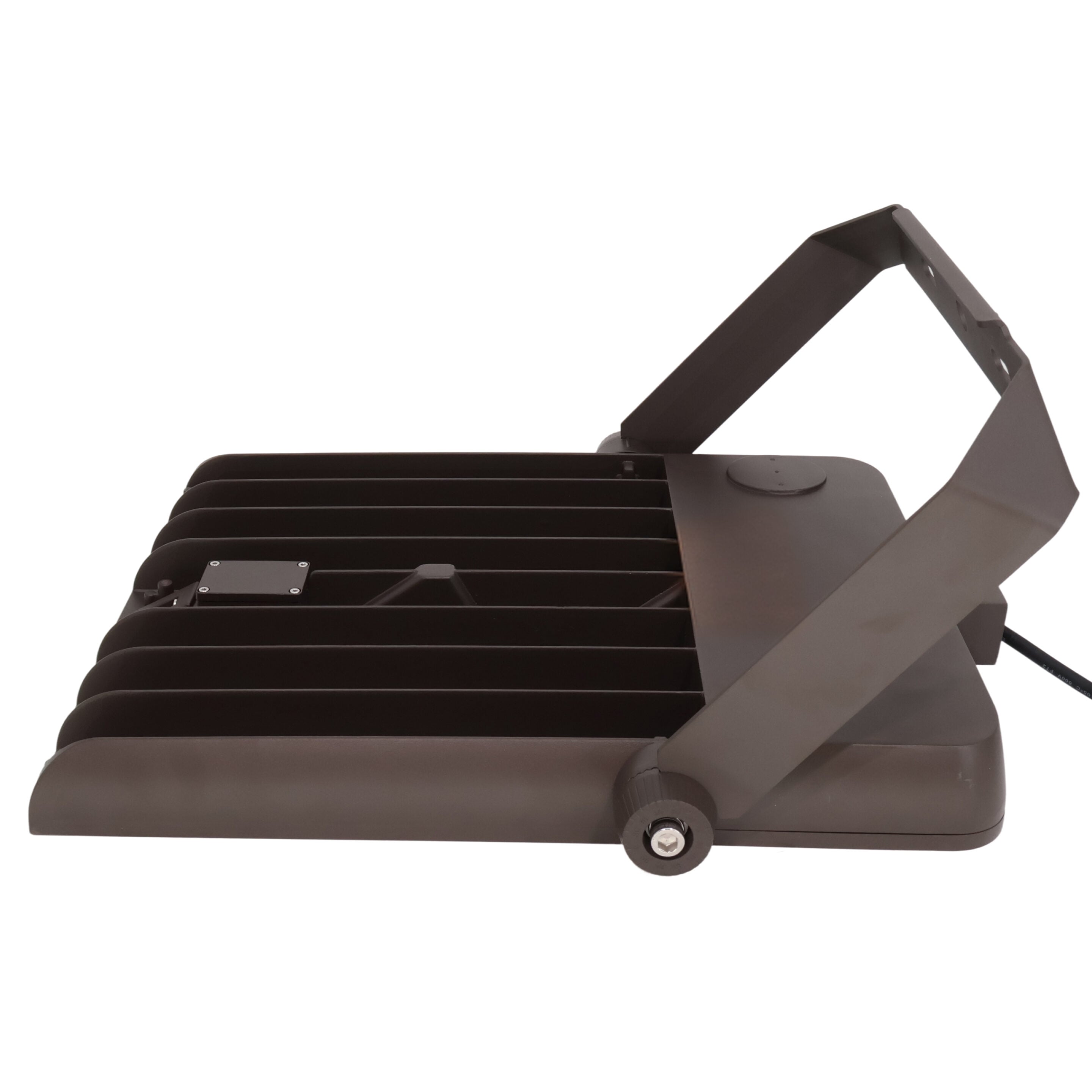

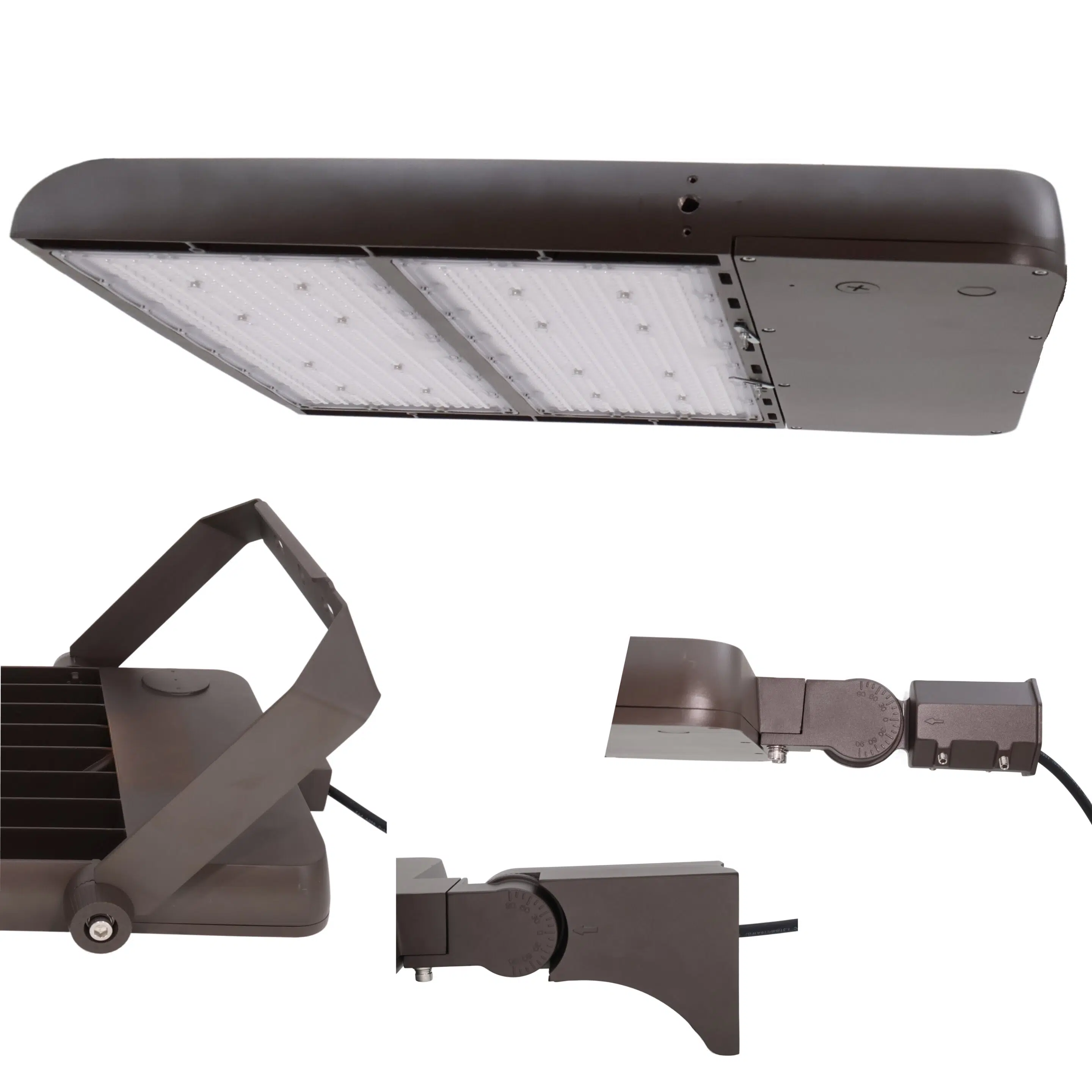

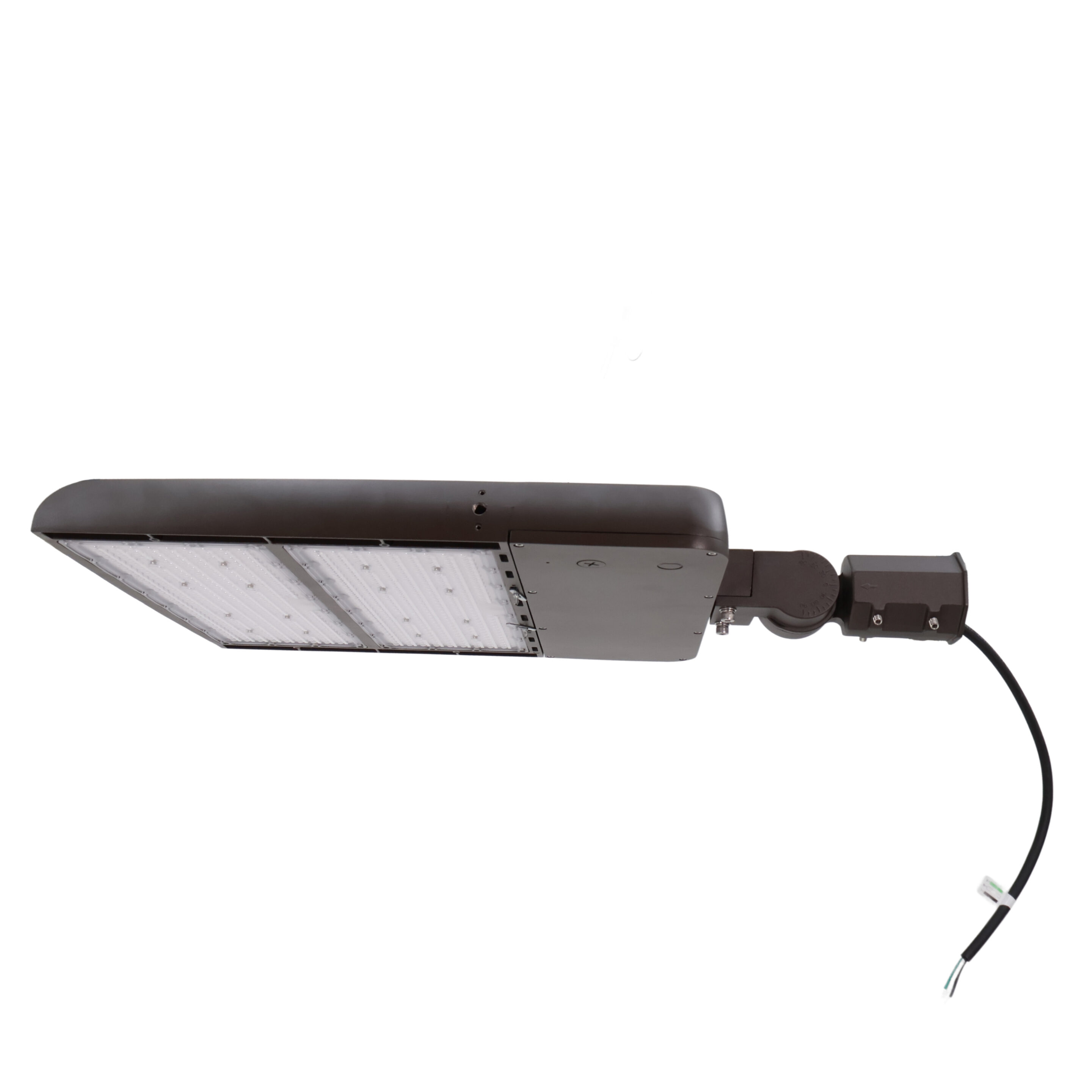

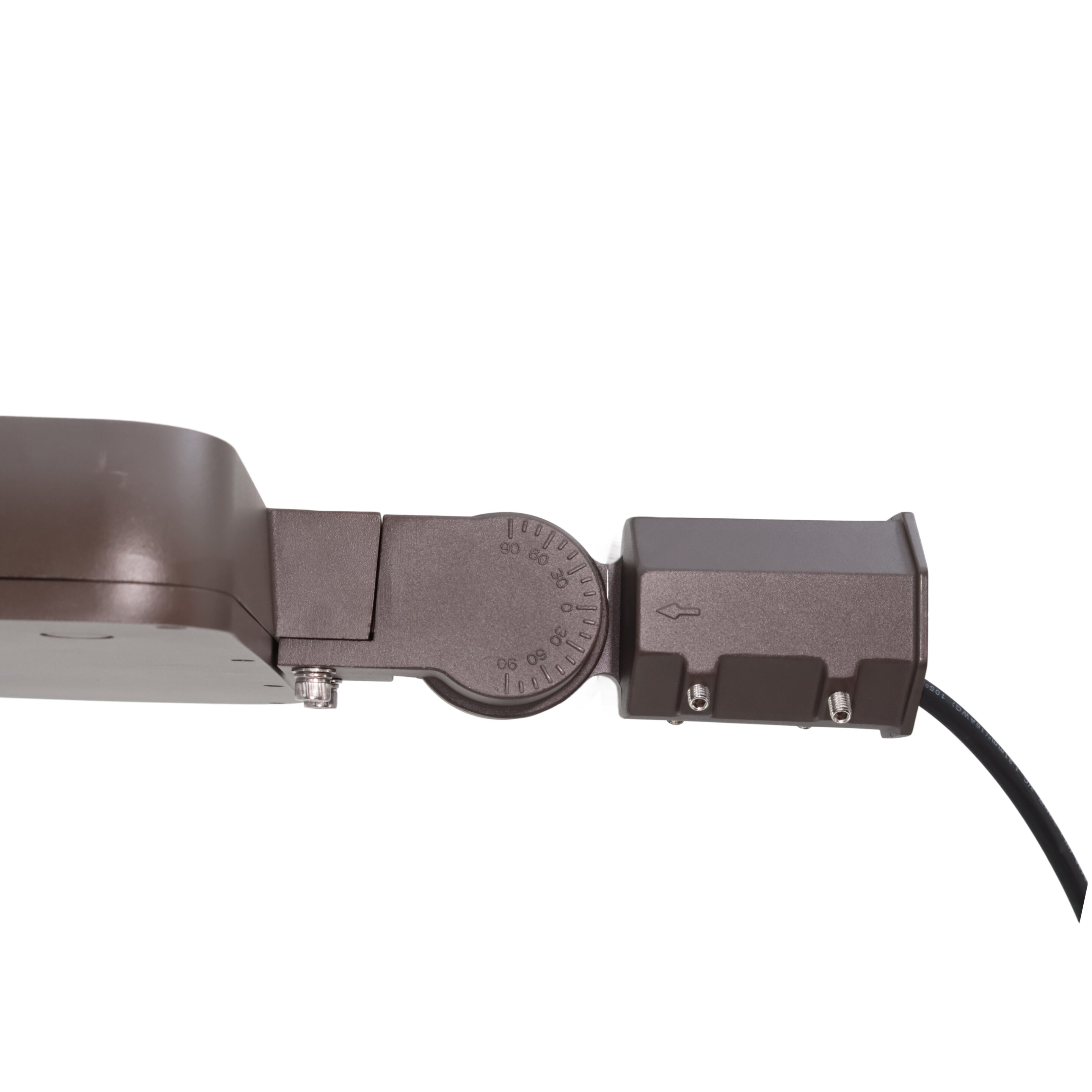

| Mounting | Yoke or Arm or Slip Fitter |
| EPA Rating | 1.8 |
| Fixture Color | Bronze |
| Power Factor | > .90 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 20kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 23 X 18 X 3 |
| Weight (lbs) | 19.8 |
Features/Accessories
- Wattage Adjustable
- Optional Photocell
Product Description
Key Features
- Brand: LED Lighting Supply
- Watts: 240 | 320 | 400
- Lumens: 36000 | 48000 | 60000
- Lumens Per Watt: 150
- Replaces: 1000 or 2000 Watt Metal Halide
- Voltage: 100V-277V or 277V-480V Optional
- Color Temperature: 5000K
- CRI: 70+
- Dimming: No
- Beam Angles (Std): Type 3
- Beam Angles (Opt): Type 4
- Optics: Polycarbonate Lens
- Lifespan: 100,000 (L70) hours
- Mounting: Yoke or Arm or Slip Fitter
- EPA Rating: 1.8
- Fixture Color: Bronze
- Power Factor: > .90
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP65
- Surge Protection: 20kV
- Operating Temperature: -40°F to 122°F
- Certifications: UL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions (in): 23 X 18 X 3
- Weight (lbs): 19.8
Features/Accessories
- Wattage Adjustable
- Optional Photocell
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
The 240 / 320 / 400 Watt Adjustable LED Sport Court Area Light is designed to provide high-performance lighting for outdoor sports courts and large area applications. With a lumen output ranging from 36,000 to 60,000 lumens and a color temperature of 5000K, this fixture is suitable for replacing traditional 1000 to 2000 Watt metal halide lights. It operates on a voltage range of 100-277V, making it versatile for various installations.
This LED area light features a Type 3 beam angle, with an optional Type 4, to ensure broad and even coverage across sports fields and parking lots. The fixture's bronze die-cast aluminum housing provides durability and protection against harsh weather conditions, supported by an IP65 rating and 20kV surge protection.
Core Performance and Output
The LED Sport Court Area Light offers adjustable wattage options of 240, 320, and 400 watts, delivering high efficiency with 150 lumens per watt. This results in a total lumen output of 36,000 to 60,000 lumens, suitable for large outdoor areas requiring substantial illumination. The Type 3 beam angle ensures wide coverage, while the optional Type 4 beam angle provides more focused lighting for specific applications.
While the fixture is designed for high-output applications, excessive output may occur at lower mounting heights, potentially leading to glare. It is recommended to consider the mounting height and beam angle to optimize performance and uniformity.
Adjustability and Control Options
This fixture includes wattage adjustability, allowing for flexibility in light output to suit specific application needs. While it does not feature dimming capabilities, the optional photocell accessory can provide automatic on/off control based on ambient light levels, enhancing energy efficiency.

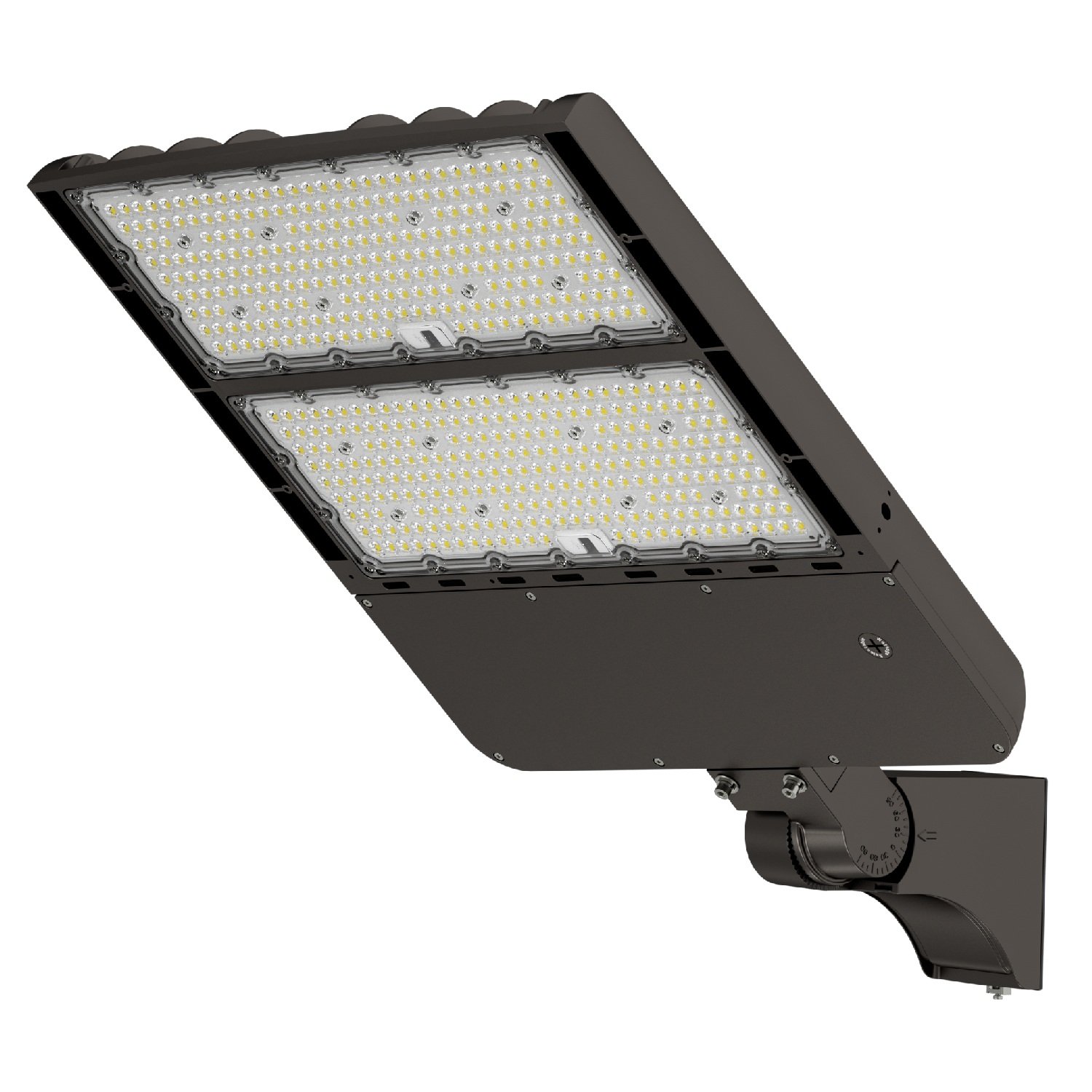

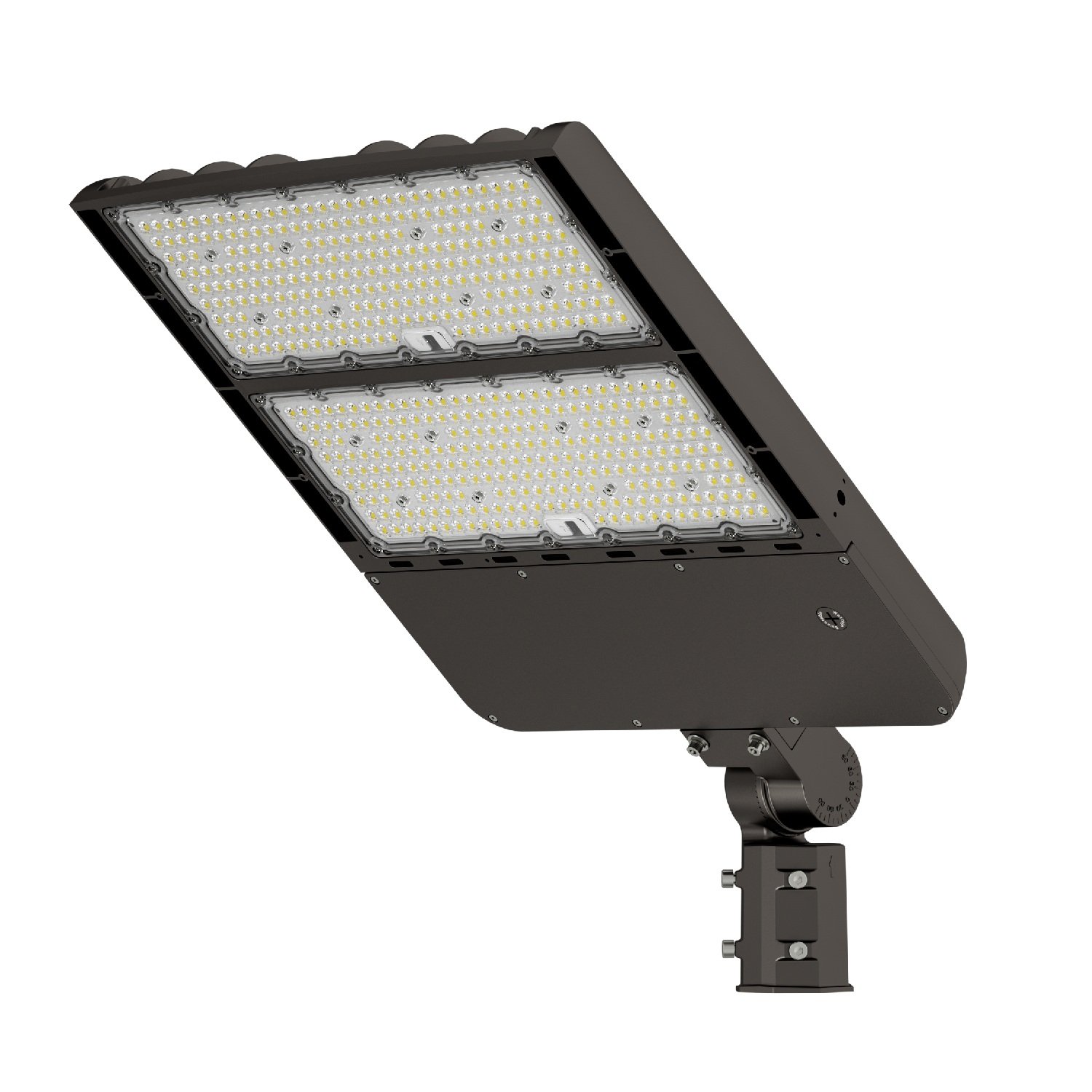

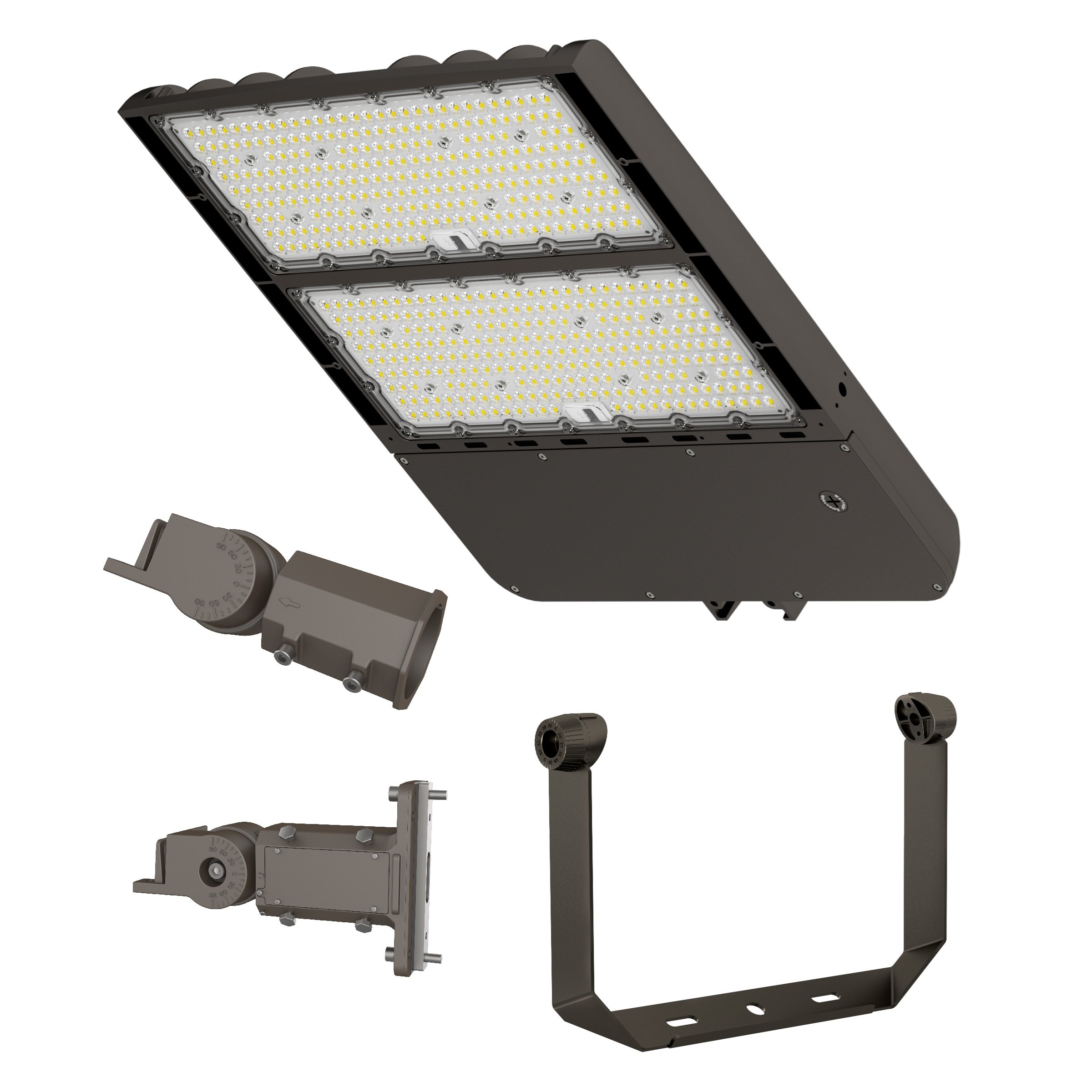

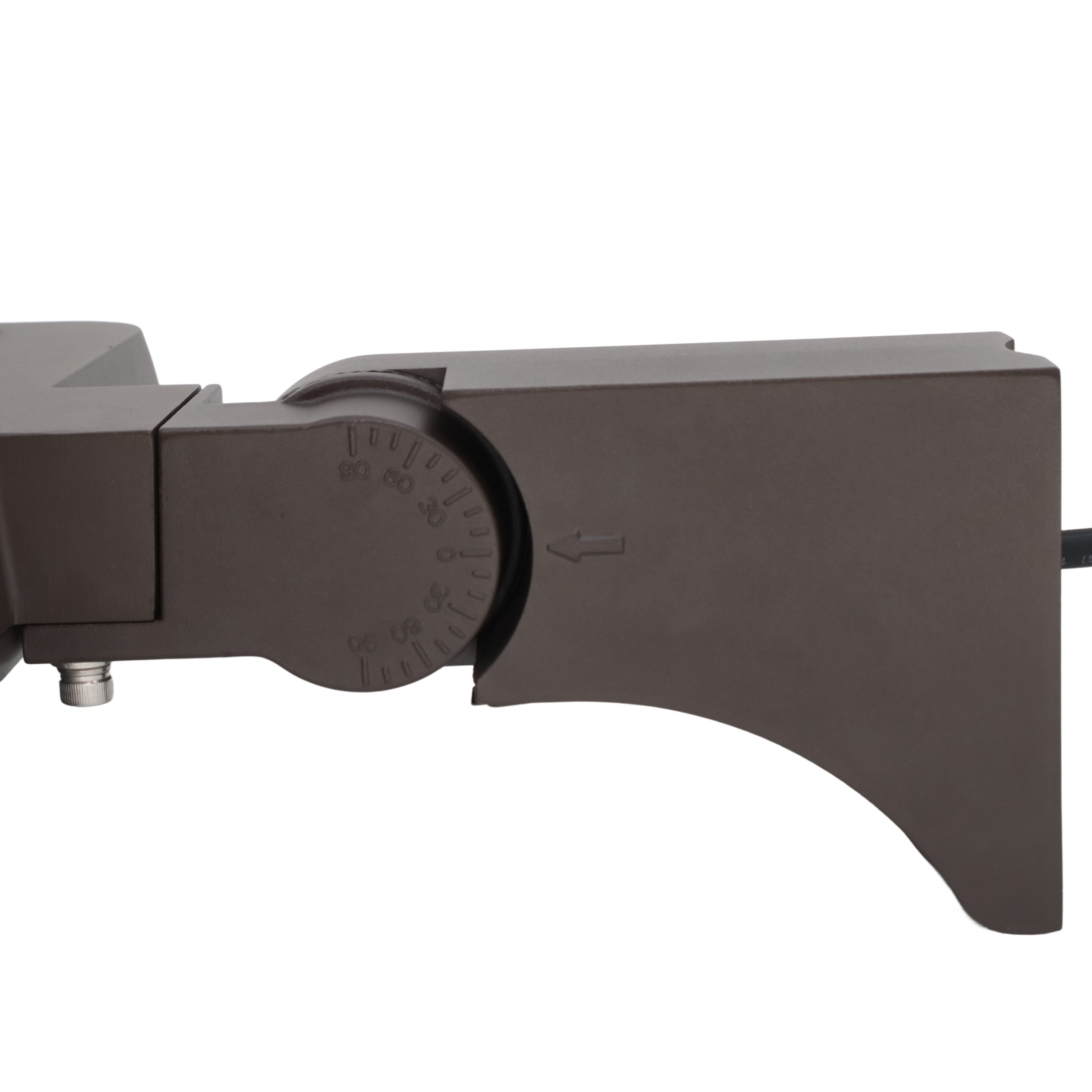

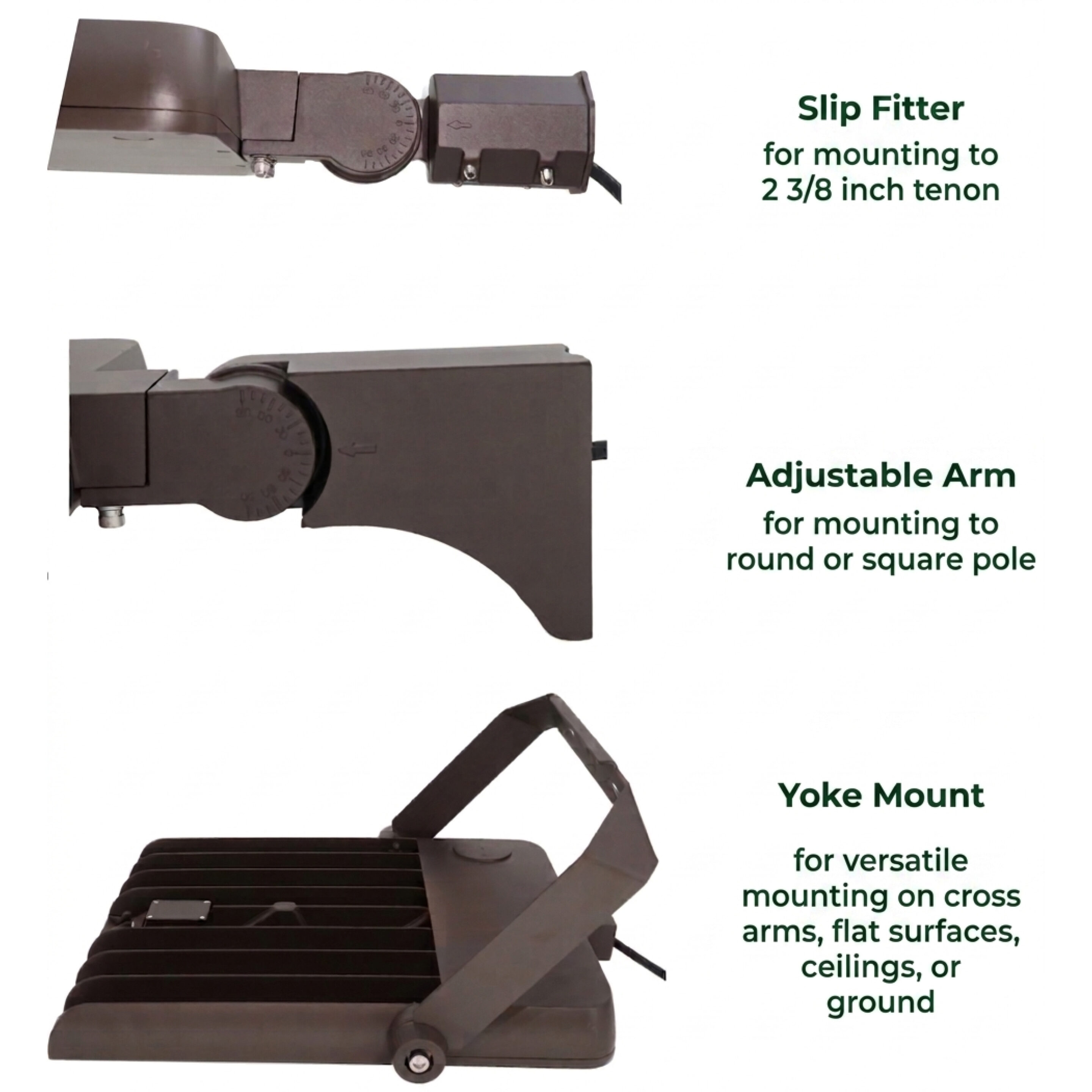

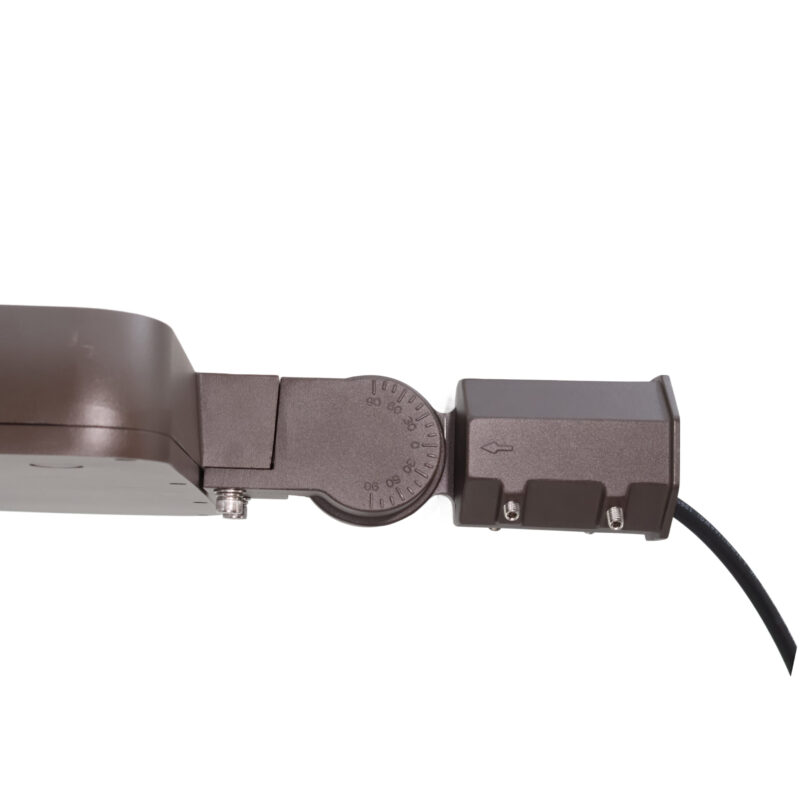

The fixture supports multiple mounting options, including yoke, arm, and slip fitter, providing adaptability for various installation scenarios and ensuring optimal positioning for desired light distribution.
Longevity and Reliability
With a lifespan of 100,000 hours (L70), this LED area light is designed for long-term reliability, reducing maintenance frequency and costs. The robust construction and high-quality components ensure consistent performance over time, even in challenging outdoor environments.
The fixture's 20kV surge protection further enhances its reliability by safeguarding against voltage spikes, making it a dependable choice for areas prone to electrical disturbances.
Build Quality and Physical Characteristics
The LED Sport Court Area Light features a die-cast aluminum housing, providing excellent durability and resistance to corrosion. Its IP65 rating ensures protection against dust and water ingress, making it suitable for outdoor installations in various weather conditions.
Weighing 19.8 lbs and measuring 23 x 18 x 3 inches, the fixture is designed for ease of installation and handling. The bronze finish offers a sleek appearance, complementing a wide range of architectural styles.
Where This Product Fits Best
This LED area light is ideal for outdoor environments requiring high-output illumination and robust performance. It is particularly suited for:
- parking lot lighting
- area lighting
- commercial site lighting
- roadway perimeter lighting
- tennis court lighting
- pickleball court lighting
- horse arena lighting
The fixture's environmental characteristics, including its IP65 rating and surge protection, make it suitable for installations in areas exposed to the elements, ensuring reliable operation in wet and dusty conditions.
Installation and Long-Term Use
Installation of this fixture is straightforward, with multiple mounting options available to accommodate different site requirements. The yoke, arm, and slip fitter mounts provide flexibility in positioning, ensuring optimal light distribution and coverage.
For long-term use, regular inspection and cleaning of the fixture's lens and housing are recommended to maintain performance and appearance. The robust construction minimizes maintenance needs, but periodic checks can help ensure continued reliability.
How This Fixture Is Commonly Used
This LED area light is commonly mounted at heights ranging from 20 to 40 feet, depending on the application and desired light levels. Spacing between fixtures can vary based on wattage and light output, with higher output options reducing the number of fixtures needed but potentially increasing glare.
In sports court applications, the fixture is often used in conjunction with others to provide uniform lighting across the playing surface, enhancing visibility and safety for participants.
Safety, Certifications, and Warranty
The LED Sport Court Area Light is UL certified and rebate eligible, ensuring compliance with safety standards and potential cost savings through energy efficiency programs. Its IP65 rating provides protection against dust and water ingress, suitable for outdoor installations.
The fixture comes with a 5-year warranty, offering peace of mind and assurance of quality and performance over its operational life.
Frequently Asked Questions
Q: What is the recommended mounting height for this fixture?
A: The recommended mounting height ranges from 20 to 40 feet, depending on the application and desired light levels.
Q: Does this fixture support dimming?
A: No, this fixture does not support dimming, but it does offer wattage adjustability and an optional photocell for automatic on/off control.
Q: What type of beam angle does this fixture have?
A: The fixture comes with a standard Type 3 beam angle, with an optional Type 4 beam angle available for more focused lighting.
Q: Is this fixture suitable for wet locations?
A: Yes, the fixture is IP65 rated, making it suitable for wet locations and outdoor installations.
Q: What is the warranty period for this fixture?
A: The fixture comes with a 5-year warranty.
Application Questions and Clarification
Q: Can this fixture be used for tennis court lighting?
A: Yes, this fixture is suitable for tennis court lighting, providing high-output illumination and wide coverage.
Q: Is this fixture appropriate for parking lot lighting?
A: Yes, the fixture is designed for parking lot lighting, offering robust performance and durability in outdoor environments.
Q: What are the mounting options available for this fixture?
A: The fixture supports yoke, arm, and slip fitter mounting options, providing flexibility for various installation scenarios.
Q: How does the wattage adjustability feature work?
A: The wattage adjustability feature allows you to select between 240, 320, and 400 watts, enabling customization of light output to suit specific needs.
