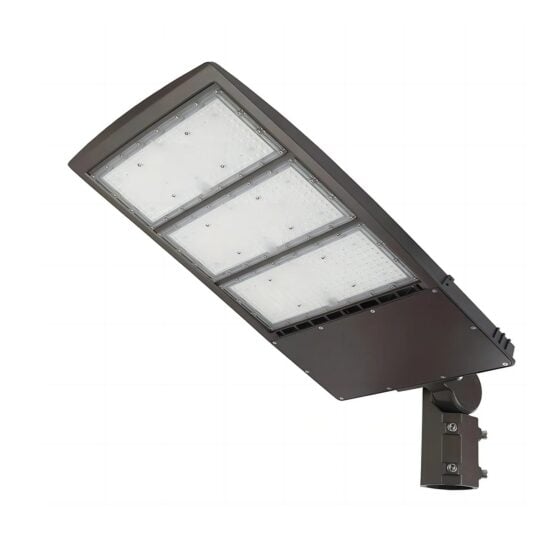

380 / 400 / 450 Watt Adjustable LED Shoebox Area Light | 50500 to 60000 Lumens | Type 3 | 5000K | 120-277V
The 380-450 Watt Adjustable LED Shoebox Area Light is an excellent choice for parking lots and roadway lighting, offering 50,500 to 60,000 lumens with a Type 3 beam angle for broad, even coverage. Its die-cast aluminum housing and IP65 rating ensure durability in harsh weather, while the 5000K color temperature provides clear visibility. With versatile mounting options and a lifespan of 50,000 hours, this UL-certified fixture is reliable and efficient, replacing 1000-1500 Watt metal halides, making it ideal for large outdoor areas.
Dwayne Kula | President, CTO and Founder
49 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 380 | 400 | 450 |
| Lumens | 50500 | 53000 | 60000 |
| Lumens Per Watt | 130 |
| Replaces | 1000 or 1500 Watt Metal Halide |
| Voltage | 120V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Arm or Slip Fitter or Trunnion |
| EPA Rating | 2.5 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | .9 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 36 L X 13 W X 3.7 H |
| Weight (lbs) | 25 |
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox area light provides 50,500, 53,000, or 60,000 lumens at 380, 400, or 450 watts. It uses a Type 3 distribution for directional exterior area coverage.
The fixture is configured for parking lot lighting, commercial site lighting, and roadway perimeter lighting where high-output pole-mounted illumination is required. It replaces 1000 or 1500 watt metal halide fixtures.
Core Performance and Output
Output is selectable at 380, 400, or 450 watts, producing up to 60,000 lumens at 130 lumens per watt. The 5000K color temperature and 80+ CRI provide a cool white exterior lighting condition.
The Type 3 optic directs light outward from the pole for roadway perimeter lighting, parking lot lighting, and area lighting layouts. This output level can be excessive at low mounting heights or in compact layouts without careful aiming and control settings.
The fixture operates on 120-277V, 50/60Hz power and has a 0.9 power factor. It supports 0-10V dimming.
Adjustability and Control Options
Wattage is adjustable between 380, 400, and 450 watts. This allows output to be set around the required site light level without changing the fixture body.
0-10V dimming is available for compatible control systems. The Type 3 distribution remains directional across the selectable wattage settings.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. L70 indicates the point at which light output is maintained at 70 percent of its initial level.
The operating temperature range is -4 degrees F to 113 degrees F. Long-term operation depends on maintaining the fixture within this temperature range and keeping the optical lens clear.
Build Quality and Physical Characteristics

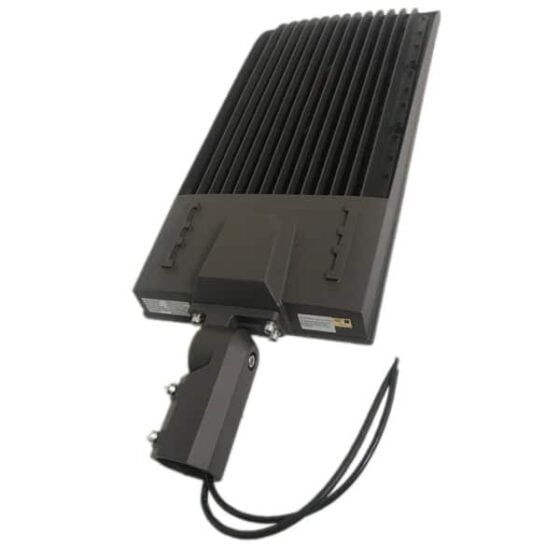

The housing is die-cast aluminum with a bronze finish. A polycarbonate lens protects the optical system.
The fixture is IP65 rated. It measures 36 inches long by 13 inches wide by 3.7 inches high and weighs 25 pounds.
Where This Product Fits Best
This shoebox light fits exterior pole-mounted layouts requiring high output and a directional Type 3 distribution. Its selectable wattage supports larger commercial and municipal exterior lighting areas.
- parking lot lighting
- roadway perimeter lighting
- commercial site lighting
- area lighting
- industrial yard lighting
- campus lighting
The IP65 enclosure, die-cast aluminum housing, and -4 degrees F to 113 degrees F operating range support outdoor exposure. Pole and mounting structure selection must account for the fixture weight and EPA rating of 2.5.
Installation and Long-Term Use

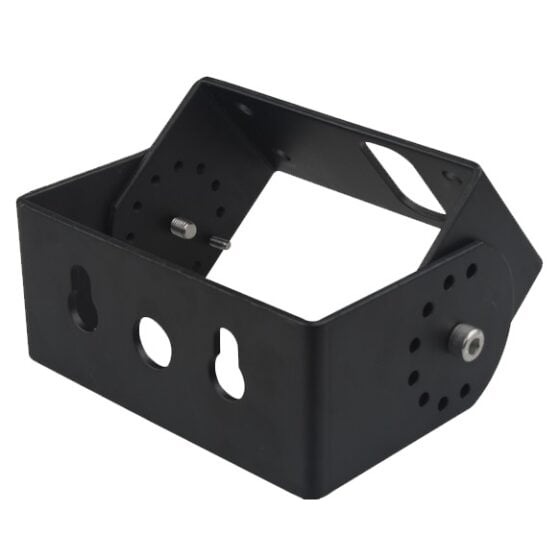

Arm, slip fitter, and trunnion mounting options support different pole and structure configurations. The mounting method should match the available support structure and required Type 3 aiming direction.
The fixture operates from 120-277V and uses 0-10V dimming where controls are included. Installation should allow access for electrical connections, aiming, cleaning, and future service.
How This Fixture Is Commonly Used
For parking lot lighting and commercial site lighting, fixtures are typically arranged along perimeter poles or internal drive lanes with the Type 3 distribution directed across the intended pavement area. Roadway perimeter lighting layouts require the pole position and fixture orientation to follow the direction of travel.
Mounting height must be coordinated with the selected wattage, target light level, and pole structure. Higher output can reduce fixture count, but it may also increase glare or reduce uniformity when pole locations are not matched to the layout.
Safety, Certifications, and Warranty
This fixture is UL certified and rebate eligible. It is IP65 rated.
The warranty is 5 years. The fixture has an EPA rating of 2.5.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The selectable settings are 380 watts at 50,500 lumens, 400 watts at 53,000 lumens, and 450 watts at 60,000 lumens.
Q: What beam distribution does this shoebox light use?
A: The standard distribution is Type 3.
Q: Can this fixture be connected to a 0-10V dimming system?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting options are available?
A: Arm, slip fitter, and trunnion mounting options are available.
Q: How should fixture placement be planned for a Type 3 layout?
A: Mounting height, pole location, fixture orientation, target light levels, and layout requirements affect placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture identified for parking lot lighting and roadway perimeter lighting?
A: Yes. Parking lot lighting and roadway perimeter lighting are identified applications for shoebox lights.
Q: What should be checked when using this fixture for industrial yard lighting?
A: Confirm the pole or structure can support the 25-pound fixture and its EPA rating of 2.5. Confirm that the Type 3 distribution aligns with the required lighting direction.
Q: Does the fixture have an outdoor environmental rating?
A: Yes. The fixture is IP65 rated and has an operating temperature range of -4 degrees F to 113 degrees F.
