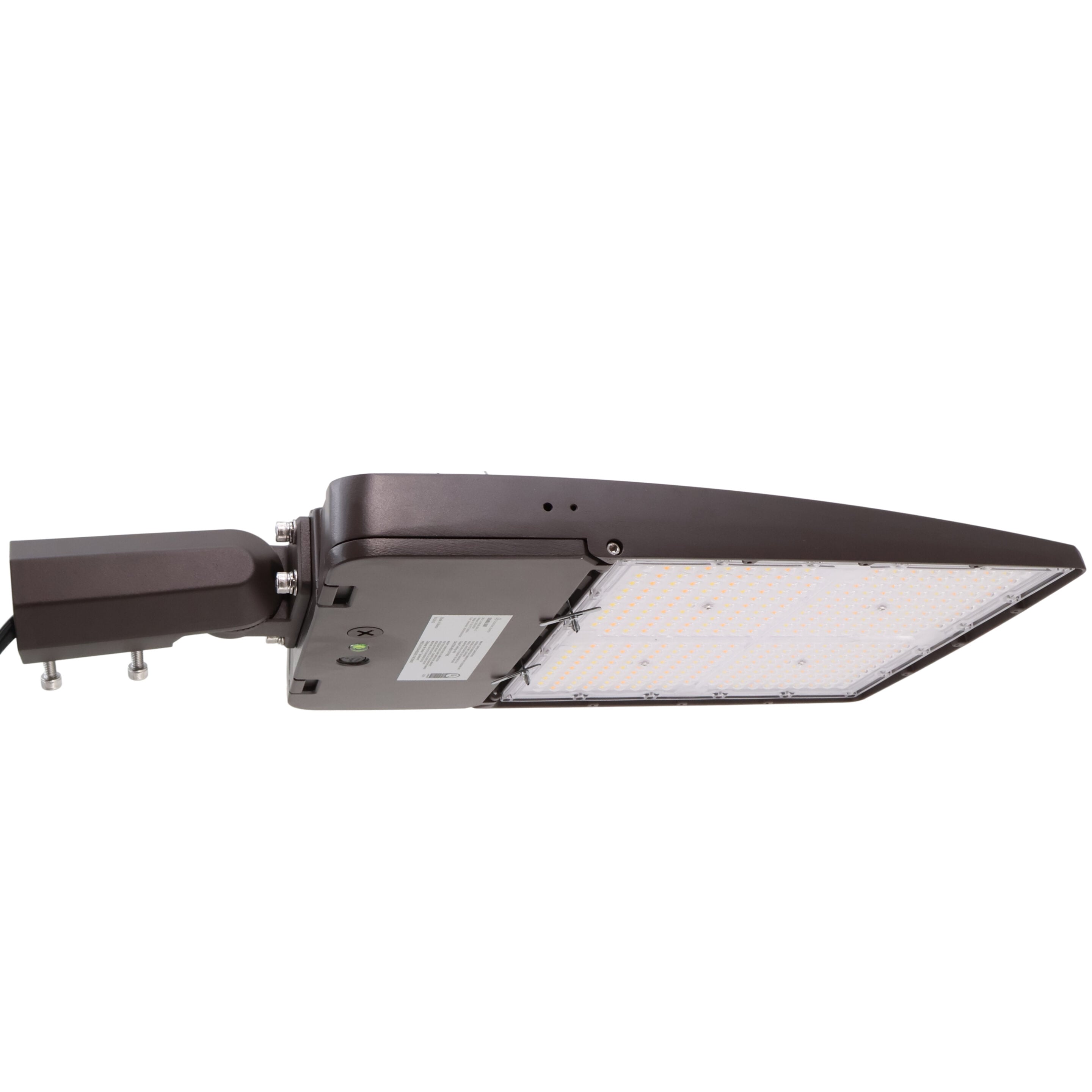

200 / 240 / 300 Watt Adjustable LED Shoebox Area Light | 26,000 to 39,000 Lumens | 3000K / 4000K / 5000K Color Adjustable | 120-277V
This adjustable LED shoebox is well suited to parking lots and car dealerships, where its 26,000 to 39,000 lumen output and Type 3 distribution support area lighting. Selectable wattage and 3000K, 4000K, or 5000K color temperature allow site-specific setup, while arm or slip fitter mounting supports common pole installations. Its IP65 die-cast aluminum housing, 6kV surge protection, and -22F to 113F operating range suit exposed outdoor environments.
Dwayne Kula | President, CTO and Founder
234 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 | 240 | 300 |
| Lumens | 26000 | 31200 | 39000 |
| Lumens Per Watt | 130 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 120V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | Type 3 |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |

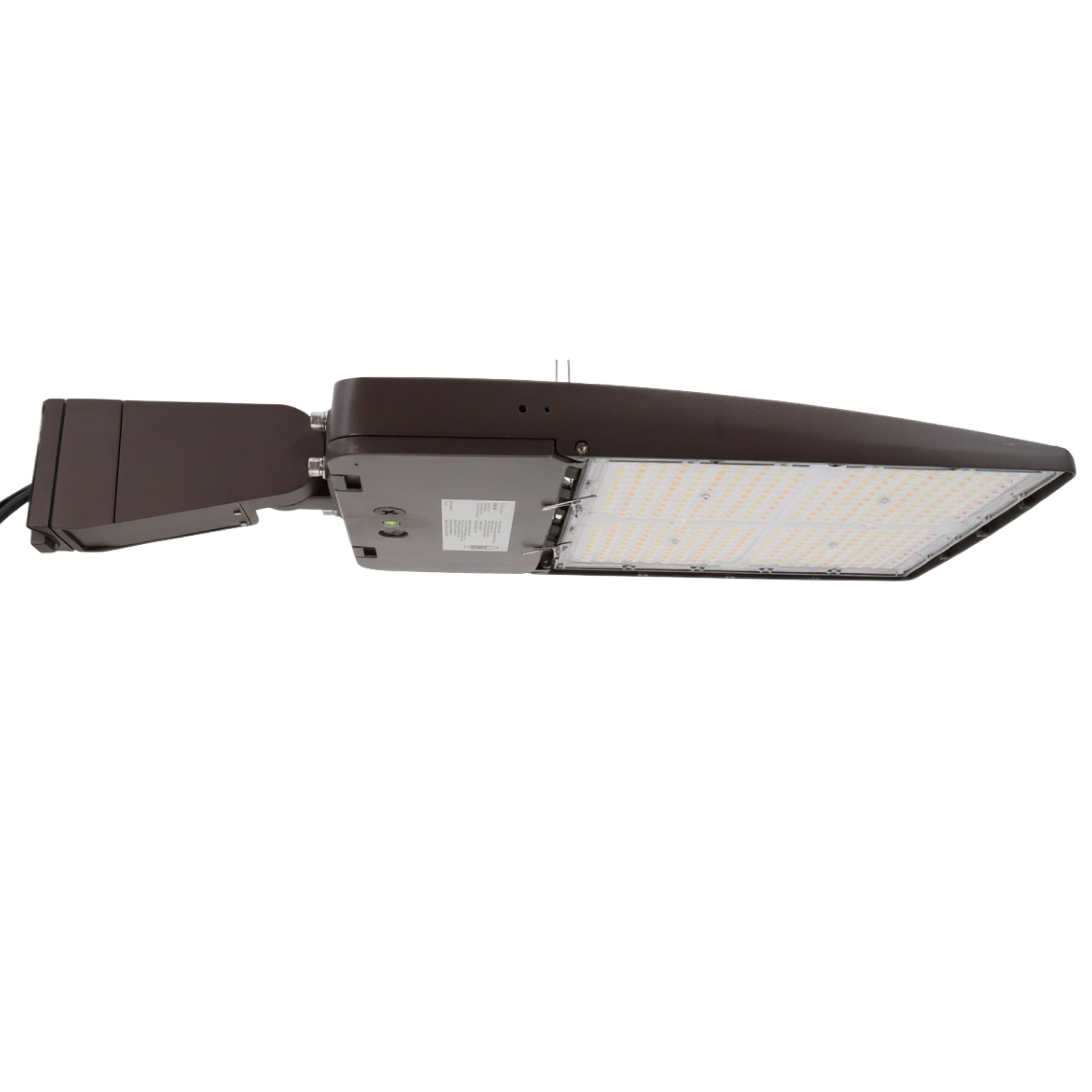

| Mounting | Arm or Slip Fitter |
| EPA Rating | 1.4 |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | >.9 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 18.74 L x 12.68 W x 2.76 H |
| Weight (lbs) | 11 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optional NEMA Socket + Twist Lock Photocell
Download IES Files
Additional Resources
Shoebox Fixture Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, pole placement, spacing, and average foot-candles for parking lots, exterior areas, and outdoor sport court applications using the selected LED shoebox fixture. Enter the area size, mounting height, target foot-candles, light loss factor, and outdoor light use factor to generate a preliminary layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary. The visual heat map is normalized to the estimated average and is intended to show approximate coverage behavior, not a verified lighting plan.
Parking Lot / Exterior Area Mode: Fixtures are placed on poles along the longest edges of the area. Edge fixtures are modeled as level / down-facing shoebox fixtures with the optic directed inward. For wider parking areas, a center row can be added.
Sport Court Mode: Poles are placed on the long edges of the court. Fixtures are modeled as level / down-facing and directed toward court coverage zones instead of being tilted toward one center point.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual ground-level light distribution. When IES photometry is not available, the estimator uses a simulated Type 3 or Type 5 optic model based on lumens, mounting height, outdoor light use factor, light loss factor, and fixture direction.
Outdoor Light Use Factor: Suggested starting points: open rectangular paved area 0.60–0.70, typical parking lot 0.45–0.60, areas with setbacks or edge losses 0.35–0.50, complex outdoor sites 0.25–0.40.
Preliminary Estimate Only: This estimator is intended for simple rectangular outdoor areas. Actual light levels may vary based on fixture optics, pole setbacks, mounting height, fixture orientation, distribution type, surface reflectance, obstructions, voltage, installation conditions, spill light requirements, and site-specific requirements.
This estimate is a starting point. Parking lots, roadways, sport courts, public areas, campuses, vehicle areas, and code-sensitive exterior projects should be reviewed with a lighting plan before purchase or installation.
Product Overview
This adjustable LED shoebox area light provides 26,000, 31,200, or 39,000 lumens from selectable 200W, 240W, and 300W settings. Color temperature is selectable between 3000K, 4000K, and 5000K.
The fixture uses a Type 3 distribution for directional outdoor coverage. It is commonly used as a replacement for 400W through 1000W metal halide area fixtures where adjustable output is needed.
Core Performance and Output

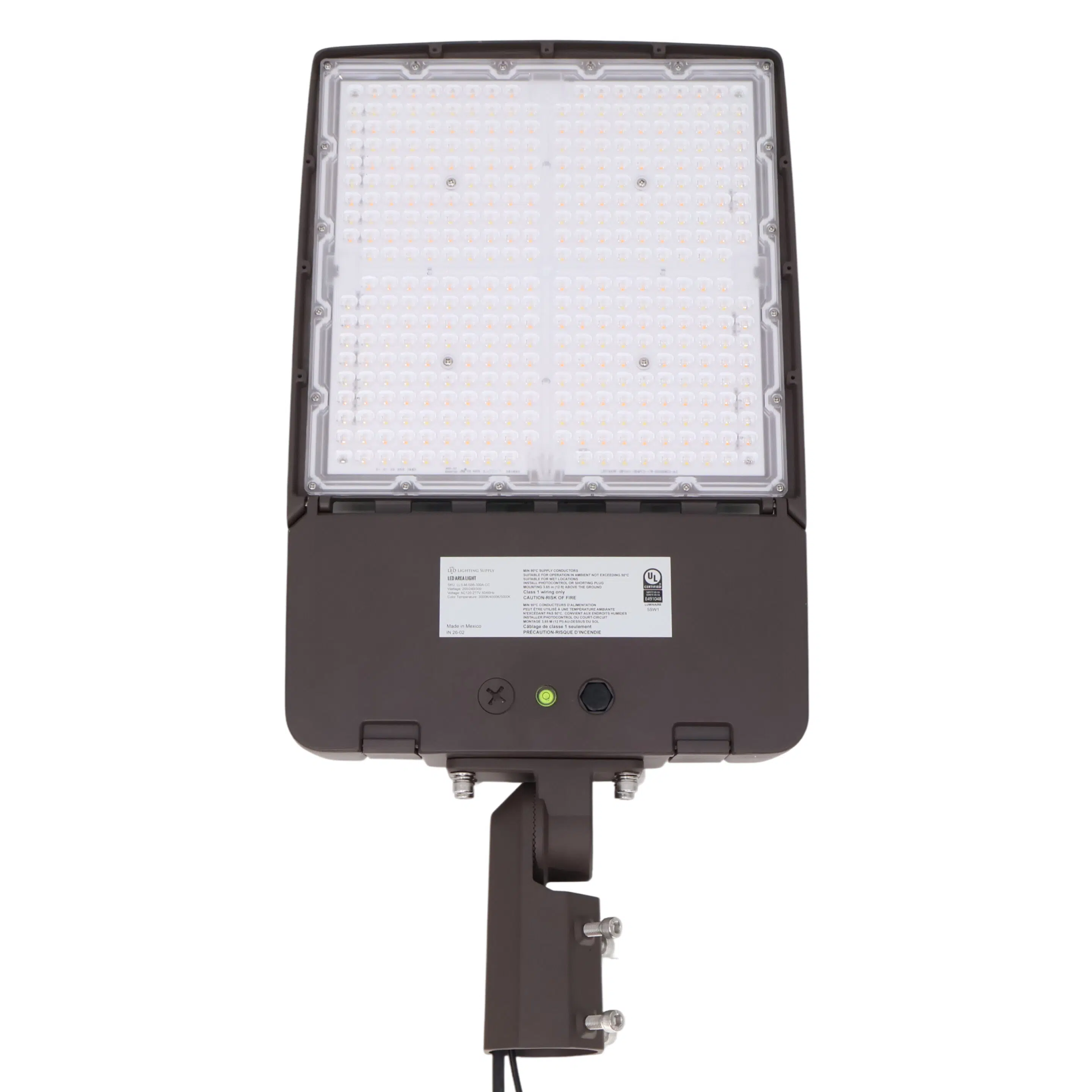

Output ranges from 26,000 to 39,000 lumens at 130 lumens per watt. The Type 3 optic directs light outward in a defined pattern, and the polycarbonate lens protects the optical assembly.
The fixture operates on 120-277V at 50/60Hz and has a power factor above 0.9. The 300W setting can produce excessive output at lower mounting heights, while mounting height and layout affect uniformity across larger areas.
Adjustability and Control Options

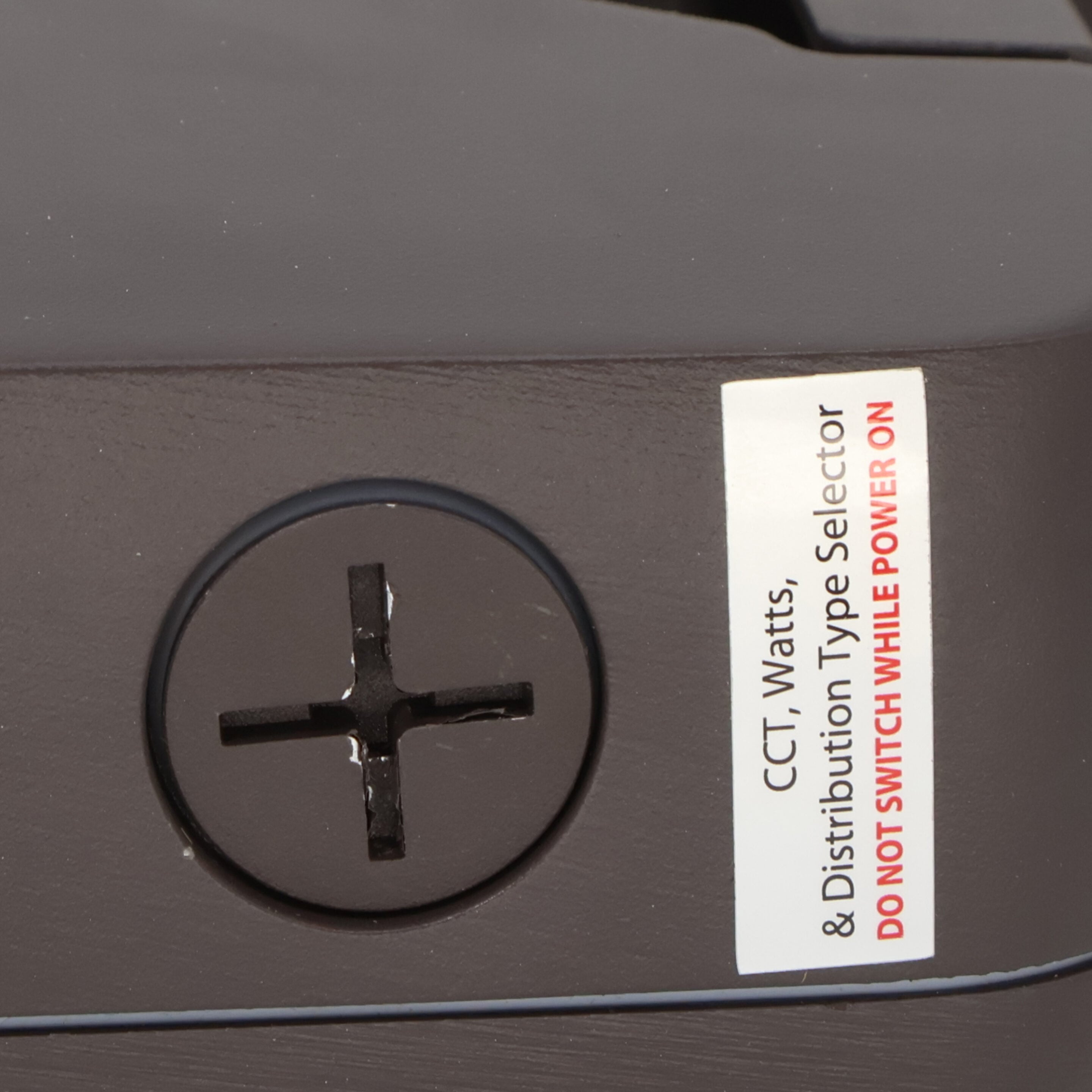

Wattage is selectable at 200W, 240W, or 300W. Color temperature is selectable at 3000K, 4000K, or 5000K before commissioning.
0-10V dimming is supported. An optional NEMA socket with twist lock photocell is available for dusk-to-dawn operation.
Longevity and Reliability
This fixture is rated for a 50,000-hour lifespan. It includes 6kV surge protection for electrical transient protection.
The operating temperature range is -22 degrees F to 113 degrees F. Long-term performance depends on correct mounting, electrical connection, and access for future maintenance.
Build Quality and Physical Characteristics

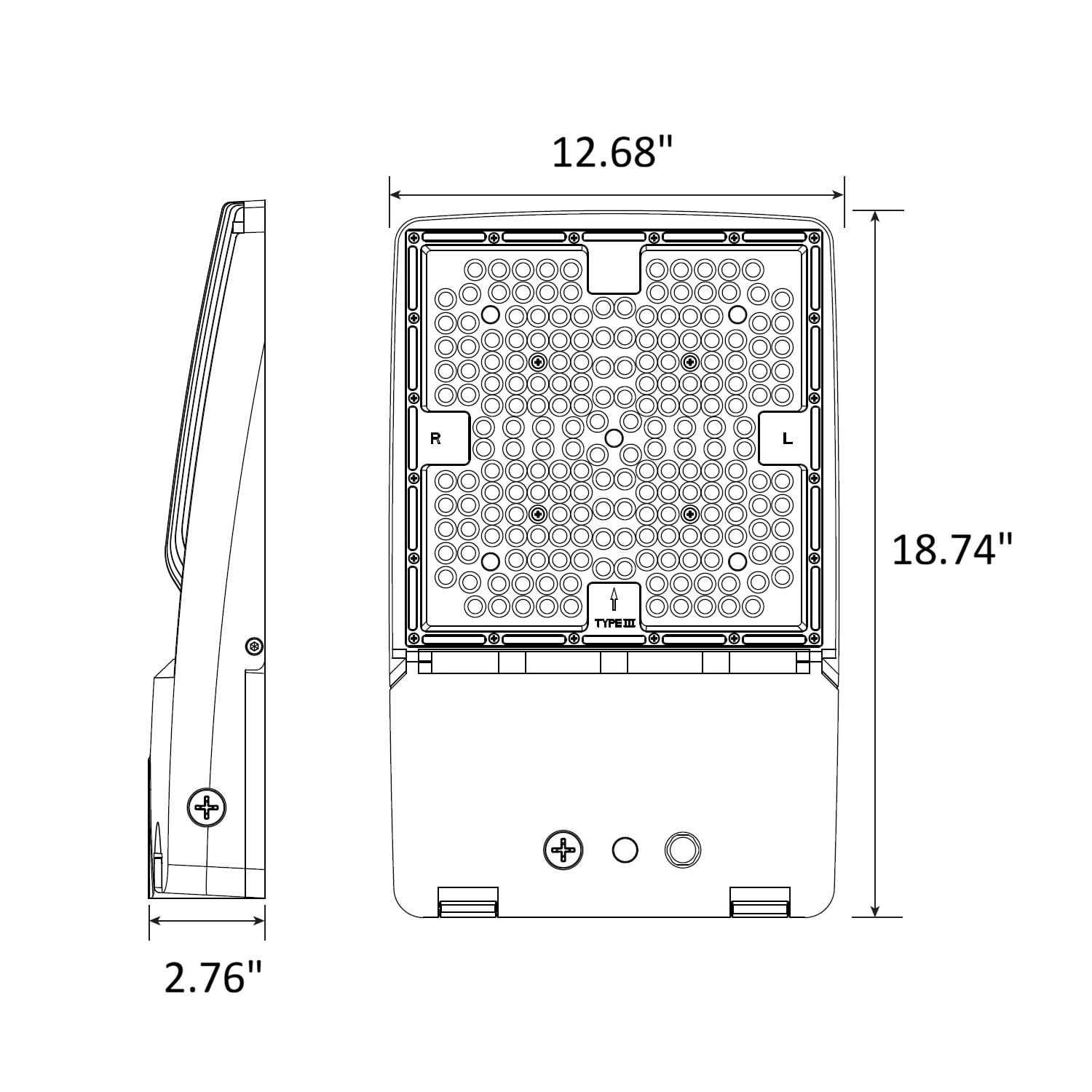

The housing is die-cast aluminum with a bronze finish. The fixture measures 18.74 inches long, 12.68 inches wide, and 2.76 inches high.
Fixture weight is 11 pounds. IP65 rated construction protects the enclosure from dust and water exposure.
Where This Product Fits Best
This shoebox light fits outdoor locations requiring directional area illumination, selectable output, and 120-277V operation.
- parking lot lighting
- commercial site lighting
- area lighting
- roadway perimeter lighting
- dealership lighting
- apartment complex lighting
The IP65 enclosure, die-cast aluminum housing, and -22 degrees F to 113 degrees F operating range support exposed outdoor installation conditions.
Installation and Long-Term Use

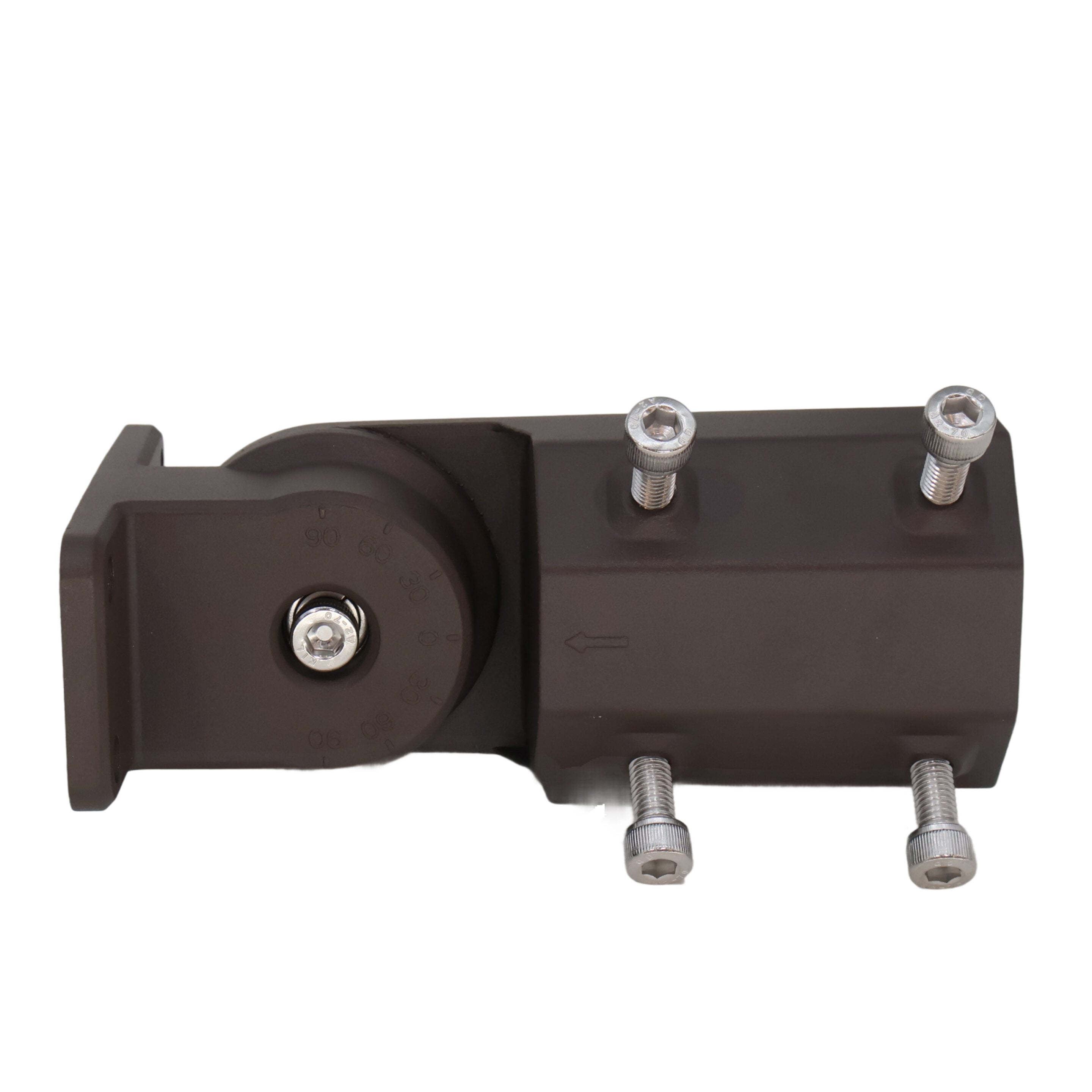

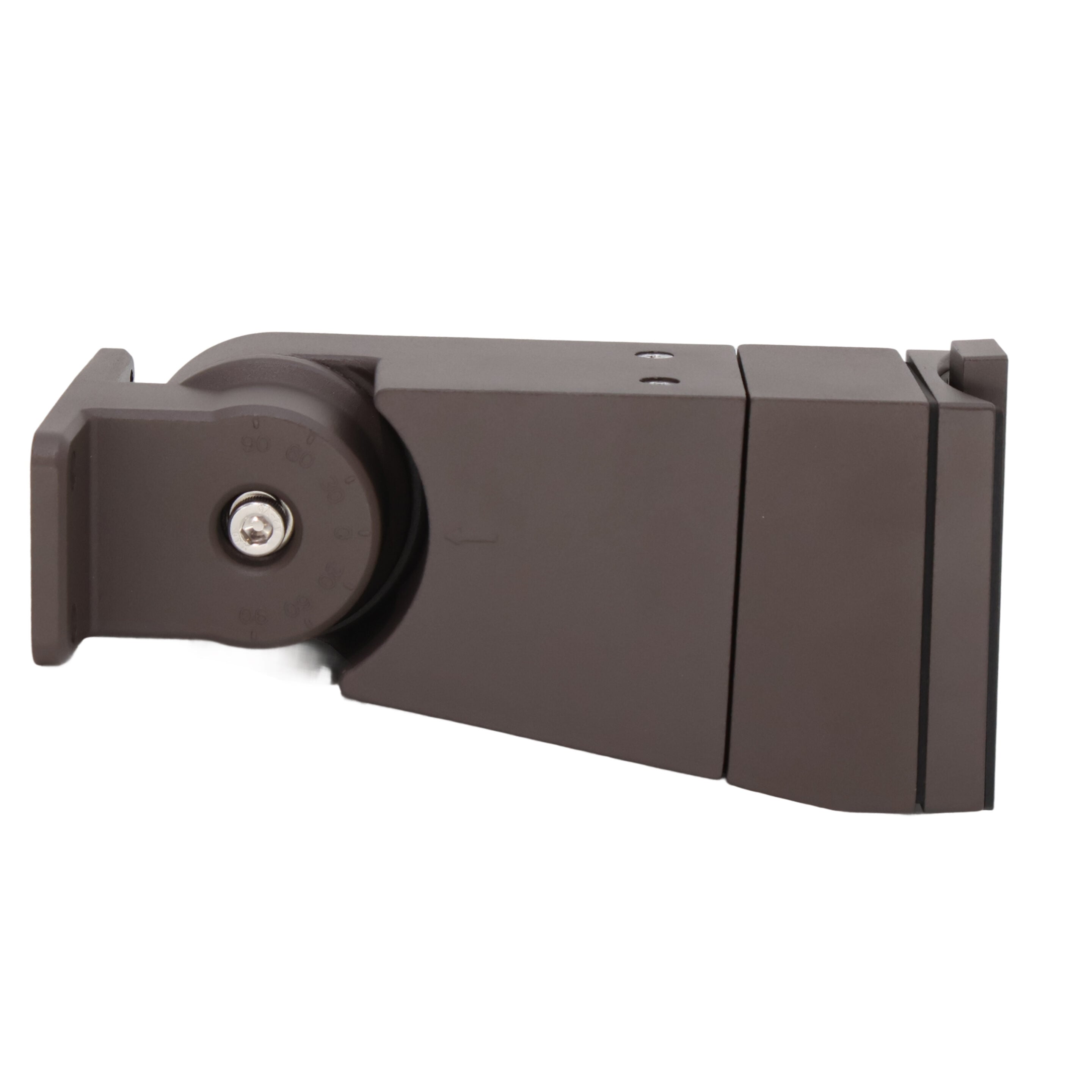

Arm and slip fitter mounting options allow the fixture to be matched to the existing mounting arrangement. Confirm the fixture weight, EPA rating of 1.4, mounting hardware, and structural requirements before installation.
Set the wattage and color temperature before final commissioning. The optional NEMA socket and twist lock photocell should be selected when photocell operation is required.
How This Fixture Is Commonly Used
For parking lot lighting, commercial site lighting, and area lighting, the Type 3 distribution is aimed to place light outward from the mounting location. Roadway perimeter lighting layouts typically follow the roadway edge and required coverage direction.
Mounting height, fixture orientation, output setting, and target light levels determine final spacing and layout. Higher output can reduce fixture count, but it can also increase glare if the layout is not controlled.
Safety, Certifications, and Warranty
UL listed. DLC Premium listed. IP65 rated.
This fixture includes a 5-year warranty. Installation must use the specified 120-277V input range and the selected arm or slip fitter mounting configuration.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 200W, 240W, and 300W settings producing 26,000, 31,200, and 39,000 lumens respectively.
Q: What color temperatures can be selected?
A: Color temperature is selectable at 3000K, 4000K, or 5000K.
Q: Does this fixture support dimming?
A: Yes. It supports 0-10V dimming.
Q: What mounting options are available?
A: This fixture is available with arm or slip fitter mounting.
Q: What affects fixture layout for parking lot lighting?
A: The selected wattage, Type 3 distribution, mounting height, fixture orientation, and required light levels affect layout. The supplied data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture appropriate for dealership lighting?
A: Dealership lighting is a listed secondary application. Output can be selected from 26,000 to 39,000 lumens and color temperature can be selected from 3000K, 4000K, or 5000K.
Q: What should be reviewed before selecting output for commercial site lighting?
A: Review mounting height, layout requirements, target light levels, and fixture orientation. The fixture provides selectable 200W, 240W, and 300W output settings.
Q: Can photocell operation be added for apartment complex lighting?
A: An optional NEMA socket with twist lock photocell is available. Apartment complex lighting is a listed secondary application.
