35 / 60 / 80 Watt Adjustable LED Flood Light | 4050 to 10800 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Knuckle or Yoke Mount

Product Overview

This adjustable LED flood light provides 35W, 60W, or 80W output settings with selectable 3000K, 4000K, and 5000K color temperatures. It produces 4,050 to 10,800 lumens for exterior lighting layouts requiring controlled output selection.

The fixture operates on 100-277V and uses either a knuckle mount or yoke mount. It is commonly used as a 250W metal halide replacement where existing exterior mounting locations remain in place.

Core Performance and Output

Output ranges from 4,050 lumens at 35W to 10,800 lumens at 80W. Fixture efficacy is 135 lumens per watt, with a 70+ CRI.

The tempered glass lens is the stated optical component. A beam distribution is not specified, so final aiming and layout requirements need to be confirmed for the installation.

The fixture operates at 100-277V, 50/60Hz, with a 0.9 power factor and 15% THD. The 80W setting can be excessive at lower mounting heights when light is directed toward occupied areas.

Adjustability and Control Options

Wattage is adjustable between 35W, 60W, and 80W. This allows output to be matched to the available mounting location and required light level.

Color temperature is adjustable between 3000K, 4000K, and 5000K. The fixture is not dimmable.

Longevity and Reliability

This flood light is rated for 50,000 L70 hours. The L70 rating identifies the point at which light output is expected to reach 70 percent of initial output.

The listed operating temperature range is -4 degrees F to 140 degrees F. Long-term performance depends on maintaining the fixture within this temperature range and keeping the lens and housing free of accumulated debris.

Build Quality and Physical Characteristics

The housing is powder-coated aluminum with a bronze finish. The fixture measures 10.5 inches long by 9.85 inches wide and weighs 8 pounds.

An IP65 rating is provided. The tempered glass lens protects the optical assembly.

Where This Product Fits Best

This fixture fits exterior locations requiring adjustable flood lighting with knuckle or yoke mounting. Its 35W through 80W output settings support smaller and medium-scale lighting zones.

• security lighting
• building facade lighting
• area lighting
• parking lot lighting
• loading area lighting

The IP65-rated aluminum housing supports exposed outdoor installation conditions within the listed operating temperature range. Final fixture aiming should account for adjacent occupied areas and the selected wattage setting.

Installation and Long-Term Use

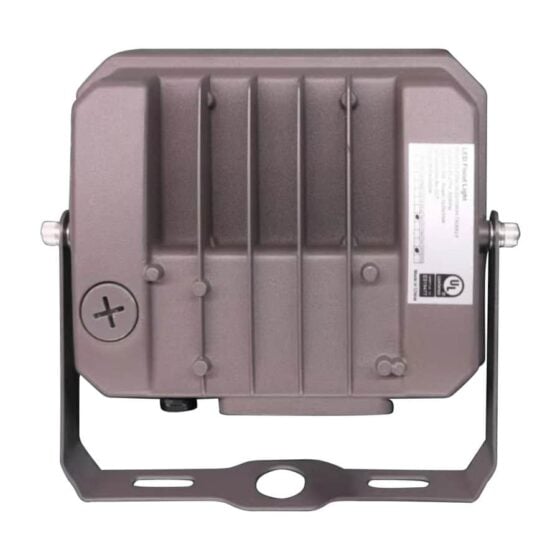

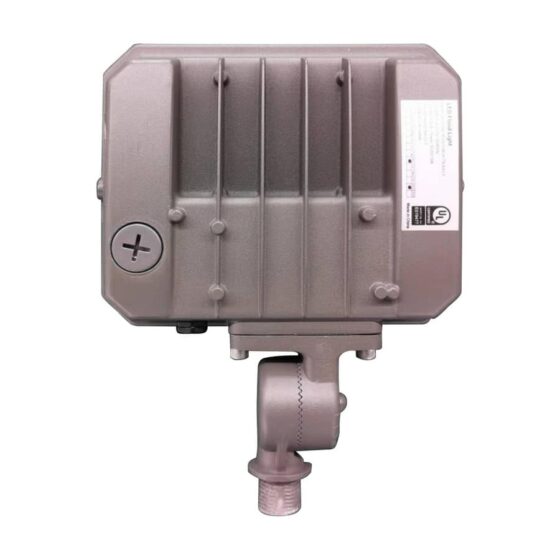

The fixture is available with a knuckle mount or yoke mount. The selected mount needs to match the mounting surface, aiming requirement, and fixture orientation.

Installation requires a 100-277V supply. The 8-pound fixture weight and 0.96 EPA rating should be considered when evaluating the mounting structure.

For long-term use, inspect the lens, housing finish, mounting hardware, and electrical connections during routine exterior maintenance. Keep the tempered glass lens clean to maintain available light output.

How This Fixture Is Commonly Used

In security lighting, building facade lighting, and area lighting layouts, the fixture is aimed from walls, poles, or structural mounting points toward the intended illuminated surface. Mounting height affects aiming angle, fixture output selection, and light distribution across the area.

Parking lot lighting and loading area lighting layouts typically use multiple fixtures arranged around access paths and work zones. Spacing varies with mounting height, selected wattage, fixture aiming, and required light levels.

Higher wattage settings can reduce the number of fixtures in a layout, but they can also increase glare when aiming and mounting height are not properly coordinated.

Safety, Certifications, and Warranty

This fixture is UL listed and rebate eligible.

The fixture carries a 5-year warranty.

Frequently Asked Questions

Q: What wattage settings are available?

A: The fixture is adjustable between 35W, 60W, and 80W.

Q: What light output does this flood light provide?

A: Output is 4,050 lumens at 35W, 8,100 lumens at 60W, and 10,800 lumens at 80W.

Q: Can this fixture be dimmed?

A: No. This fixture is not dimmable.

Q: What mounting options are available?

A: The fixture is available with a knuckle mount or yoke mount.

Q: What factors affect fixture layout?

A: Mounting height, selected wattage, fixture aiming, and required light levels affect layout. A specific spacing value is not established by the supplied product data.

Application Questions and Clarification

Q: Is this fixture suitable for security lighting?

A: Security lighting is a listed primary application. Final fixture placement and aiming depend on the required coverage area and mounting location.

Q: Can the wattage setting be changed for parking lot lighting or loading area lighting?

A: Yes. The fixture has adjustable 35W, 60W, and 80W settings. The selected setting should match the mounting height, layout, and required light level.

Q: What should be confirmed before using the yoke or knuckle mount?

A: Confirm the mounting surface, fixture orientation, aiming requirement, and structural support for the 8-pound fixture with a 0.96 EPA rating.

Web ID: 2030
