70 Watt Square LED Canopy Light | 9100 Lumens | 5000K | 100-277V
This 70 watt LED canopy light is a practical choice for replacing 250 watt metal halide fixtures, offering 9,100 lumens at 130 lumens per watt and a broad 140-degree beam angle for even coverage at low-to-moderate mounting heights. Its IP65 rating and die-cast aluminum housing ensure durability in outdoor environments exposed to rain, dust, and washdown spray, while the -40°F to 113°F operating range supports use in varied climates. Ideal for gas station canopies, drive-throughs, parking structures, and covered walkways.
Dwayne Kula | President, CTO and Founder
273 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 70 |
| Lumens | 9100 |
| Lumens Per Watt | 130 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 140° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours – driver |
| Mounting | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements

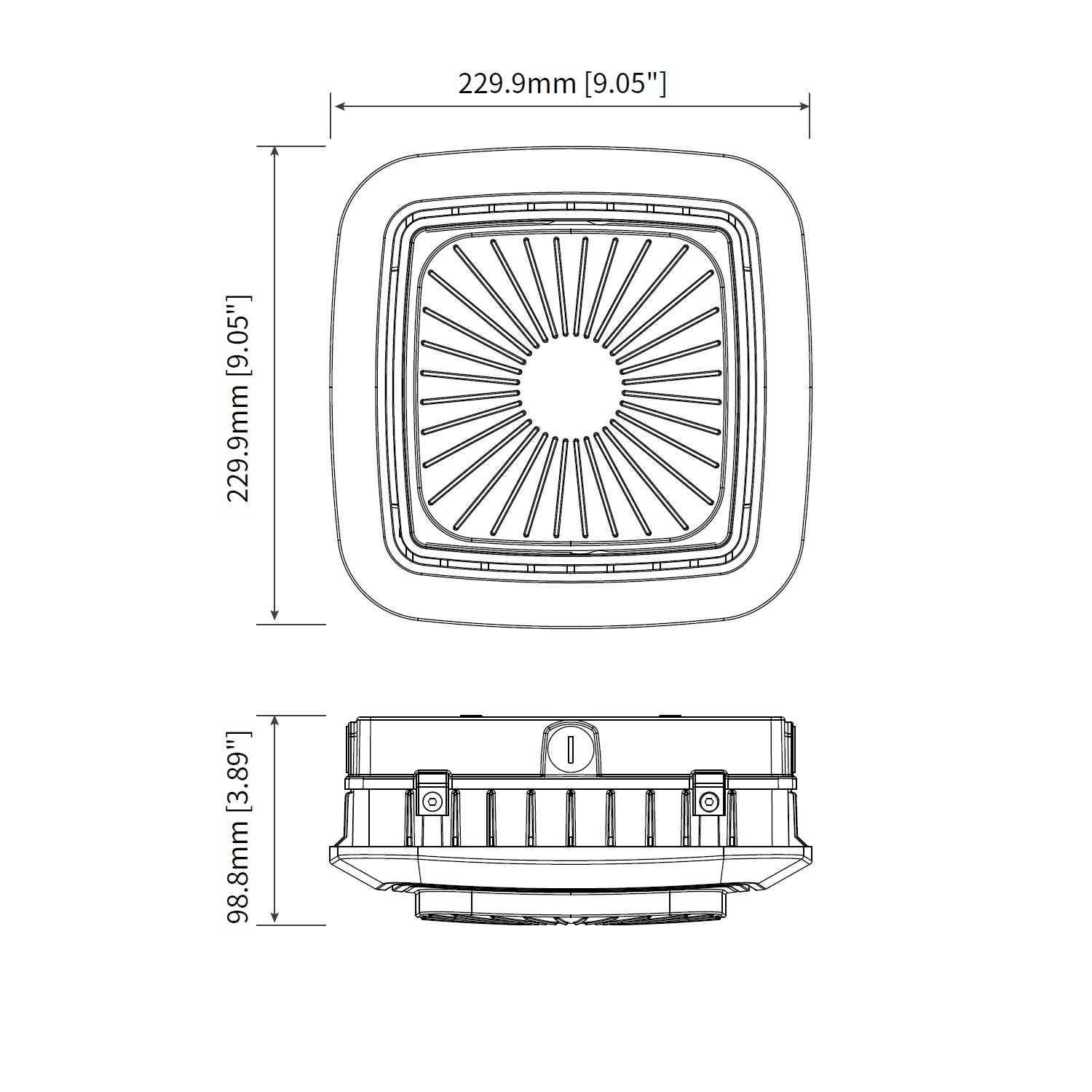

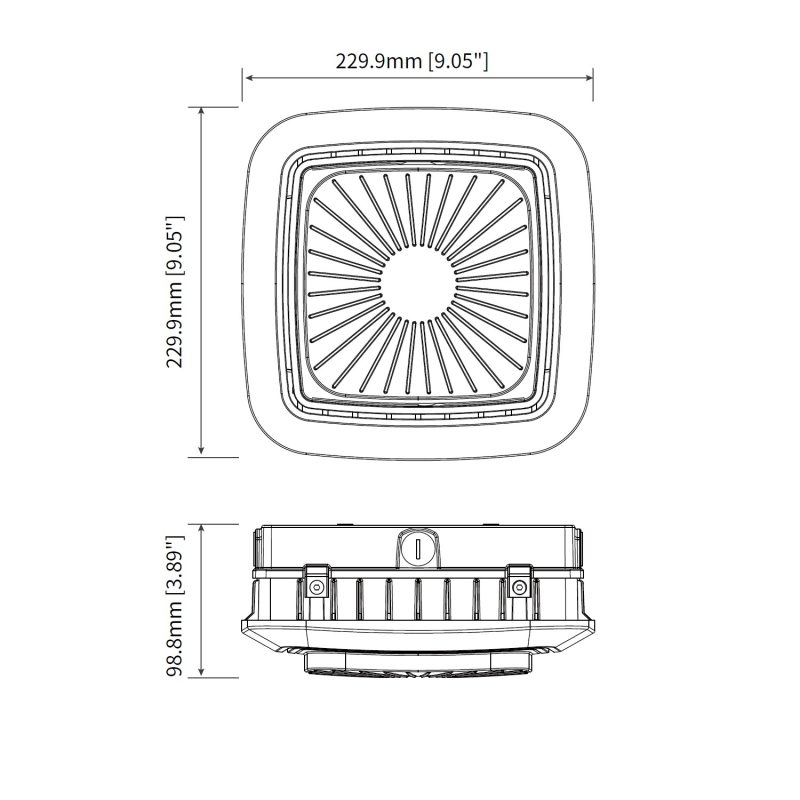

| Dimensions (in) | 9.1 L X 9.1 W X 3.9 H |
| Weight (lbs) | 6.25 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 70-watt square LED canopy light delivers 9100 lumens at 5000K for covered exterior lighting. Its 140-degree distribution is suited to broad, downward-facing canopy layouts.
The fixture is commonly used for gas station lighting, fueling area lighting, parking canopy lighting, and drive-through canopy lighting. It replaces a 250-watt metal halide fixture where the existing light level and layout support the LED output.
Core Performance and Output
This canopy light produces 9100 lumens at 130 lumens per watt. The 5000K color temperature provides a bright white appearance, and the CRI is 70+.
The standard 140-degree beam angle spreads light across the canopy plane. Output can be excessive where mounting heights are low or fixture spacing is tight, while wider layouts require review of light levels and uniformity.
The fixture operates on 100-277V, 50/60Hz electrical systems. It supports 0-10V dimming.
Adjustability and Control Options
This fixture supports 0-10V dimming for systems designed to use that control method. Dimming wiring and control equipment must be compatible with the fixture’s 0-10V input.
The 100-277V operating range supports common commercial electrical systems. No adjustable wattage or selectable color temperature is listed for this configuration.
Longevity and Reliability
The driver is rated for a 50,000-hour lifespan. The fixture carries a 5-year warranty.
Its listed operating temperature range is -40 degrees F to 113 degrees F. The IP65 rating supports exposure conditions associated with covered exterior canopy installations.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. A polycarbonate lens protects the optical assembly.
The fixture measures 9.1 inches long by 9.1 inches wide by 3.9 inches high and weighs 6.25 pounds. It is available for pendant or surface mounting.
Where This Product Fits Best
This square canopy fixture fits covered exterior areas that need broad downward light from a compact surface-mounted or pendant-mounted housing.
- gas station lighting
- fueling area lighting
- parking canopy lighting
- drive-through canopy lighting
- covered walkway lighting
- loading canopy lighting
The IP65-rated housing is suited to wet exterior conditions. The listed operating temperature range supports installations exposed to cold and hot outdoor conditions.
Installation and Long-Term Use
The fixture can be surface mounted directly to the canopy structure or installed with a pendant mount. The mounting surface and hardware must support the 6.25-pound fixture weight.
Fixture placement should account for the 140-degree beam distribution, mounting height, canopy geometry, and required light levels. Access for driver service and wiring should be considered before the canopy finish is closed.
How This Fixture Is Commonly Used
In gas station lighting and fueling area lighting, fixtures are arranged across the canopy ceiling to maintain consistent light through vehicle lanes and pump areas. Surface mounting is common where the canopy structure provides a direct mounting plane.
Parking canopy lighting, drive-through canopy lighting, covered walkway lighting, and loading canopy lighting use the same broad distribution approach. Mounting height and fixture spacing vary with canopy dimensions, target light levels, and layout requirements.
Higher fixture output can reduce fixture count, but tighter layouts may create excessive brightness directly below the fixture. Pendant mounting can be used where the mounting position needs to extend below the canopy structure.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture is IP65 rated. The warranty is 5 years.
Frequently Asked Questions
Q: What is the light output of this canopy fixture?
A: This fixture produces 9100 lumens while using 70 watts.
Q: What voltage does this canopy light use?
A: The fixture operates on 100-277V, 50/60Hz electrical systems.
Q: Can this fixture be dimmed?
A: Yes. It supports 0-10V dimming.
Q: What mounting options are available?
A: The fixture supports pendant or surface mounting.
Q: What should be considered when planning fixture layout?
A: The 140-degree beam angle, mounting height, canopy geometry, target light levels, and spacing requirements affect layout. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture intended for gas station lighting?
A: Yes. Gas station lighting is a primary application for this canopy light family.
Q: Can this fixture be used for covered walkway lighting?
A: Covered walkway lighting is a secondary application for this canopy light family. The IP65 rating and listed operating temperature range should be considered with site conditions.
Q: What should be confirmed for parking canopy lighting?
A: Confirm mounting method, mounting height, electrical voltage, target light levels, and fixture layout. The supplied product data does not establish a specific fixture quantity or spacing value.
