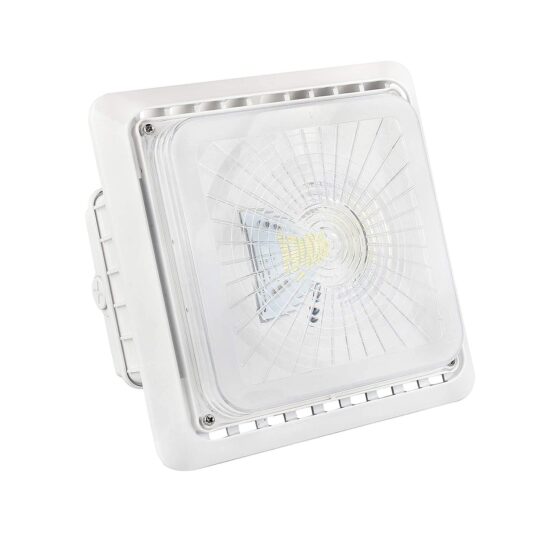

30 / 40 / 55 Watt Adjustable LED Canopy Light | 3900 to 7150 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V
This adjustable LED canopy light is a practical choice for covered outdoor and semi-enclosed spaces requiring reliable, consistent illumination and weather resistance. Its selectable wattage (30, 40, or 55 watts) and field-adjustable color temperature (3500K, 4000K, 5000K) allow adaptation to various mounting heights and site aesthetics, while the 140-degree beam angle ensures broad, even coverage. The IP65 rating and die-cast aluminum housing withstand rain, dust, and cleaning, making it well-suited for gas station canopies, parking structures, loading docks, and covered walkways.
Dwayne Kula | President, CTO and Founder
38 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 40 | 55 |
| Lumens | 3900 | 5200 | 7150 |
| Lumens Per Watt | 130 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 75+ |
| Dimming | No |
| Beam Angles (Std) | 140° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 9 L X 9 W X 4.5 H |
| Weight (lbs) | 5 |
| Cord Length | None |
| Cord Length | None |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED canopy light is designed for covered exterior lighting where a broad, downward distribution is needed. Wattage and color temperature are selectable before installation.
The fixture operates from 100-277V and uses a 140 degree distribution through a polycarbonate lens. It is commonly used as a 250 watt metal halide replacement in canopy-mounted locations.
Core Performance and Output
Selectable output includes 30W, 40W, and 55W settings producing 3900, 5200, and 7150 lumens. Fixture efficacy is 130 lumens per watt.
The 140 degree beam angle supports broad canopy coverage. Higher output can reduce fixture count in larger canopy layouts, while the 55W setting can produce excessive light in smaller covered areas.
Adjustability and Control Options
Field-selectable wattage settings provide 30W, 40W, or 55W operation. Selectable color temperatures include 3500K, 4000K, and 5000K.
This fixture is non-dimming. It operates on 100-277V, 50/60Hz electrical systems.
Longevity and Reliability
The LED system is rated for 50,000 hours L70 life. This rating supports long-term operation in covered exterior canopy locations.
The fixture carries a 5-year warranty. Operating temperature range is -4F to 113F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. A polycarbonate lens protects the optical system.
The fixture is IP65 rated. It measures 9 inches long by 9 inches wide by 4.5 inches high and weighs 5 pounds.
Where This Product Fits Best
This fixture fits covered exterior areas requiring wide, downward canopy lighting. Its IP65 rating supports locations exposed to outdoor moisture and dust.
- fueling area lighting
- gas station lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- entry canopy lighting
Pendant and surface mounting support common canopy construction conditions. Final wattage selection should match the canopy size, mounting height, and required light level.
Installation and Long-Term Use

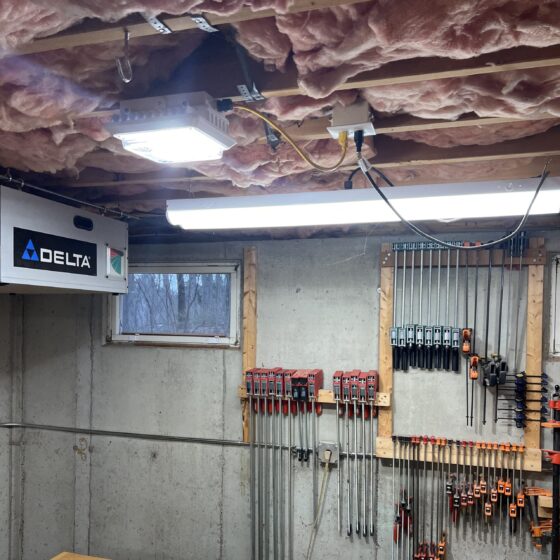

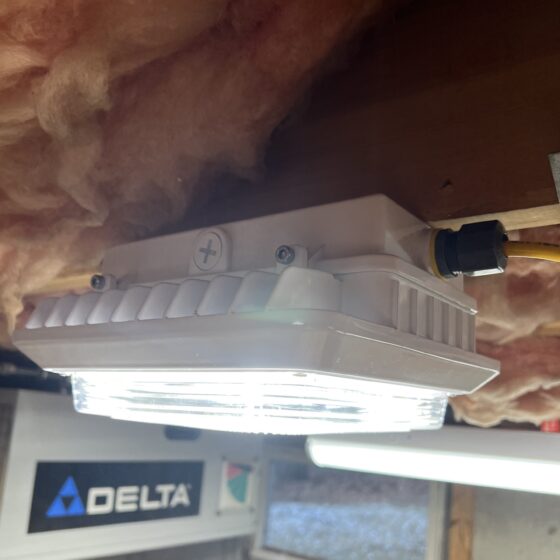

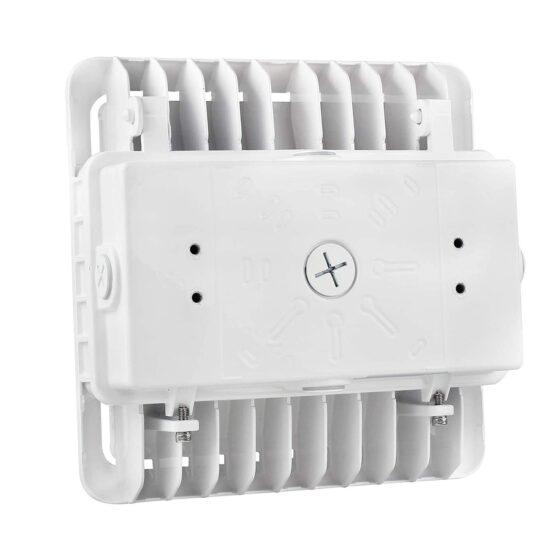

The fixture can be pendant mounted or surface mounted. No cord is included.
Installers should set wattage and color temperature before energizing the fixture. Surface condition, mounting method, supply voltage, and canopy layout should be confirmed before installation.
How This Fixture Is Commonly Used
In gas station lighting, fueling area lighting, parking canopy lighting, and drive-through canopy lighting, fixtures are arranged across the underside of the canopy to maintain consistent coverage. Mounting height and canopy bay geometry determine fixture placement.
Loading canopy lighting and entry canopy lighting typically use a layout aligned with canopy structure and traffic areas. Spacing varies with the selected wattage, mounting height, and target light levels.
Safety, Certifications, and Warranty
This LED canopy light is UL listed. It is rebate eligible.
The fixture is IP65 rated and carries a 5-year warranty. It is rated for operation from -4F to 113F.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 30W, 40W, and 55W settings producing 3900, 5200, and 7150 lumens.
Q: Can the color temperature be changed?
A: Yes. Color temperature is selectable at 3500K, 4000K, or 5000K.
Q: What mounting options are available?
A: The fixture supports pendant mounting and surface mounting.
Q: What affects fixture layout under a parking canopy?
A: Mounting height, canopy geometry, selected wattage, and target light levels affect fixture layout. The supplied product data does not establish a fixed spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for fueling area lighting?
A: Fueling area lighting is a primary application for this canopy light. Final fixture selection should account for the required light level, mounting height, and canopy layout.
Q: Can this fixture be used for covered walkway lighting?
A: Covered walkway lighting is a secondary application. The 30W, 40W, and 55W settings allow output selection based on the project layout and required light level.
Q: What environmental rating does this fixture have for commercial overhang lighting?
A: The fixture is IP65 rated and operates from -4F to 113F. Commercial overhang lighting is a secondary application.
