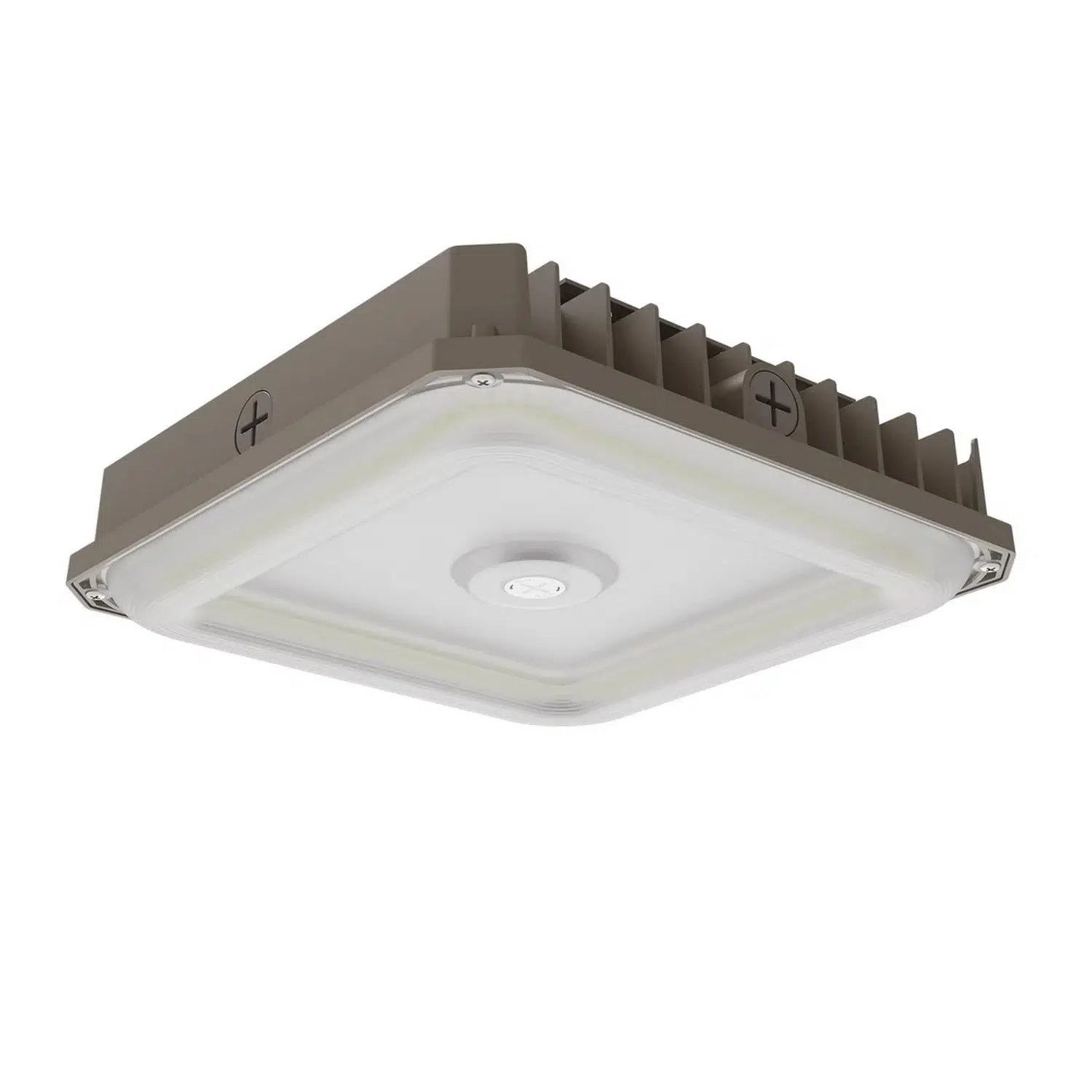

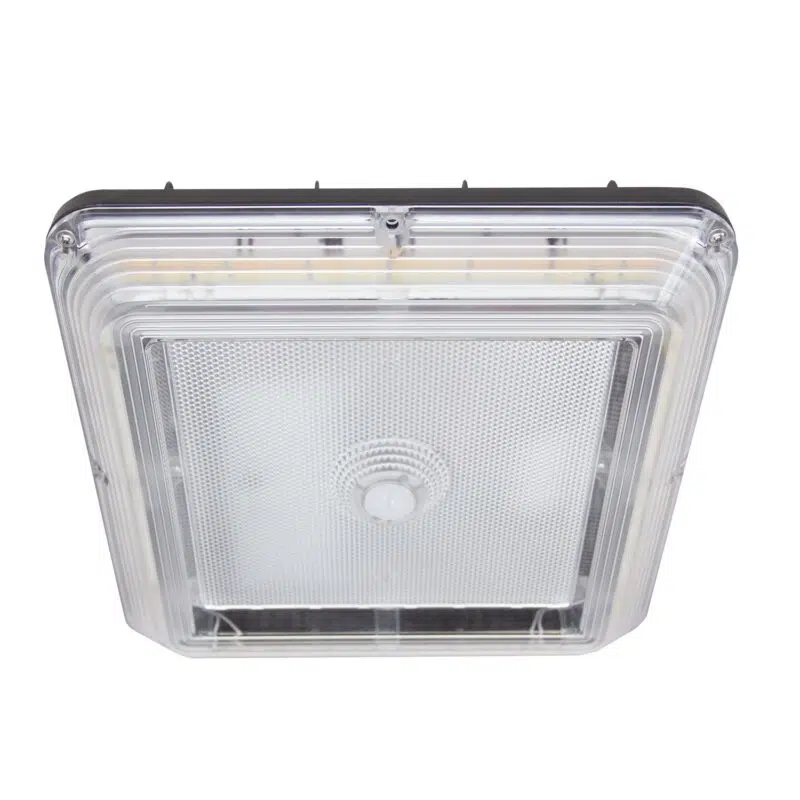

60 / 80 / 100 Watt Adjustable LED Canopy Light | 7800 to 13000 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V
The adjustable LED canopy light, with its 60-100W range and 7800-13000 lumens output, is ideal for gas stations and fueling areas. Its 140° beam angle ensures broad coverage, while the IP65 rating and die-cast aluminum housing provide durability in harsh environments. The fixture’s color and wattage adjustability, along with 1-10V dimming, offer flexibility for various lighting needs. UL certification and a 5-year warranty enhance reliability, making it a practical choice for outdoor commercial applications.
Neil Peterson | CEO and Chief Lighting Specialist
1070 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 | 80 | 100 |
| Lumens | 7800 | 10400 | 13000 |
| Lumens Per Watt | 130 |
| Replaces | 150 or 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 140° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | Bronze |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.02 L X 11.02 W X 3.35 H |
| Weight (lbs) | 5 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED canopy light provides 60W, 80W, or 100W operation with selectable 3500K, 4000K, or 5000K color temperature settings. It is built for covered exterior lighting where a broad 140 degree distribution is needed below a canopy or overhang.
The fixture is commonly used for gas station lighting and fueling area lighting, including metal halide replacement work. Its pendant and surface mounting options support different canopy deck conditions.
Core Performance and Output
Output is adjustable between 7,800, 10,400, and 13,000 lumens at an efficacy of 130 lumens per watt. The fixture operates on 100-277V, 50/60Hz power, with power factor above 0.90 and THD below 20%.
The standard 140 degree beam angle distributes light broadly across the covered area. The 100W setting can create excessive brightness at lower mounting heights when the layout does not require 13,000 lumens.
The fixture replaces 150W or 250W metal halide lighting based on the selected wattage and existing light levels. Higher-output settings can reduce fixture count, but layout uniformity still depends on mounting height and canopy dimensions.
Adjustability and Control Options
Field-selectable wattage allows the fixture to operate at 60W, 80W, or 100W. Color temperature is selectable between 3500K, 4000K, and 5000K.
1-10V dimming is included. A motion sensor is available as a feature or accessory.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. This rating supports long-term operation in covered exterior installations where fixture access may require canopy access equipment.
The operating temperature range is -4F to 113F. Output selection, dimming configuration, and sensor use should be established before commissioning.
Build Quality and Physical Characteristics

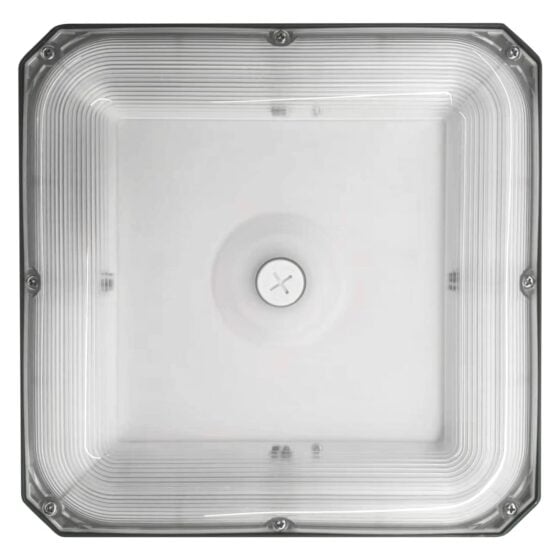

The housing is die-cast aluminum with a bronze finish. The fixture is IP65 rated.
Fixture dimensions are 11.02 inches long by 11.02 inches wide by 3.35 inches high. Weight is 5 pounds.
Pendant and surface mounting are available. The mounting surface and mounting point must support the fixture and maintain a secure connection at the canopy structure.
Where This Product Fits Best
This canopy light fits covered exterior areas requiring broad downward distribution, adjustable output, and selectable color temperature. The IP65 rating supports exposure conditions associated with covered outdoor structures.
- fueling area lighting
- gas station lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- entry canopy lighting
- covered walkway lighting
The die-cast aluminum housing and IP65 rating suit covered locations exposed to moisture, dust, and changing outdoor temperatures within the stated operating range.
Installation and Long-Term Use
Install the fixture using the pendant or surface mounting method that matches the canopy construction. Verify the mounting location, supply voltage, dimming conductors, and any motion sensor requirements before installation.
Set wattage and color temperature before final commissioning. Access to the fixture should be considered during layout planning because canopy-mounted equipment may require lift access for future maintenance.
How This Fixture Is Commonly Used
For gas station lighting, fueling area lighting, parking canopy lighting, and drive-through canopy lighting, fixtures are typically arranged in rows or a grid that follows the canopy structure. Mounting height affects the usable spread of the 140 degree beam distribution.
Loading canopy lighting, entry canopy lighting, and covered walkway lighting generally use fixture placement aligned with travel paths, canopy columns, or covered access areas. Spacing varies with the selected wattage, mounting height, target light level, and required uniformity.
Safety, Certifications, and Warranty
This fixture is UL certified. It is rebate eligible.
The fixture is IP65 rated and operates from -4F to 113F. Warranty coverage is 5 years.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 60W, 80W, and 100W settings that produce 7,800, 10,400, and 13,000 lumens respectively.
Q: What color temperatures can be selected?
A: Color temperature is selectable at 3500K, 4000K, or 5000K.
Q: Can this canopy light be dimmed?
A: Yes. The fixture supports 1-10V dimming.
Q: What should be considered when planning fixture layout?
A: Mounting height, selected wattage, target light levels, canopy dimensions, and the 140 degree beam angle affect fixture layout. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture intended for fueling area lighting?
A: Yes. Fueling area lighting is a primary application for this canopy light.
Q: Which mounting methods are available for parking canopy lighting?
A: The fixture is available with pendant or surface mounting.
Q: What environmental rating applies to covered walkway lighting?
A: The fixture is IP65 rated and has an operating temperature range of -4F to 113F.
