30 / 45 / 63 Watt Adjustable LED Canopy Light | 4000 to 8500 Lumens | 4000K / 5000K Adjustable | 100-277V | Bronze or White Finish
This LED canopy light is a strong choice for covered outdoor locations requiring reliable, efficient illumination and broad coverage. Its field-adjustable wattage (30, 45, or 63 watts) and color temperature (4000K or 5000K) allow installers to tailor output and appearance to site needs, while the 135 lumens per watt efficacy ensures energy savings compared to 250-watt metal halide replacements. The IP65 rating, die-cast aluminum housing, and vandal-proof lens provide durability in environments exposed to moisture, dust, and impact. Ideal applications include gas station canopies, parking structure ceilings, drive-throughs, and loading dock covers.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 45 | 63 |
| Lumens | 4000 | 6000 | 8500 |
| Lumens Per Watt | 135 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | No |
| Beam Angles (Std) | 140° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | Bronze or White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 9.5 L X 9.5 W X 3.5 H |
| Weight (lbs) | 3.7 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Product SKU Variations
- SKU: LLS-X-CPS-63A-CC-B
- SKU: LLS-X-CPS-63A-CC-W
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED canopy light provides selectable 30W, 45W, or 63W output and selectable 4000K or 5000K color temperature in a compact canopy-mounted fixture. It is built for covered exterior lighting where a broad 140 degree distribution is needed below a canopy or overhang.
The fixture produces up to 8,500 lumens and replaces a 250W metal halide fixture. Surface and pendant mounting support common canopy construction conditions.
Core Performance and Output
Selectable output settings provide 4,000, 6,000, or 8,500 lumens at 135 lumens per watt. The 140 degree beam angle distributes light broadly across the area below the fixture.
This fixture operates on 100-277V, 50/60Hz power and has an 80+ CRI. It is not dimmable.
The 63W setting can create excessive brightness in lower canopy mounting conditions. Higher mounting locations require layout review to maintain uniform coverage between fixtures.
Adjustability and Control Options
Wattage is adjustable between 30W, 45W, and 63W. Color temperature is adjustable between 4000K and 5000K.
These settings allow output and color selection during installation without changing the fixture body. The fixture does not include dimming.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. The operating temperature range is -40 degrees F to 113 degrees F.
The fixture is rated IP65 for exterior canopy conditions. Long-term performance depends on maintaining the housing, lens, mounting connection, and electrical connections.
Build Quality and Physical Characteristics

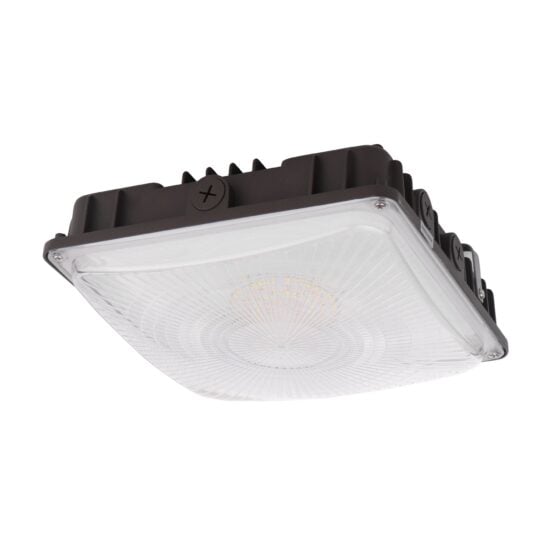

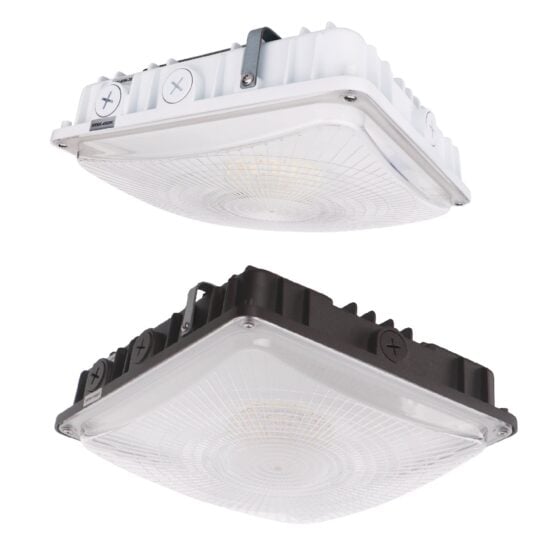

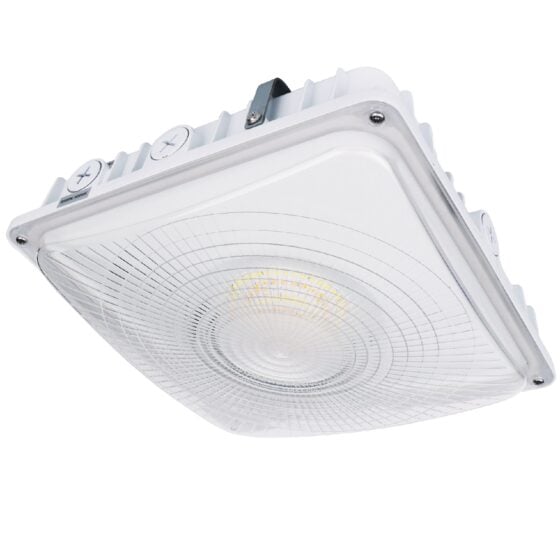

The fixture uses a die-cast aluminum housing and polycarbonate lens. Bronze and white housing finishes are available.
Fixture dimensions are 9.5 inches long by 9.5 inches wide by 3.5 inches high. Weight is 3.7 pounds.

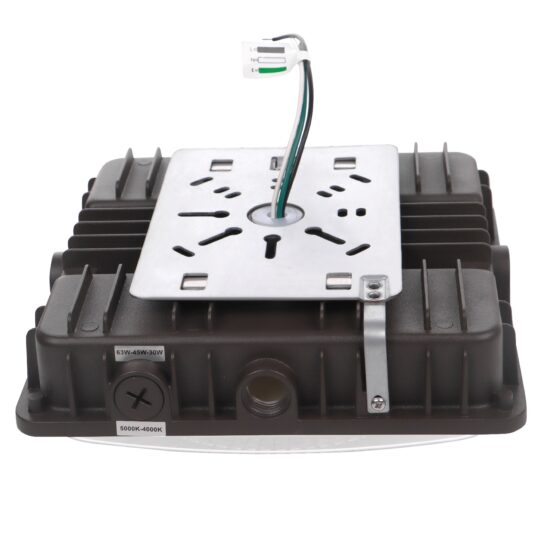

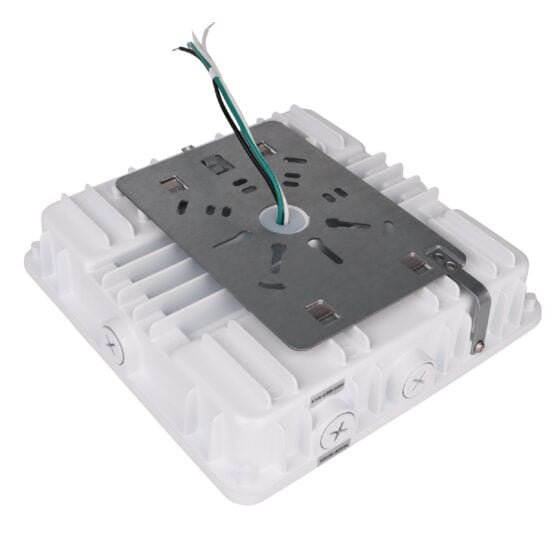

Surface and pendant mounting options support different canopy structures and fixture appearance requirements. The mounting method should match the canopy construction and available support point.
Where This Product Fits Best
This canopy light fits covered exterior locations requiring broad downward distribution, adjustable output, and 100-277V operation. Its IP65 rating supports exposed canopy and overhang conditions.
- gas station lighting
- fueling area lighting
- parking canopy lighting
- drive-through canopy lighting
- covered walkway lighting
- entry canopy lighting
- commercial overhang lighting
The compact housing is suited to canopy ceilings and overhang structures where fixture depth and mounting appearance matter. Selectable wattage helps match output to the canopy height and target light level.
Installation and Long-Term Use
Install the fixture using either the surface or pendant mounting method provided for the project. Verify the canopy structure supports the 3.7-pound fixture and that the supply voltage is within the 100-277V range.
Set wattage and color temperature before final commissioning. Confirm the selected setting is consistent across fixture groups intended to provide the same lighting condition.
For long-term use, inspect the lens, housing, mounting points, and electrical connections during routine exterior maintenance. Keep the polycarbonate lens clear of accumulated surface contamination.
How This Fixture Is Commonly Used
In gas station lighting, fueling area lighting, and parking canopy lighting, fixtures are typically arranged in a regular canopy grid to provide consistent light below the covered area. Surface mounting is used where the fixture mounts directly to the canopy ceiling, while pendant mounting is used where the fixture must extend below the structure.
For drive-through canopy lighting, covered walkway lighting, and entry canopy lighting, fixture placement follows the canopy travel path and support layout. Mounting height affects the spread from the 140 degree beam angle.
Higher wattage can reduce fixture count in a layout, but it can also increase brightness directly below each fixture. Final spacing depends on canopy dimensions, mounting height, target light levels, and the selected wattage.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It is IP65 rated.
The fixture includes a 5-year warranty. Operating temperature is rated from -40 degrees F to 113 degrees F.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 30W, 45W, and 63W settings producing 4,000, 6,000, and 8,500 lumens respectively.
Q: Can the color temperature be changed?
A: Yes. The fixture has selectable 4000K and 5000K color temperature settings.
Q: Is this canopy light dimmable?
A: No. Dimming is not included.
Q: What mounting options are available?
A: The fixture supports pendant mounting or surface mounting.
Q: What is the fixture IP rating?
A: The fixture is rated IP65.
Application Questions and Clarification
Q: Is this fixture appropriate for gas station lighting and fueling area lighting?
A: Gas station lighting and fueling area lighting are primary applications for this canopy light. The 30W, 45W, and 63W settings allow output selection based on the project lighting requirement.
Q: What should be considered when planning parking canopy lighting layout?
A: Canopy dimensions, mounting height, target light levels, fixture location, and selected wattage affect the layout. A specific fixture spacing value is not established by the supplied product data.
Q: Can this fixture be used for covered walkway lighting?
A: Covered walkway lighting is a secondary application. The fixture provides a 140 degree beam angle and is available with surface or pendant mounting.
