30 / 40 / 60 Watt Adjustable Canopy Light | 3900 to 7800 Lumens | 5000K | 100-277V | Optional Integrated Motion Sensor

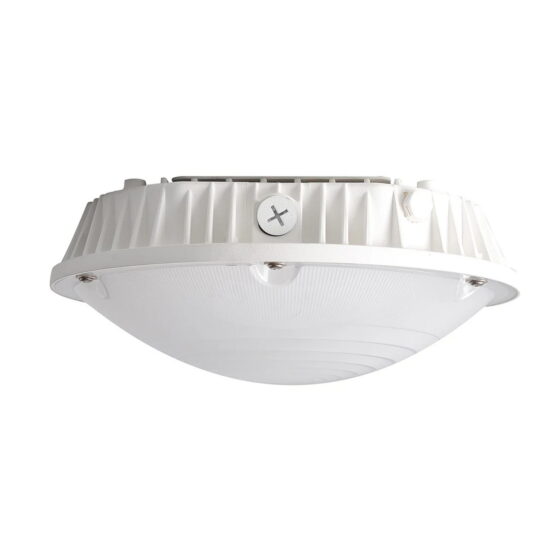

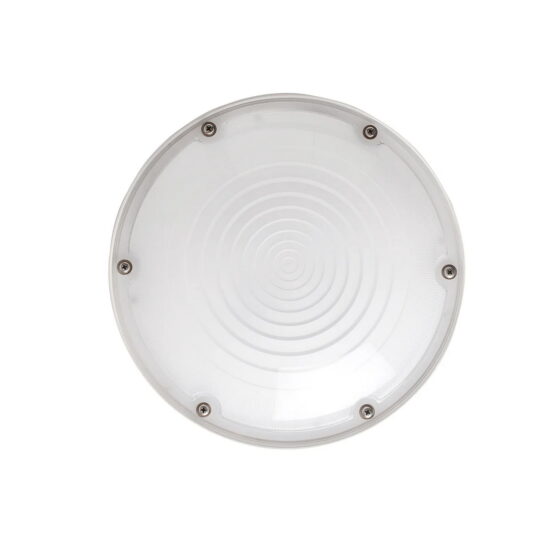

The 30 | 40 | 60 wattage adjustable LED canopy fixture is designed with die-cast aluminum heat sink housing and finished with an anti-corrosion white powder coat. Lens is tough vandal-proof clear acrylic. The fixture is surface-mounted and has 1/2 inch coin plugs for easy conduit access. Optional Integrated Motion Sensor is available on this fixture.
Cory Peterson | VP of Marketing and Sales Operations
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 40 | 60 |
| Lumens | 3900 | 5200 | 7800 |
| Lumens Per Watt | 130 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 140° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.2 W X 5.5 H |
| Weight (lbs) | 6.5 |
Features/Accessories
- No Motion Sensor
- Motion Sensor
Product SKU Variations
- SKU: MLLG-LN-LED-CANR-60-50
- SKU: MLLG-LN-LED-CANR-60-50-MS
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED canopy light provides 30W, 40W, or 60W output from one fixture. It produces 5000K light through a wide 140-degree distribution for covered exterior lighting.
The fixture supports pendant or surface mounting and operates on 100-277V power. It is commonly used to replace 250W metal halide canopy fixtures where existing mounting locations and electrical service remain in place.
Core Performance and Output
Output settings are 3900, 5200, and 7800 lumens at 130 lumens per watt. The 5000K color temperature provides a neutral white appearance, and the CRI is 70+.
The standard 140-degree beam angle distributes light broadly below the mounting surface. The 60W setting can be excessive where mounting heights are low or where existing fixture locations are closely spaced.
This fixture operates on 100-277V, 50/60Hz electrical systems. Power factor is greater than 0.90 and total harmonic distortion is less than 20%.
Adjustability and Control Options
Field-selectable wattage allows the fixture to operate at 30W, 40W, or 60W. Output selection should be set before final commissioning.
This canopy light is not dimmable. An optional integrated motion sensor configuration is available for installations requiring occupancy-based operation.
Longevity and Reliability
The LED light source is rated for 50,000 L70 hours. L70 indicates the point at which light output is maintained at 70 percent of initial output.
The fixture is rated for operation from -40 degrees F to 113 degrees F. This range supports year-round operation in covered exterior canopy conditions.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. The fixture measures 12.2 inches wide by 5.5 inches high and weighs 6.5 pounds.
An IP65 rating protects the enclosed fixture from dust and water exposure. Pendant and surface mounting options allow the fixture to match common canopy mounting conditions.
Where This Product Fits Best
This fixture fits covered exterior locations requiring broad downward light distribution, selectable output, and 100-277V operation. Its IP65 construction supports exposed canopy conditions.
- gas station lighting
- fueling area lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- covered walkway lighting
The die-cast aluminum housing and IP65 rating support locations exposed to changing temperatures, airborne dust, and water intrusion. Surface or pendant mounting should match the canopy structure and existing mounting arrangement.
Installation and Long-Term Use
Set the wattage selection before energizing the fixture. Confirm that the branch circuit voltage is within the 100-277V operating range.

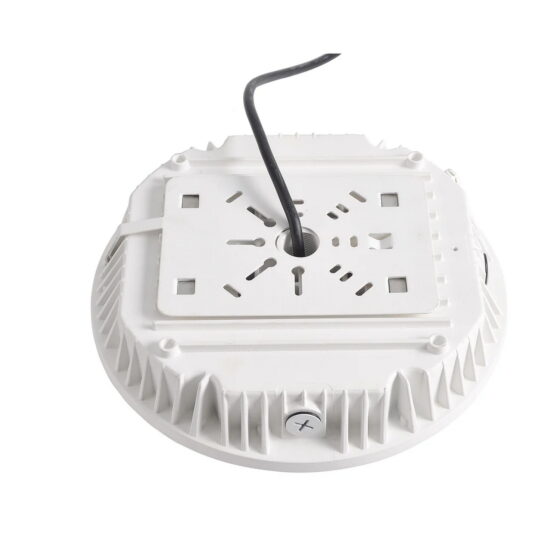

Surface mounting keeps the fixture close to the canopy surface, while pendant mounting positions the fixture below the structure. The selected mounting method must support the 6.5-pound fixture weight.
For long-term service, retain access to the fixture for cleaning, inspection, and sensor configuration where the motion sensor option is used. The fixture is not dimmable, so dimming controls should not be included in the installation plan.
How This Fixture Is Commonly Used
In gas station lighting, fueling area lighting, and parking canopy lighting, fixtures are arranged around the canopy structure to maintain broad coverage below the mounting plane. Surface mounting is common where the canopy underside provides a direct mounting surface.
Drive-through canopy lighting, loading canopy lighting, and covered walkway lighting may use pendant mounting when the fixture needs to sit below structural members. Fixture placement follows canopy bays, traffic paths, columns, and existing electrical locations.
Wattage selection and fixture spacing vary with mounting height, target light level, and canopy layout. Higher output can reduce fixture count, but closer fixture spacing may be needed where more uniform light is required.
Safety, Certifications, and Warranty
This canopy light is UL listed.
The fixture is rebate eligible. It carries a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture is adjustable between 30W, 40W, and 60W. Corresponding output levels are 3900, 5200, and 7800 lumens.
Q: What voltage does this canopy light use?
A: The fixture operates on 100-277V, 50/60Hz power.
Q: Can this fixture be dimmed?
A: No. This fixture is not dimmable.
Q: Is a motion sensor available?
A: Yes. The fixture is available with an optional integrated motion sensor.
Q: What mounting options are available?
A: The fixture supports pendant mounting or surface mounting.
Q: What determines fixture layout for parking canopy lighting?
A: Mounting height, selected wattage, target light levels, and canopy layout affect fixture placement. The supplied product data does not establish a fixed spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for fueling area lighting?
A: Fueling area lighting is a primary application for this canopy light. The fixture provides selectable 30W, 40W, and 60W output, a 140-degree beam angle, and IP65 construction.
Q: Which mounting method should be considered for covered walkway lighting?
A: The fixture supports pendant or surface mounting. The canopy structure, fixture position, and available mounting surface determine the appropriate method.
Q: What should be confirmed before selecting output for drive-through canopy lighting?
A: Confirm mounting height, target light level, fixture layout, and the required output setting. The fixture provides 3900, 5200, or 7800 lumens depending on the selected wattage.
