150 Watt LED Canopy Light | 19500 Lumens | 5000K | 100-277

Product Overview

This 150 Watt LED Canopy Light is designed for exterior covered environments requiring high-output, uniform illumination. Typical installations include gas station canopies, fueling areas, and commercial drive-throughs where reliable, glare-controlled lighting is needed for safety and visibility. The fixture operates on 100-277V and is suitable for both new construction and retrofit projects replacing 400W metal halide units.

The fixture features a low-profile, 15-inch square form factor and supports both pendant and recessed mounting. Its die-cast aluminum housing and IP65 rating provide durability in outdoor and semi-exposed locations subject to weather and airborne contaminants.

Core Performance and Output

This canopy light delivers 19,500 lumens at 150 watts, providing an efficacy of 130 lumens per watt. The 5000K color temperature supports high-visibility environments, and the 120° beam angle ensures broad, even coverage under canopies and overhangs. The fixture is non-dimmable and operates at 50/60 Hz with a power factor above 0.90 and THD below 20%.

At mounting heights between 12 and 20 feet, the output is well-suited for fueling areas and drive-through canopies. Excessive output may occur at lower mounting heights, potentially increasing glare if not spaced appropriately. Uniformity may decrease if installed above 20 feet or with wide fixture spacing.

Adjustability and Control Options

This fixture does not include dimming or integrated controls. It is designed for constant-on operation, typically controlled by external switching or photocells at the circuit level. The 120° beam angle is fixed and not field-adjustable.

Mounting options include pendant and recessed installation, allowing adaptation to canopy structure and site requirements. No onboard occupancy or daylight sensors are included.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting long-term operation in demanding environments. The die-cast aluminum housing and IP65 rating protect internal components from dust, water, and fuel vapors commonly present in canopy installations.

Operating temperature range is -4°F to 113°F, covering most North American climates. The fixture is designed for minimal maintenance, with no lamp or ballast replacements required during its rated life.

Build Quality and Physical Characteristics

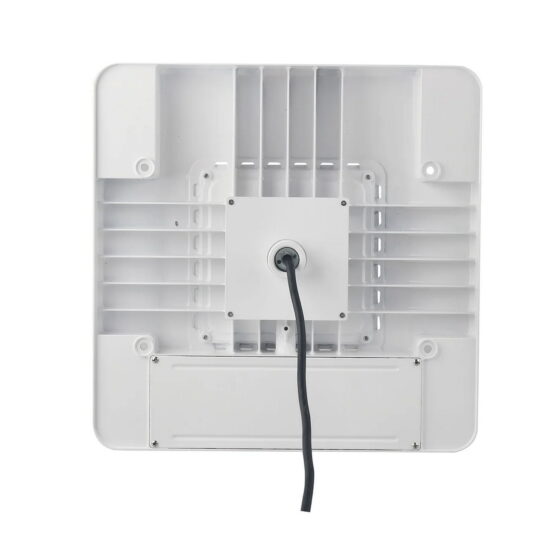

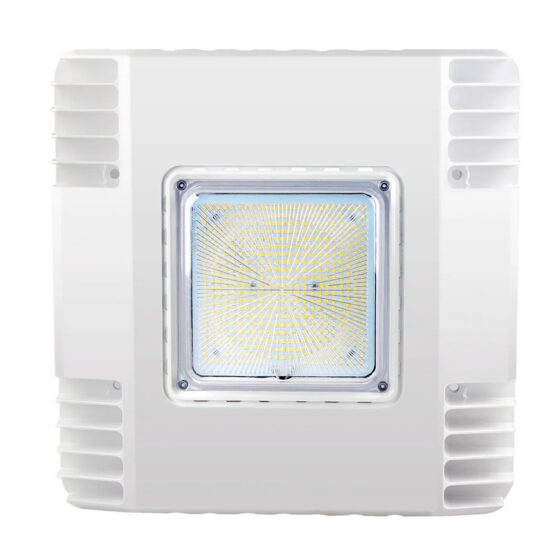

The housing is constructed from die-cast aluminum with a white finish for corrosion resistance and thermal management. The lens is sealed to prevent ingress of water and particulates. The fixture measures 15 inches square by 3 inches high and weighs 14 pounds, supporting secure mounting in canopy structures.

All wiring and mounting hardware must be compatible with the fixture?s weight and installation method. The IP65 rating ensures suitability for wet locations and exposure to wind-driven rain.

Where This Product Fits Best

This canopy light is intended for exterior covered environments requiring high-output, uniform lighting. It is commonly installed in:

• gas station lighting
• fueling area lighting
• parking canopy lighting
• drive-through canopy lighting
• loading canopy lighting
• entry canopy lighting
• commercial overhang lighting
• covered walkway lighting

The fixture is suitable for locations exposed to weather, airborne contaminants, and moderate temperature swings. It is not intended for interior or low-clearance applications where output may be excessive.

Installation and Long-Term Use

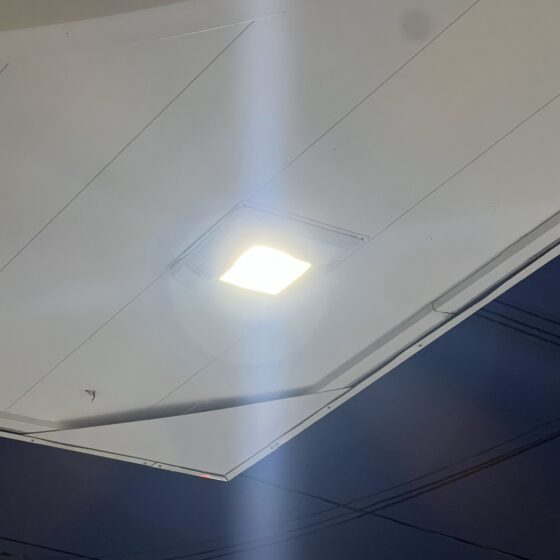

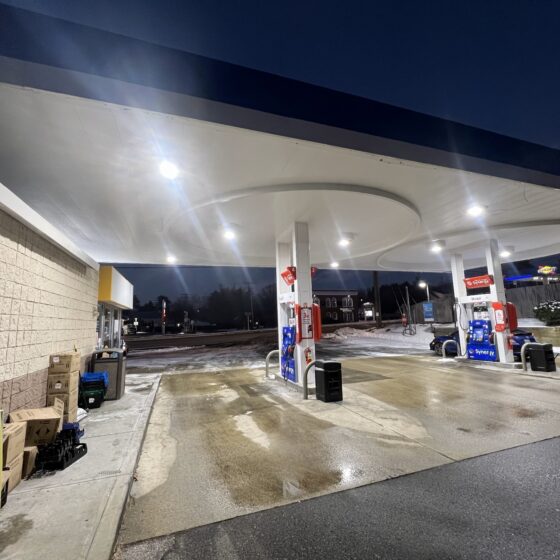

Pendant and recessed mounting options accommodate most canopy structures. The fixture?s weight and dimensions require secure attachment to structural framing or mounting plates. All electrical connections must comply with local codes and support 100-277V operation.

Routine inspection is recommended to ensure lens cleanliness and verify gasket integrity. No relamping or ballast maintenance is required. The fixture?s sealed design minimizes ingress of insects and debris, reducing cleaning frequency compared to open luminaires.

How This Fixture Is Commonly Used

Typical mounting heights range from 12 to 20 feet, with fixtures spaced to provide uniform horizontal and vertical illumination across fueling lanes or drive-through areas. Layouts often use grid or linear patterns, depending on canopy size and support structure.

Higher output allows for wider fixture spacing, but may increase glare if installed too close to the ground or directly above vehicle approaches. Spacing and mounting height should be coordinated with site photometric requirements and canopy geometry.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It meets requirements for wet location installation and is eligible for utility rebates where applicable. The product includes a 5-year warranty covering manufacturing defects and performance.

All installation and maintenance must follow safety protocols for elevated work and electrical service. The fixture?s sealed design supports safe operation in environments with fuel vapors and airborne particulates.

Frequently Asked Questions

Q: What is the recommended mounting height for this canopy light?

A: Typical mounting heights are between 12 and 20 feet for uniform coverage and glare control.

Q: Can this fixture be dimmed or controlled by occupancy sensors?

A: This model is non-dimmable and does not include integrated controls. External switching or photocells can be used at the circuit level.

Q: Is this fixture suitable for wet locations?

A: Yes, the fixture is IP65 rated and UL listed for wet location use.

Q: What is the expected lifespan of the LEDs?

A: The fixture is rated for 50,000 hours (L70).

Q: How should fixtures be spaced for even illumination?

A: Spacing depends on mounting height and site requirements, but typical layouts use 12 to 20 foot spacing for uniformity.

Application Questions and Clarification

Q: Is this canopy light appropriate for interior warehouse or gymnasium lighting?

A: No, this fixture is designed specifically for canopy and covered exterior applications, not for interior high bay use.

Q: Can this fixture be installed in a parking garage?

A: While it is IP65 rated, this model is optimized for canopy and overhang installations, not for enclosed parking garage environments.

Q: Is the fixture compatible with both pendant and recessed mounting?

A: Yes, it supports both pendant and recessed mounting methods.
