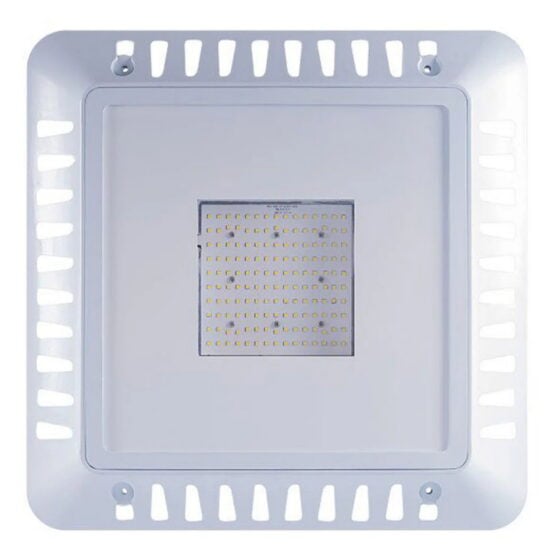

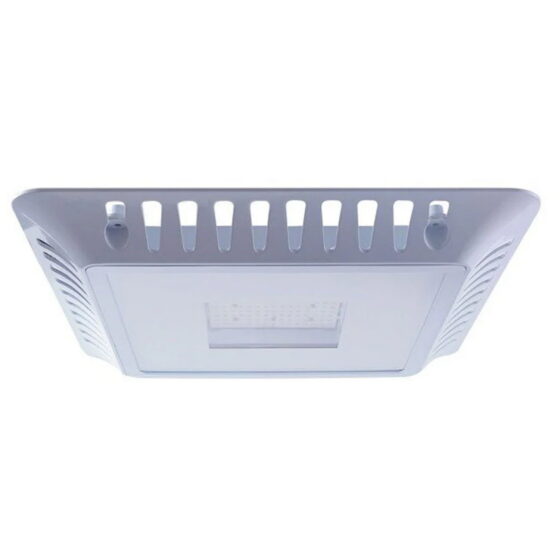

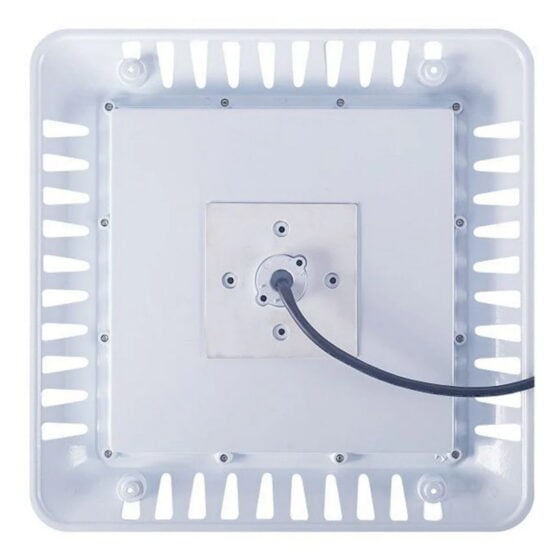

120 Watt LED Canopy Light | 16086 Lumens | 5000K | 100-277V
Cory Peterson | VP of Marketing and Sales Operations
68 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 120 |
| Lumens | 16086 |
| Lumens Per Watt | 134 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 110° |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 17.1 L X 17.1 W X x 4.1 H |
| Weight (lbs) | 9 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 120-watt LED canopy light delivers 16,086 lumens at 5000K for covered exterior lighting. It is built for surface mounting beneath canopies, overhangs, and similar covered structures.
The fixture operates on 100-277V power and replaces a 400-watt metal halide fixture. Its 110-degree beam pattern supports broad downward distribution from a canopy ceiling.
Core Performance and Output
The fixture produces 16,086 lumens at 134 lumens per watt. The 5000K color temperature and 70+ CRI provide a cool white output for canopy environments.
A standard 110-degree beam angle distributes light across the covered area. At lower canopy heights, the 16,086-lumen output can create higher light levels directly below the fixture if layout spacing is too tight.
Electrical operation is 100-277V at 50/60Hz, with a power factor above 0.90 and THD below 20%.
Adjustability and Control Options
This canopy light supports 1-10V dimming. Dimming wiring and control compatibility should be confirmed before installation.
The fixture has a fixed 5000K color temperature and fixed 120-watt output. The standard optical distribution is 110 degrees.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. L70 indicates the point at which light output is rated at 70 percent of its initial level.
The operating temperature range is -22 degrees F to 113 degrees F. The fixture includes a 5-year warranty.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. The fixture is IP65 rated.
Overall dimensions are 17.1 inches long by 17.1 inches wide by 4.1 inches high. Fixture weight is 9 pounds.
Where This Product Fits Best
This fixture fits covered exterior locations that need broad downward illumination from a surface-mounted canopy light. Its IP65 rating and operating temperature range support exposed covered structures.
- fueling area lighting
- gas station lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- commercial overhang lighting
It is intended for locations with a canopy ceiling or overhang that can accept surface mounting. The fixture should be placed where the 110-degree distribution can overlap adjacent light patterns without excessive concentration below individual fixtures.
Installation and Long-Term Use
This fixture mounts directly to the mounting surface. Confirm the surface condition, mounting point, fixture weight, and available 100-277V supply before installation.
Connect 1-10V dimming conductors only when a compatible dimming control is part of the installation. Maintain access for future fixture service and electrical inspection.
How This Fixture Is Commonly Used
In gas station lighting and fueling area lighting, fixtures are typically arranged across the canopy ceiling to create overlapping light distribution beneath the covered area. Mounting height is determined by canopy clearance and the required light pattern across the structure.
For parking canopy lighting, drive-through canopy lighting, loading canopy lighting, and commercial overhang lighting, layout follows the canopy shape, columns, travel lanes, and covered edges. Closer spacing can improve uniformity, while wider spacing reduces fixture count but can leave lower light levels between fixtures.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture is IP65 rated and carries a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this LED canopy light?
A: The fixture delivers 16,086 lumens at 120 watts.
Q: What voltage does this canopy light use?
A: The fixture operates on 100-277V, 50/60Hz power.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning the fixture layout?
A: Canopy height, canopy shape, target light levels, and the 110-degree beam distribution affect fixture placement. The supplied product data does not establish a specific spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture intended for gas station lighting and fueling area lighting?
A: Yes. Gas station lighting and fueling area lighting are primary applications for this canopy light product family.
Q: Can this fixture be used for drive-through canopy lighting?
A: Yes. Drive-through canopy lighting is a primary application for this canopy light product family.
Q: What environmental information should be reviewed for a covered exterior installation?
A: The fixture is IP65 rated and has an operating temperature range of -22 degrees F to 113 degrees F.
