100 Watt Square LED Canopy Light | 13100 Lumens | 5000K | 100-277V
This 100 watt LED canopy light is a practical choice for covered outdoor areas requiring reliable, energy-efficient illumination, delivering 13,100 lumens at 131 lumens per watt and directly replacing 250 watt metal halide fixtures. Its IP65 rating and -40°F to 113°F operating range ensure dependable performance in exposed environments like gas station canopies, parking garage entries, loading dock overhangs, and drive-through lanes. The wide 140-degree beam angle provides even coverage, while 0-10V dimming supports energy management.
Dwayne Kula | President, CTO and Founder
79 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 13100 |
| Lumens Per Watt | 131 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 140° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours – driver |
| Mounting | Pendant or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 10.8 L X 10.8 W X 4.3 H |
| Weight (lbs) | 7.2 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

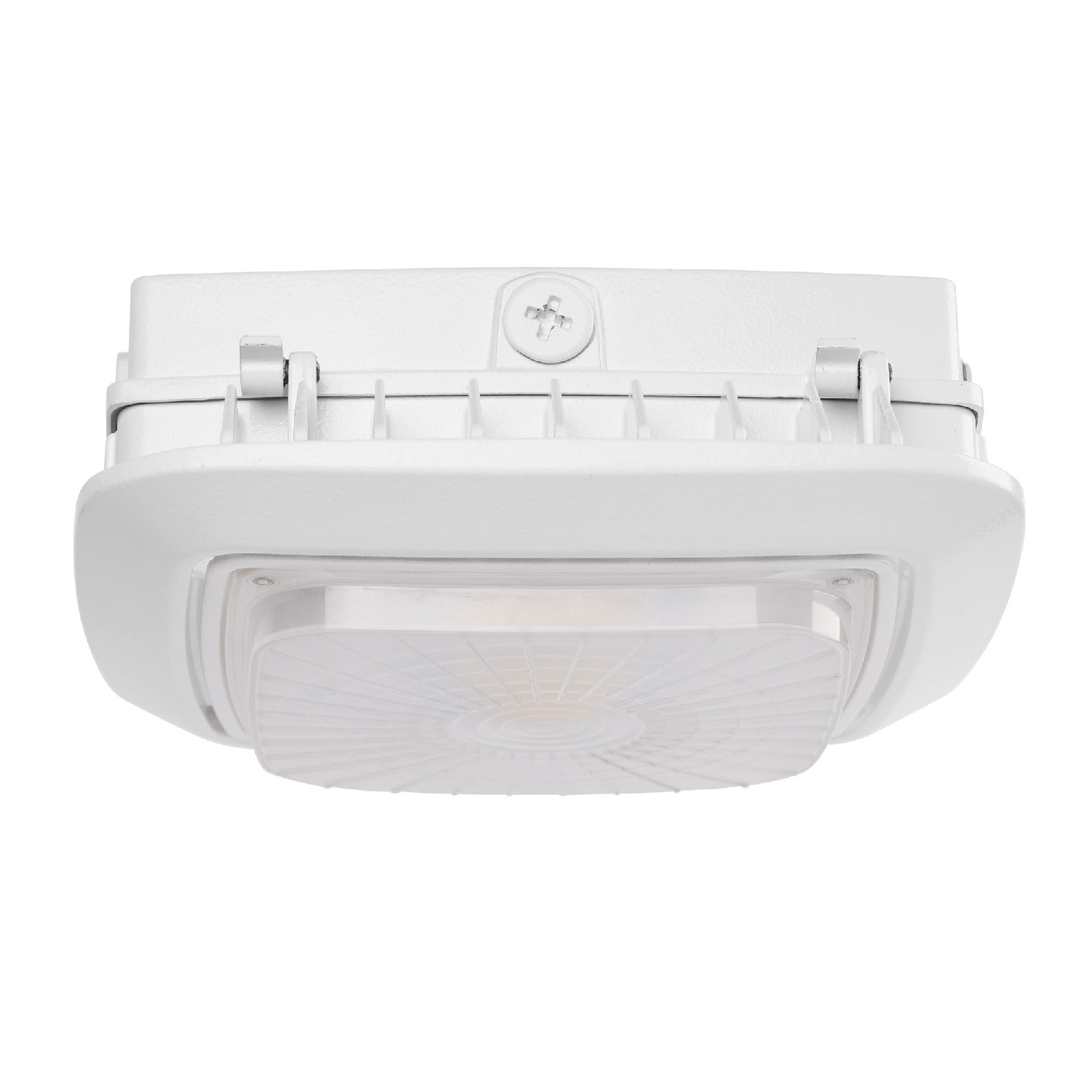

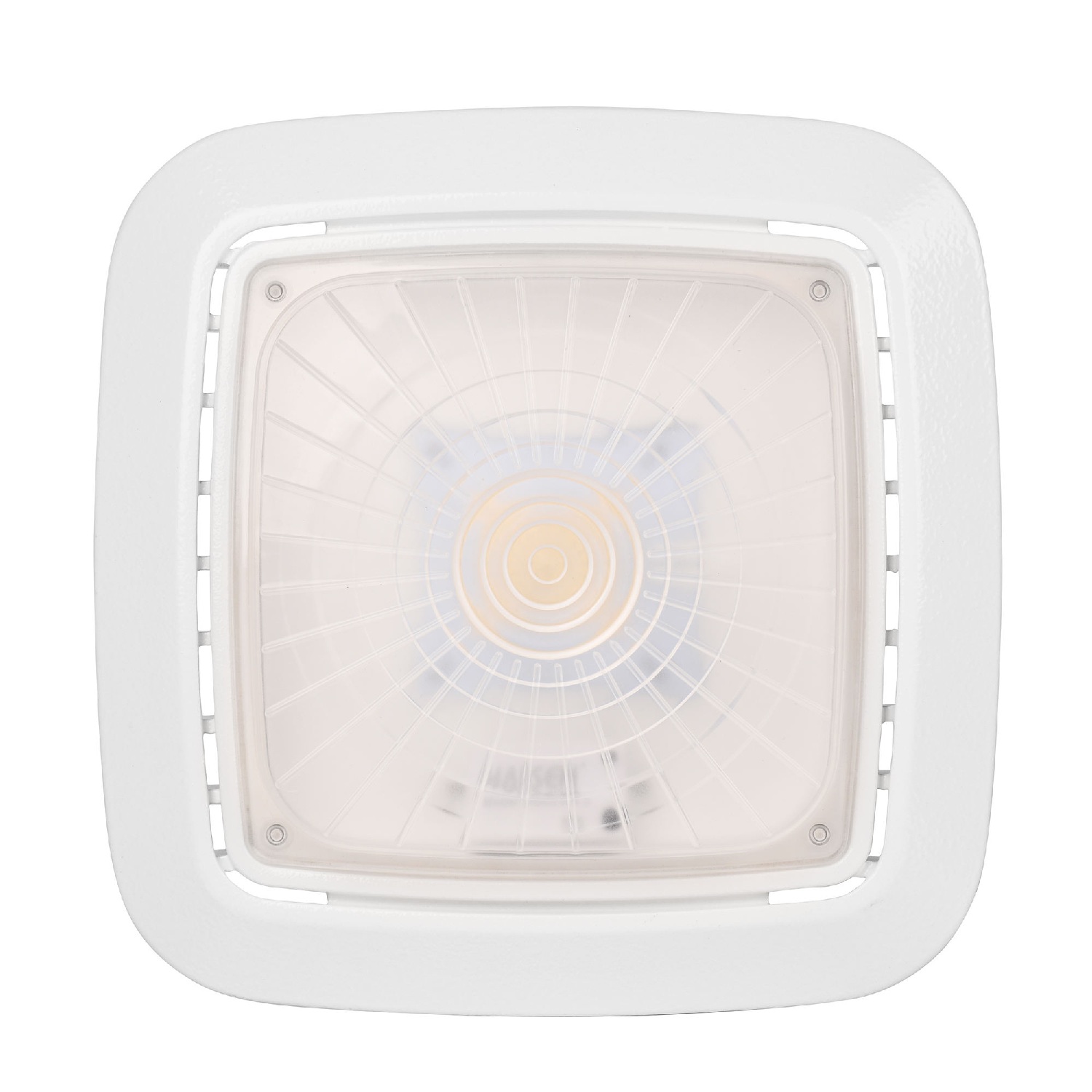

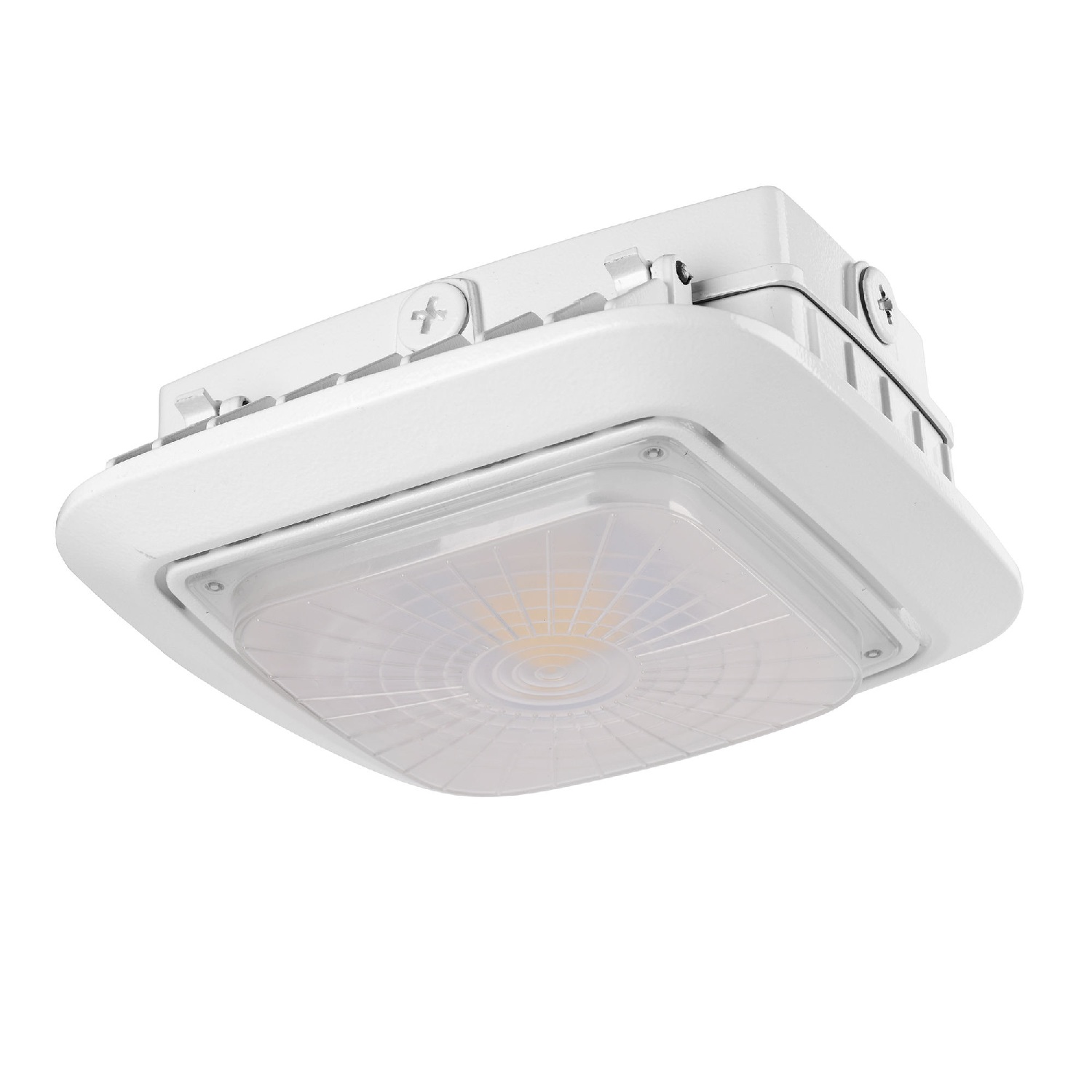

This 100 watt square LED canopy light produces 13,100 lumens at 5000K for covered exterior areas requiring broad downward distribution. Its 140 degree beam and polycarbonate lens support wide-area illumination from a compact surface or pendant-mounted fixture.
The fixture operates on 100-277V and replaces a 250 watt metal halide fixture. It is built for canopy mounting where a white, low-profile housing is needed beneath the structure.
Core Performance and Output
Output is 13,100 lumens at 100 watts, or 131 lumens per watt. The 5000K color temperature and 70+ CRI provide a cool white appearance for canopy lighting.
The standard 140 degree distribution spreads light broadly across the covered area. At lower mounting heights, the output and wide distribution can create excessive brightness if fixture placement is not coordinated with the canopy layout.
The fixture operates at 100-277V, 50/60 Hz. It is rated for operation from -40 degrees F to 113 degrees F.
Adjustability and Control Options
This canopy light supports 0-10V dimming. Dimming wiring and control settings must be coordinated with the installed control system.
Mounting options are pendant or surface mount. The mounting method should match the canopy structure, fixture location, and required fixture projection below the mounting surface.
Longevity and Reliability
The driver is rated for 50,000 hours of life. Long-term performance depends on correct electrical connections, secure mounting, and operation within the listed temperature range.
The IP65 rating supports exposure to dust and water from exterior canopy conditions. The sealed lens and housing should be inspected during routine canopy maintenance for damage or accumulated debris.
Build Quality and Physical Characteristics

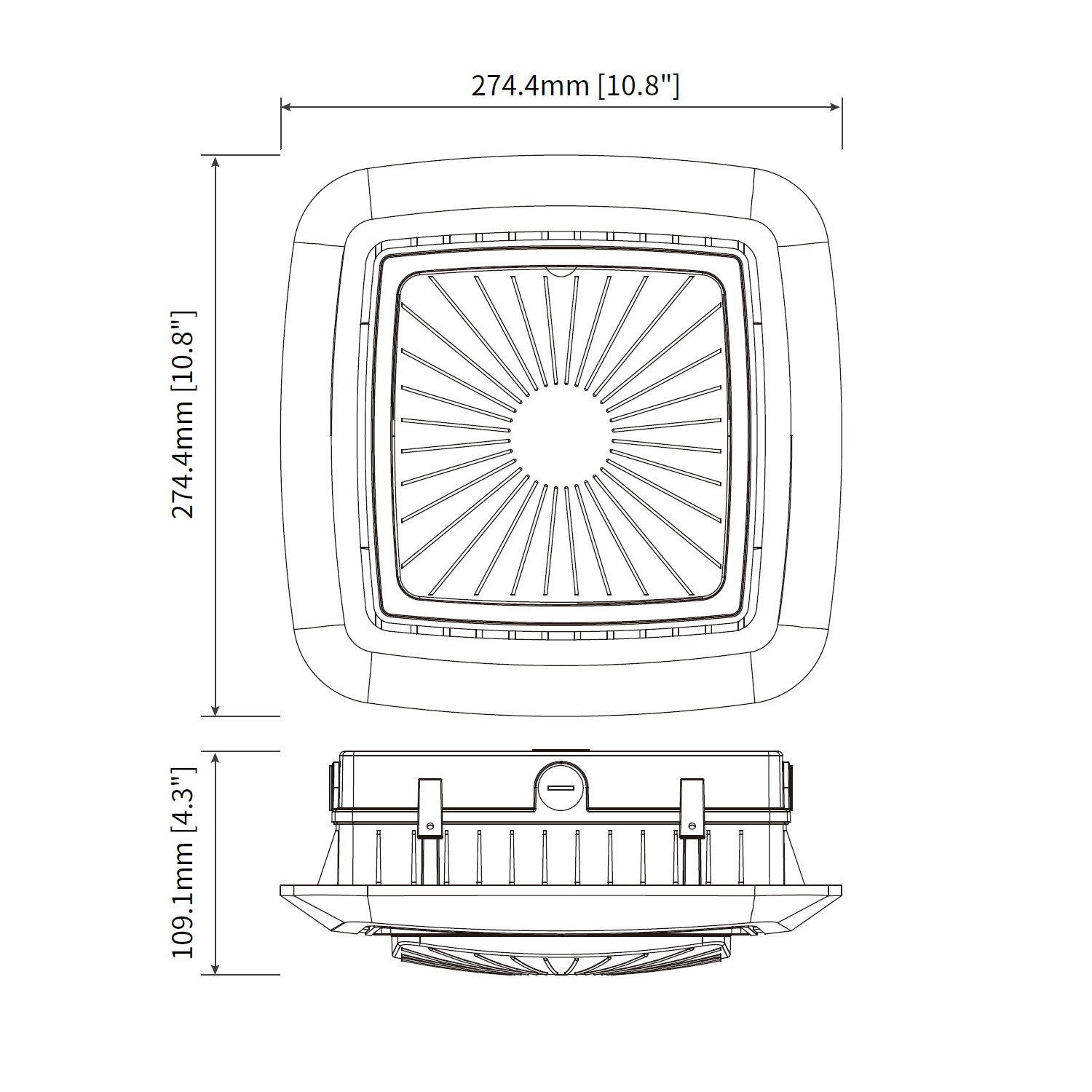

The fixture uses a die-cast aluminum housing with a polycarbonate lens. The white housing measures 10.8 inches long by 10.8 inches wide by 4.3 inches high.
Fixture weight is 7.2 pounds. The mounting surface or pendant assembly must support the fixture weight and maintain a secure connection under normal operating conditions.
Where This Product Fits Best
This fixture fits covered exterior areas that need broad, downward canopy illumination from a surface-mounted or pendant-mounted square fixture. Its IP65 rating and operating temperature range support exposed canopy conditions.
- gas station lighting
- fueling area lighting
- parking canopy lighting
- drive-through canopy lighting
- loading canopy lighting
- entry canopy lighting
- commercial overhang lighting
The 140 degree beam is suited to wide canopy bays where overlapping distribution is part of the lighting layout. Fixture locations should account for canopy columns, ceiling obstructions, and the desired light pattern below the structure.
Installation and Long-Term Use
Install the fixture using either the pendant or surface mounting method specified for the project. Verify the mounting structure, branch voltage, dimming connections, and fixture orientation before energizing the system.
For long-term use, maintain clear lens surfaces and inspect the housing, mounting points, and electrical connections during scheduled maintenance. The fixture should remain within its -40 degrees F to 113 degrees F operating range.
How This Fixture Is Commonly Used
In gas station lighting, fueling area lighting, and parking canopy lighting, fixtures are positioned across the canopy ceiling to create overlapping light coverage below. Mounting height is determined by the canopy structure and the required light distribution across each covered bay.
Drive-through canopy lighting, loading canopy lighting, and entry canopy lighting commonly use surface mounting where the canopy ceiling provides a direct attachment point. Pendant mounting is used when the fixture needs to extend below the mounting surface.
Spacing and layout vary with mounting height, canopy dimensions, target light levels, and the 140 degree beam pattern. Higher output can reduce fixture count, but layout still needs to control brightness and uniformity beneath the canopy.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. It carries an IP65 rating.
The fixture includes a 5-year warranty. Use the listed 100-277V input range and approved mounting method during installation.
Frequently Asked Questions
Q: What light output does this canopy light provide?
A: This fixture produces 13,100 lumens at 100 watts, with an efficacy of 131 lumens per watt.
Q: What voltage does this fixture require?
A: The fixture operates on 100-277V, 50/60 Hz.
Q: Can this canopy light be dimmed?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting methods are available?
A: The fixture can be pendant mounted or surface mounted.
Q: Is this fixture rated for exterior canopy conditions?
A: The fixture is IP65 rated and has an operating temperature range of -40 degrees F to 113 degrees F.
Application Questions and Clarification
Q: Is this fixture appropriate for gas station lighting and fueling area lighting?
A: The product data identifies gas station lighting and fueling area lighting as primary applications. Its 13,100 lumen output, 140 degree beam, IP65 rating, and surface or pendant mounting options should be evaluated against the canopy layout.
Q: What should be reviewed when planning placement for parking canopy lighting?
A: Mounting height, canopy dimensions, target light levels, fixture orientation, and the 140 degree beam pattern affect placement. A specific spacing value is not established by the supplied product data.
Q: When is pendant mounting used instead of surface mounting?
A: Pendant mounting is used when the fixture needs to extend below the canopy mounting surface. Surface mounting attaches the fixture directly to the mounting surface.
