30 Watt LED Loading Dock Light | 4100 Lumens | 5000K | 100-277V | 40 Inch Reach With Swivel Head

Product Overview

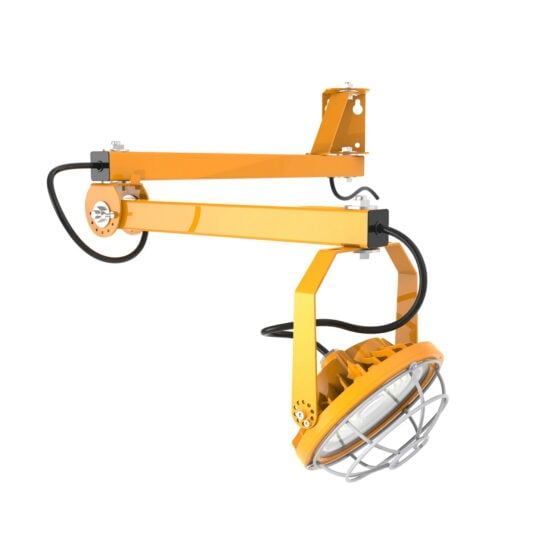

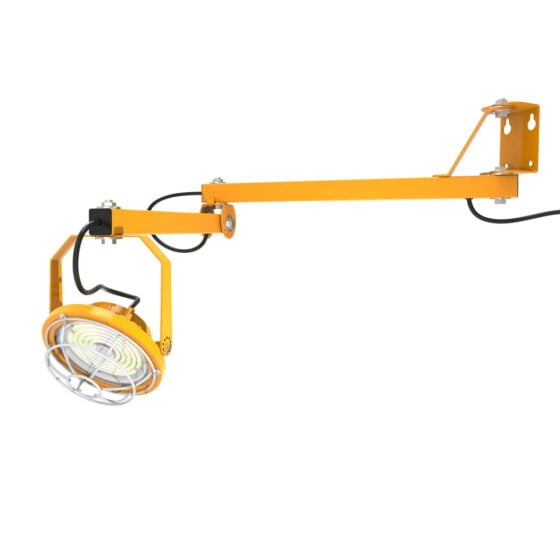

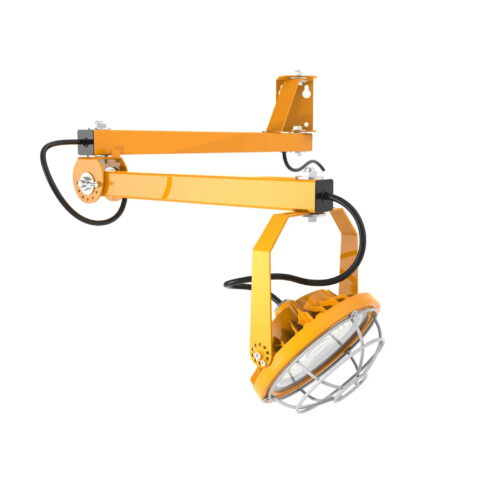

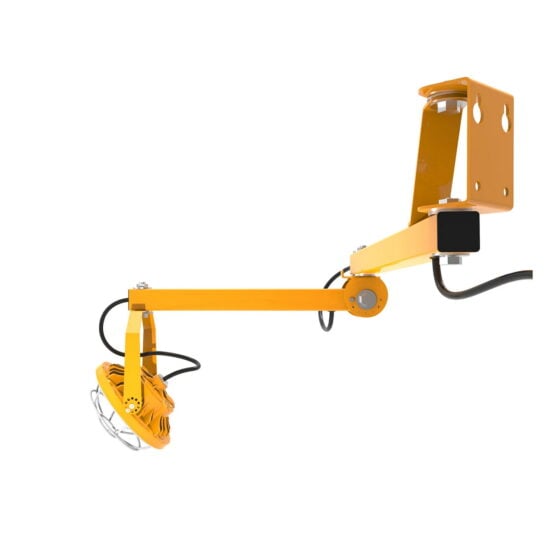

We supply a 30 Watt LED Loading Dock Light designed for targeted illumination at loading docks, shipping bays, and warehouse dock doors. This fixture provides a focused beam to improve visibility during loading and unloading operations. The 40-inch extension arm with a swivel head allows precise positioning to direct light where it is needed along the dock or into trailers. Typical mounting is on the wall adjacent to dock doors, replacing legacy 150W metal halide dock lights.

This dock light is built for demanding industrial environments, with a die-cast aluminum housing and IP65 rating for dust and water resistance. The 5000K color temperature delivers clear, daylight-quality light for accurate color rendering and improved safety during material handling.

Core Performance and Output

This fixture delivers 4100 lumens at 30 watts, providing high efficacy at 137 lumens per watt. The 110° beam angle produces a wide, even spread suitable for illuminating dock platforms and the interior of trailers. Output is optimized for close-range, task-specific lighting at typical dock heights and extension distances.

Performance is stable across the 100-277V input range. At mounting distances under 10 feet, output is sufficient for most loading dock tasks. Excessive output may occur if used in small, enclosed spaces or at very short distances, so placement should be adjusted accordingly.

Adjustability and Control Options

The 40-inch extension arm provides reach and flexibility for positioning the fixture at various angles. The swivel head allows for precise aiming to reduce shadows and direct light into truck trailers or across the dock face. This model does not include dimming or integrated controls.

Manual adjustment is straightforward and can be performed by maintenance staff as needed for changing dock configurations or trailer sizes.

Longevity and Reliability

The fixture is rated for 50,000 hours (L70), supporting long-term operation in high-use dock environments. The die-cast aluminum housing and tempered glass optics withstand impacts and vibration common in shipping and receiving areas.

IP65 ingress protection ensures resistance to dust and water spray, supporting reliable performance in exposed dock locations. The fixture is designed for minimal maintenance over its service life.

Build Quality and Physical Characteristics

This dock light features a die-cast aluminum housing with a yellow powder coat finish for visibility and corrosion resistance. The fixture weighs 25 lbs and extends up to 40 inches from the mounting surface, providing reach for most standard dock layouts.

All hardware is designed for industrial use, with robust construction to handle repeated adjustment and incidental contact from equipment or pallets. The tempered glass lens protects the LED array from impacts and debris.

Where This Product Fits Best

This fixture is intended for industrial and commercial loading dock environments where focused, high-output lighting is required for safe and efficient loading and unloading. It is suitable for both interior and exterior dock locations exposed to dust, moisture, and vibration.

• loading dock lighting
• warehouse dock lighting
• shipping and receiving lighting
• truck bay lighting
• freight terminal dock lighting
• distribution dock lighting
• industrial loading area lighting
• logistics facility lighting

Environmental characteristics include IP65 protection, operation in ambient temperatures typical of dock areas, and resistance to impacts and vibration. Not intended for hazardous or classified locations.

Installation and Long-Term Use

Wall mounting is standard, typically adjacent to dock doors at heights of 6 to 10 feet. The 40-inch extension arm allows the fixture to be positioned over dock platforms or into trailer openings. Installation requires secure anchoring to structural surfaces to support the fixture?s weight and reach.

Routine inspection is recommended to ensure the arm and swivel head remain secure after repeated adjustments. Cleaning of the lens and housing may be needed in dusty or high-traffic environments. No lamp replacements are required during normal service life.

How This Fixture Is Commonly Used

Dock lights of this type are mounted to provide direct illumination into truck trailers and across dock platforms. Typical mounting heights are 7 to 9 feet, with the arm extended to reach trailer interiors. Spacing is generally one fixture per dock door, but may vary based on dock width and operational needs.

Higher output reduces the need for supplemental lighting but may increase glare if aimed directly at personnel. Adjustment of the swivel head and arm allows users to balance coverage and glare control for each loading scenario.

Safety, Certifications, and Warranty

This fixture is UL listed and IP65 rated. It meets requirements for use in wet and dusty dock environments. The product includes a 5-year warranty covering manufacturing defects and LED performance.

All components are designed for safe operation in commercial and industrial settings. No special handling or hazardous material precautions are required.

Frequently Asked Questions

Q: What is the typical mounting height for this dock light?

A: Typical mounting height is 7 to 9 feet above the dock platform, allowing the arm to reach into standard trailer openings.

Q: Can this fixture be used outdoors?

A: Yes, the IP65 rating allows for use in both indoor and outdoor dock locations exposed to dust and water spray.

Q: Is the arm length adjustable?

A: The arm is fixed at 40 inches fully extended, but the swivel head allows for flexible aiming and positioning.

Q: Does this dock light support dimming or motion controls?

A: No, this model does not include dimming or integrated controls. All adjustments are manual.

Q: How many fixtures are needed per dock door?

A: One fixture per dock door is standard, but spacing may vary based on dock width and required light levels.

Application Questions and Clarification

Q: Is this fixture suitable for hazardous or classified dock areas?

A: No, this dock light is not rated for hazardous or classified locations.

Q: Can this dock light be used in cold storage dock environments?

A: The fixture is suitable for typical dock temperatures but is not specifically rated for sub-zero cold storage environments.

Q: What is the recommended maintenance for this fixture?

A: Periodic inspection of mounting hardware and cleaning of the lens and housing are recommended. No lamp replacement is required.
