200 Watt Marine Grade LED Flood Light | 30000 Lumens | 5000K | 100-277V | IP68

Product Overview

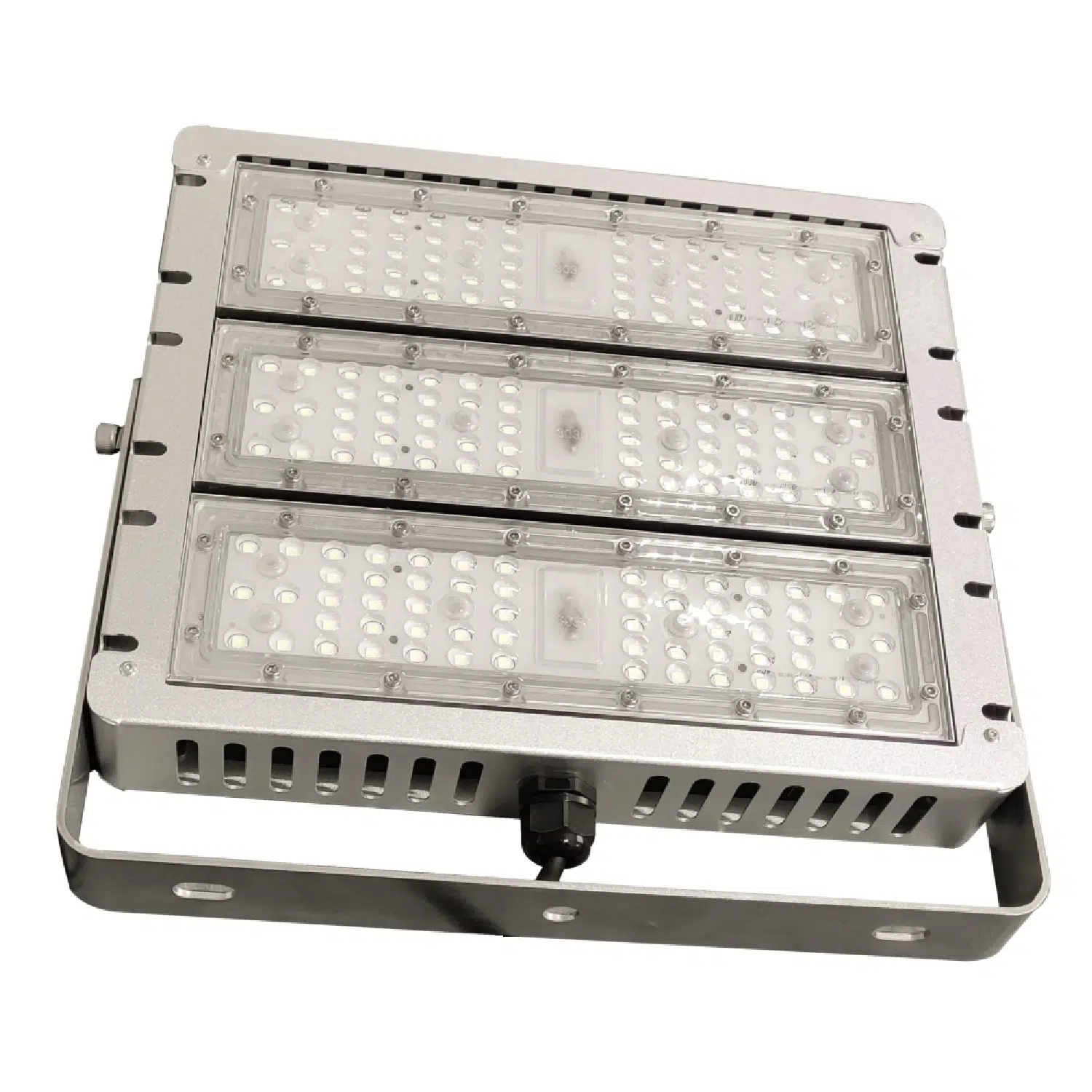

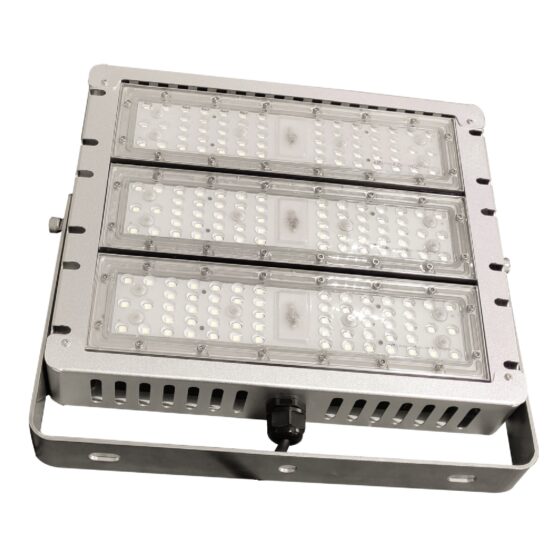

This 200-watt marine grade LED flood light provides 30,000 lumens at 5000K for marine environment lighting where water exposure, impact resistance, and corrosion are operating concerns. It uses an anti-corrosion anodized aluminum housing, polycarbonate lens, and yoke mount.

The fixture operates on 100-277V and replaces a 400-watt metal halide fixture. Its IP68 and IK08 ratings support installations exposed to demanding marine and corrosive conditions.

Core Performance and Output

The fixture produces 30,000 lumens from 200 watts with a 75+ CRI and 5000K color temperature. Standard distribution is 90 degrees, with 10, 25, and 60 degree optional beam angles for more controlled coverage.

It operates on 100-277V, 50/60 Hz power. The 90 degree optic provides broad coverage, while narrow optics concentrate output for longer throws or defined target areas.

At low mounting heights, 30,000 lumens can create excessive brightness unless the layout and aiming are controlled. Narrow beam angles require more deliberate fixture placement to maintain coverage between lighted areas.

Adjustability and Control Options

The yoke mount allows the fixture to be aimed after installation. This supports directional lighting layouts where the flood light must be positioned toward a defined area.

Beam angle selection provides the primary optical adjustment. The standard 90 degree optic covers a wider area, while 10, 25, and 60 degree optics provide more focused distributions.

Longevity and Reliability

The fixture is rated for operation from -13 degrees F to 131 degrees F. Its anti-corrosion anodized aluminum housing is intended for marine grade use.

The IP68 rating and IK08 impact rating address water ingress and physical impact exposure. The fixture includes a 5-year warranty.

Build Quality and Physical Characteristics

The gray fixture housing is constructed from anti-corrosion anodized aluminum with a polycarbonate lens. The housing and lens combination is suited to installations where material durability is an important consideration.

This flood light measures 11.9 inches wide by 12.5 inches high by 2.5 inches deep and weighs 10 pounds. The yoke mount requires a mounting surface that can support the fixture and maintain its aimed position.

Where This Product Fits Best

This fixture fits marine and waterfront lighting installations that need high-output flood lighting with IP68 protection and corrosion-resistant construction. Its 30,000-lumen output is appropriate where broader site illumination or directed light is required.

• marine environment lighting
• port facility lighting
• vessel lighting
• dock lighting
• marina lighting
• corrosive environment lighting

Marine grade construction, IP68 protection, IK08 impact resistance, and a -13 degrees F to 131 degrees F operating range support exposed operating conditions. Final beam angle and aiming should match the layout requirements of the installation.

Installation and Long-Term Use

The yoke mount allows the fixture to be secured and aimed at the installation surface. Mounting hardware and the supporting structure must be suitable for the 10-pound fixture weight and the intended installation conditions.

Verify available supply voltage is within the 100-277V operating range before installation. Maintain the intended aiming position during service work so the selected beam distribution continues to match the lighting layout.

How This Fixture Is Commonly Used

In marine environment lighting, port facility lighting, and dock lighting layouts, the fixture is mounted where its yoke can direct light toward the required coverage area. Mounting height is determined by the site layout, target light levels, beam angle, and aiming requirements.

Vessel lighting and marina lighting installations may use the standard 90 degree optic for wider coverage or an optional narrow optic for more focused lighting. Higher output can reduce fixture count, but beam selection and aiming remain important for uniform coverage.

Safety, Certifications, and Warranty

This fixture is ETL certified. It is rated IP68 and IK08.

The operating temperature range is -13 degrees F to 131 degrees F. The warranty period is 5 years.

Frequently Asked Questions

Q: What is the light output of this marine grade LED flood light?

A: The fixture produces 30,000 lumens while consuming 200 watts.

Q: What voltage does this fixture use?

A: The fixture operates on 100-277V, 50/60 Hz power.

Q: What beam angles are available?

A: The standard beam angle is 90 degrees. Optional beam angles are 10, 25, and 60 degrees.

Q: How should beam angle be considered during layout planning?

A: The 90 degree optic provides broader coverage, while 10, 25, and 60 degree optics provide more focused distributions. The required coverage area and fixture aiming determine the appropriate optic.

Application Questions and Clarification

Q: Is this fixture intended for marine environment lighting?

A: Yes. The fixture is marine grade and has an anti-corrosion anodized aluminum housing, IP68 rating, and IK08 rating.

Q: What should be confirmed before installing this fixture for dock lighting or port facility lighting?

A: Confirm the available supply voltage is within the 100-277V range and that the mounting structure supports the 10-pound fixture and yoke-mounted aiming position.

Q: What affects fixture placement in marina lighting layouts?

A: Mounting height, beam angle, target light levels, and aiming requirements affect fixture placement. A specific spacing value is not established by the supplied product data.

Web ID: 2722
