LED Exit Light Combo | Red or Green | Double or Single Sided | Adjustable Heads | 120-277V
772 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Input Watts | 2 |
| Output Watts | 3 Max |
| Voltage | 120--277V |
| Lifespan | 50,000 hours |
| Mounting | Surface | Wall |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Housing | Injection-Molded Thermoplastic ABS |
| IP Rating | Damp Location |
| Certifications | UL |
| Operating Temp | 32°F to 104°F |
| Dimensions (in) | 15.7 L X 1.75 W X 7.25 H |
| Emergency Backup Time | 90 Minutes |
| Lettering | Red or Green | With or Without Arrows |
Fire-resistant with customizable parts included for either red or green lettering, with or without arrows, single or double sided.
Product Overview

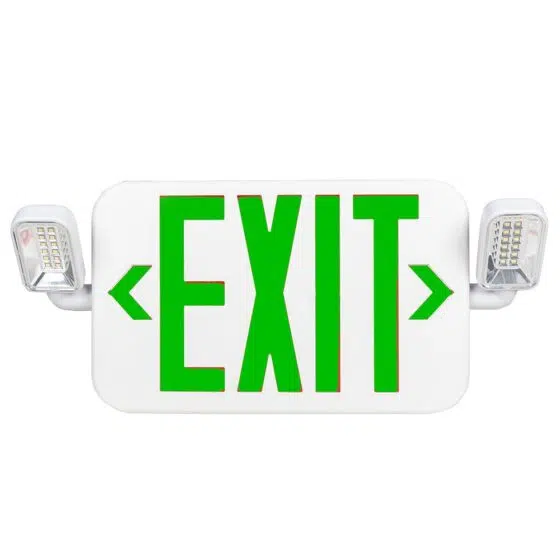

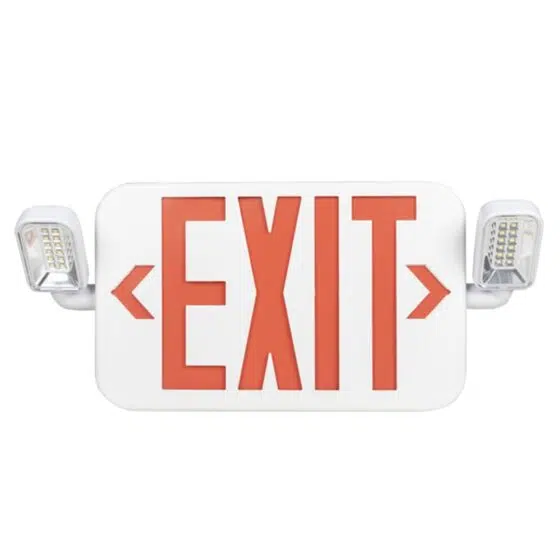

This LED exit light combo combines an illuminated exit sign with adjustable emergency light heads for exit marking and egress lighting. It operates on 120-277V power and provides 90 minutes of emergency backup operation.

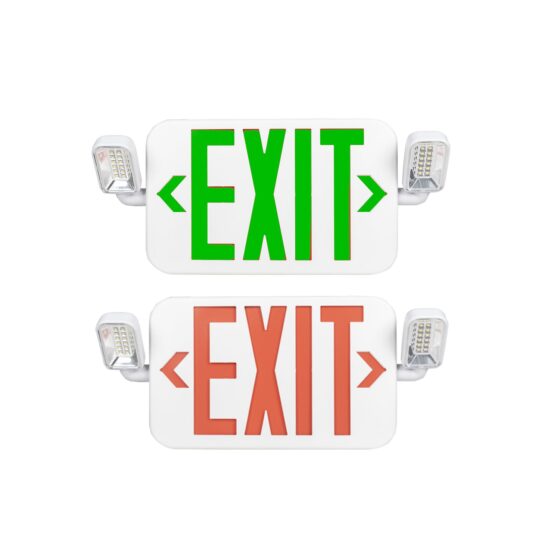

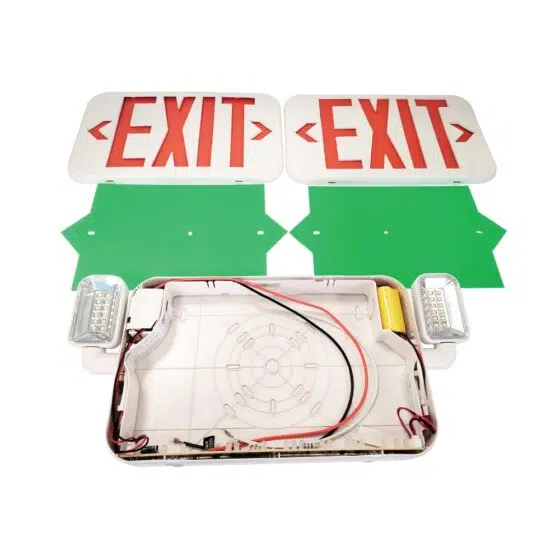

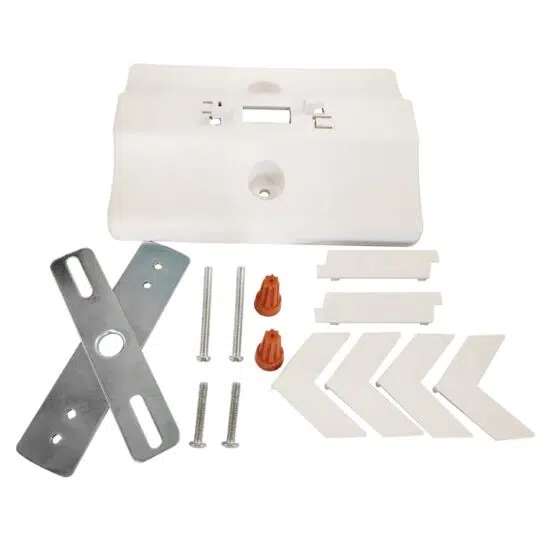

Included customizable parts allow red or green lettering, with or without directional arrows, in single-sided or double-sided configurations.
Core Performance and Output
The unit uses 2W input power and provides up to 3W output. The adjustable heads provide emergency illumination when normal power is interrupted.
Build Quality and Physical Characteristics

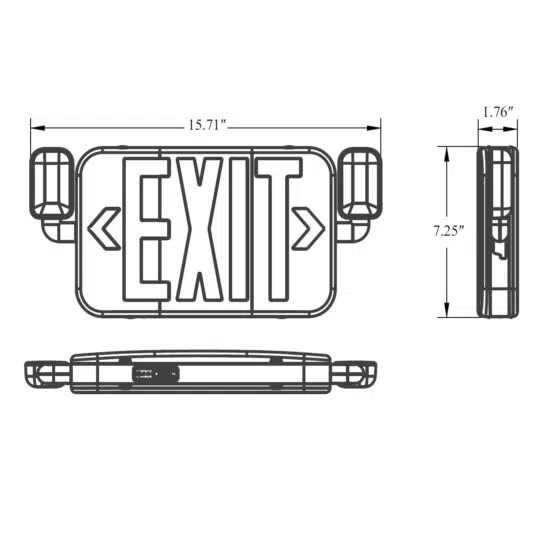

The white housing is made from injection-molded, fire-resistant thermoplastic ABS. The fixture measures 15.7 inches long by 1.75 inches wide by 7.25 inches high and is rated for damp locations.
Where This Product Fits Best
This exit light combo is suited to indoor damp-location installations requiring illuminated exit marking and emergency egress lighting.
- egress lighting
- emergency exit lighting
- code compliance lighting
- life safety lighting
- commercial building exit marking
- industrial facility exit lighting
- warehouse exit lighting
- public building exit lighting
Installation and Long-Term Use
The fixture supports surface or wall mounting. It is designed for operation in ambient temperatures from 32 F to 104 F and has a 50,000-hour rated lifespan.
Safety, Certifications, and Warranty
This LED exit light combo is UL certified.
Frequently Asked Questions
Q: Can this exit light combo be configured with red or green lettering?
A: Yes. This LED exit light combo includes customizable parts for red or green lettering.
Q: Can this exit sign be installed as single-sided or double-sided?
A: Yes. This LED exit light combo includes parts for single-sided or double-sided configurations.
Q: How long does the emergency backup operate?
A: This LED exit light combo provides 90 minutes of emergency backup operation.
Web ID: 2797
