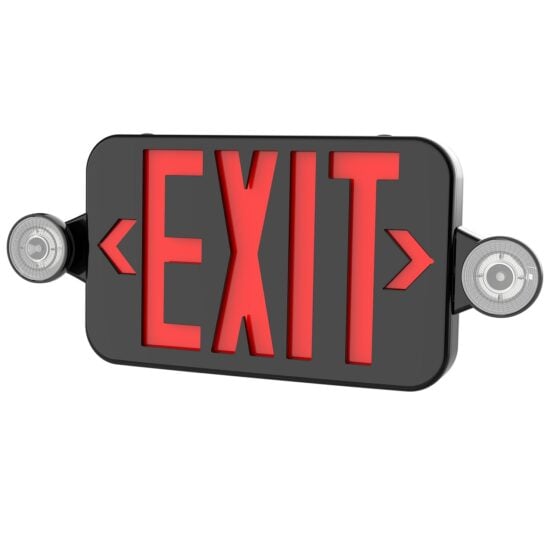

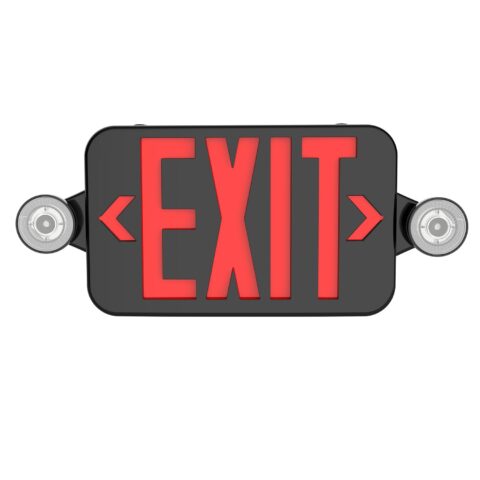

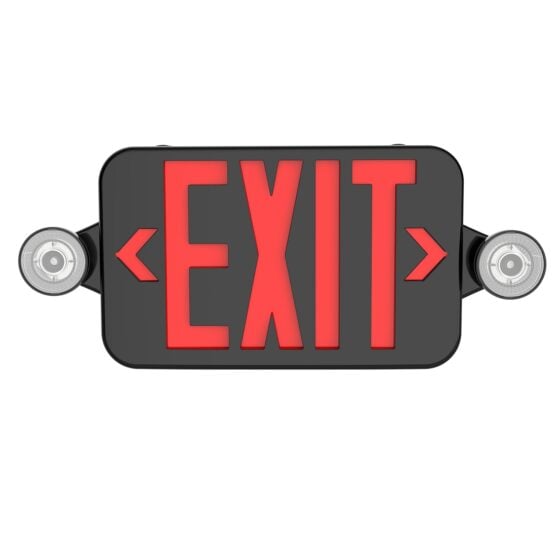

5 Watt Emergency Light and Exit Sign | 90 Minute Battery Backup | Black | Red Lettering
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 5 |
| Replaces | 36W CFL |
| Voltage | 100V-277V |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 hours |
| Mounting | Surface |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Injection-Molded Thermoplastic ABS |
| Certifications | UL |
| Warranty | 3 years |
Measurements
| Dimensions (in) | 12 X 7.5 X 4.4 |
This Emergency Exit LED Light is the most economical LED Combo (including LED emergency light heads) for general purpose applications.
The injection molded, thermoplastic material resists discoloration due to UV radiation, and the energy-efficient, low-maintenance LEDs provide bright illumination. The unit has universal mounting capability.
Product Overview
This 5-watt emergency light and exit sign combines red exit lettering with LED emergency light heads in one surface-mounted unit. It provides 90 minutes of battery backup operation during a loss of normal power.
The black injection-molded thermoplastic ABS housing measures 12 x 7.5 x 4.4 inches. This configuration is intended for exit marking and emergency egress lighting where a combination unit is required.
Core Performance and Output
The unit operates on 100-277V input at 50/60Hz. It uses 5 watts, has a power factor greater than 0.90, and THD below 20%.
The emergency light heads use a 120-degree beam angle. Output is not dimmable, so the unit operates at its fixed emergency-lighting output.
Adjustability and Control Options
This emergency light and exit sign does not support dimming. No dimming control is required or provided.
The unit is designed for 100-277V operation. The supplied product data identifies surface mounting and universal mounting capability.
Longevity and Reliability
The LEDs are rated for 50,000 hours of service life. The battery backup is rated for 90 minutes of emergency operation.
LED operation reduces routine lamp replacement compared with CFL emergency lighting. The product is identified as replacing a 36-watt CFL unit.
Build Quality and Physical Characteristics
The housing is injection-molded thermoplastic ABS with a black finish. The material resists discoloration from UV radiation.
The unit measures 12 x 7.5 x 4.4 inches. Red exit lettering provides the exit-sign display, while the integrated LED heads provide emergency light output.
Where This Product Fits Best
This combination unit fits indoor exit-marking and emergency-lighting locations where surface mounting, red lettering, and battery backup are required.
- emergency exit lighting
- egress lighting
- life safety lighting
- code compliance lighting
- commercial building exit marking
- industrial facility exit lighting
- warehouse exit lighting
The ABS housing and integrated LED heads suit general indoor exit-marking installations. The listed product data does not identify an ingress rating or environmental classification.
Installation and Long-Term Use
This unit is specified for surface mounting. Confirm the available mounting surface, unit dimensions, input voltage, and exit-sign orientation before installation.
Long-term maintenance includes checking the condition of the housing, red lettering, and emergency light heads. Battery backup operation should remain part of the facility’s life safety maintenance process.
How This Fixture Is Commonly Used
In egress lighting and emergency exit lighting layouts, the unit is surface mounted where both exit marking and emergency light output are needed. Mounting height is determined by the exit-route layout and required sign visibility.
Units are placed according to the facility egress plan rather than spaced as general illumination fixtures. Fixture placement depends on mounting height, target emergency light coverage, and the layout of the applicable exit routes.
Safety, Certifications, and Warranty
UL listed.
This emergency light and exit sign includes a 3-year warranty. The battery backup is rated for 90 minutes.
Frequently Asked Questions
Q: What input voltage does this emergency light and exit sign use?
A: It operates on 100-277V input at 50/60Hz.
Q: Is this unit dimmable?
A: No. This unit is non-dimming.
Q: What mounting method is listed for this unit?
A: Surface mounting is listed for this emergency light and exit sign.
Q: How long is the battery backup rated to operate?
A: The battery backup is rated for 90 minutes of emergency operation.
Q: What should be considered when planning unit placement?
A: Mounting height, target emergency light coverage, exit-route layout, and sign visibility affect placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this unit applicable for warehouse exit lighting?
A: Warehouse exit lighting is included in the supplied application data for exit signs.
Q: Is this unit applicable for commercial building exit marking?
A: Commercial building exit marking is included in the supplied application data for exit signs.
Q: Does the supplied product data identify an ingress rating or environmental classification?
A: No ingress rating or environmental classification is identified in the supplied product data.
