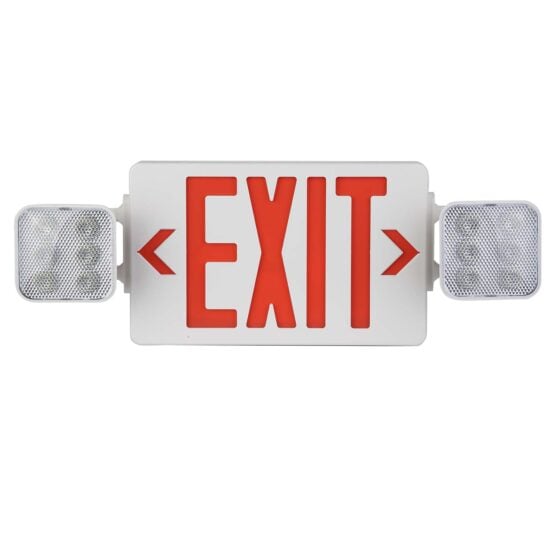

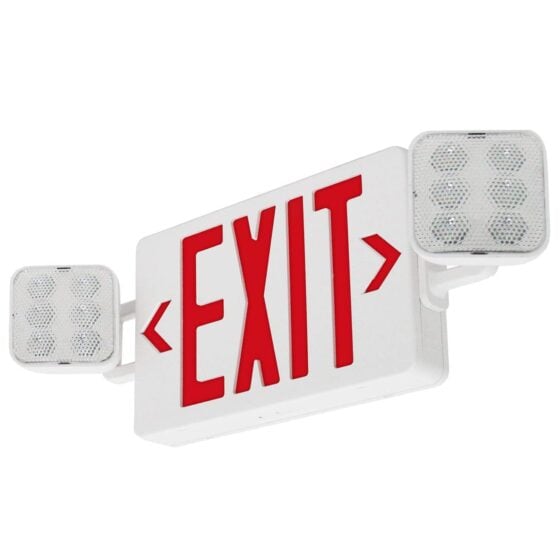

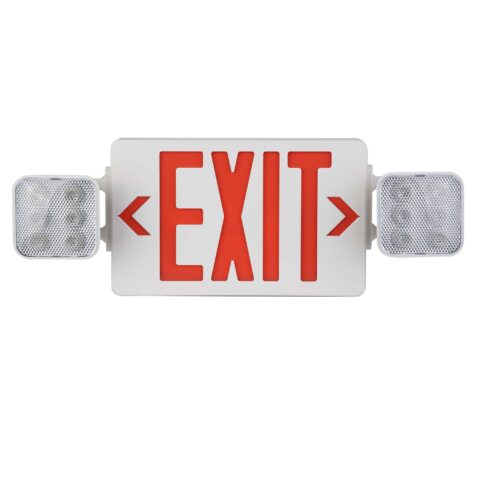

2.4 Watt LED Emergency Light and Exit Sign | 90 Minute Battery Backup
Dwayne Kula | President, CTO and Founder
1140 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 2.4 |
| Replaces | 36W CFL |
| Voltage | 100V-277V |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Lifespan | 50,000 hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
| THD | < 20% |
Durable Construction
| Housing | Injection-Molded Thermoplastic ABS |
| Certifications | UL |
| Warranty | 3 years |
Product Overview
This LED emergency light and exit sign provides emergency egress lighting and exit marking during normal operation and battery backup operation. It uses 2.4 watts and includes a 90-minute battery backup.
The fixture operates on 100-277V input and mounts directly to a surface. Its white injection-molded thermoplastic ABS housing is suited to indoor life safety lighting locations where a surface-mounted unit is required.
Core Performance and Output
The fixture uses 2.4 watts and has a 120-degree standard beam angle. It is identified as a replacement for a 36W CFL fixture.
Input operation is 100-277V at 50/60Hz. Power factor is greater than 0.90, and total harmonic distortion is less than 20%.
This unit is not dimmable. The supplied data does not provide lumen output, so light level and fixture placement need to be reviewed against the required emergency egress lighting layout.
Adjustability and Control Options
This emergency light and exit sign does not include dimming. It is intended for standard on/off emergency lighting operation.
The 100-277V input range supports installation on common commercial electrical systems. No additional control compatibility is specified.
Longevity and Reliability
The rated lifespan is 50,000 hours. The fixture includes a 90-minute battery backup for emergency operation.
Long-term service should include periodic inspection of the fixture, housing condition, and emergency backup operation. Battery service intervals are not specified in the supplied product data.
Build Quality and Physical Characteristics
The housing is injection-molded thermoplastic ABS with a white finish. The fixture is designed for surface mounting.
Overall dimensions are 12 x 7.5 x 4.4 inches. Confirm available mounting surface area before installation.
Where This Product Fits Best
This fixture fits indoor life safety and exit marking locations that require surface-mounted emergency lighting and exit identification.
- emergency exit lighting
- egress lighting
- life safety lighting
- code compliance lighting
- commercial building exit marking
- industrial facility exit lighting
- warehouse exit lighting
The white ABS enclosure and surface mounting configuration suit interior locations where the fixture can be securely mounted. No wet-location or hazardous-location rating is specified.
Installation and Long-Term Use
Install the fixture on a suitable surface with access to the required 100-277V supply. The mounting location must allow the exit sign and emergency light components to remain visible and unobstructed.
Verify the 12 x 7.5 x 4.4 inch fixture dimensions against the available mounting area. Inspect the unit periodically as part of the facility life safety lighting maintenance program.
How This Fixture Is Commonly Used
This fixture is surface mounted at exit and egress locations within commercial building exit marking, industrial facility exit lighting, and warehouse exit lighting layouts. Mounting height follows the location of the exit marking and emergency egress lighting requirement.
Layout patterns follow the building exit path and the locations requiring emergency exit lighting. Fixture spacing and placement vary with the required light levels, exit path layout, and site-specific code compliance lighting requirements.
Safety, Certifications, and Warranty
This fixture is UL listed.
The warranty period is 3 years. The fixture includes a 90-minute battery backup.
Frequently Asked Questions
Q: What voltage does this emergency light and exit sign use?
A: The fixture operates on 100-277V input at 50/60Hz.
Q: Does this fixture include battery backup?
A: Yes. It includes a 90-minute battery backup.
Q: Can this emergency light and exit sign be dimmed?
A: No. Dimming is not included.
Q: What mounting method does this fixture use?
A: The fixture is designed for surface mounting.
Q: Is this fixture UL listed?
A: Yes. This fixture is UL listed.
Application Questions and Clarification
Q: Is this fixture intended for warehouse exit lighting?
A: Warehouse exit lighting is an included secondary application. Final placement depends on the required emergency egress lighting layout and available surface mounting location.
Q: What should be reviewed before placing this fixture for egress lighting?
A: Review the exit path layout, required light levels, available mounting surface, and 100-277V electrical supply. The supplied data does not establish a specific fixture spacing value.
