2 Watt LED Emergency Light | 90 Minute Battery Backup

Product Overview

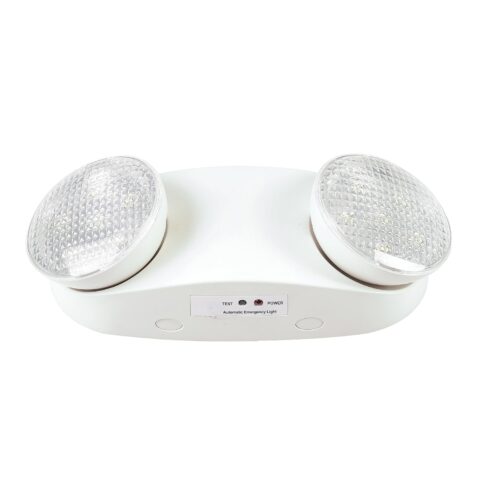

This 2 Watt LED Emergency Light is designed for emergency egress and stairwell lighting in commercial and industrial environments. It provides 150 lumens of illumination during power outages, supporting safe evacuation and code compliance. The fixture includes two adjustable LED heads for targeted light distribution and is intended for wall mounting in corridors, stairwells, and exit pathways.

Typical installations include office buildings, warehouses, and public facilities where reliable emergency lighting is required. The integrated battery backup delivers up to 90 minutes of operation during loss of power, meeting standard life safety requirements.

Core Performance and Output

This emergency light delivers 150 lumens at 5000K with a 120-degree beam angle. The output is suitable for illuminating egress routes, stairwells, and exit doors in low to moderate ambient light conditions. The fixture operates at 2 watts with a power factor above 0.90 and total harmonic distortion below 20%.

Performance is optimized for mounting heights between 7 and 10 feet. Excessive mounting height may reduce floor-level illumination and compromise code compliance. The fixture is not intended for general area lighting or high-ceiling applications.

Adjustability and Control Options

Each LED head is independently adjustable, allowing precise aiming to cover exit paths, doorways, or stair treads. The fixture does not include dimming or advanced control features. Operation is automatic during power loss, with no user intervention required.

Adjustment is tool-free and can be performed during installation or maintenance. The wide beam angle supports broad coverage in standard corridor and stairwell layouts.

Longevity and Reliability

The fixture is rated for 50,000 hours of LED life, supporting long-term reliability in commercial and industrial settings. The integrated battery backup is designed for 90 minutes of emergency operation and should be tested regularly as part of standard maintenance routines.

Consistent performance is maintained across the full input voltage range of 100-277V. The fixture is suitable for continuous operation in conditioned interior environments.

Build Quality and Physical Characteristics

The housing is constructed from injection-molded thermoplastic ABS, providing impact resistance and durability for wall-mounted applications. The fixture is finished in white and measures 10 x 4.5 x 2 inches, allowing installation in confined spaces above doors or in corridors.

All components are enclosed for protection against dust and incidental contact. The fixture is UL listed and meets standard requirements for emergency egress lighting.

Where This Product Fits Best

This emergency light is intended for interior locations where code-compliant egress and exit lighting is required. It is commonly installed in:

• egress lighting
• emergency exit lighting
• code compliance lighting
• life safety lighting
• commercial building exit marking
• industrial facility exit lighting
• warehouse exit lighting
• public building exit lighting

Suitable for dry, conditioned spaces. Not intended for wet locations or exterior mounting. Performance is consistent in standard commercial and industrial interiors.

Installation and Long-Term Use

Wall mounting is supported using standard hardware. The compact form factor allows placement above doors, in corridors, or at stairwell landings. Electrical connection is compatible with 100-277V circuits.

Routine testing of the battery backup is recommended to ensure code compliance. The fixture is designed for minimal maintenance, with no lamp replacement required during its rated life. Battery replacement may be needed over time depending on test results and usage patterns.

How This Fixture Is Commonly Used

Typical mounting height is 7 to 10 feet, positioned to illuminate egress paths and exit doors. Fixtures are spaced to provide overlapping coverage, with layout determined by corridor length and local code requirements.

In stairwells, units are installed at each landing and at exit discharge points. Higher output is not required for these applications; excessive fixture count may increase installation cost without improving safety.

Safety, Certifications, and Warranty

This emergency light is UL listed and meets requirements for emergency egress and exit lighting. The fixture is eligible for rebate programs where applicable. A 3-year warranty covers manufacturing defects and component reliability.

All safety and compliance features are integrated, supporting use in regulated commercial and industrial environments.

Frequently Asked Questions

Q: What is the typical mounting height for this emergency light?

A: Standard mounting height is 7 to 10 feet above finished floor, positioned to cover egress paths and exit doors.

Q: How long does the battery backup provide illumination during a power outage?

A: The integrated battery supplies emergency lighting for up to 90 minutes.

Q: Are the LED heads adjustable for different coverage patterns?

A: Yes, both LED heads can be independently aimed to direct light where needed.

Q: Is this fixture suitable for wet or outdoor locations?

A: No, this emergency light is intended for dry, interior use only.

Q: How often should the battery backup be tested?

A: Battery function should be tested monthly as part of standard life safety maintenance procedures.

Q: How many fixtures are needed for a typical corridor?

A: Fixture spacing depends on corridor length and code requirements; units are typically spaced to provide overlapping coverage along the egress route.

Application Questions and Clarification

Q: Can this emergency light be used for general area lighting?

A: No, this fixture is designed for emergency egress and exit path illumination only.

Q: Is this product compliant with code requirements for exit and egress lighting?

A: Yes, the fixture is UL listed and meets code requirements for emergency egress and exit lighting.

Q: What environments are best suited for this emergency light?

A: This fixture is best suited for interior corridors, stairwells, and exit discharge areas in commercial, industrial, and public buildings.
