CBRE Global Workplace Solutions: Manufacturing Facility Case Study
About the project
SKU
Project type
Customer name
New construction or upgrade
Fixtures count
Project overview
CBRE’s Global Workplace Solutions group partnered with Siemens Energy to address poor light levels at one of their facilities. CBRE recognized their was an opportunity to enhance working conditions and reduce energy cost. They searched for a lighting partner to support them in upgrading the lighting system, finding LED Lighting Supply as an ideal partner. The objective was to improve their workers’ illumination and achieve significant energy savings by leveraging our commercial grade lighting solutions. The project aimed to replace old 8-lamp, 4-foot 54-watt T5 lights with modern, energy-efficient alternatives.
Our approach and lighting plan

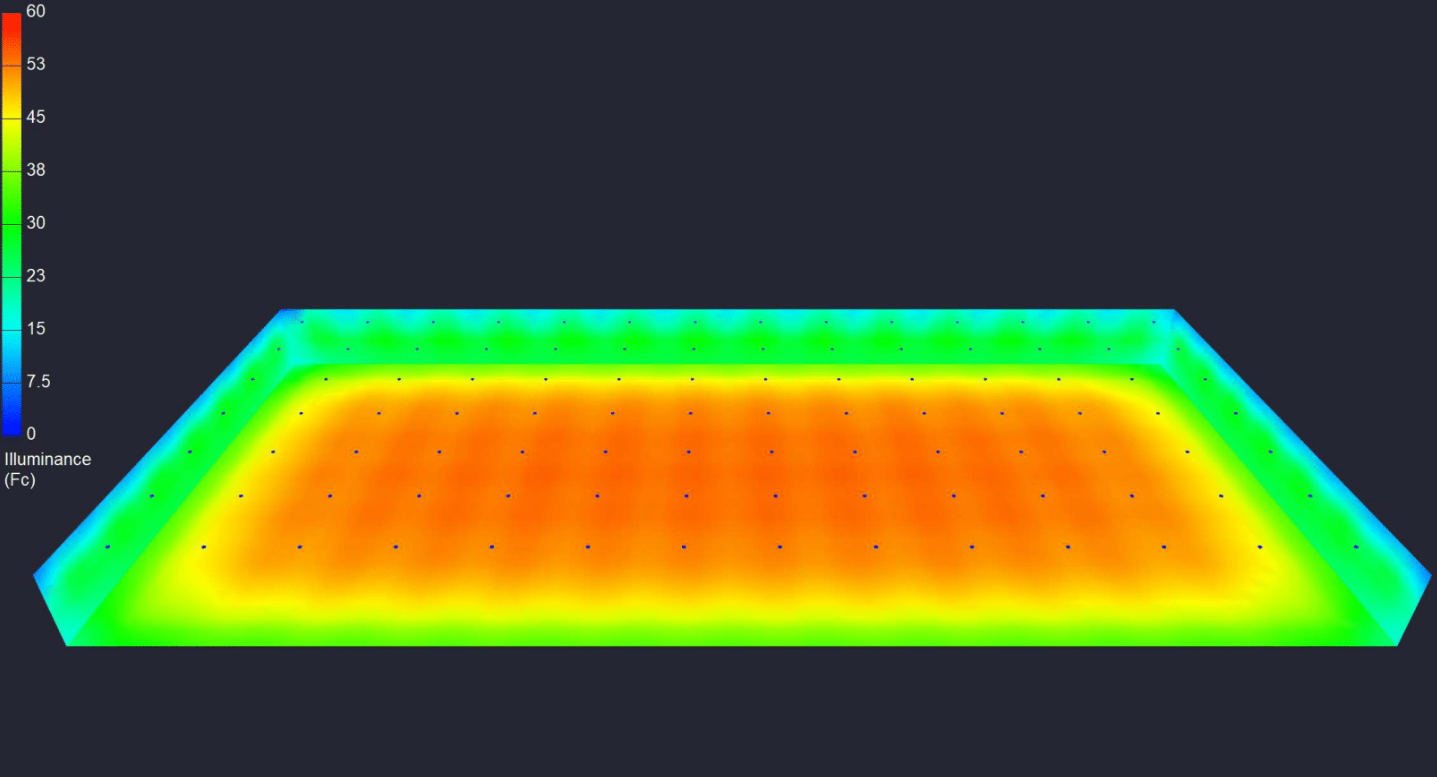

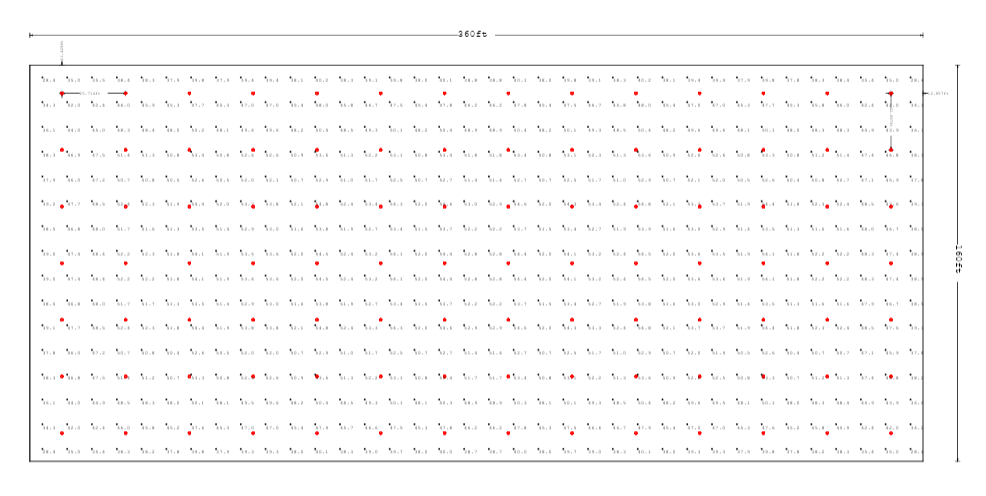

Our lighting specialist Jeff recommended a high quality commercial grade LED high bay light fixture with an expected life of 170,000 hours to address the poor light levels at Siemens Energy’s facility. Our team ran a lighting plan to ensure the facility would see the improved light levels the were looking for. The (140) MLLG-LED-HBC-200-120D fixtures achieved an average foot-candle level of 48 in the manufacturing work area. The proposal from LED Lighting Supply result exceeded expectations and resulted in CBRE & Siemens Energy team going ahead with completing an upgrade of more areas than initially planned.
Project Data
Results
With the purchase of 140 fixtures and minimal installation challenges, the final outcome surpassed initial expectations. There was a substantial increase in energy savings by 54%, accompanied by a notable 30% boost in the expected lifespan of the lighting system. Importantly, the client was happy with our lighting specialist, Jeff Cesenaro, who developed an efficient lighting layout and collaborated on pricing to meet their needs.
What we used
100 / 120 / 150 / 200 Watt Adjustable UFO High Bay | 15000 to 30000 Lumens | 4000K or 5000K | 100-277V | White Housing
100 | 120 | 150 | 200 Wattage Adjustable UFO high bay produces 15000 | 18000 | 22500 | 30000 lumens at 150 lumens/watt and replaces 250 | 400 Watt Metal Halide. It is equipped with 1-10v dimmable drivers. A white aluminum die-cast heat sink provides great heat dissipation. Available in voltage: 100V-277V and Color Temperature: 4000K or 5000K. Additional options include a motion sensor kit for higher energy savings. Operates in temperatures from -22°F to +122°F.
Commonly used in distribution centers, warehouse facilities, auto shops, and retail spaces that require high ceiling lights.
