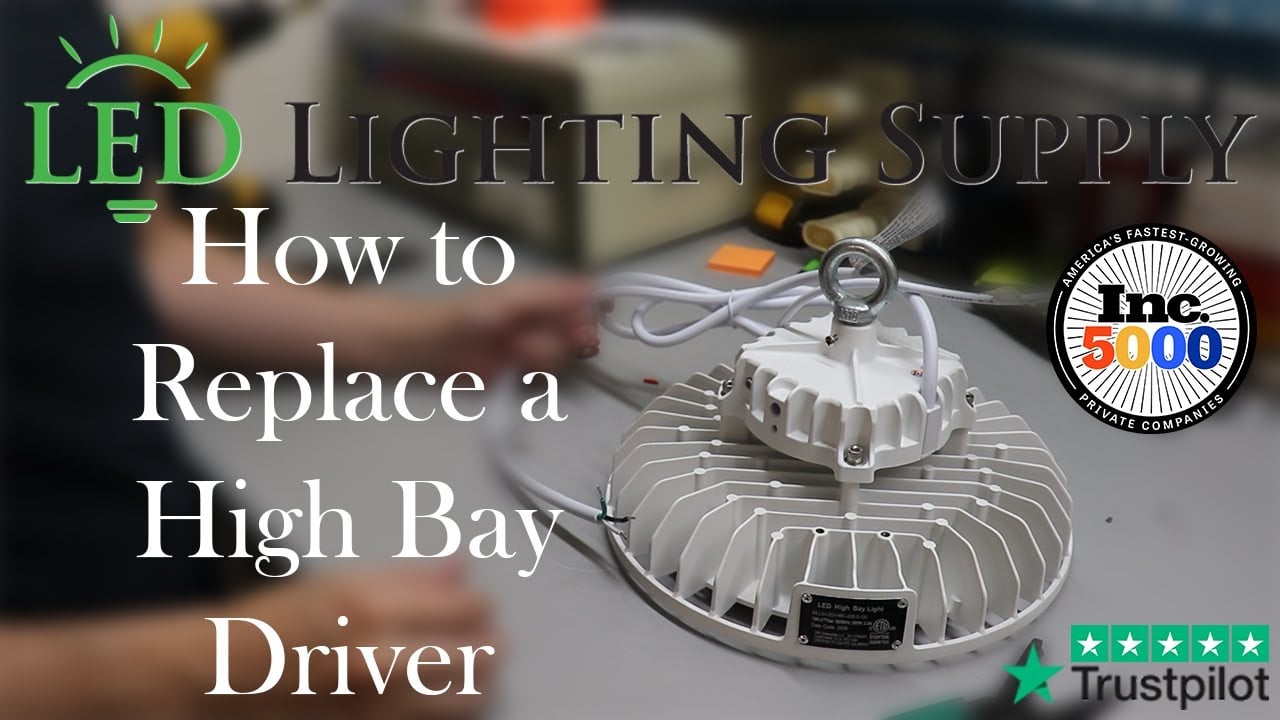

Today, I'll guide you through the process of replacing a driver in an HBC High Bay unit.

Step-by-Step Driver Replacement

Replacing the driver in a high bay lighting fixture is a straightforward process that requires careful attention to detail. Here's how to do it safely and effectively:

1. Remove the Screws

Start by using the appropriate screwdriver to remove the four screws securing the driver to the high bay unit.

2. Cut and Prepare the Wires

With the screws removed, carefully cut the wire connecting the driver. Strip the ends of the wires to prepare them for new connections.

3. Install WAGO Connectors

Attach two WAGO Connectors to the exposed wires to ensure a secure and reliable connection. Make sure the connectors are tightly fastened.

4. Connect the New Driver

Grab your new driver and connect the black and red wires to the matching wires from the high bay. It's crucial to ensure that these connections are solid and correctly matched.

5. Secure Everything in Place

Neatly tuck the wires back into the unit and reattach the driver with the original screws, making sure everything is firm and secure.

6. Test Your Work

Once everything is reassembled, test the fixture to make sure it functions correctly. This step is essential to verify that the new driver is installed properly and operating as expected.
