Dwayne Kula | President, CTO and Founder
Product Description
Key Features
- Total Height (ft): 45
- ANSI Class: Class A
- Material: Wood Piling
- Pole Weight (lbs): 1990-2330
- Min Pole Top Circ (in): 28
- Min Pole Top OD (in): 9
- Min Circ 3 ft from Butt (in): 44
- OD 3 ft From Butt (in): 14
- Treatment: .60 CCA
- Opt Treatment: .80 CCA | 1.0 CCA | 1.5 CCA | 2.5 CCA
- Warranty: 1 year
Our 45 foot Class A CCA Treated Southern Yellow Pine Pilings are grown, debarked, and treated in the United States. They are manufactured to ASTM D25 standards and are treated to the latest American Wood Preservers Association standards to prevent decay and damage.
USE CASE and CCA TREATMENT LEVELS
- Foundation: 0.6 pounds
- Fresh Water: 0.8 pounds
- Brackish Water, Salt Water: 1.0 pounds
- Salt Water: 1.5 pounds
- Salt Water where marine bores are present (piers, marinas, bulkheads, and jetties): 2.5 pounds
Delivery is made with a flatbed truck and the customer is responsible for offloading. Offloading requires a forklift or appropriate similar machine (customer supplied). Customer is responsible for any costs associated with delivery rescheduling because of improper scheduling or not having the proper offloading equipment available at the time of delivery.
Pricing: Does not include cost of shipping. Shipping is available to the lower 48 USA states. We can supply a budgetary shipping quote or a firm shipping quote that is good for 14 days to your delivery location.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie what is mounted to the piling), installation costs, or foundation design of piling. Dimensions and specifications of pilings are subject to change without notice but the tip and butt dimensions will always be within ASTM specifications. While our main product line is southern yellow pine, we at times are able to offer other species including douglas fir and red pine. All poles are treated with CCA unless specified otherwise. Our standard treatment is .60 pounds per cubic foot.
Please be advised that our wood pilings are covered solely by a 1-year workmanship warranty, which ensures that the pilings are free from defects from the manufacturing process, and structural integrity, for a period of one year from the date of purchase. This warranty does not cover damage resulting from external factors, misuse, or normal wear and tear.
Web ID: 2614
Product Overview

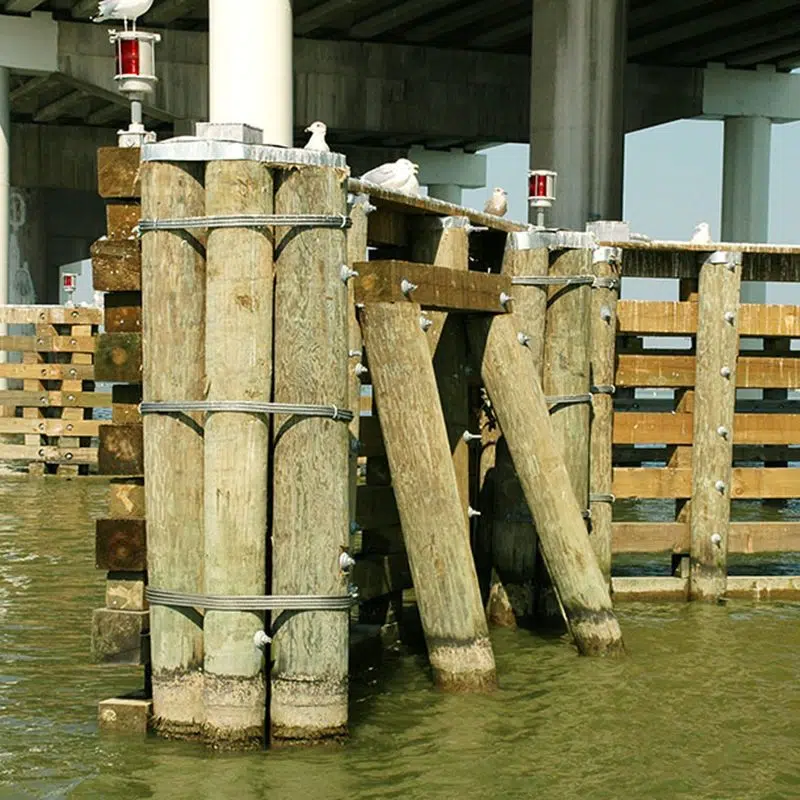

The 45 Foot Class A .60 CCA Treated Southern Yellow Pine Piling is designed for use in marine and architectural site lighting applications. This piling is crafted from Southern Yellow Pine, known for its strength and durability, making it suitable for demanding environments. With a total height of 45 feet, it is ideal for supporting structures in marine settings, such as docks and piers, where stability and longevity are critical.
These pilings are treated with .60 CCA to resist decay and damage, ensuring a long service life even in harsh conditions. The Class A rating signifies its high load-bearing capacity, making it a reliable choice for waterfront structures. Manufactured to ASTM D25 standards, this piling meets stringent quality requirements for structural applications.
Core Performance and Output
The 45-foot piling offers robust structural capacity, supporting significant loads in marine environments. With a weight range of 1990-2330 lbs, it provides the necessary stability for various applications. The piling's EPA ratings and wind load performance ensure it can withstand environmental stresses typical of coastal and waterfront areas.
Its .60 CCA treatment enhances its resistance to decay, making it suitable for long-term use in wet and corrosive environments. The piling's dimensions, including a minimum pole top circumference of 28 inches and a minimum OD of 9 inches, contribute to its structural integrity and load-bearing capabilities.
Adjustability and Control Options
This piling does not feature adjustability or control options as it is a fixed structural component. Its primary function is to provide stable support for marine and architectural structures. The treatment options, ranging from .60 CCA to 2.5 CCA, allow for customization based on specific environmental needs and longevity requirements.
While the piling itself is not adjustable, its installation can be tailored to meet the specific requirements of the site, ensuring optimal performance and stability in its intended application.
Longevity and Reliability
The Southern Yellow Pine material, combined with .60 CCA treatment, ensures the piling's longevity and reliability in marine environments. This treatment protects against decay and insect damage, extending the life of the piling even in harsh conditions.
Manufactured to ASTM D25 standards and treated to AWPA standards, this piling is built to withstand the rigors of marine and waterfront applications. Its Class A rating further underscores its reliability for supporting heavy loads and enduring environmental stresses.
Build Quality and Physical Characteristics
The piling is constructed from high-quality Southern Yellow Pine, known for its strength and durability. The wood is grown, debarked, and treated in the United States, ensuring consistent quality and performance.
With a total height of 45 feet and a weight range of 1990-2330 lbs, this piling is designed to provide robust support for marine structures. Its dimensions, including a minimum pole top circumference of 28 inches and a minimum OD of 9 inches, contribute to its structural integrity and load-bearing capacity.
Where This Product Fits Best
This piling is best suited for environments where stability and durability are paramount, particularly in marine and waterfront settings.
- marine structures
- dock structures
- pier construction
- waterfront structures
- marina construction
- coastal facility construction
- boardwalk structures
- mooring structures
The piling's .60 CCA treatment and Class A rating make it ideal for use in corrosive and wet environments, providing long-term stability and resistance to decay.
Installation and Long-Term Use
Installation of the 45-foot piling requires consideration of site-specific conditions, including soil type and environmental factors. Proper installation ensures optimal performance and longevity, particularly in marine environments where exposure to water and salt is common.
Long-term use of this piling is supported by its robust construction and treatment options, which protect against decay and insect damage. Regular inspections and maintenance can further extend its service life, ensuring continued stability and support for the structures it supports.
How This Fixture Is Commonly Used
The 45-foot piling is commonly used in marine and waterfront applications, where its height and load-bearing capacity are advantageous. Typical installations involve embedding the piling into the seabed or shoreline to provide stable support for docks, piers, and other structures.
Spacing and layout patterns depend on the specific application and environmental conditions. While higher output reduces the number of pilings needed, it may also require careful consideration of spacing to ensure stability and load distribution.
Safety, Certifications, and Warranty
This piling is manufactured to ASTM D25 standards and treated to AWPA standards, ensuring compliance with industry safety and quality requirements. The .60 CCA treatment provides protection against decay and insect damage, enhancing safety and longevity.
The piling comes with a 1-year warranty, covering manufacturing defects and ensuring peace of mind for long-term use in demanding environments.
Frequently Asked Questions
Q: What is the weight range of the 45-foot piling
A: The weight range of the piling is 1990-2330 lbs.
Q: What treatment options are available for this piling
A: The piling is treated with .60 CCA, with optional treatments of .80 CCA, 1.0 CCA, 1.5 CCA, and 2.5 CCA available.
Q: What is the minimum pole top circumference
A: The minimum pole top circumference is 28 inches.
Q: How does the Class A rating affect the piling's performance
A: The Class A rating indicates a high load-bearing capacity, making it suitable for demanding structural applications.
Application Questions and Clarification
Q: Can this piling be used for boardwalk structures
A: Yes, the piling is suitable for boardwalk structures due to its strength and resistance to decay.
Q: Is this piling appropriate for marina construction
A: Yes, the piling's durability and treatment make it ideal for marina construction.
Q: What environments are best suited for this piling
A: The piling is best suited for marine structures, dock structures, pier construction, and waterfront structures.
Q: What is the warranty period for this piling
A: The piling comes with a 1-year warranty.
