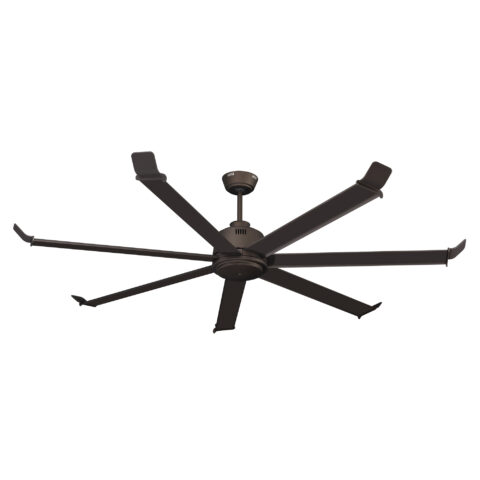

80 Inch Commercial Ceiling Fan | 7 Blades | 11,274 CFM | 120V | Pewter

Product Overview

This is an 80 inch, 7-blade commercial ceiling fan finished in pewter. The fan is designed for high-volume air movement in large spaces and operates on 120V power.

The fan offers five speed settings, with airflow ranging from 6,707 CFM on low to 11,274 CFM on high. The included controller allows for direct speed adjustment. The fan is reversible for seasonal airflow changes.

Blades are constructed from aluminum and pitched at 18 degrees. The fan weighs 35.3 lbs and uses a 180 x 17 mm motor. Both 8 inch and 2 foot downrods are included for mounting flexibility.

This fan is UL rated for wet locations, supporting installation in environments exposed to moisture.

Where This Product Fits Best

This ceiling fan is suitable for commercial and industrial spaces requiring significant air movement, such as warehouses, manufacturing areas, gymnasiums, and large retail spaces.

It can also be used in larger residential settings where high airflow and robust construction are needed. The wet location rating allows for installation in covered outdoor areas or spaces with occasional moisture exposure.

The 80 inch diameter and 7-blade design are intended for open areas with at least 10 feet of mounting height and a minimum horizontal clearance of 30 inches from walls or obstructions.

Facilities with standard 120V electrical supply can integrate this fan without additional voltage adaptation.

Performance and Functional Considerations

The fan delivers up to 11,274 CFM at its highest speed, supporting air circulation in large, open environments. The five speed settings allow for airflow adjustment based on occupancy or seasonal needs.

The reversible function enables the fan to be used for both cooling and destratification, depending on the time of year. The included controller provides direct access to speed and direction changes.

Aluminum blades with an 18 degree pitch are designed for efficient air movement and durability in demanding environments. The fan operates at 101 RPM on high and 61 RPM on low.

The UL wet location rating allows for installation in spaces where the fan may be exposed to humidity or occasional water contact.

Installation and Long-Term Use

The fan is designed for ceiling mounting with a minimum height of 10 feet from the floor. Both 8 inch and 2 foot downrods are included to accommodate different ceiling heights and installation requirements.

A minimum horizontal clearance of 30 inches from any wall or obstruction is required for safe operation. The fan weighs 35.3 lbs, so ensure the mounting structure can support this load.

The 120V power requirement matches standard commercial and residential electrical systems. The aluminum blades and wet location rating support long-term durability in both indoor and covered outdoor environments.

Routine cleaning and inspection are recommended to maintain performance, especially in dusty or humid locations.

How This Fixture Is Commonly Used

Once installed, you can adjust the fan speed directly using the included controller to match the airflow needs of your space. The five speed settings allow you to increase or decrease air movement as occupancy or temperature changes.

The reversible feature lets you change the direction of airflow for cooling in summer or to help circulate warm air in winter. This adjustment is made through the controller as needed.

The fan?s wet location rating means you can operate it in areas exposed to humidity or occasional moisture without concern for damage. The aluminum blades are resistant to corrosion and can be wiped down during routine maintenance.

With the included downrods, you can select the mounting height that best fits your ceiling and clearance requirements. After installation, day-to-day operation is limited to speed and direction adjustments as needed for comfort and air movement.

Safety, Certifications, and Warranty

This fan is UL rated for wet locations. It is suitable for environments where exposure to moisture is possible.

The fan is covered by a warranty from LED Lighting Supply. Warranty duration is specified in the product documentation.

All components are designed for commercial and industrial use, with aluminum blades and a robust motor for long-term reliability.

Installation must follow the minimum mounting height and clearance requirements for safe operation.

Frequently Asked Questions

What voltage does this fan require?
This fan operates on 120V.

What is the airflow output range?
The fan delivers 6,707 CFM on low speed and 11,274 CFM on high speed.

Is this fan suitable for wet locations?
Yes, this fan is UL rated for wet locations.

What mounting options are included?
Both 8 inch and 2 foot downrods are included for mounting flexibility.

What is the minimum mounting height?
The fan must be mounted at least 10 feet above the floor.

What is the warranty coverage?
This fan is covered by a warranty from LED Lighting Supply. Warranty duration is specified in the product documentation.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
