68 Inch Commercial Ceiling Fan | 8 Blades | 7,024 CFM | 120V | Matte Black or White
This commercial-grade ceiling fan stands out for its robust aluminum blade construction, high airflow output up to 7,024 CFM, and ETLus wet location rating, making it well-suited for warehouses, gymnasiums, covered outdoor areas, and other large commercial or industrial spaces where moisture exposure and consistent air movement are concerns. The reversible function and four selectable speeds allow for year-round use and operational flexibility, while the included controller simplifies adjustments. However, with a 68-inch diameter and 30.5 lb weight, it requires secure ceiling mounting and may not be suitable for smaller rooms or structures unable to support its size.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Diameter | 68 in |
| Speed | 4 |
| Color | White | Matte Black |
| Blade Material | Aluminum |
| Controller | Yes |
| Blades | 8 |
| Reversible | Yes |
| Fan CFM | High: 7,024 CFM | Low: 2,730 CFM |
| Coverage Area (sq ft) | 800 |
| RPM | High: 105 Low: 42 |
| Fan Weight (lbs) | 30.5 |
| Motor Size | 188 x 25 mm |
| IP Rating | ETLus listed for wet location |
| Downrod (in) | 4 |
| Voltage | 120V |
| Warranty | 1 year |
This commercial grade 8 blade, 68 inch sweep ceiling fan is made to move a large amount of air for commercial, industrial or larger residential spaces.
It has 4 speeds, high or low, that will allow you to adjust the airflow in your space. A controller is available. Fan blades are metal and pitched at 15 degrees. The fan has a reversible feature.
Product SKU Variations
- SKU: LLS-CM-FAN-68IN-8B-MBK
- SKU: LLS-CM-FAN-68IN-8B-W
Product Overview
This 68-inch commercial ceiling fan uses eight aluminum blades to move air across larger commercial spaces. It produces up to 7,024 CFM on high speed and operates on 120V power.
The fan has four speed settings, a reversible motor function, and a controller. Its 4-inch downrod mount positions the fan below the ceiling structure for operating clearance.
Core Performance and Output
Airflow ranges from 2,730 CFM on low to 7,024 CFM on high. Fan speed ranges from 42 RPM on low to 105 RPM on high.
The 68-inch blade sweep and eight-blade configuration provide broad air movement across an area rated up to 800 square feet. Efficiency data is not provided.
High-speed operation delivers the greatest airflow but can create stronger air movement directly below the fan. Final placement should account for ceiling height, occupied areas, and airflow direction.
Adjustability and Control Options
The fan has four speed settings for adjusting airflow to changing conditions. A controller is included.
The reversible function changes blade rotation direction. This allows the fan to operate in either direction based on seasonal airflow requirements.
Longevity and Reliability
The fan uses aluminum blades and a commercial-grade motor assembly. The listed fan weight is 30.5 pounds.
We specify this unit with a one-year warranty. Routine inspection should include the downrod connection, blade hardware, and electrical connections.
Build Quality and Physical Characteristics

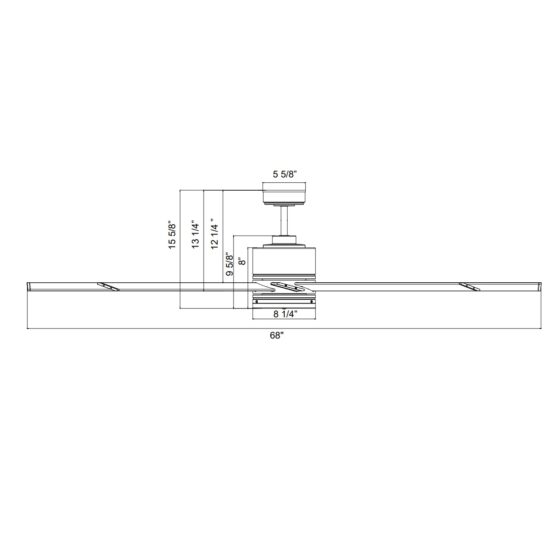

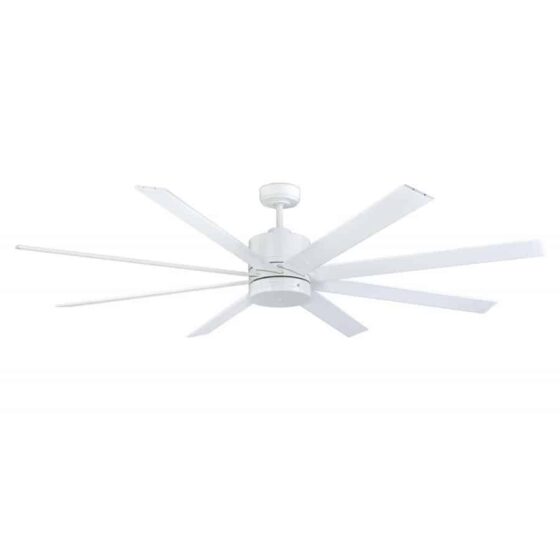

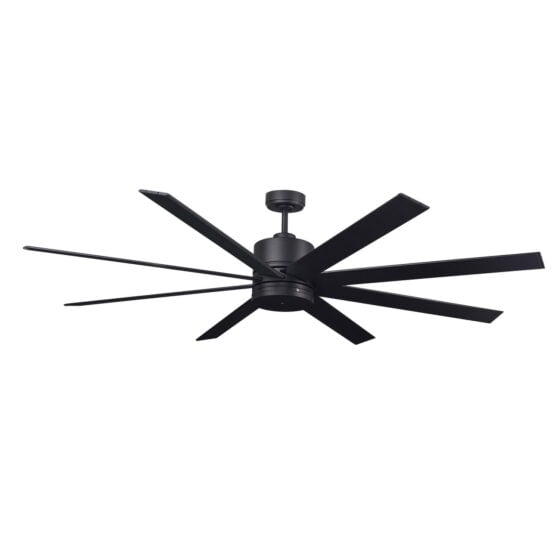

This fan has a 68-inch diameter, eight aluminum blades, and a 15-degree blade pitch. It is available in matte black or white.
The motor measures 188 x 25 mm. A 4-inch downrod is included for downrod mounting.
The unit is ETLus listed for wet location.
Where This Product Fits Best
This ceiling fan fits commercial spaces that need localized air movement from a downrod-mounted fan. Its wet-location listing also supports covered and exposed wet-location conditions where the installation arrangement is appropriate.
- commercial space ventilation
- restaurant ventilation
- retail ventilation
- office ventilation
- outdoor patio ventilation
- covered amenity space ventilation
The 68-inch sweep is suited to larger open zones rather than compact rooms. The mounting structure must support the fan weight and operating load.
Installation and Long-Term Use
The fan installs using the supplied 4-inch downrod and requires 120V power. The mounting point needs adequate clearance for the 68-inch blade sweep.
In commercial space ventilation, restaurant ventilation, retail ventilation, and office ventilation layouts, fans are generally positioned to distribute air across occupied zones without placing blades too close to walls, fixtures, or obstructions.
Spacing and layout depend on the 800-square-foot coverage rating, ceiling conditions, and the required airflow pattern. Higher speed settings increase airflow but may be unnecessary in areas where lower air movement is needed.
How This Fixture Is Commonly Used
This fan is commonly arranged over open areas in commercial space ventilation, retail ventilation, and office ventilation layouts. The downrod installation places the fan below the ceiling plane and requires clearance around the blade path.
For restaurant ventilation, outdoor patio ventilation, and covered amenity space ventilation, placement is typically based on occupied seating or gathering areas and the available mounting structure. Wet-location listing applies where the fan is installed in a wet location.
Fan placement changes with ceiling height, obstructions, and the desired air movement across the space. Increasing fan speed increases airflow from the selected location.
Safety, Certifications, and Warranty
This fan is ETLus listed for wet location.
The fan operates on 120V and has a one-year warranty.
Frequently Asked Questions
Q: What is the airflow range of this 68-inch ceiling fan?
A: Airflow is 2,730 CFM on low speed and 7,024 CFM on high speed.
Q: How many speed settings does the fan have?
A: The fan has four speed settings.
Q: Is the fan reversible?
A: Yes. The fan has a reversible function.
Q: What mounting method is included?
A: The fan uses downrod mounting and includes a 4-inch downrod.
Q: What area is this fan rated to cover?
A: The listed coverage area is 800 square feet. Final layout should account for the ceiling condition and required airflow pattern.
Application Questions and Clarification
Q: Is this fan appropriate for outdoor patio ventilation?
A: Outdoor patio ventilation is a valid application. The fan is ETLus listed for wet location.
Q: What should be confirmed before installing this fan in commercial space ventilation?
A: Confirm that the mounting structure supports the 30.5-pound fan and that the installation location has clearance for the 68-inch blade sweep.
Q: What information affects fan placement in restaurant ventilation layouts?
A: Ceiling height, occupied areas, obstructions, and the required airflow pattern affect placement. The listed coverage area is 800 square feet.
Web ID: 2296
