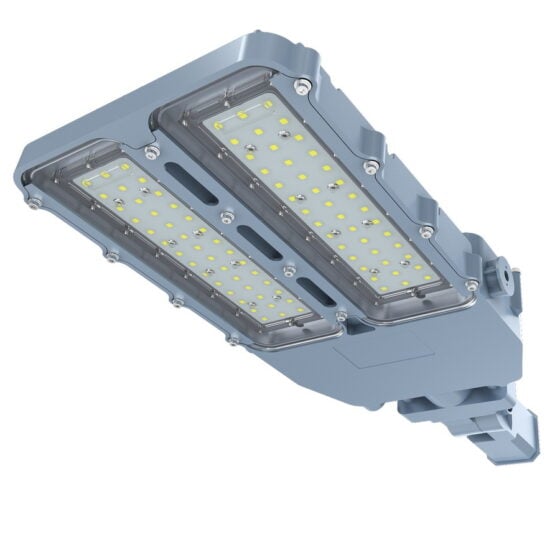

60 Watt Solar Explosion Proof LED Light | 7800 Lumens | Class 1 Div 2 | Class 2 Div 2 | 5000K | 100-277V
Out of stock
Product Description
60 Watt LED Solar Explosion Proof Fixture - C1D2 produces 7800 lumens at 130 lumens/watt . The fixture is a perfect dedicated flood light fixture.
Battery Box, Battery - 12 hours 100% operation or 4 to 5 days in Intelligent motion / dim smart mode.
Solar Panel with standard 60mm tenon mount.
Battery straps to pole: 60mm to 130mm.
Power Cords: (2) two meter Cords Included
It comes with a 12-24 VDC LED driver. Color temperature is . Beam Angle is . The fixture uses a Slip Fitter Mount. The fixture can be angled if required. The fixture is IP66 wet location rated as well as Impact Rated at IK08. Fixture can operate in temperature conditions between .
UL844 Certifications
Class 1 Division 2, Group A,B,C,D
Class 2, Division 1, Groups E,F,G
Class 2, Division 2, Groups F,G
Class 3
Other Certifications
Wet Locations (UL 1598 / UL1598A), UL844, CSA, ATEX, IECEX
POLE SOLD SEPARATELY
Request IES Files
Web ID: 2064
Product Overview
This 60 Watt Solar Explosion Proof LED Light delivers 7800 lumens at 130 lumens per watt. It is designed as a dedicated flood light for hazardous locations requiring explosion proof protection.
The fixture operates on solar power with a battery system that supports 12 hours of full output or 4 to 5 days in intelligent motion/dim smart mode. The included battery box and straps allow secure mounting to poles ranging from 60mm to 130mm in diameter.
The system includes a solar panel with a standard 60mm tenon mount and two 2-meter power cords. The LED driver operates at 12-24 VDC. The fixture is rated for wet locations (IP66) and is impact rated at IK08.
Certifications include UL844 for Class 1 Division 2 (Groups A, B, C, D), Class 2 Division 1 (Groups E, F, G), Class 2 Division 2 (Groups F, G), and Class 3. Additional certifications are UL 1598 / UL1598A, CSA, ATEX, and IECEX.
Where This Product Fits Best
This fixture is suitable for hazardous locations where explosion proof lighting is required, including areas classified as Class 1 Division 2 and Class 2 Division 2. It is appropriate for outdoor or indoor environments where wet location and impact resistance are necessary.
The solar-powered design supports installation in areas without reliable access to grid power. The battery and solar panel system allow for flexible placement on poles within the specified diameter range.
Applications include chemical plants, refineries, grain handling facilities, and other industrial sites with classified hazardous zones. The slip fitter mount and adjustable angling support targeted flood lighting in these environments.
The fixture is intended for use where compliance with UL844, CSA, ATEX, and IECEX certifications is required.
Performance and Functional Considerations
The fixture produces 7800 lumens at 60 watts, providing high-output flood lighting for hazardous areas. The 130 lumens per watt efficacy supports energy-efficient operation in off-grid applications.
The battery system delivers up to 12 hours of continuous operation at full output, or 4 to 5 days in intelligent motion/dim smart mode. This supports overnight or extended use without sunlight, depending on the selected mode.
The IP66 rating allows the fixture to withstand direct exposure to rain, dust, and other wet conditions. The IK08 impact rating means the fixture can tolerate moderate physical impacts common in industrial environments.
The slip fitter mount enables secure attachment to poles and allows the fixture to be angled as needed for optimal coverage. The included power cords and mounting hardware support straightforward installation.
Installation and Long-Term Use
The fixture is designed for pole mounting using a slip fitter and can be angled to direct light where needed. The battery box straps accommodate pole diameters from 60mm to 130mm, supporting a range of standard pole sizes.
The solar panel uses a standard 60mm tenon mount for compatibility with common pole hardware. Two 2-meter power cords are included for connecting the battery, panel, and fixture components.
The IP66 and IK08 ratings support long-term use in harsh outdoor or industrial environments. The fixture is suitable for wet locations and can withstand moderate impacts during routine maintenance or operation.
Routine inspection of the solar panel and battery connections is recommended to ensure reliable performance over time. The fixture is designed for minimal maintenance in typical hazardous location applications.
How This Fixture Is Commonly Used
Once installed, this fixture provides consistent flood lighting in hazardous areas without the need for grid power. The solar and battery system allows you to maintain lighting in remote or off-grid locations.
The slip fitter mount and adjustable angling let you direct the light precisely where it is needed. After installation, you can adjust the fixture position to accommodate changes in site layout or lighting requirements.
The battery system supports overnight operation or extended runtime in dimming mode, reducing the need for frequent maintenance or manual intervention. The fixture is designed to operate reliably in wet and physically demanding environments.
Day-to-day, you can expect the fixture to deliver steady illumination in classified hazardous zones, with minimal interaction required beyond periodic inspection of the solar and battery components.
Safety, Certifications, and Warranty
This fixture is UL844 certified for Class 1 Division 2 (Groups A, B, C, D), Class 2 Division 1 (Groups E, F, G), Class 2 Division 2 (Groups F, G), and Class 3 hazardous locations.
It carries certifications for Wet Locations (UL 1598 / UL1598A), CSA, ATEX, and IECEX. The fixture is rated IP66 for wet environments and IK08 for impact resistance.
As LED Lighting Supply, we provide warranty coverage as specified in the product documentation. All certifications and ratings are supported by the listed standards.
Frequently Asked Questions
What voltage does this fixture operate on?
This fixture uses a 12-24 VDC LED driver and is compatible with 100-277V input for the solar charging system.
What is the light output?
The fixture produces 7800 lumens at 60 watts.
What environmental ratings does this fixture have?
This fixture is rated IP66 for wet locations and IK08 for impact resistance.
What mounting options are supported?
The fixture uses a slip fitter mount and is designed for pole mounting with battery straps for 60mm to 130mm diameter poles.
What certifications does this fixture carry?
This fixture is UL844 certified for Class 1 Division 2, Class 2 Division 1, Class 2 Division 2, and Class 3. It also carries UL 1598 / UL1598A, CSA, ATEX, and IECEX certifications.
What warranty is provided?
LED Lighting Supply provides warranty coverage as specified in the product documentation.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
