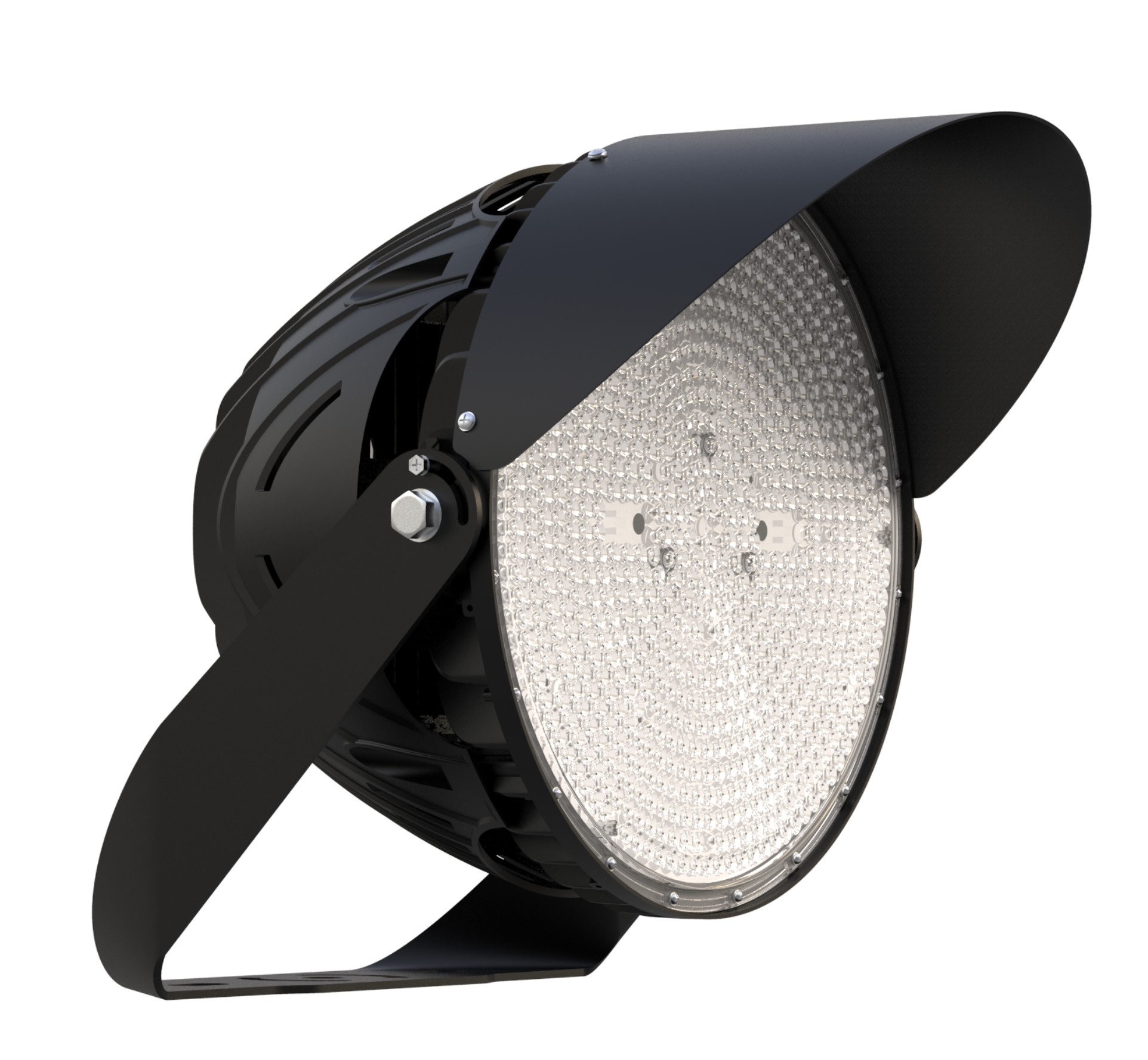

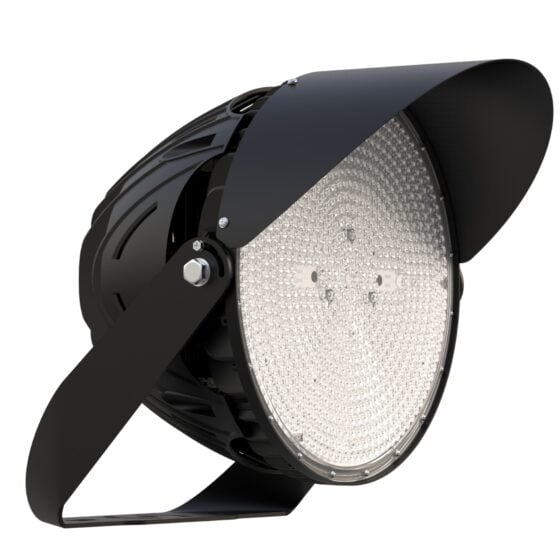

300 / 400 / 500 Watt Adjustable LED Round Sports Light | 45000 to 75000 Lumens | 5000K | 100V-277V
Out of stock
Product Description
Key Features
- Watts: 300 | 400 | 500
- Lumens: 45000 | 60000 | 75000
- Lumens Per Watt: 150
- Replaces: 1000 or 1500 Watt Metal Halide
- Voltage: 100V-277V
- Color Temperature: 5000K
- CRI: 80+
- Dimming: 0-10V
- Beam Angles (Alt): 45 Degree
- Optics: Polycarbonate Lens
- Lifespan: 150,000 (L70) hours
- Mounting: Trunnion
- EPA Rating: 1.4
- Fixture Color: Black
- Frequency: 50-60Hz
Durable Construction
- Housing: Die-Cast Aluminum
- IP Rating: IP66
- Surge Protection: 10 kV
- Operating Temperature: -40°F to 122°F
- Certifications: UL | Rebate Eligible
- Warranty: 5 years
Measurements
- Dimensions: 17-5/8 x 16-1/8 x 16-1/16
- Weight: 22.5 lbs
Features/Accessories
- Wattage Adjustable
- Visor
Product Overview
This is an adjustable LED round sports light with selectable wattage settings of 300, 400, or 500 watts. Output ranges from 45,000 to 75,000 lumens, with a color temperature of 5000K and a CRI above 80.
The fixture is designed to replace 1000 or 1500 watt metal halide systems. It operates on 100V-277V and supports 0-10V dimming. The beam angle is 45 degrees, and the lens is polycarbonate.
The housing is die-cast aluminum with a black finish. The fixture is trunnion mounted and includes a visor. The EPA rating is 1.4. Dimensions are 17-5/8 x 16-1/8 x 16-1/16 inches, and the weight is 22.5 lbs.
Lifespan is rated at 150,000 hours (L70). Surge protection is rated at 10 kV. The fixture is UL listed and rebate eligible. Operating temperature range is -40°F to 122°F. Warranty is 5 years.
Where This Product Fits Best
This fixture is suited for sports venues, arenas, and large outdoor or indoor spaces requiring high-output lighting. It is designed for applications where legacy 1000 or 1500 watt metal halide fixtures are being replaced.
The adjustable wattage allows for output selection based on site requirements. The 45-degree beam angle is intended for focused, high-mount installations where controlled light distribution is needed.
It is compatible with electrical systems operating from 100V to 277V. The trunnion mount supports installation on structural members, poles, or brackets where precise aiming is required.
The IP66 rating allows use in environments exposed to dust, rain, or washdown conditions. The fixture is suitable for both indoor and outdoor use within the specified temperature range.
Performance and Functional Considerations
The fixture delivers 150 lumens per watt across all wattage settings. Output can be set to 45,000, 60,000, or 75,000 lumens, supporting a range of lighting requirements without changing the fixture.
The 0-10V dimming interface allows for integration with compatible dimming controls. The 45-degree beam angle provides a focused light pattern, reducing spill and increasing uniformity in targeted areas.
The polycarbonate lens is impact resistant and suitable for environments where lens durability is a concern. The die-cast aluminum housing supports heat dissipation and long-term reliability.
Surge protection is rated at 10 kV, providing tolerance for electrical disturbances common in large facilities and outdoor installations.
Installation and Long-Term Use
The trunnion mount allows for secure attachment to flat surfaces or structural supports. The fixture can be aimed and locked in position for precise light placement.
At 22.5 lbs, the fixture can be handled by one or two installers, depending on mounting height and access. The EPA rating of 1.4 should be considered when mounting on poles or exposed structures.
The IP66 rating means the fixture can be installed in locations exposed to heavy rain, dust, or hose-down cleaning. The operating temperature range of -40°F to 122°F covers most outdoor and unconditioned indoor environments.
The 150,000 hour (L70) lifespan supports long-term operation with minimal maintenance. The 5-year warranty is provided by LED Lighting Supply.
How This Fixture Is Commonly Used
After installation, the adjustable wattage feature allows you to set the output to match site requirements or adapt to changes in use. This can be done during commissioning or as needs change over time.
The trunnion mount makes it possible to aim the fixture precisely at the target area. Once locked in place, the fixture remains stable and does not require frequent adjustment.
The visor helps control glare and direct light where it is needed, which is useful in sports and high-activity environments. The 0-10V dimming allows for integration with lighting controls to adjust light levels as needed.
Routine cleaning and inspection are supported by the durable polycarbonate lens and die-cast aluminum housing. The fixture is designed for minimal maintenance over its rated life.
Safety, Certifications, and Warranty
This fixture is UL listed and rebate eligible. The IP66 rating allows use in wet and dusty environments.
Surge protection is rated at 10 kV. The fixture operates safely within -40°F to 122°F.
LED Lighting Supply provides a 5-year warranty on this fixture.
Frequently Asked Questions
What voltage does this fixture support?
This fixture operates on 100V-277V.
What is the output range?
Output can be set to 45,000, 60,000, or 75,000 lumens.
What is the environmental rating?
This fixture is rated IP66 for dust and water exposure.
What mounting method is supported?
The fixture uses a trunnion mount.
Is this fixture UL listed and rebate eligible?
This fixture is UL listed and rebate eligible.
What is the warranty period?
LED Lighting Supply provides a 5-year warranty.
Application Questions and Clarification
This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
