400 / 500 / 600 Watt Adjustable Round LED Stadium Light | 68000 to 105000 Lumens | 5000K | 100-277V or 200-480V

Product Overview

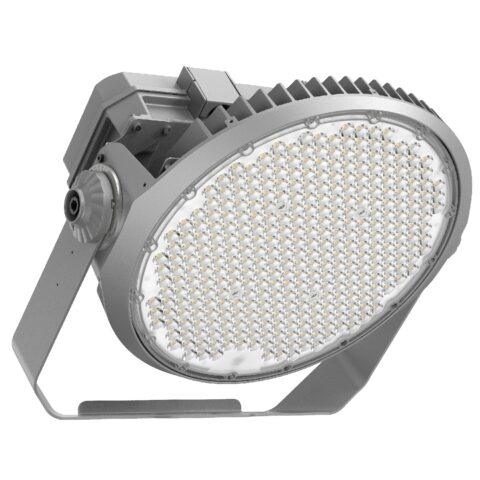

This is a round LED stadium light with selectable wattage settings of 400, 500, or 600 watts. Output ranges from 68,000 to 105,000 lumens, with a color temperature of 5000K and a CRI above 80.

The fixture is designed to replace 1500 watt metal halide systems. It operates on either 100-277V or 200-480V input, supporting both standard and high-voltage applications.

Beam angle options include 60° (standard), 15°, 30°, and 45°, with a polycarbonate lens. The fixture uses a yoke mount and is finished in gray powder-coated aluminum.

Lifespan is rated at 200,000 hours (L70). The fixture weighs 34 lbs and measures 16.77 x 19.29 x 11.46 inches.

Where This Product Fits Best

This fixture is suited for stadiums, sports fields, and large outdoor or indoor venues requiring high-output lighting. It is also used in industrial yards and facilities where robust, high-lumen fixtures are needed.

The adjustable wattage and multiple beam angle options allow for application in areas with varying mounting heights and coverage requirements. The yoke mount supports installation on poles, walls, or structural supports.

With an IP66 rating and an operating temperature range from -22°F to 122°F, this fixture is appropriate for exposed environments and demanding weather conditions.

Surge protection and IK08 impact resistance support use in locations where electrical disturbances or physical impacts are possible.

Performance and Functional Considerations

The fixture delivers 170 lumens per watt, supporting high-efficiency lighting requirements. Output can be set to 400, 500, or 600 watts, allowing adjustment to site-specific needs.

0-10V dimming is supported for integration with compatible lighting controls. The aiming laser and visor assist with precise light placement and glare management during installation.

The polycarbonate lens and powder-coated aluminum housing provide durability in outdoor and industrial settings. The fixture maintains performance in a wide range of temperatures and weather conditions.

Power factor is .97, supporting efficient operation on both 50 and 60 Hz electrical systems.

Installation and Long-Term Use

The yoke mount allows for secure attachment to poles, walls, or custom brackets. The fixture?s weight and dimensions should be considered when planning mounting points and structural supports.

Wattage can be adjusted during installation or maintenance to match lighting requirements. The aiming laser assists with alignment, reducing setup time and improving accuracy.

The fixture is designed for long-term use, with a rated lifespan of 200,000 hours (L70). The powder-coated finish and IP66 rating protect against corrosion, dust, and water ingress.

Surge protection is built in, supporting reliability in areas with electrical fluctuations or lightning exposure.

How This Fixture Is Commonly Used

After installation, you can set the fixture?s wattage to 400, 500, or 600 watts based on the light level needed for your space. This allows for adjustment if site conditions or lighting requirements change over time.

The yoke mount provides flexibility for aiming the fixture during setup. The included aiming laser helps with precise targeting, especially when mounting at height or over long distances.

The visor can be used to control glare or direct light away from unwanted areas. Once installed, the fixture operates with minimal maintenance due to its sealed housing and robust construction.

0-10V dimming allows integration with compatible control systems, supporting scheduled or adaptive lighting strategies as needed by facility operations.

Safety, Certifications, and Warranty

This fixture is UL listed. It is rebate eligible.

IP66 rating protects against dust and powerful water jets, allowing use in exposed outdoor or wet environments.

IK08 rating provides resistance to moderate impacts, supporting use in areas where fixtures may be subject to physical contact.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on either 100-277V or 200-480V input.

What is the lumen output range?
Output ranges from 68,000 to 105,000 lumens, depending on the selected wattage.

What environmental ratings does this fixture carry?
This fixture is rated IP66 and IK08.

What mounting method is used?
The fixture uses a yoke mount.

Is this fixture UL listed and rebate eligible?
This fixture is UL listed and rebate eligible.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
