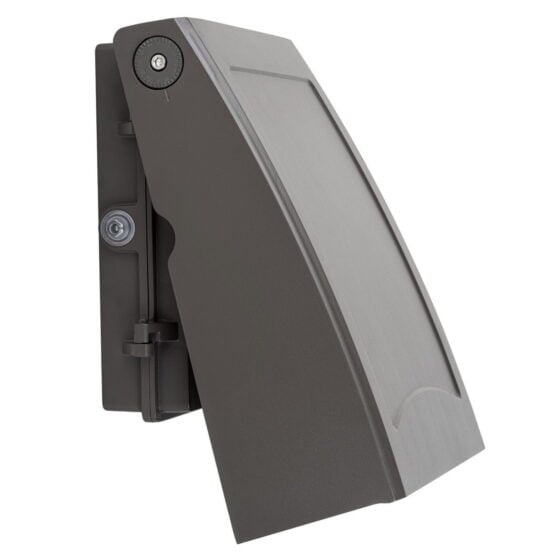

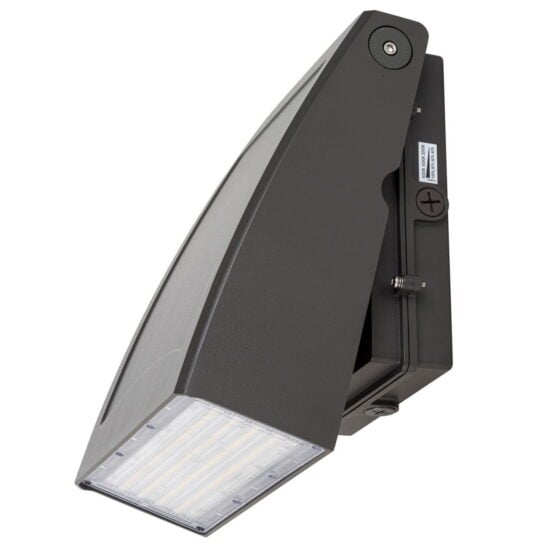

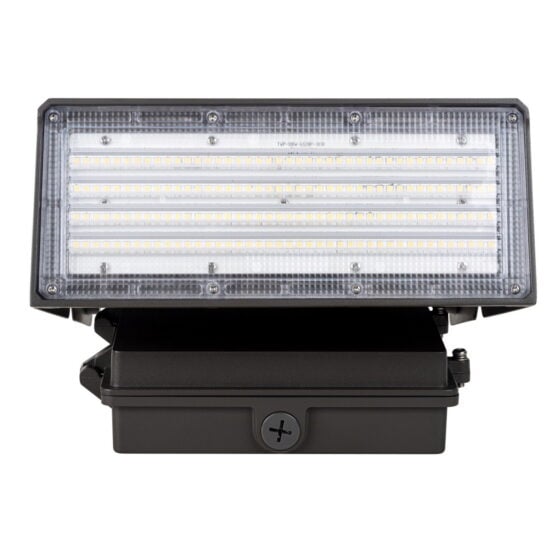

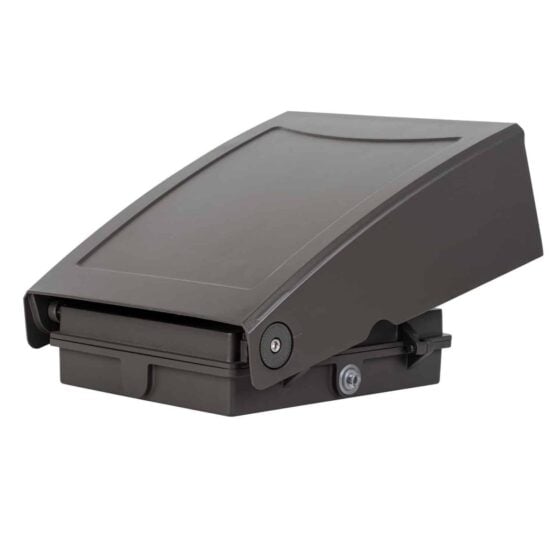

40 / 60 / 80 Watt Adjustable Full Cutoff LED Wall Pack | 5600 to 11200 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V | Adjustable LED Head | Built-In Photocell

Product Overview

This is a full cutoff LED wall pack with adjustable wattage settings of 40, 60, or 80 watts and selectable color temperatures of 3000K, 4000K, or 5000K. Output ranges from 5600 to 11200 lumens, with a maximum efficacy of 140 lumens per watt.

The fixture operates on 100-277V and supports 1-10V dimming. It is designed for wall mounting and features a die-cast aluminum housing with a polycarbonate lens. The built-in photocell supports dusk-to-dawn operation.

Dimensions are 9 inches long by 5.5 inches wide by 5.5 inches high, and the fixture weighs 4.85 pounds. The finish is bronze.

This wall pack is UL listed and rebate eligible. The IP65 rating allows use in outdoor environments exposed to rain and dust.

Where This Product Fits Best

This fixture is suitable for exterior wall lighting on commercial and industrial buildings where full cutoff performance is required. It is designed to replace 250 watt metal halide wall packs in retrofit or new construction applications.

It is appropriate for use in loading docks, building perimeters, walkways, and other outdoor areas where controlled light distribution and minimal uplight are needed. The adjustable output and color temperature allow adaptation to site-specific requirements.

The fixture can be used in environments with temperatures from -22°F to 113°F. The IP65 rating supports installation in locations exposed to rain, dust, and other outdoor elements.

Wall mounting is required. The compact size and weight allow installation on a variety of building surfaces.

Performance and Functional Considerations

The wattage can be set to 40, 60, or 80 watts, providing flexibility in light output from 5600 to 11200 lumens. This allows adjustment based on area size, mounting height, or lighting requirements.

Selectable color temperature (3000K, 4000K, or 5000K) supports adaptation to site preferences or compliance needs. The fixture delivers a CRI of 80+ for accurate color rendering in outdoor environments.

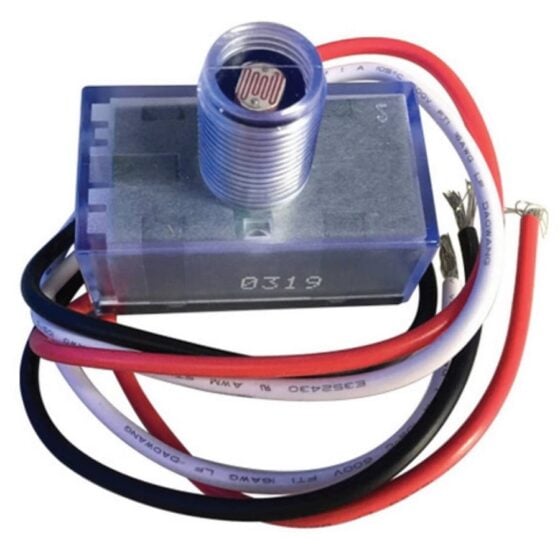

The 1-10V dimming capability allows integration with compatible dimming controls. The built-in photocell enables automatic dusk-to-dawn operation without additional external components.

The fixture is rated for 50,000 hours (L70) and has a power factor greater than 0.90 with total harmonic distortion under 20%.

Installation and Long-Term Use

This wall pack is designed for direct wall mounting. The die-cast aluminum housing and polycarbonate lens provide impact resistance and durability in outdoor conditions.

The IP65 rating allows the fixture to withstand rain, dust, and other environmental exposure. The operating temperature range supports use in both hot and cold climates.

At 4.85 pounds, the fixture can be handled by a single installer. The compact form factor allows installation in tight or constrained locations.

Long-term maintenance is minimized by the 50,000 hour rated life. The built-in photocell reduces manual intervention for on/off control.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match the lighting needs of the area. The adjustable head allows you to direct light where it is needed and minimize spill or glare.

The built-in photocell automates dusk-to-dawn operation, so the fixture turns on and off based on ambient light levels. This reduces the need for manual switching or additional controls.

Once configured, the fixture operates with minimal user interaction. The full cutoff design helps control light distribution and reduce uplight, supporting compliance with site lighting requirements.

Routine cleaning of the lens and periodic inspection of the housing are recommended to maintain performance in outdoor environments.

Safety, Certifications, and Warranty

This fixture is UL listed.

The product is rebate eligible.

The IP65 rating allows use in wet and dusty outdoor locations.

Operating temperature range is -22°F to 113°F.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the output range?
Output ranges from 5600 to 11200 lumens, depending on the selected wattage.

What environmental conditions can this fixture handle?
The fixture is rated IP65 and operates in temperatures from -22°F to 113°F.

What mounting method is supported?
This fixture is designed for wall mounting.

Is this fixture UL listed and rebate eligible?
This fixture is UL listed and rebate eligible.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.

Web ID: 2283
