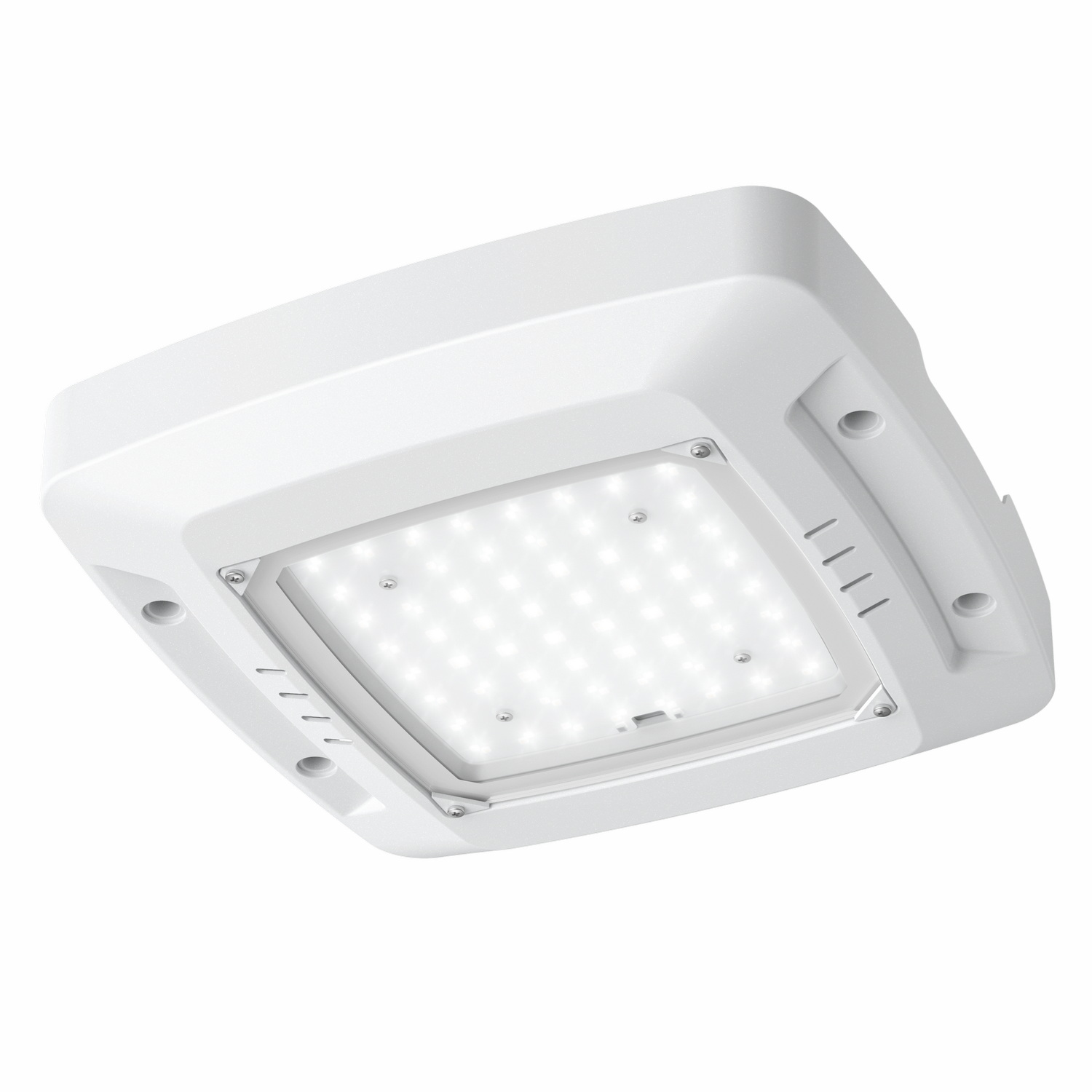

36 / 60 / 90 / 120 Watt Adjustable LED Canopy Light | 4860 to 16200 Lumens | 3000K / 4000K / 5000K Adjustable | 100-277V

Product Overview

This LED canopy light offers selectable wattage settings of 36, 60, 90, or 120 watts, delivering lumen outputs from 4860 up to 16200. The fixture supports color temperature adjustment between 3500K, 4000K, and 5000K.

It is designed for 100-277V input and operates at 50-60Hz. The fixture is constructed with a die-cast aluminum housing and finished in white. The standard beam angle is 120 degrees.

The fixture measures 14.5 inches by 14.5 inches by 2.5 inches and weighs 8.6 pounds. It is rated for a 150,000-hour L70 lifespan.

Mounting options include pendant and surface installation. The fixture is non-dimming and has a CRI of 70+.

Where This Product Fits Best

This canopy light is suitable for locations requiring a replacement for 250 or 400 watt metal halide fixtures. It is appropriate for covered outdoor areas, parking structures, loading docks, and drive-throughs where robust construction and adjustable output are needed.

The IP65 rating allows use in environments exposed to dust and water jets. The IK08 rating supports use in areas where moderate impact resistance is required.

Selectable wattage and color temperature make this fixture adaptable for facilities with changing lighting needs or where standardization across multiple areas is preferred.

It is compatible with electrical systems operating from 100V to 277V, supporting a wide range of commercial and industrial applications.

Performance and Functional Considerations

The fixture delivers 135 lumens per watt, supporting energy-efficient operation. Output can be set to 4860, 8100, 12150, or 16200 lumens, depending on the selected wattage.

Color temperature can be adjusted to 3500K, 4000K, or 5000K, allowing adaptation to site-specific visual requirements or user preference.

The power factor is greater than 0.90, and total harmonic distortion is less than 20%. The fixture includes 10kV surge protection for electrical reliability.

Operating temperature range is -22°F to 122°F, supporting use in both cold and hot environments.

Installation and Long-Term Use

Pendant and surface mounting options are supported. The fixture?s low profile (2.5 inches) and moderate weight (8.6 lbs) allow for straightforward handling during installation.

The die-cast aluminum housing provides durability in demanding environments. The IP65 rating means the fixture can be installed in locations exposed to dust and water jets without additional enclosure.

IK08 impact protection allows installation in areas where fixtures may be subject to moderate physical contact or incidental impact.

With a rated lifespan of 150,000 hours (L70), the fixture is designed for long-term operation with minimal maintenance requirements.

How This Fixture Is Commonly Used

After installation, you can adjust both the wattage and color temperature to match the lighting needs of the space. This is useful if requirements change over time or if you want to standardize fixture types across different areas with varying light levels or color preferences.

The fixture?s 120-degree beam angle provides broad, even coverage for canopy and covered outdoor applications. Once set, the fixture operates without the need for dimming or additional controls.

In day-to-day use, the fixture is relied on for consistent output and color, with no user adjustments required unless lighting needs change. The robust housing and environmental ratings allow for routine cleaning and maintenance without concern for water or dust ingress.

The fixture?s impact resistance and surge protection support reliable operation in high-traffic or exposed locations, reducing the risk of downtime due to accidental contact or electrical events.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

The IP65 rating allows the fixture to operate in environments exposed to dust and water jets. The IK08 rating means the fixture can tolerate moderate impacts without damage.

10kV surge protection is built in for electrical safety. The fixture is covered by a 5-year warranty from LED Lighting Supply.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the output range?
Selectable output ranges from 4860 to 16200 lumens, depending on the wattage setting.

What are the environmental ratings?
The fixture is rated IP65 for dust and water jet protection and IK08 for impact resistance.

What mounting methods are supported?
Pendant and surface mounting are supported.

Is this fixture DLC Premium qualified?
Yes, this fixture is DLC Premium qualified.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty on this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
