210 Watt LED High Mast Light | 29400 Lumens | 5000K | 100V-277V

Product Overview

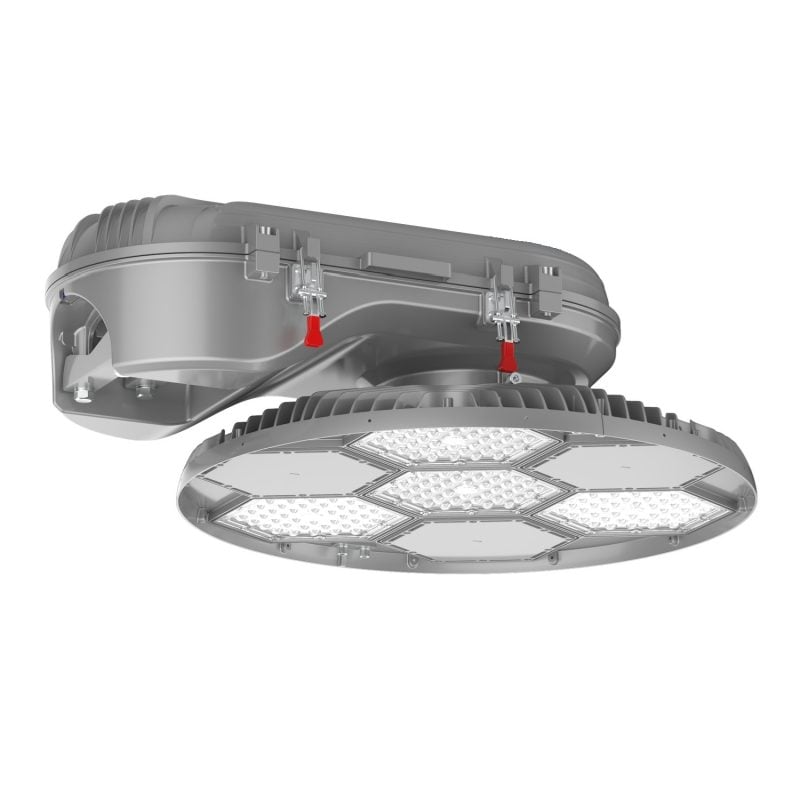

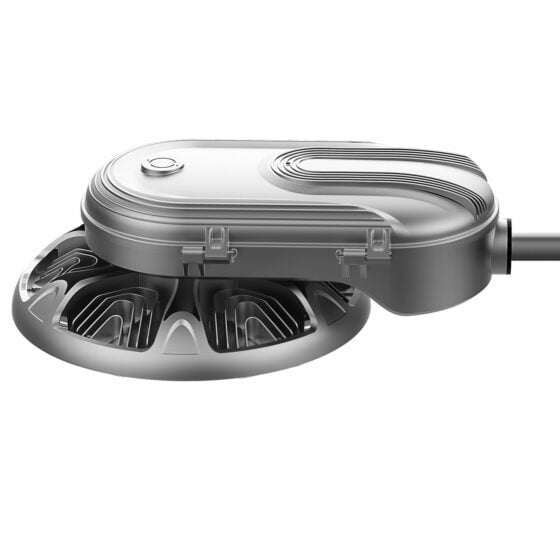

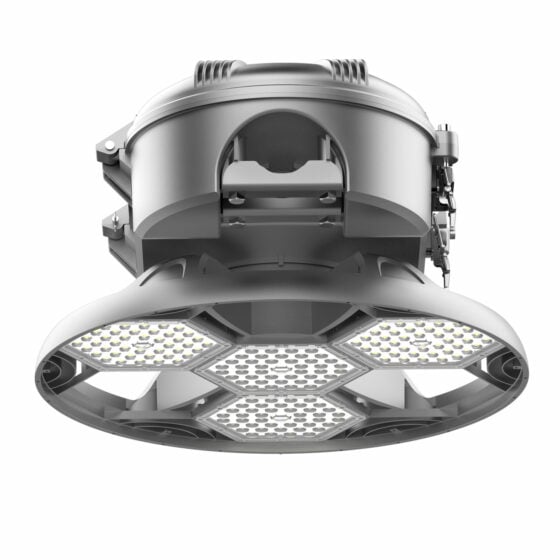

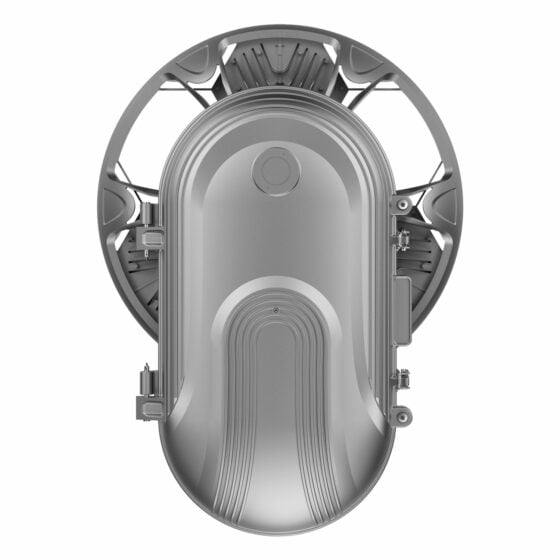

This 210 Watt LED high mast light delivers 29,400 lumens at 5000K. It is designed for pole mounting in outdoor or large-area applications where high output and wide distribution are required.

The fixture uses a die-cast aluminum housing with a polyester paint finish and prismatic glass optics. It is built to withstand harsh environments, including locations with salt exposure, and is rated for 5,000 hours of salt fog resistance.

High mast optics are engineered for wide distributions, supporting multiple pole layouts. The fixture is 3G vibration rated for use on structures subject to vibration, such as tall poles or bridges.

It supports 1-10V dimming and is compatible with 3/5/7-pin photocell controls. The mounting system includes an adjustable angle mount for a 2 3/8 in O.D. tenon, 4-bolt mounting, and safety cables.

Where This Product Fits Best

This fixture is suited for outdoor high mast lighting in environments requiring broad, uniform illumination. Typical applications include large parking lots, transportation terminals, ports, and sports complexes.

It is designed to replace 750 Watt metal halide fixtures, providing a significant reduction in energy use while maintaining high output. The fixture is compatible with 100V-277V electrical systems.

With an IP66 rating, the fixture can be used in locations exposed to rain, dust, and other challenging weather conditions. The IK08 rating allows installation in areas where moderate impact resistance is needed.

Salt fog resistance makes this fixture appropriate for coastal or industrial sites where corrosion is a concern.

Performance and Functional Considerations

The fixture delivers 140 lumens per watt and a total output of 29,400 lumens. It is available in 5000K color temperature with a CRI of 70+ for general outdoor visibility.

Beam angle options include Type 2, 3, 4, and 5 distributions, supporting a range of site layouts and pole spacings. The fixture operates at 50-60Hz with a power factor greater than 0.90 and THD less than 20%.

Surge protection is available at either 10 kVa or 20 kVa, supporting installation in areas with frequent electrical disturbances. The fixture is dimmable via 1-10V controls for integration with lighting management systems.

The 3G vibration rating supports use on tall poles or structures subject to wind or vibration. The fixture weighs 42 lbs, which should be considered for pole and mounting hardware selection.

Installation and Long-Term Use

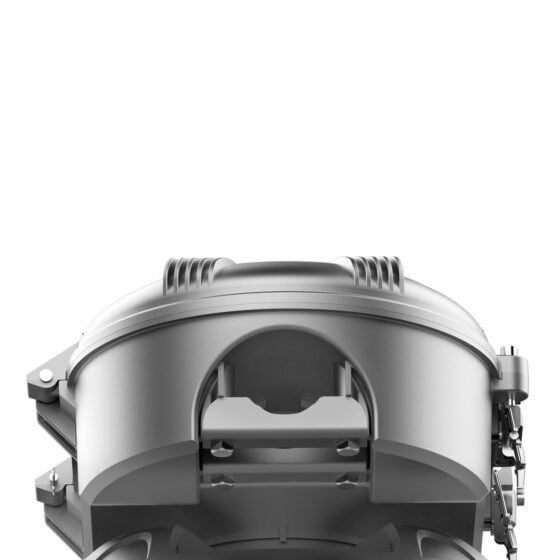

The fixture mounts to a 2 3/8 in O.D. tenon using an adjustable angle bracket. Four-bolt mounting and safety cables are included to secure the fixture to the pole and provide additional safety during installation and maintenance.

All housing components are constructed from aluminum alloy with a PC lens, supporting long-term durability in outdoor environments. The polyester paint finish and salt fog rating provide corrosion resistance for coastal or industrial sites.

The fixture is rated for 100,000 hours (L70), supporting long maintenance intervals. The IP66 rating allows for direct exposure to rain and dust without additional enclosure requirements.

Photocell control is supported via 3/5/7-pin receptacles, allowing for dusk-to-dawn operation or integration with site lighting controls as needed.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent, wide-area illumination for large outdoor spaces. The prismatic glass optics and high mast beam patterns help reduce glare and improve uniformity across the site.

The adjustable angle mount allows you to set the fixture?s orientation to match site requirements or to target specific areas. After aiming, the four-bolt mounting and safety cables keep the fixture secure during operation and in adverse weather.

Photocell control can be used for automated dusk-to-dawn operation, reducing manual intervention. The 1-10V dimming interface allows integration with lighting control systems for scheduled or adaptive dimming.

Routine maintenance is minimized due to the fixture?s long rated life and robust construction. The IP66 and IK08 ratings mean the fixture can be cleaned with standard outdoor maintenance procedures and will tolerate moderate impacts from debris or equipment.

Safety, Certifications, and Warranty

This fixture is UL listed.

The product is rebate eligible.

IP66 rating allows use in wet and dusty environments. IK08 rating supports installation in areas with moderate risk of impact.

Surge protection is available at 10 kVa or 20 kVa, supporting electrical safety in areas with unstable power.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V-277V.

What is the rated output?
The fixture delivers 29,400 lumens at 210 Watts.

What mounting method is supported?
The fixture mounts to a 2 3/8 in O.D. tenon using an adjustable angle bracket with four-bolt mounting and safety cables.

What certifications does this fixture carry?
This fixture is UL listed and rebate eligible.

What environmental ratings apply?
The fixture is rated IP66 for wet and dusty environments and IK08 for moderate impact resistance.

What is the expected lifespan?
The fixture is rated for 100,000 hours (L70).

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
