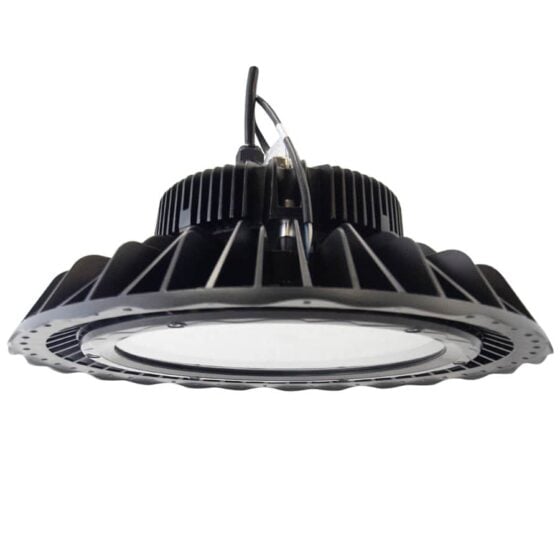

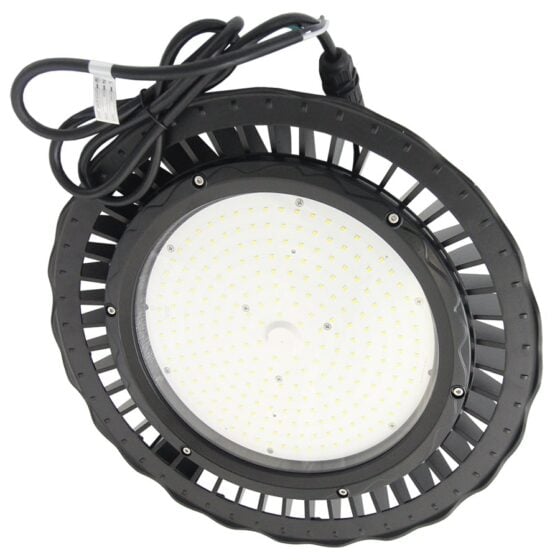

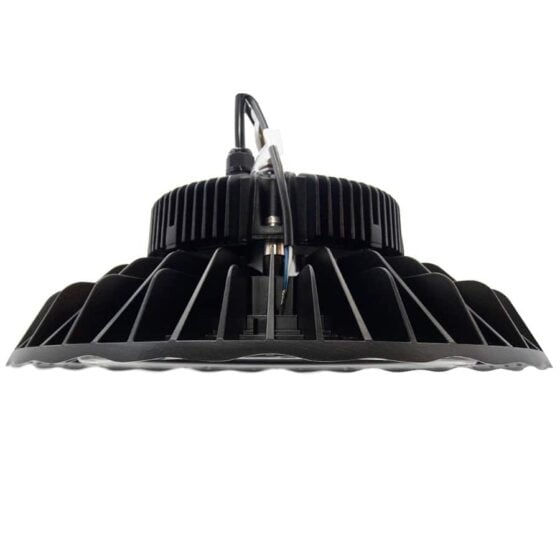

200 Watt LED UFO Light High Bay | 28000 Lumens | 5000K | 100V-277V

Product Overview

This 200 Watt LED UFO High Bay delivers 28,000 lumens at 5000K. It is designed for use on 100V-277V circuits and operates at 50 or 60 Hz. The fixture is built with an aluminum alloy housing and finished in black.

The standard beam angle is 120 degrees. The fixture supports 1-10V dimming and has a CRI of 70+. Power factor is .90 and maximum THD is 20%.

Fixture dimensions are 16 by 8 inches. The included cord is 5 feet long. The fixture is rated for a lifespan of 164,000 (L70) hours.

This high bay is intended to replace 400 Watt metal halide fixtures in commercial and industrial environments.

Where This Product Fits Best

This fixture is suitable for high bay applications in warehouses, manufacturing facilities, and distribution centers. It is also used in sports venues and other large indoor spaces requiring high-output lighting.

The 200 Watt output and 28,000 lumen rating make it appropriate for areas where a 400 Watt metal halide was previously installed. The 5000K color temperature provides a daylight-white appearance.

With an IP65 rating, the fixture can be used in locations exposed to dust and water jets. The IK08 rating allows use in areas where moderate impact resistance is required.

Compatible with 100V-277V power supplies, this fixture can be installed in a wide range of electrical systems without modification.

Performance and Functional Considerations

The fixture delivers 140 lumens per watt, providing high efficiency for large spaces. The 120-degree beam angle supports broad, even coverage in open areas.

1-10V dimming allows for integration with compatible dimming controls. The CRI of 70+ is suitable for general industrial and commercial tasks.

The fixture operates reliably in ambient temperatures from -22°F to 122°F. The aluminum alloy housing supports heat dissipation and long-term durability.

Power factor of .90 and THD below 20% meet typical requirements for commercial lighting systems.

Installation and Long-Term Use

This fixture supports both pendant and surface mounting. The 5-foot cord provides flexibility for connection during installation.

The IP65 rating allows installation in areas exposed to dust and water jets, such as loading docks or manufacturing floors. The IK08 rating provides resistance to moderate impacts.

With a rated lifespan of 164,000 (L70) hours, the fixture is designed for long-term operation with minimal maintenance. The aluminum alloy housing resists corrosion and physical wear.

Fixture dimensions of 16 by 8 inches should be considered when planning mounting locations and clearances.

How This Fixture Is Commonly Used

After installation, this fixture provides consistent, high-output lighting for large indoor spaces. The 1-10V dimming feature allows you to adjust light levels as needed for different tasks or occupancy patterns.

The 5000K color temperature produces a daylight-white light, supporting visibility and color recognition in work areas. The broad 120-degree beam angle reduces shadowing and helps maintain even illumination across open floor plans.

Routine operation does not require user intervention beyond standard cleaning and periodic inspection. The fixture?s impact and environmental ratings allow it to be relied on in demanding industrial settings without frequent attention.

Mounting options support both pendant and surface installations, so the fixture can be adapted to existing structures or new layouts as needed.

Safety, Certifications, and Warranty

This fixture is UL listed.

The product is rebate eligible.

IP65 rating allows use in environments exposed to dust and water jets.

IK08 rating allows use in areas where moderate impact resistance is required.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V-277V.

What is the output and intended replacement?
The fixture delivers 28,000 lumens and is designed to replace 400 Watt metal halide fixtures.

What mounting options are available?
This fixture can be mounted using pendant or surface methods.

What certifications does this fixture carry?
This fixture is UL listed and rebate eligible.

What are the environmental ratings?
The fixture is rated IP65 for dust and water jet exposure and IK08 for moderate impact resistance.

What is the rated lifespan?
The fixture is rated for 164,000 (L70) hours.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
