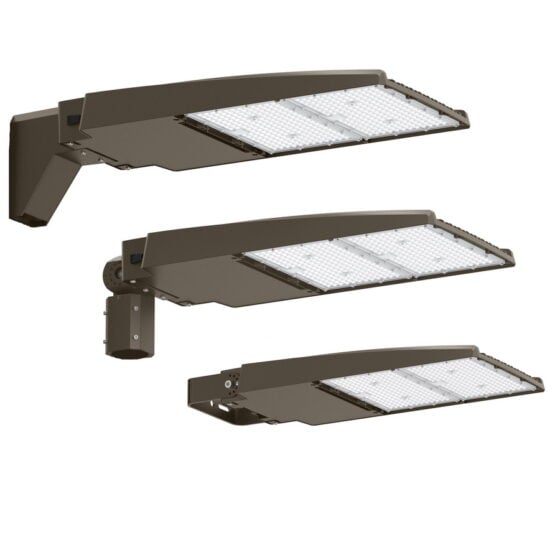

200 Watt LED Shoebox | 32000 Lumens | 10 Year Warranty | 5000K | 100V-277V

Product Overview

This 200 Watt LED Shoebox delivers 32,000 lumens at 5000K, designed for outdoor area and site lighting applications. It is built to replace 750 Watt metal halide fixtures and operates on 100V-277V input. A 277V-480V option is available.

The fixture uses a die-cast aluminum housing with a polycarbonate lens. It is available with Type 5 beam angle as standard, with Type 3 as an option. The fixture color is bronze.

It measures 24.61 inches long, 11.93 inches wide, and 3.22 inches high, with a weight of 15 lbs. The cord length is 5 feet.

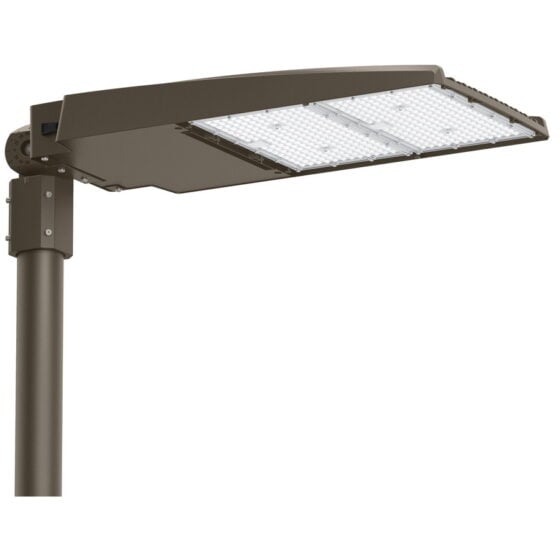

Mounting options include wall, yoke, arm, or slip fitter. The fixture includes surge protection rated at 6kV line-line and 10kV line-earth.

Where This Product Fits Best

This fixture is suited for outdoor parking lots, roadways, and general area lighting where a 750 Watt metal halide replacement is required. It is appropriate for commercial and industrial sites needing high-output, wide-area illumination.

It can be used in environments where IP65 and IK08 ratings are required. The fixture is suitable for locations exposed to rain, dust, and moderate physical impact.

Mounting flexibility allows installation on poles, walls, or other structural supports using the available mounting options. The EPA rating of 2 supports use in areas with wind load considerations.

Color temperature options of 4000K or 5000K allow selection based on site requirements for neutral or cool white light.

Performance and Functional Considerations

The fixture delivers 160 lumens per watt, providing high efficacy for energy-conscious operations. The 244,000 hour L70 lifespan supports long-term use with minimal maintenance.

It operates on 100V-277V input as standard, with an optional 277V-480V configuration for compatibility with higher voltage systems. Power factor is greater than 0.92 and THD is less than 15%.

Beam angle options include Type 5 for uniform distribution and Type 3 for forward-throw applications. The polycarbonate lens is impact resistant and suitable for outdoor use.

Motion sensor and photocell features are available for sites requiring occupancy or daylight response.

Installation and Long-Term Use

The fixture supports multiple mounting methods: wall, yoke, arm, or slip fitter. This allows adaptation to existing poles, walls, or custom brackets as needed.

Die-cast aluminum housing and IP65 rating allow installation in outdoor environments exposed to rain and dust. IK08 rating provides resistance to moderate impact.

Surge protection is built in, rated at 6kV line-line and 10kV line-earth, supporting installation in areas with electrical disturbance risk.

The 5-foot cord provides flexibility for connection during installation. The fixture weight of 15 lbs should be considered when selecting mounting hardware.

How This Fixture Is Commonly Used

Once installed, this fixture provides consistent, high-output illumination for parking lots, drive lanes, and outdoor areas. The wide beam angle covers large spaces evenly, reducing dark spots.

Operators can select between 4000K and 5000K color temperatures to match site lighting requirements. The fixture maintains output and color quality over its rated lifespan, minimizing relamping cycles.

Motion sensor and photocell features can be used to automate operation based on occupancy or ambient light, reducing manual intervention. The fixture does not support dimming.

Routine maintenance is limited to visual inspection and cleaning, as the fixture is sealed against dust and water ingress. The impact-resistant lens and robust housing reduce the risk of damage from incidental contact.

Safety, Certifications, and Warranty

This fixture is ETL listed and DLC Premium qualified.

It carries an IP65 rating, allowing use in wet and dusty environments. IK08 rating provides protection against moderate impact.

Surge protection is rated at 6kV line-line and 10kV line-earth.

LED Lighting Supply provides a 10 year warranty on this fixture.

Frequently Asked Questions

What voltage does this fixture support?

This fixture operates on 100V-277V input. A 277V-480V option is available.

What is the lumen output and wattage?

The fixture delivers 32,000 lumens at 200 watts.

What mounting options are available?

Mounting options include wall, yoke, arm, or slip fitter.

Is this fixture DLC Premium qualified?

This fixture is DLC Premium qualified.

What is the warranty period?

LED Lighting Supply provides a 10 year warranty on this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
